Feature:
1. Motion Modes: The brushless servo motor controller board supports speed, position, current, torsion, trajectory, and other motor control modes, with strong compatibility to meet more usage needs.
2. Encoder Type: The motor driver board supports incremental encoders (AB, ABI), absolute value encoders (SPI), Hall sensors (HALL), for AMT102, for AMT103, for TLB5012, for AS5047P, and other encoder types.
3. Parameters and Interfaces: The working voltage is 8?24V, the maximum current is 120A, and the continuous current is 70A. With USB, PWM, UART, CAN, analog input, step and direction, GPIO, ASCII comm interfaces.
4. Stable Performance: PCB integrated high current open skylight design, adopts thick copper layer and special process of immersion gold, with aluminum heat sink, greatly enhances continuous over current capability and improves stability.
5. Wide Application: Apply to robot joint control, robotic arm, food delivery robot, inspection robot, AGV car, 3D printing, pan tilt slide rail, CNC machine, force feedback simulator, industrial and automation control field, etc.
Specification:
Item Type: Brushless Servo Motor Controller
Hardware Version: For ODESC V4.2
Drive Motor: Brushless DC Motor (BLDC)
Brake Mode: Power Resistor, Battery Recycling
Microprocessor: For STM32F405RGT6
Working Voltage: 824V
Maximum Current: 120A
Continuous Current: 70A
Size: Approx. 63 x 58 x 30mm 2.5 x 2.3 x 1.2in.

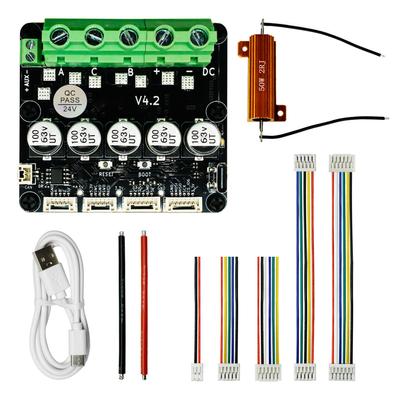

Package List:
1 x Motor Driver
1 x Type C Data Cable
1 x 50W 2 Ohm Power Resistor
2 x 12AWG Silicone Wires
1 x SH1.0mm 2P Single Head Wire
1 x SH1.0mm 5P Single Head Wire
1 x SH1.0mm 6P Single Head Wire
1 x SH1.0mm 5P Double Head Wire
1 x SH1.0mm 6P Double Head WireMotion Modes: The brushless servo motor controller board supports speed, position, current, torsion, trajectory, and other motor control modes, with strong compatibility to meet more usage needs.
Encoder Type: The motor driver board supports incremental encoders (AB, ABI), absolute value encoders (SPI), Hall sensors (HALL), for AMT102, for AMT103, for TLB5012, for AS5047P, and other encoder types.
Parameters and Interfaces: The working voltage is 8?24V, the maximum current is 120A, and the continuous current is 70A. With USB, PWM, UART, CAN, analog input, step and direction, GPIO, ASCII comm interfaces.
Stable Performance: PCB integrated high current open skylight design, adopts thick copper layer and special process of immersion gold, with aluminum heat sink, greatly enhances continuous over current capability and improves stability.
Wide Application: Apply to robot joint control, robotic arm, food delivery robot, inspection robot, AGV car, 3D printing, pan tilt slide rail, CNC machine, force feedback simulator, industrial and automation control field, etc.
