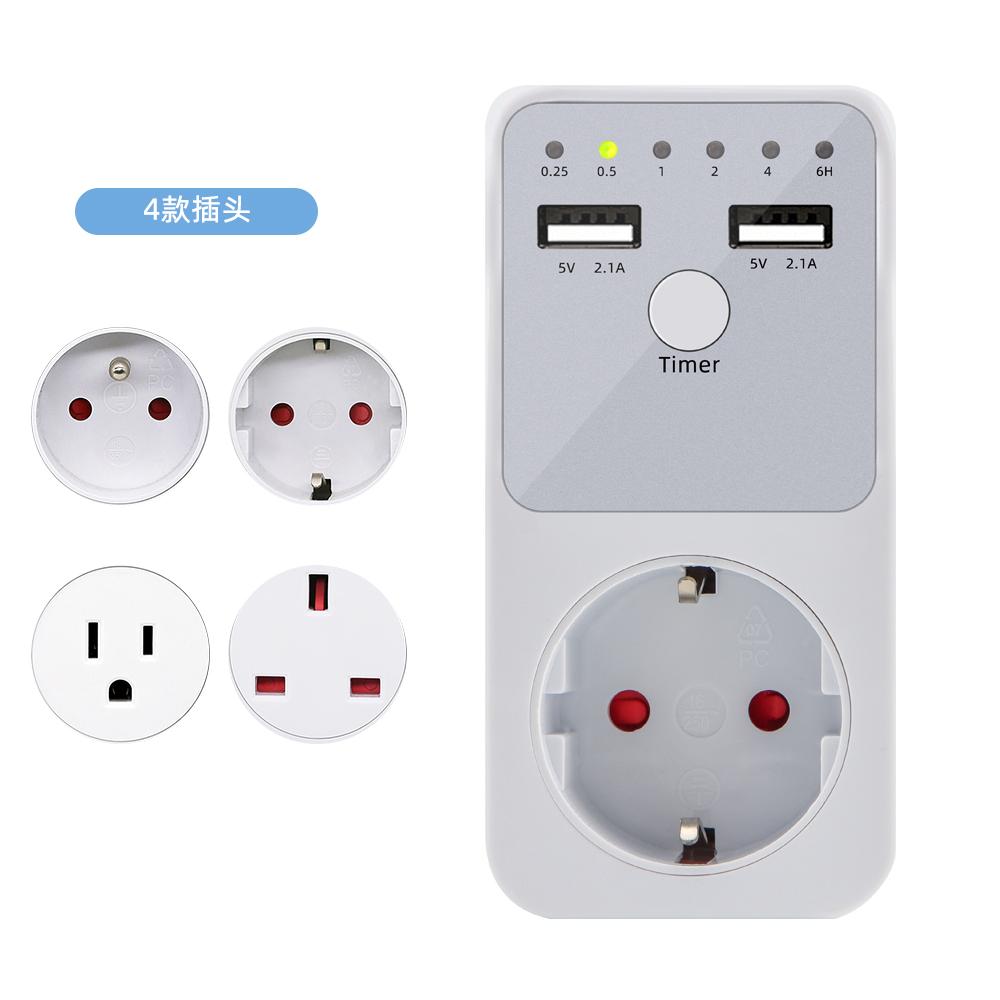

Multifunction Timer Socket UD02 Digital Timing Control Surge Protector Outlet Voltage Relay Switch Power Saving EU US FR UK Plug

Good luck with your favorite purchasesMultifunction Timer Socket UD02 Digital Timing Control Surge Protector Outlet Voltage Relay Switch Power Saving EU US FR UK Plug Feature: ltem Number:TMUSB01 Product Size: 108.5x54x69mm Voltage: 230V/50Hz Max load power: 3680w USB port Out Rating: 5V 2.1A Working voltage:180~260V AC Voltage frenquency:47~63Hz Working current:16A Time Range:Count down 1hour-10hours lP Level: IP20 Operation Temperature: o°C to +40℃ Time Accuracy:+-3min Shortest Switching Time: 1 hour Timer socket with 2 USB ports 5V 2.1A for charge Timer Control Time Adgustment : 1. Press the power switch 1 time,the 1HOUR LED will light on.The Timerinto ON mode,uSB and control socket output ON .

2. Continuously press the power switch the LED light on,the Countdownmode and LED light on will cycle change from

0.25HR,0.5HR,1HR,2HR,4HR,6HR.

3. Choose you need countdown time mode,the mode LED will lightoon,start countdown until countdown time finish,the control outputand uSB change to OFF

4. Then the countdown is start,The Time indicate LED will from high tolow auto change until Countdown finish off. Failure analysis: 1. check whether the power supply connection is good 2. check whether the uSB cable is loosen Warning Note: 1. Use indoor and dry location ONLY 2. The load max does not exceed 16A 3680w 3. This product does not convert voltage please do not miss use DO NOT exceed the maximum loading of 3680 watts16A 4. Always have earth connection for safety reason 5. lf in doubt please consult with a qualified electrician
