Good luck with your favorite purchases10A:• Rated Charge Current: 10A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 50V VOC• Max PV System Input Power: 120W (12V), 240W (24V)• USB Output: 5V 3A 20A:• Rated Charge Current: 20A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 50V VOC• Max PV System Input Power: 240W (12V), 480W (24V)• USB Output: 5V 3A 30A:• Rated Charge Current: 30A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 100V VOC• Max PV System Input Power: 360W (12V), 720W (24V)• USB Output: 5V 3A 40A:• Rated Charge Current: 40A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 100V VOC• Max PV System Input Power: 480W(12V),960W(24V)• USB Output: 5V 3A 50A:• Rated Charge Current: 50A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 100V VOC• Max PV System Input Power: 600W(12V),1200W(24V)• USB Output: 5V 3A 60A:• Rated Charge Current: 60A• Rated Discharge Current: 20A• System Voltage: 12V/24V Auto• Max Solar Input Voltage: 100V VOC• Max PV System Input Power: 720W(12V),1440W(24V)• USB Output: 5V 3A
Features:
* LCD display: LCD display setting is adopted, and the display timing setting corresponds to the LCD display, which can clearly observe the operation status of the equipment and facilitate the modification and setting of the operation parameters.
* Large-section wiring port: The wiring port with large cross-section and large spacing is adopted to increase the insulation performance and installation reliability, effectively reduce the circuit voltage drop and reduce consumption.
* Multiple USB charging ports: Support most USB port devices on the market, mobile phones, tablet computers, PSP game consoles, etc.
* Wide range of applications: Suitable for solar street lights, solar roofs, solar billboards, solar power generation systems, solar RVs, and solar awnings.
Specification:

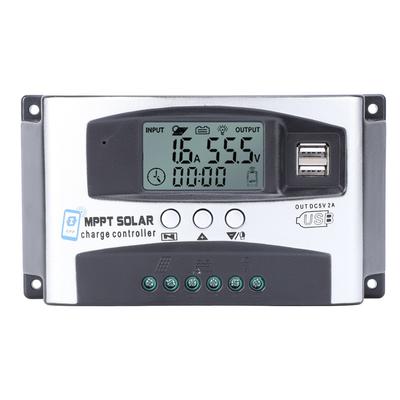

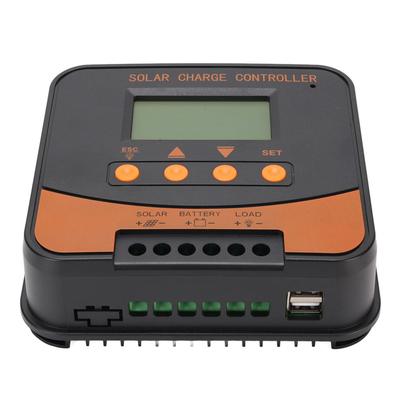

Name: Solar controller
System voltage: 12V/24 self-identification
No-load consumption: ≤0.4W
Maximum solar input voltage: VOC 50V
Battery voltage: 9-32V
Maximum power voltage range: battery voltage +2V~50V
Rated charging current: 10A
Rated load current: 20A
USB output: 5V/3A
Conversion efficiency: ≤98%
MPPT tracking efficiency: ＞99%
Temperature compensation coefficient: -2mv/℃/2V
Working temperature: -10℃~+65℃
Protection level: IP21
Dimensions: 130 * 130 * 58mm
Color: black + green
Packing included:
1 x Solar controller
