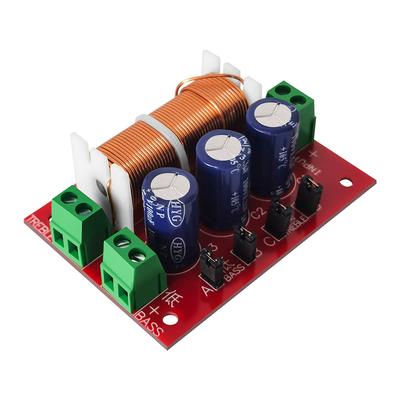

YLY-2088 400W Adjustable 2 Way Crossover Filters Module Audio Speaker Frequency Divider Full Range Treble Bass Welding Free
Feature:
1. Versatile:Our frequency divider is multi-purpose and fully adjustable, making it easy to use without any soldering. It can be used for high-frequency + low-frequency two-way speakers, 2.1-channel high-frequency satellite boxes and car full-range speakers, or even single high-frequency or single low-frequency. It allows for 4-16 ohm impedance speakers and supports up to 400W of power.
2. High-Quality Components:The frequency divider features pure copper jumpers with ABCD four positions and comes with four plug caps. It uses high-quality copper wire inductors, capacitors, and sockets, and a fiberglass circuit board. The high-frequency settings include weak/medium/strong, while the low-frequency settings include full sound/low sound/strong bass/medium sound.
3. Professional Soldering Technology:The frequency divider is made using professional point-soldering technology, with evenly sized and fully filled solder joints that shine brightly.
4. High-Quality Copper Wire Inductors:The frequency divider uses 0.8mm oxygen-free copper wire to wind pure copper wire inductors, and includes a 100uF large-capacity capacitor. It has a connection socket for easy wiring using a small screwdriver, and provides multiple combinations of 6dB circuits, allowing for various different crossover frequencies.
5. Reasonable Design:The frequency divider has a reasonable design, an exquisite appearance, and superior sound quality. Users can easily adjust the sound according to their own preferences.
Specification:
Model: YLY-2088
Frequency point: not located, determined by debugging
Power: 400W
Impedance: 4-16 ohms
Material: The inductor is wound with oxygen free copper, with a pure copper wire diameter of 08. Super large capacity capacitor, reasonable design, exquisite appearance, and comprehensive control of sound quality.
Size: 7x5x2.5cm/2.75x1.96x0.98inch
Weight: 75g
Instructions for use:
High and low split frequency wiring:
Input: Connect to the power amplifier or rear junction box;
TREBLE: Connected to a tweeter;
BASS: Connected to the bass speaker.
Wiring base twisting operation:
Use a small slotted screwdriver to loosen in a counterclockwise direction, slide the compression plate down, peel and insert the wire, and tighten clockwise.
Full frequency coaxial connection method:
Connect the speaker to the BASS/bass position, and then find a small wire to connect from the positive pole of the bass to the positive pole of the tweeter.
Warm Tips:
The manual tightening force will be stronger than the fixed feet of the wiring base to avoid deformation. When tightening, use your fingers to pinch the wiring base to tighten it. In case the compression plate cannot be tightened due to being too loose, turn the frequency divider upside down, screw in the compression plate, and then return to the wiring.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Speaker Frequency Divider
