Features:
* Brand new and high quality
* Made of high quality materials,
* GO100 is a high- for precision GNSS antenna that supports the four major global navigation of GPS GLONASS BDS and for Galileo, and supports GPSL1 L2 GLONASS G1G2 Beidou B1B2B3 and for Galileo E1 E5b. The antenna has the characteristics of high gain, good gain at low elevation angles, large circular polarization angle, and stable phase center. It is suitable for high- for precision surveying and mapping, and is widely used in automated agriculture, geodetic surveying, road construction, survey, terminal container operations and other occasions. The new GO100 uses a high-strength ABS shell and a waterproof design that can greatly extend the life of the antenna.
* The antenna part adopts a multi-feed point design to for ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;
* The antenna unit has high gain and wide beam pattern, the reception of signals at low elevation angles, and can still search for stars normally in some situations with severe obstruction;
* High and low temperature resistance, waterproof, and anti- cover provide protection for the antenna when working in the field for a long time.
Specification:
Antenna specifications:
Working frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 GalileoE1/E5b
Polarization type: RHCP
Impedance: 50Ω
Horizontal coverage angle: 360°
Output standing wave ratio: ≤1.5
Antenna AR: ≤3dB
Phase center error: ≤2mm
Low Noise Amp lifier Specifications
for LNA gain: 40±2dB
Noise figure: ≤1.5dB
Output standing wave ratio: ≤1.5
Working voltage: +3V~+15V
Working current: ≤45mA

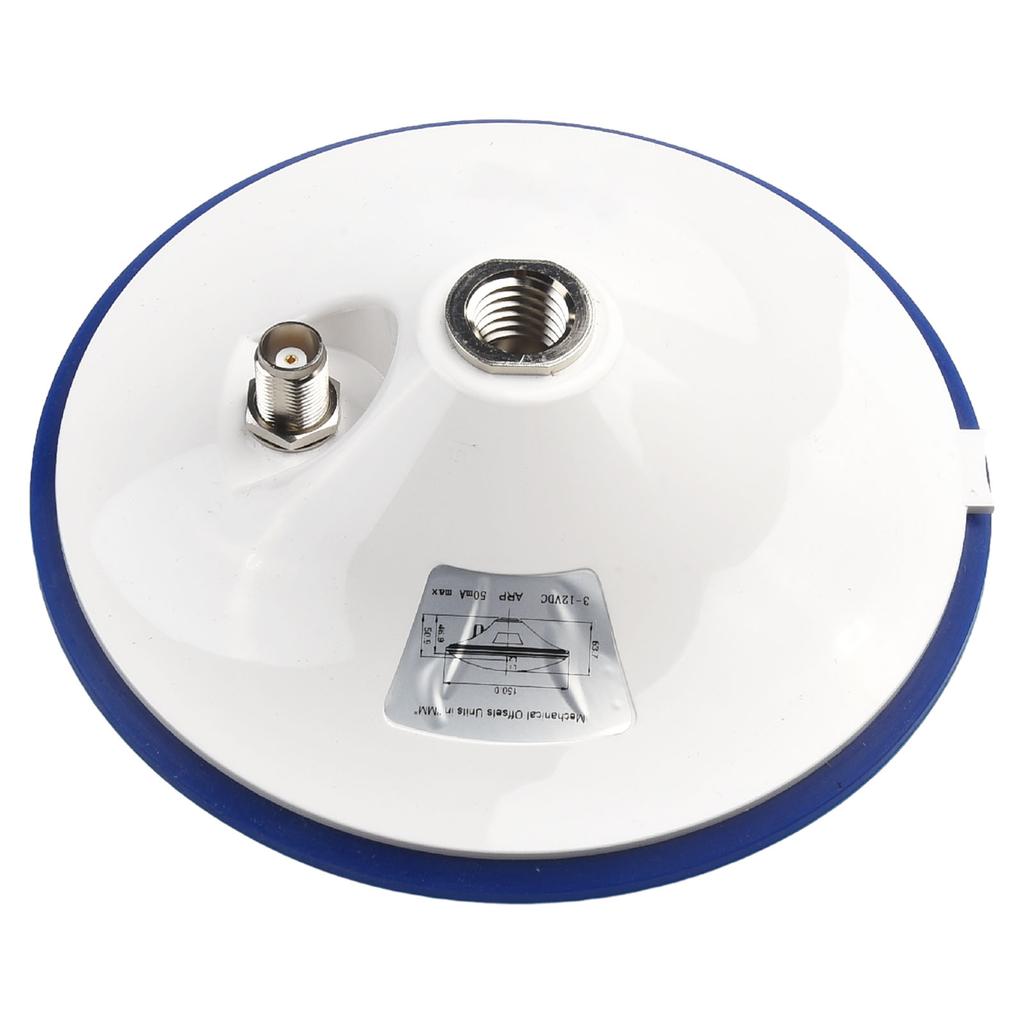

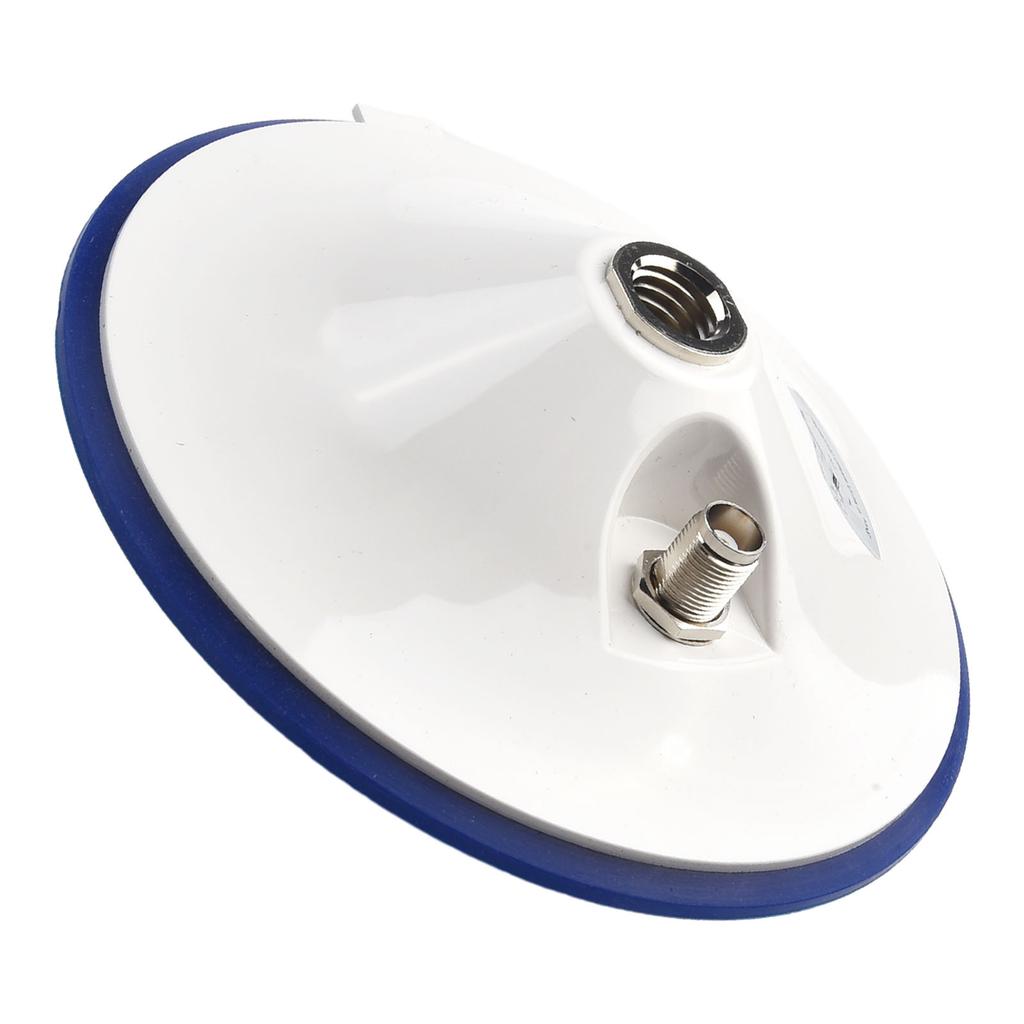

Connector: TNC-K
Antenna size (mm): Ф150mm×63.7mm
Weight (g): 380g
working environment:
Working temperature (℃)-40℃: ~+70℃
Storage temperature (℃)-55℃: ~+85℃
Waterproof grade: IPX67
Package Included:
1 * QT150 GNSS Antenna
