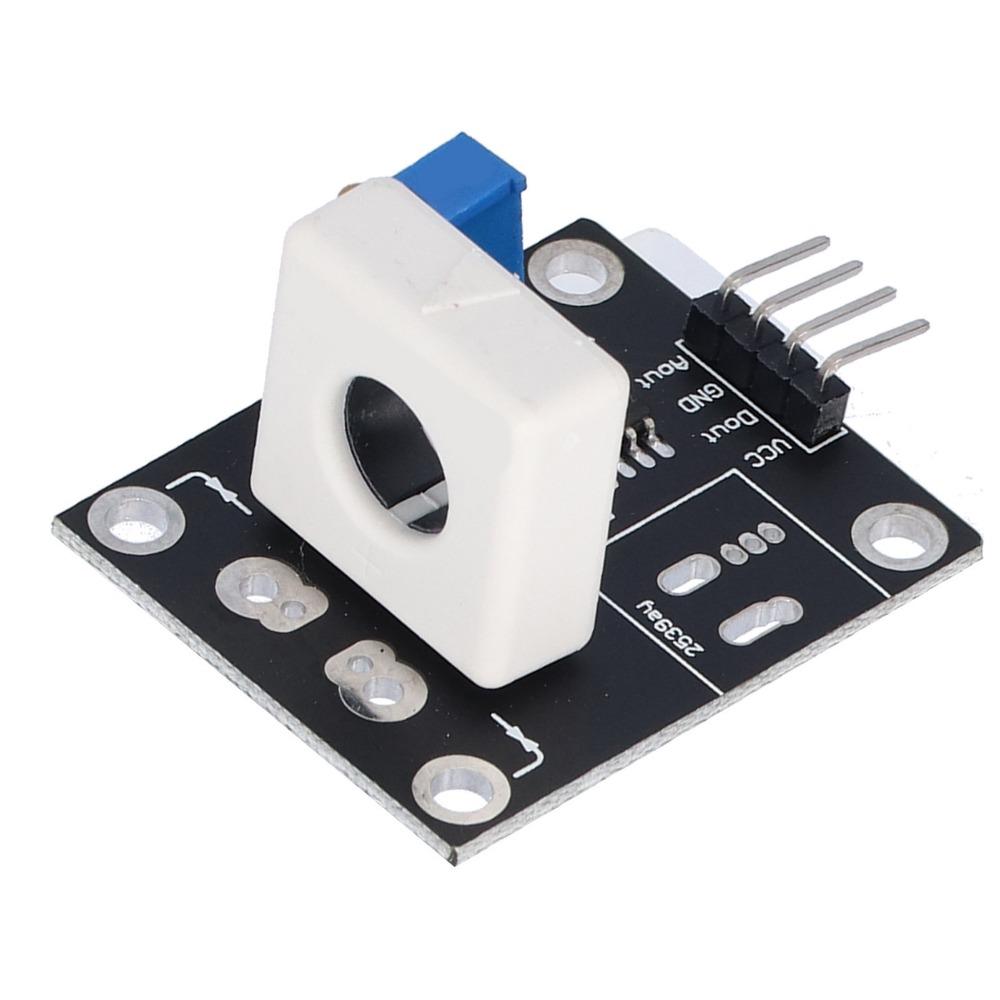

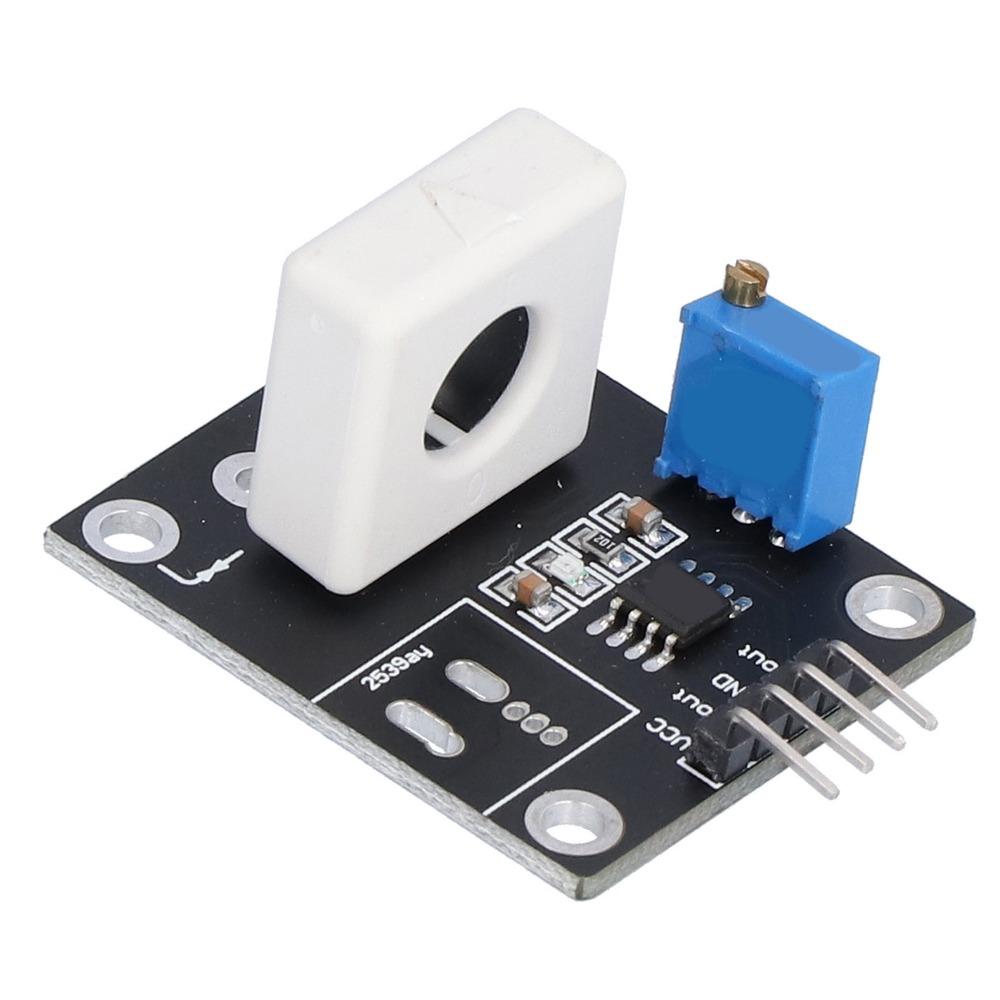

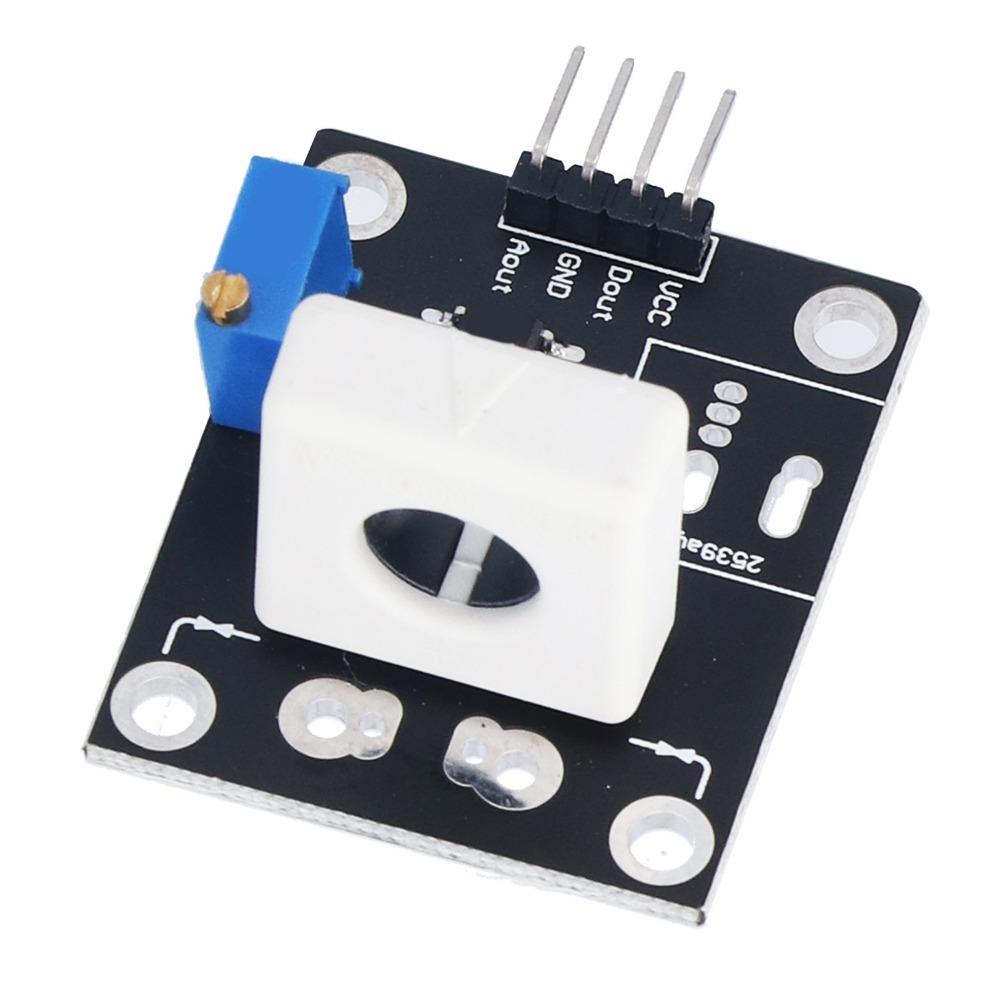

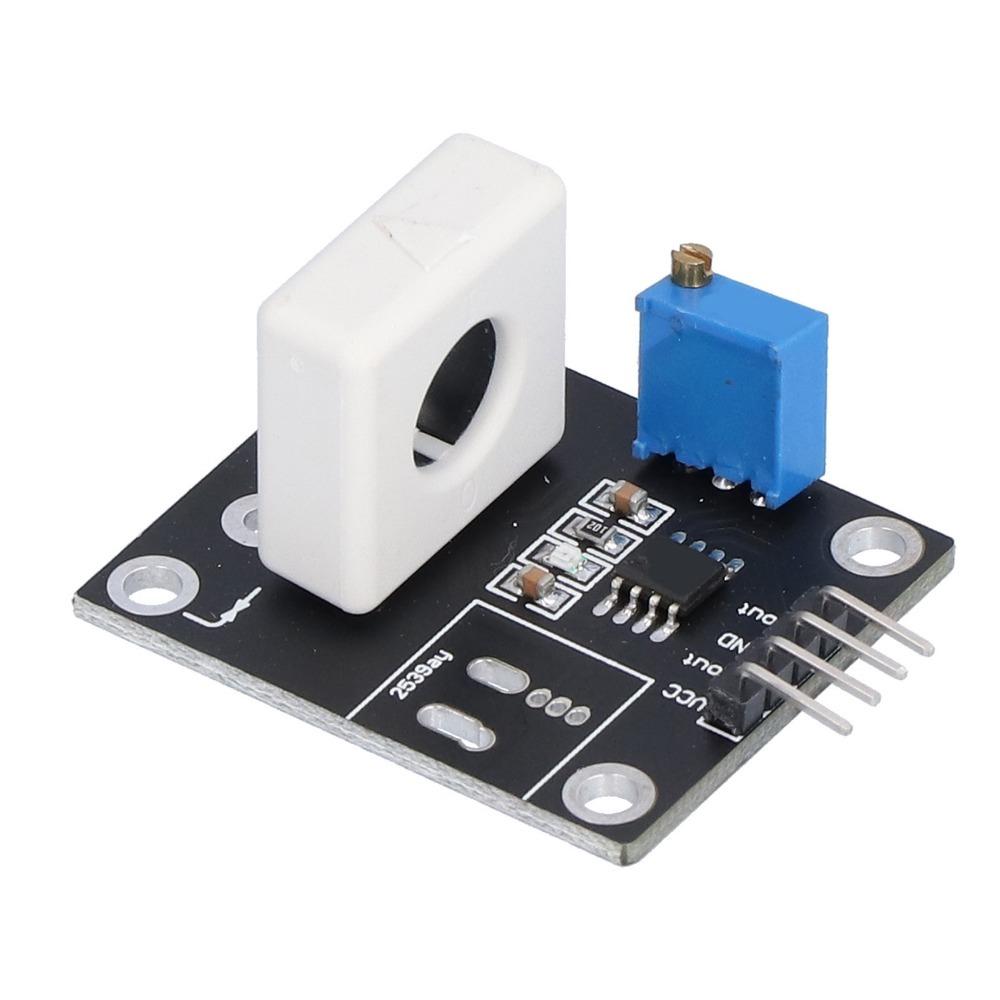

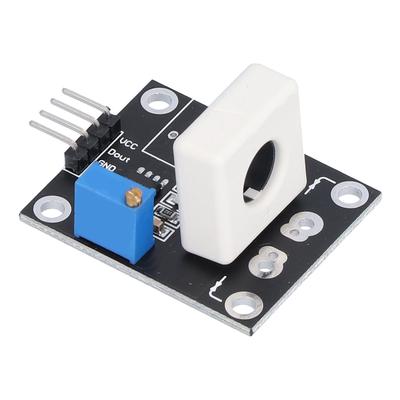

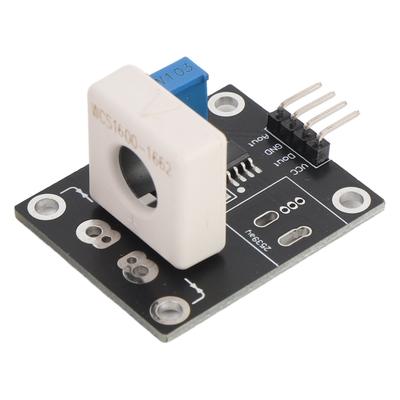

WCS1600 Hall Current Sensor DC5V DC100A Current Sensor Module for LM393 Operational Amplifier Adjustable

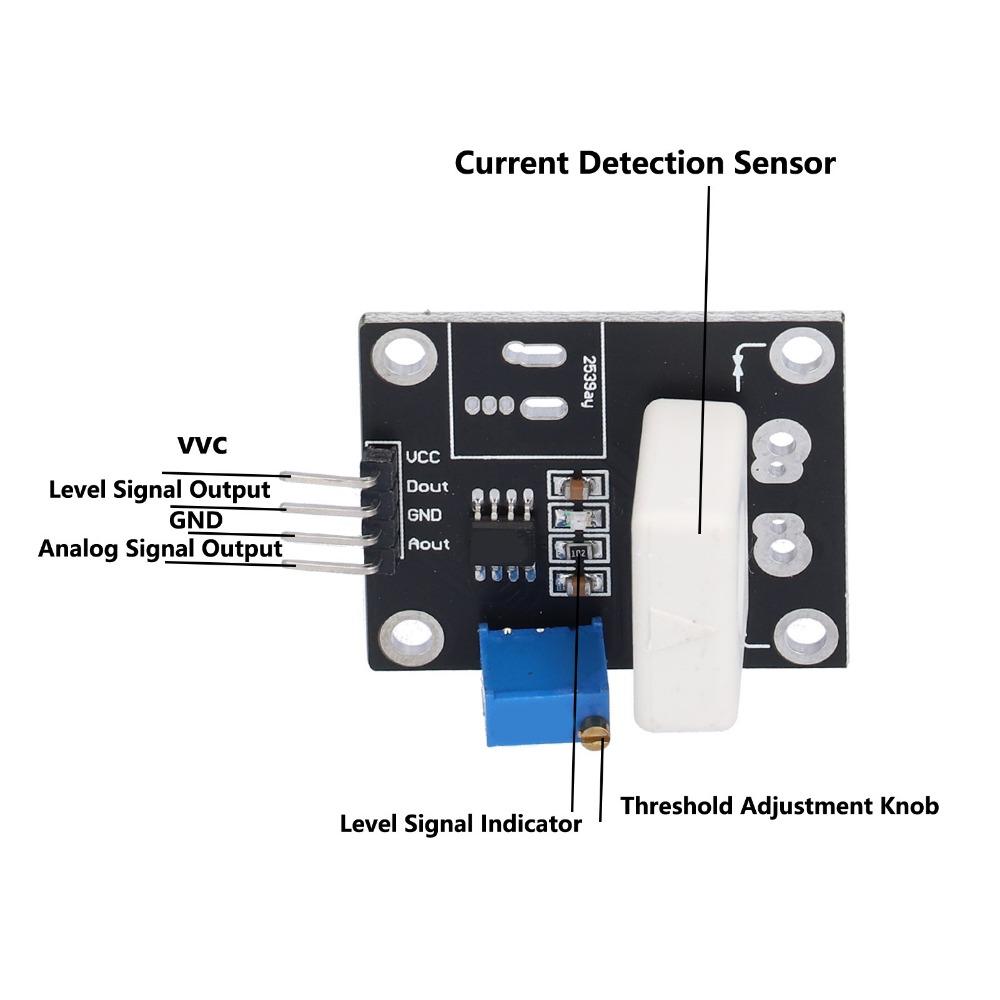

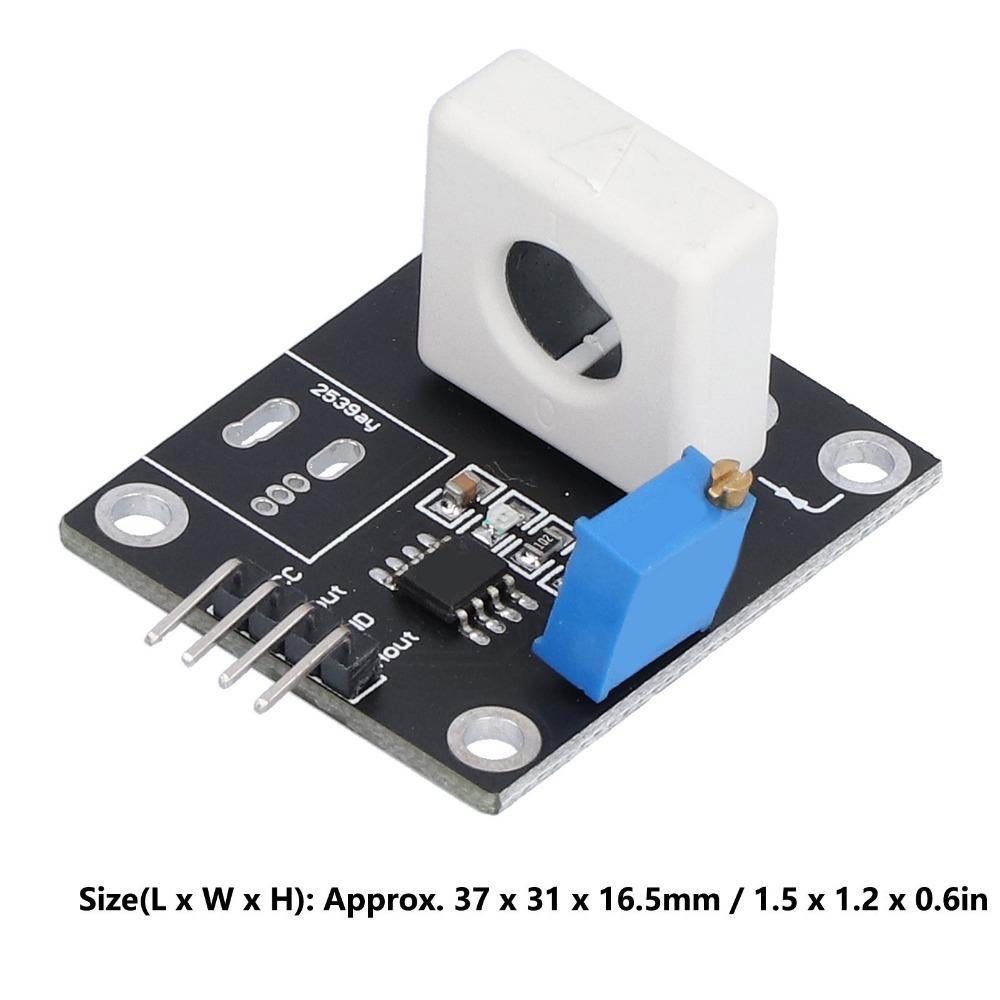

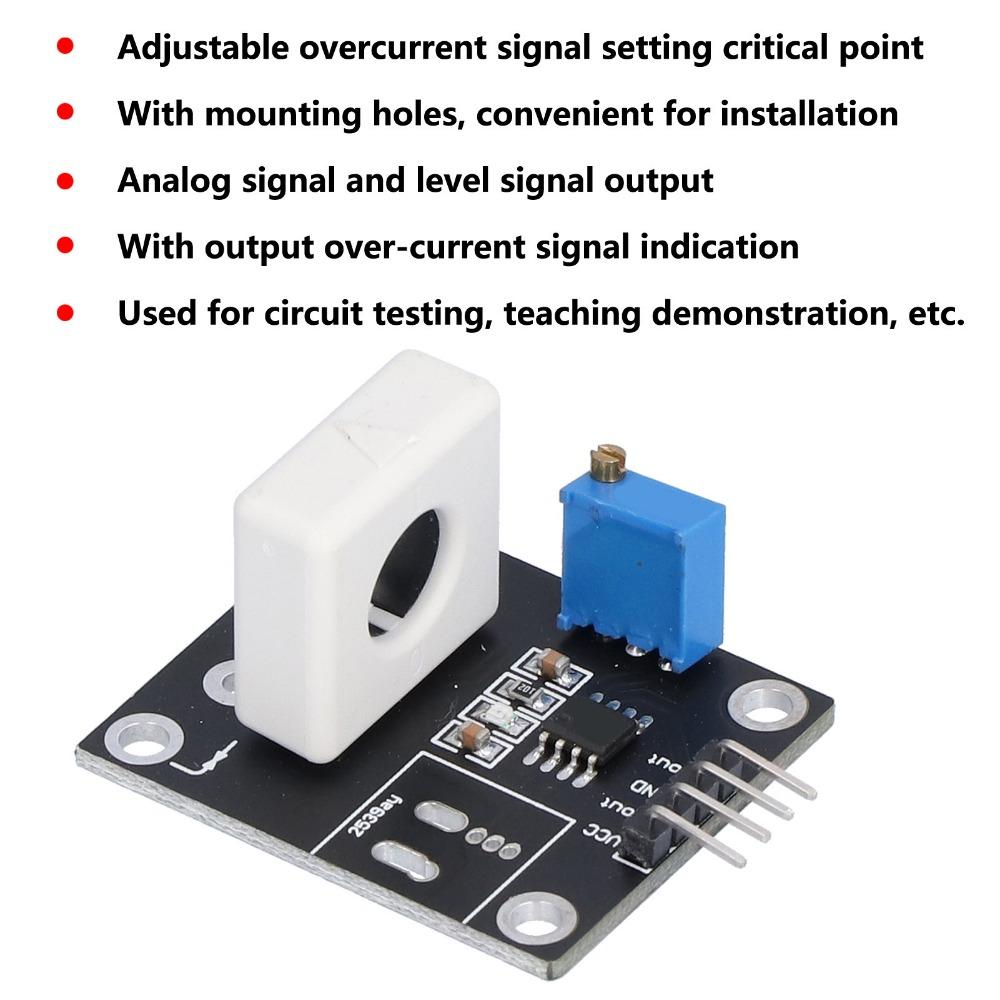

1. Detection Range & Resolution:The detection range of WCS1600 current sensor module is DC±100A, and the current detection resolution is 22mV/A. 2. Adjustable Over-Current Threshold:Over-current trigger point is adjustable with a setting resolution of 3A. 3. Output Signals & Compatibility:Sampling current conversion analog signal output, can be connected to analog-to-digital converter, TTL level signal output, MCU IO port control 4. Dual Output with Visual Indicator:The output signal is analog and level signal, with signal output indicator, providing output over-current signal indication. 5. Mounting Convenience:The current sensor module has mounting holes for easy firmware installation and removal. Specifications: Item Type: Current Sensor Module Size(L x W x H): Approx. 37 x 31 x 16.5mm / 1.5 x 1.2 x 0.6in Main Chip: LM393 OP Amp Working Voltage: 3-5V (recommended 5V power supply) Power supply current: 3.5mA Working temperature: -20-125 ℃ Limited current range: 1.5A-100A Current Detection Range: DC±100A Current Detection Resolution: 22mV/A Output Signal: Analog signal and level signal Bottom plate color: Black Application: Intelligent car motor over-current detection, locked-rotor protection current detection, short-circuit protection detection, demonstration teaching experiment and other situations, convenient for secondary development

Package List: 1 x Current Sensor Module
