Opener Transmitter+Receiver Learning Code(1527) Gate Garage ABS 2CH 433MHz Relay Wireless Remote Control Switch

Features:

*Gate Garage Opener Remote Control Switch 5pcsTransmitter+Receiver Set *It has 2 waysrelays which can make equipment turn or reverse, on/off and so on come true. *Each wireless remote control has 2 programmable function keys. *The output way/working way can be changed as you like. *Widely used in auto door, casement, lifting equipment, entrance access, up and down controller, alarm  industrial control and security .

Specifications:

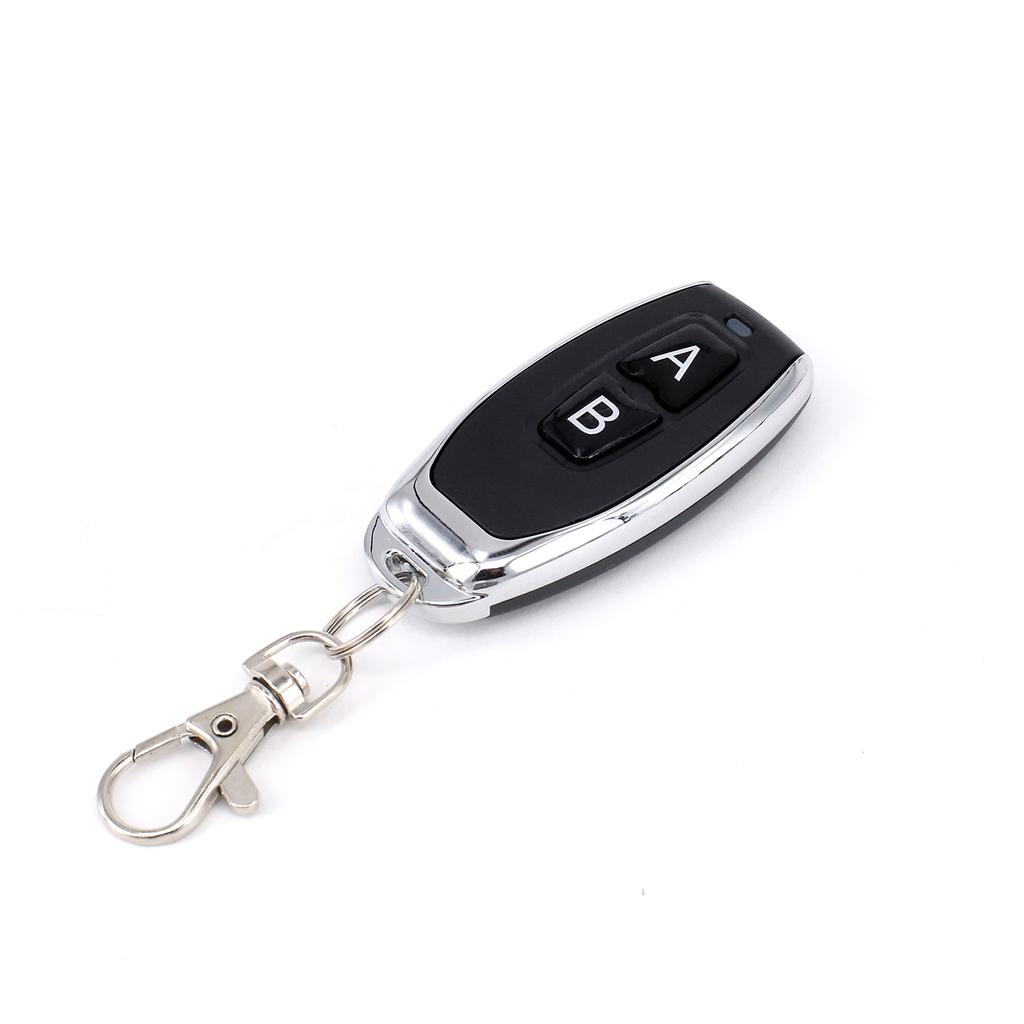

Remote Control: *Item Condition:   *Material:ABS *Color:As Pictures Show *Dimension:5*3*1.3cm/1.97''x1.18''x0.51''(Approx.) *Remote control power supply:2*3V for CR2032 button battery(Not included) *Working frequency:433MHZ *Key:2 Keys *Transfers distance: 50m-100m (in the open space)

Receiver: *Working voltage:DC 12V *Static current: ≤ 8.5mA *Working frequency: 433 MHz *Receiving sensibility: > 97 dBm *Modulation mode: ASK *Encode mode: Learning code(1527) *Decoding mode: MCU software decoding *Wiring type: Fixed terminal *Switch output: Normally open & Normally closed. *Working temperature: -30degree Celsius~ 80degree Celsius

Output working way:

1. Jog/Non-Latched: Press  button is Working /ON. Loosen your finger on same button is Stop/OFF. for channel switch need  buttons remote control. 2. Self -lock/Self-Latched: Press  button for  time is working/ON. Press  same button again is stop/OFF.   switch need  buttons remote control. 3. Inter-lock /Latched: Press  button is working/ON, press another button is stop/OFF. for channel switch need 2 buttons remote control. 4. Delay: Press remote control 's  button,relay is working,release remote control and begin timekeeping,after 5s/10s/15s will automatically close the relay. Instructions:

Jog: Press and hold the remote control button, the relay is on; release the button, the relay isoff. Self -lock: Press the remote control button, the relay is on; pressthe button again, the relay isoff. Inter-lock: Press of the buttons of theremote control, the relay is on; press another  , the relay isoff.

Learning Methods:

Learning ( two-way learning): Press the learningswitch andrelease, the green light is on, press the remote control "1" button to learn, the green light flashes and then goes off,which meansthat this button is completed learning.The second learningwayis the same as the first.

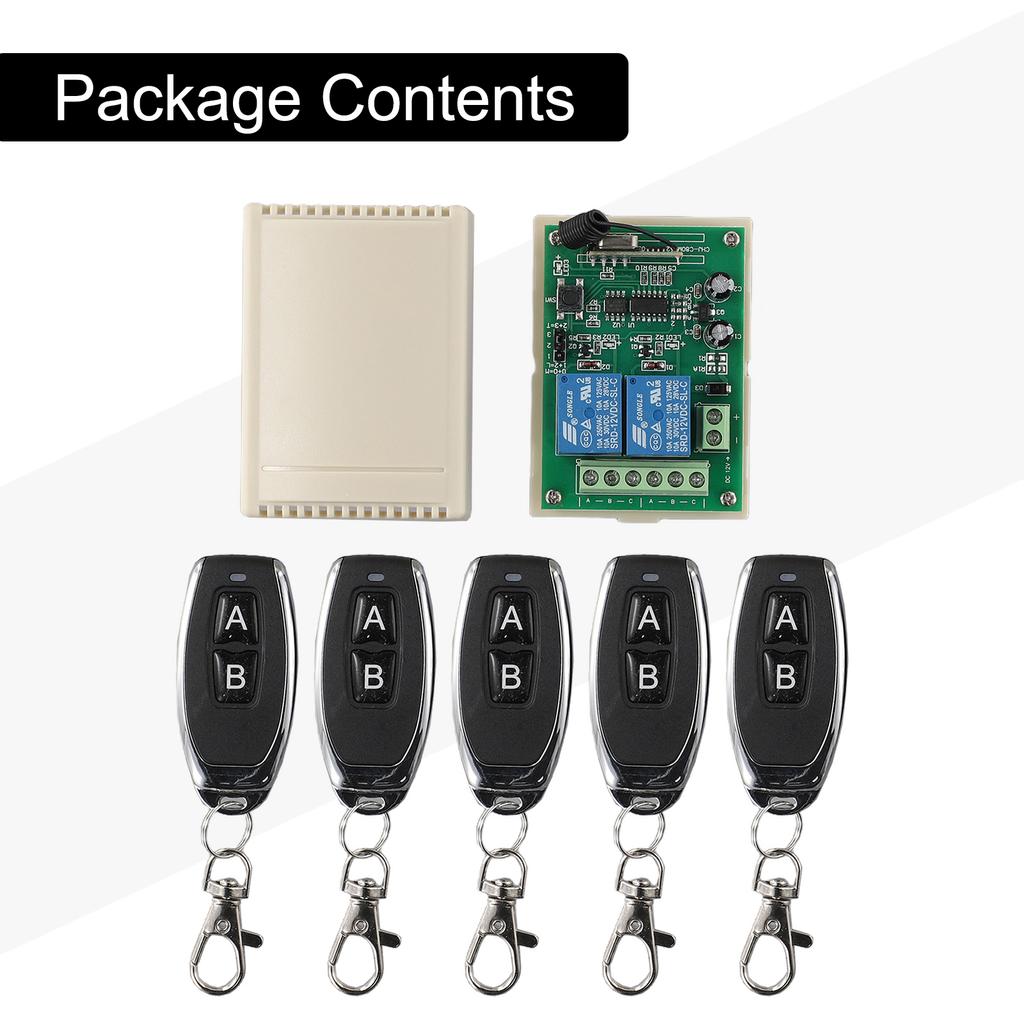

PackageContents:

1*Receiver with shell 5*Remote Controllers

Notes:The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
