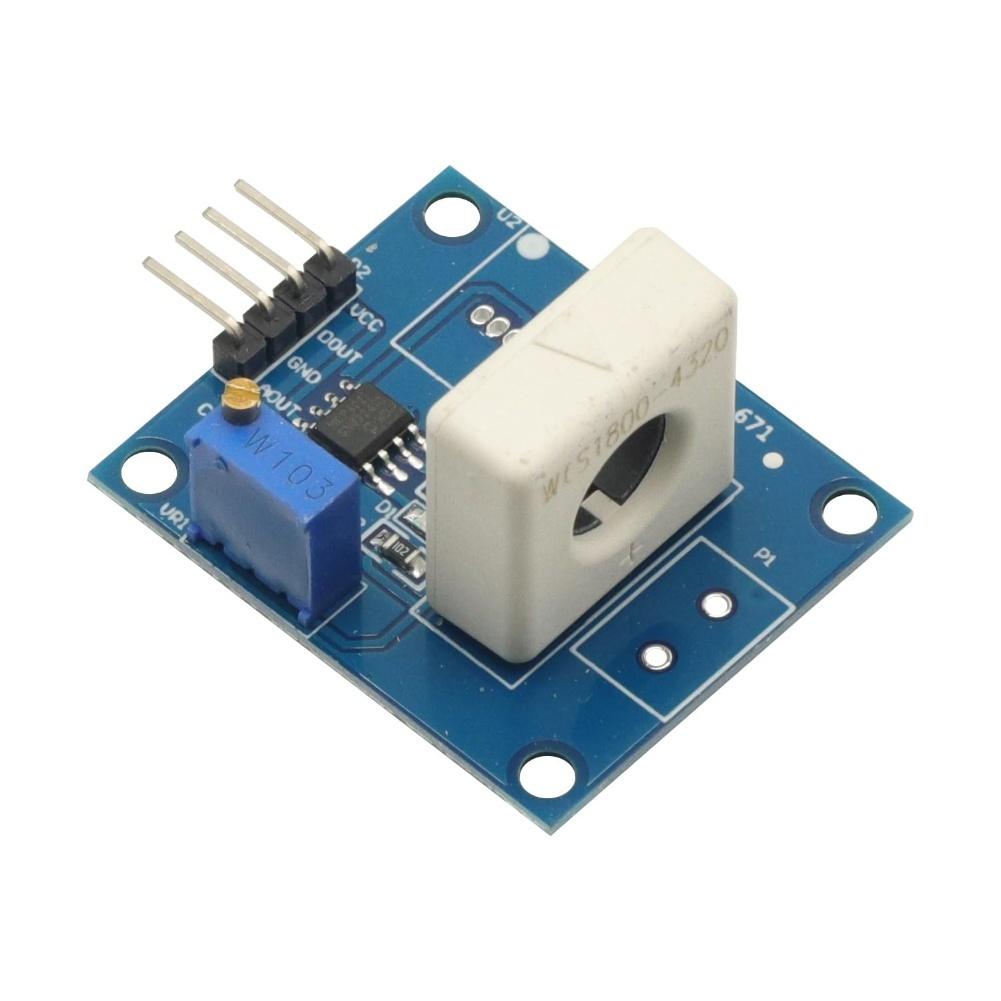

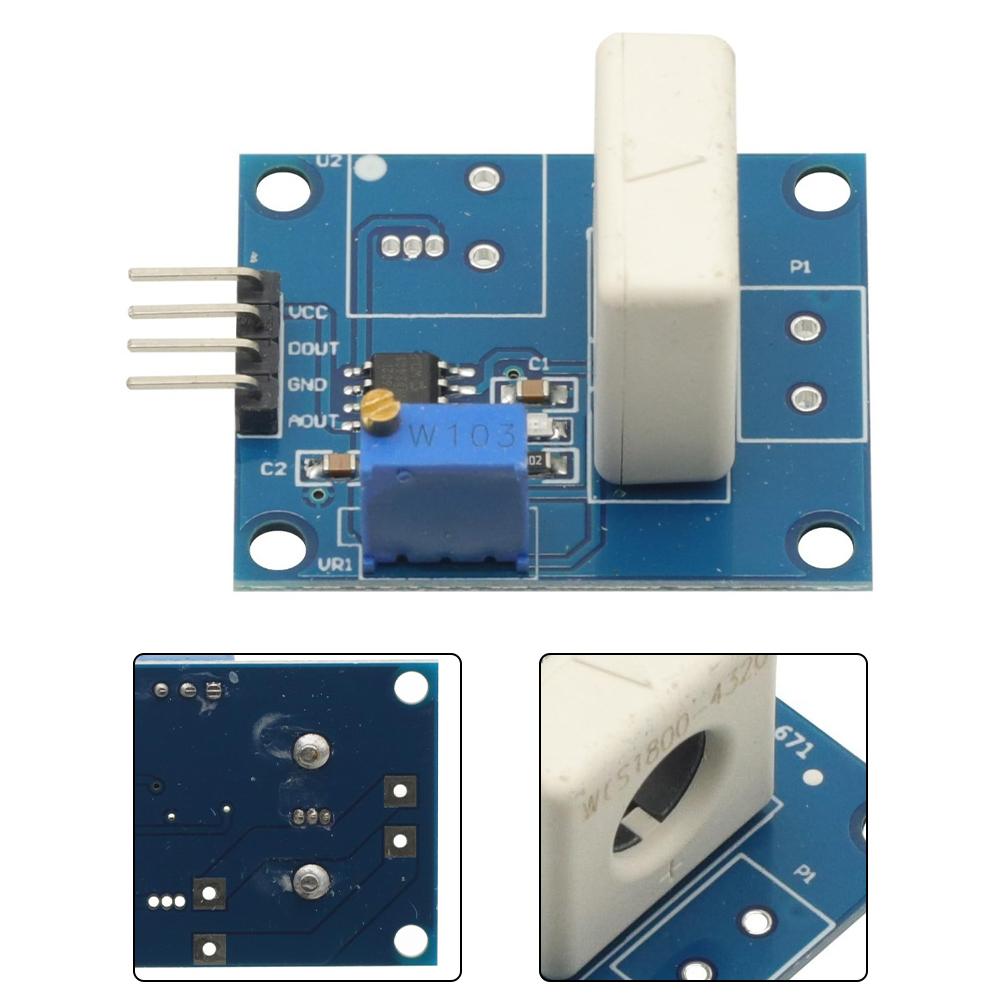

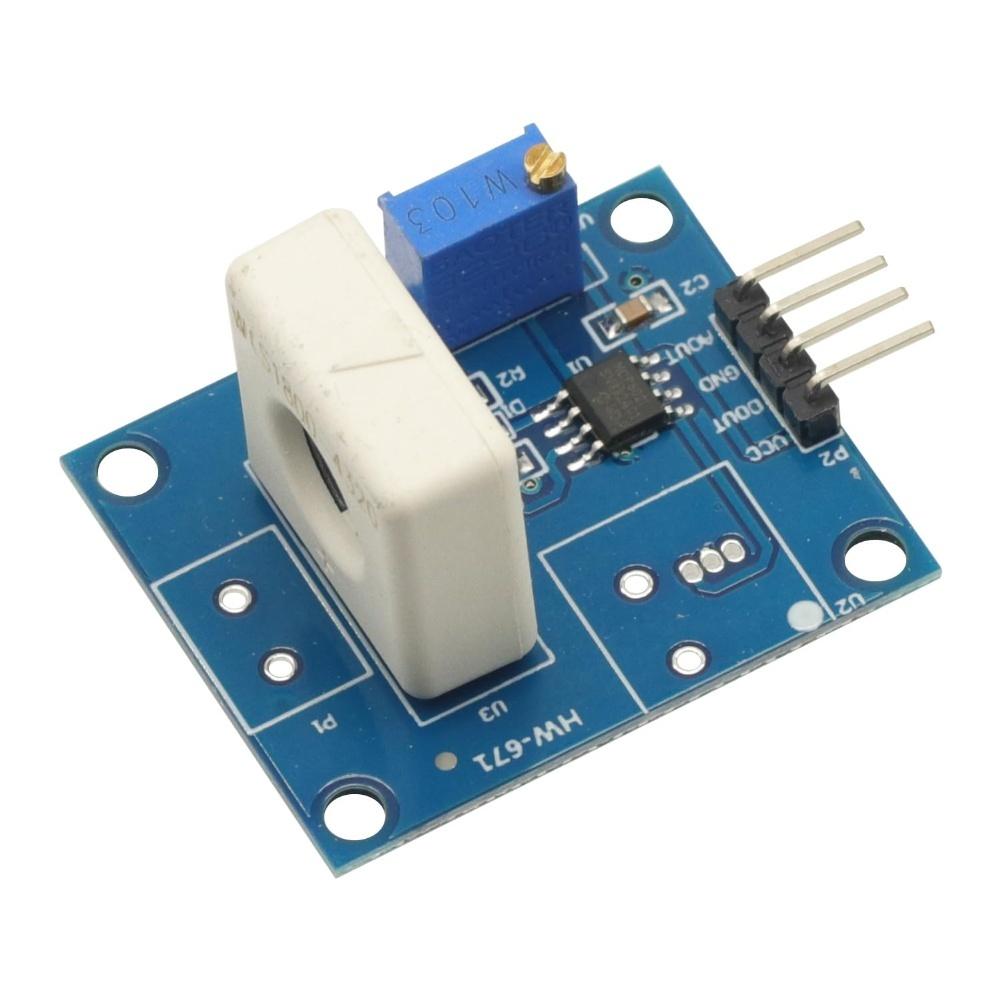

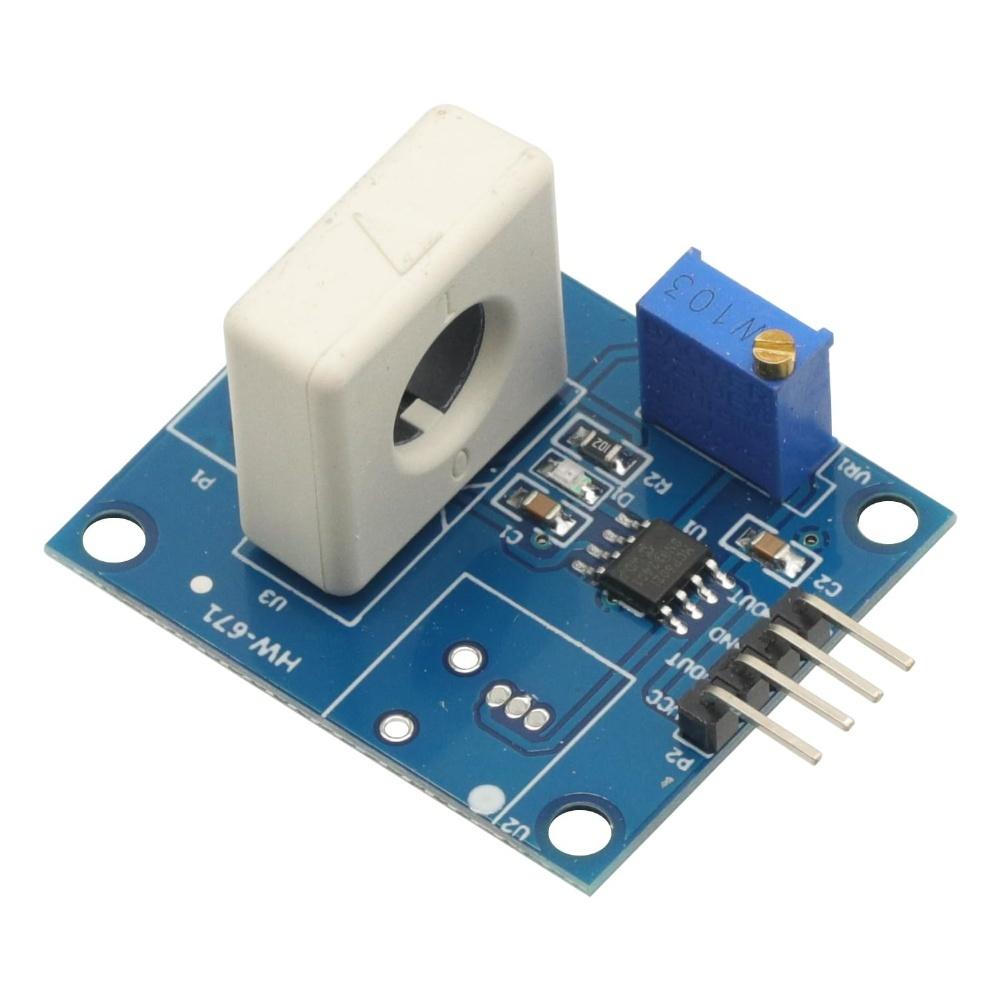

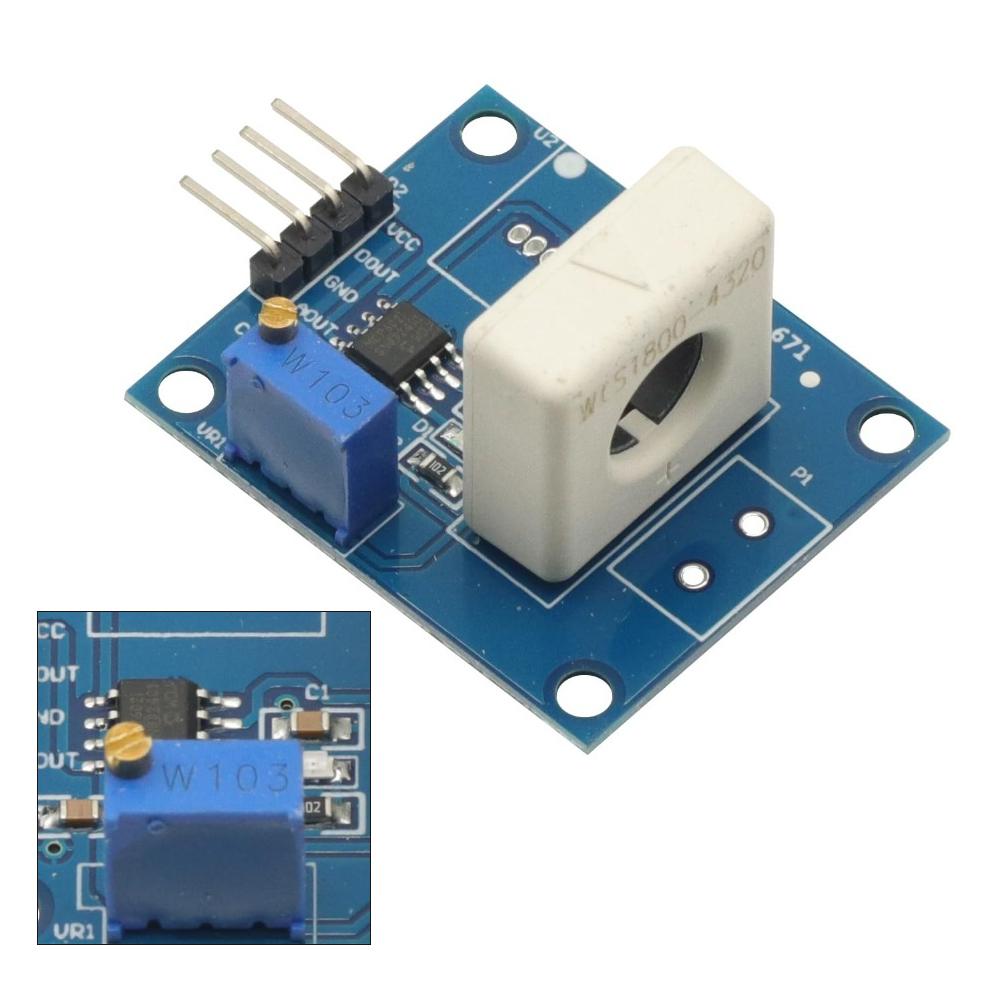

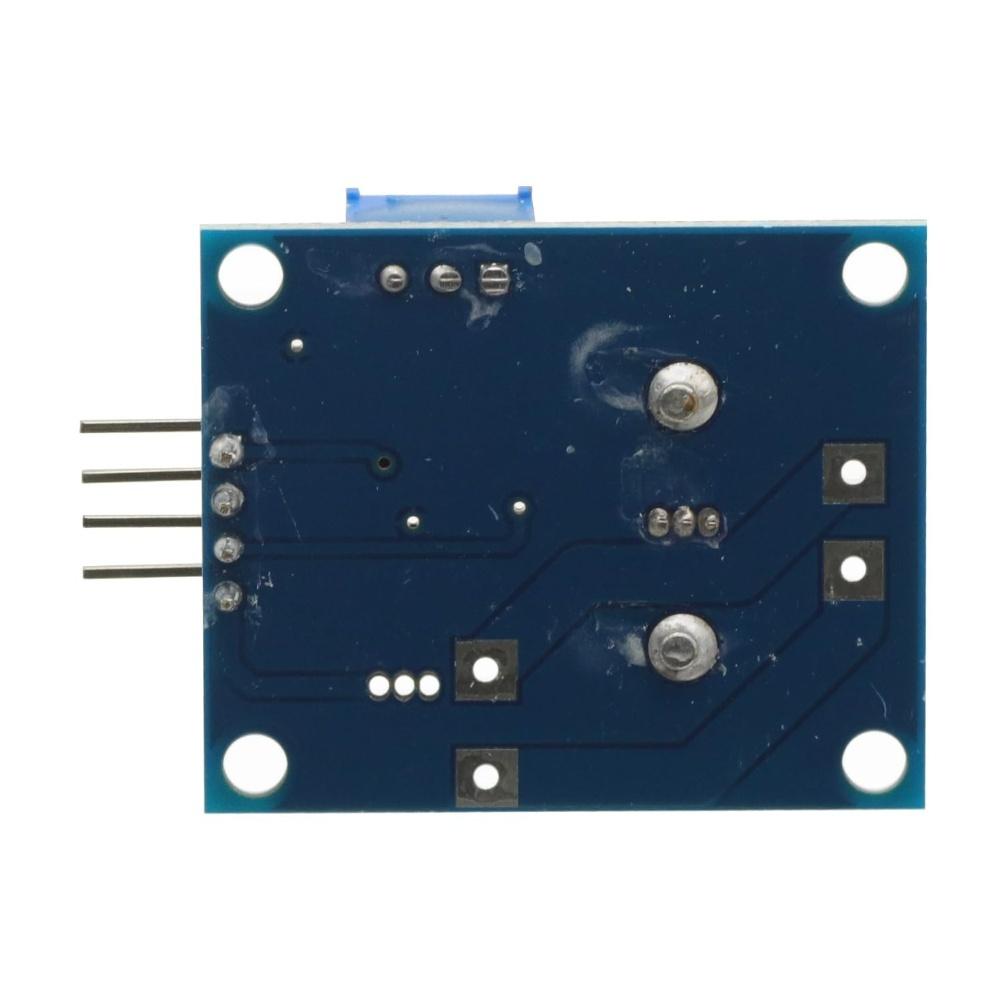

For Electrical Monitoring WCS1800 Hall Effect Current Sensor Module DC35A with Analog and Current Conversion Output

Features: *Wide Current Detection Range: The WCS1800 Hall Current Sensor Module offers an extensive detection range of DC ± 35A and AC 25A, making it suitable for a variety of applications in electrical monitoring and control systems.   *High Sensitivity Resolution: With a current detection resolution of 60mVA, this module provides precise measurements, allowing for accurate monitoring of current flow in your circuits.   * for versatile Output Interface: This module features a sampling current conversion output that delivers both analog signals and for TTLlevel signals, enabling seamless integration with ADCs and microcontrollers for versatile data processing.   *Low Operating Voltage: Designed to operate at a DC5V working voltage, the WCS1800 ensures compatibility with low-power systems while maintaining reliable performance in current detection tasks.   *Effective Overcurrent Protection: Equipped with overcurrent protection capabilities, this sensor module helps safeguard your electronic devices from damage due to excessive current, enhancing the reliability and safety of your applications.

Specifications:

*Part Name: Hall Effect Current Sensor *Material: PC *Size: 37*31.5*21.5mm *Color: Blue Product Model: WCS1800 Operating Voltage: DC 5V Current Detection Range: DC: ±35A; AC: 25A (for analog output) Linearity: K = 60mV/A Current Limiting Range: 0.5A - 35A (for switch output)

Package Content: 1*Hall Effect Current Sensor Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
