Daytona Motorcycle Battery Charger Repair Product (For 95027/71199/68586) Intermediate Connector

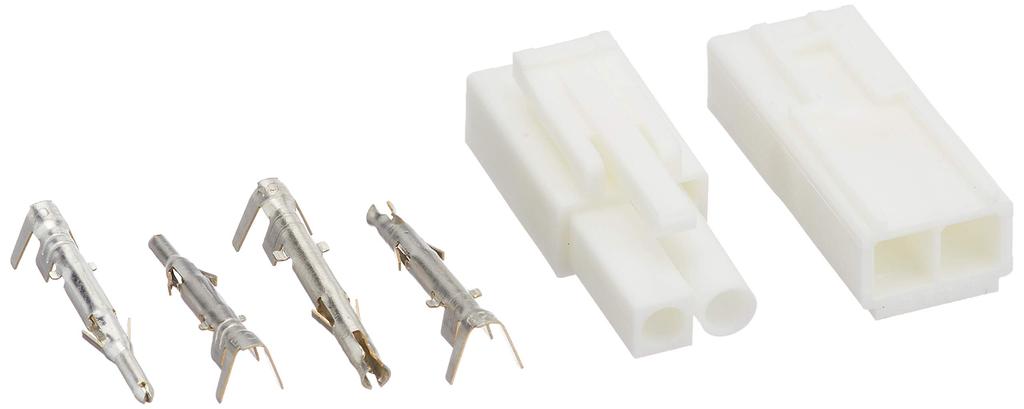

• [Application] A set of intermediate connectors and terminals used in our battery chargers (95027/68586/71199/65928) and motorcycle power supply series (93039/93040/93042/93043) • [Specification 1] Contains 1 each of intermediate connectors (male/female) and 2 each of terminals (male/female). • [Specification 2] Applicable wire range: 0.3-~0.75sq AWG22~18 • [Specification 3] Wire coating outer diameter: 1.3-3.4mm • [Specification 4] Rated current: MAX4.0A (AC/DC) • [Specification 5] Rated voltage: MAX250V (AC/DC) • [Specification 6] Applicable temperature range: −25℃-85℃ • [Specification 7] Contact resistance: 7mΩ or less • [Note 1] As the terminal is thin, please perform the caulking work accurately. • [Note 2] It is not waterproof.

Product introduction

[Application] A set of intermediate connectors and terminals used in our battery chargers (95027/68586/71199/65928) and motorcycle power supply series (93039/93040/93042/93043) [Specifications 1] Contains 1 each of intermediate connectors (male/female) and 2 each of terminals (male/female). [Specification 2] Applicable wire range: 0.3-~0.75sq AWG22~18 [Specification 3] Wire coating outer diameter: 1.3-3.4mm [Specification 4] Rated current: MAX4.0A (AC/DC) [Specification 5] Rated voltage: MAX250V (AC/DC) [Specification 6] Applicable temperature range: −25℃-85℃ [Specification 7] Contact resistance: 7mΩ or less [Note 1] As the terminal is thin, please perform the caulking work accurately. [Note 2] It is not waterproof.

Precautions for use

●Since the terminal is thin, please perform the caulking work accurately.
