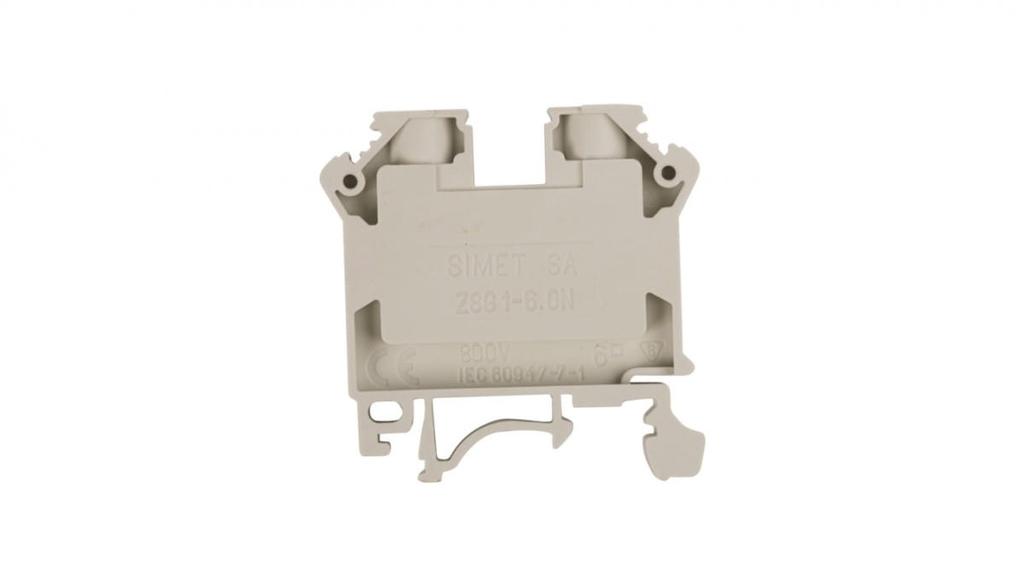

2-Wire Gray 6Mm2 Terminal Block New Zsg 1-6.0Ns 11421312

CN: 85369010Length: 45Length [mm]: 48EAN: 5907813212567Manufacturer index: 11421312Flammability class of the insulating material according to UL94: V0Color: GrayNumber of levels: 1Number of terminals per level: 2PKWiU: 27.33.13.0Connection point: From the side / sideRated current In [A]: 41Cross-section of the single-core cable to be connected [mm2] to: 10Cross-section of the connected single-core cable [mm2] from: 0.5Cross-section of the stranded wire to be connected without a ferrule end: 10Cross-section of the connected multi-core cable [mm2] to: 6Cross-section of the connected multi-core cable [mm2] from: 0.5Type of insulating material: Thermoplastic materialElectrical connection type 1: Screw connectionType of electrical connection 2: Screw connection series: ZSGSsembly method: DIN mounting rail / G railWidth: 45Grid width / size [mm]: 8Weight: 0.0200W Explosion-proof version „EEx e”: Non-internal bridged floors: Closing plate not required: Height: 5Height at the lowest mounting method [mm]: 39.5000Operating temperature range from/to [°C] to: 125Operating temperature range from/to [°C] from: -25
