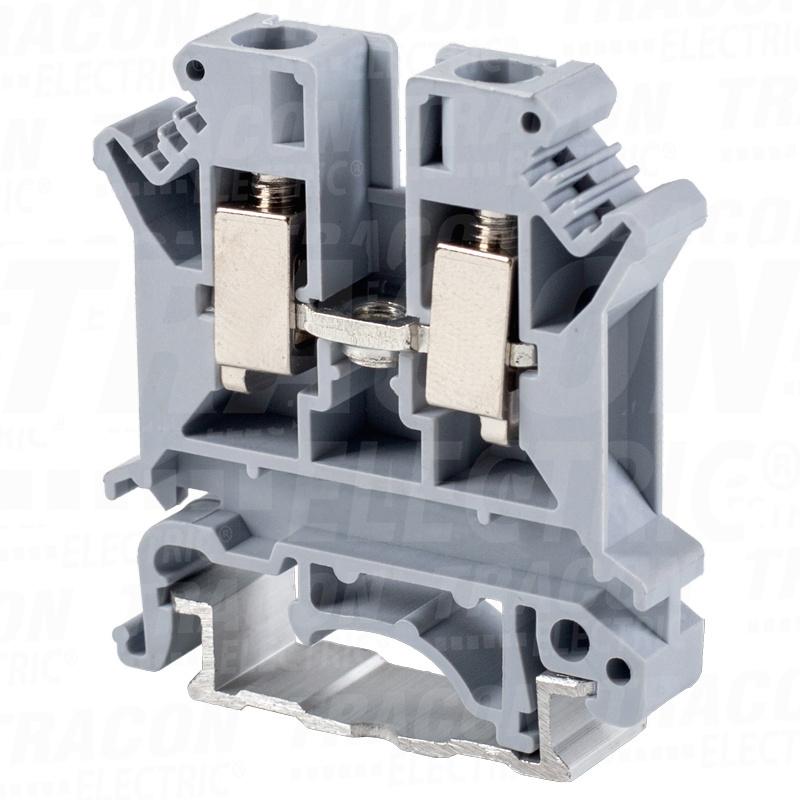

Screw-type phase connection terminal for rail, gray 0.2-6mm2, 57A
The TSKA family of industrial connection terminals features several mutually isolated connectors. TSKA terminals are primarily used in industry, in measurement and control circuits, and in power distribution boxes. The connection terminals can be used to connect copper conductors with a circular cross-section. The plastic housing, made of highly flame-retardant, self-extinguishing polyamide (in accordance with the UL94-V0 standard), is characterized by good electrical parameters. Its shape allows the terminal to be mounted to mounting rails in accordance with the EN-50022 standard.
General Purpose Terminals
In standard applications, these terminals are used to connect phase conductors with a cross-section of up to 25 mm². One side of the plastic housing is open. A VL side panel should be attached to the last terminal.
Technical specifications:
Connectable cross-section of stranded wire with ferrule:
0.2 - 6 mm²
Connectable cross-section of solid wire:
0.2 - 10 mm²
Electrical connection type 1:
Screw connection
Electrical connection type 2:
Screw connection
Number of terminals per level:
2
Mounting method:
DIN TH-35 mm mounting rail
Operating temperature range:
- 30 - 90 °C
Insulation material flammability class according to UL94:
V0

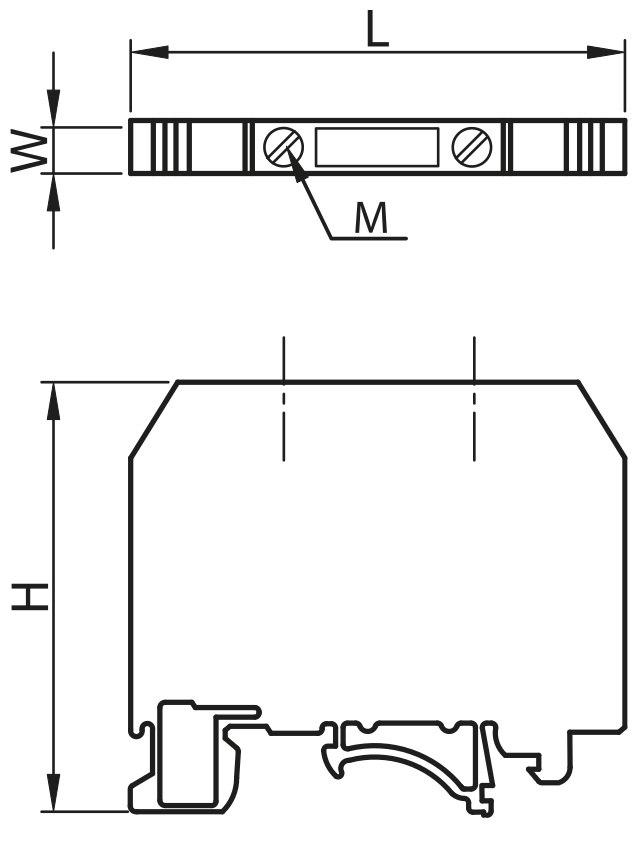

Width:
8.5 mm
Height:
46 mm
Depth:
43 mm
Closing plate required:
Yes
Color:
Gray
