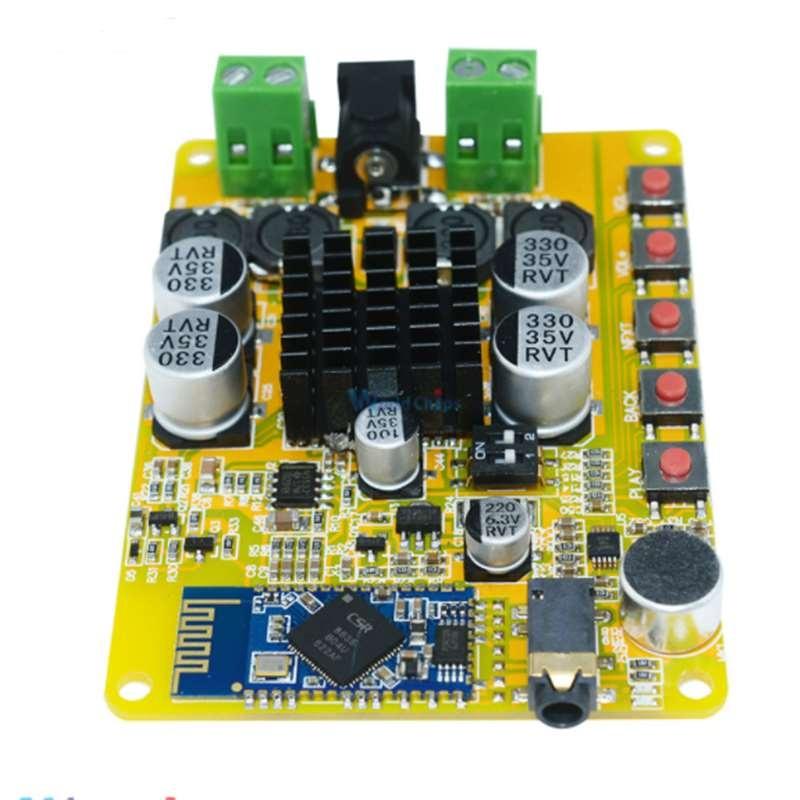

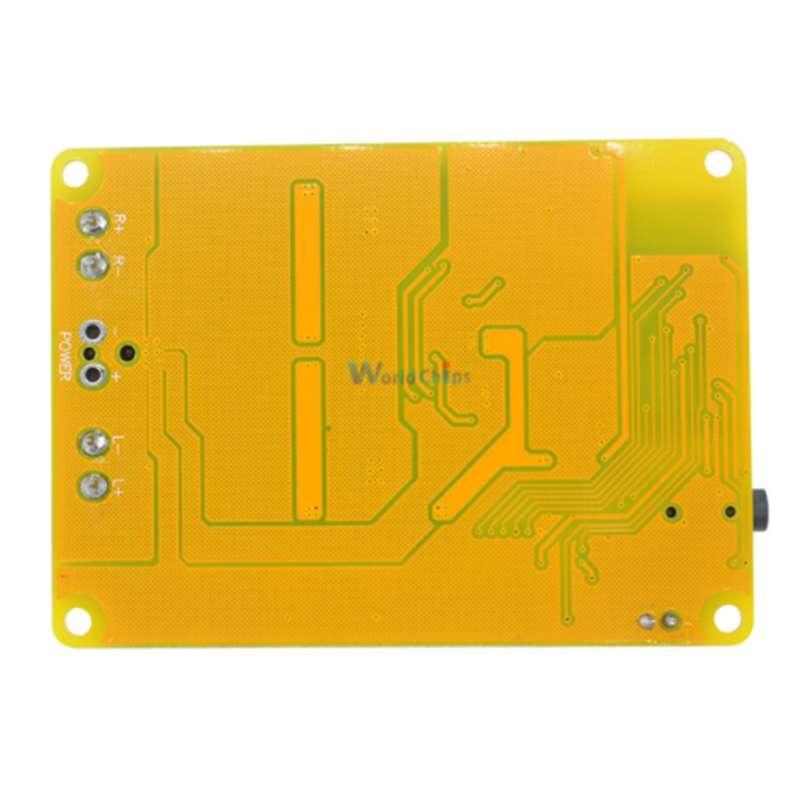

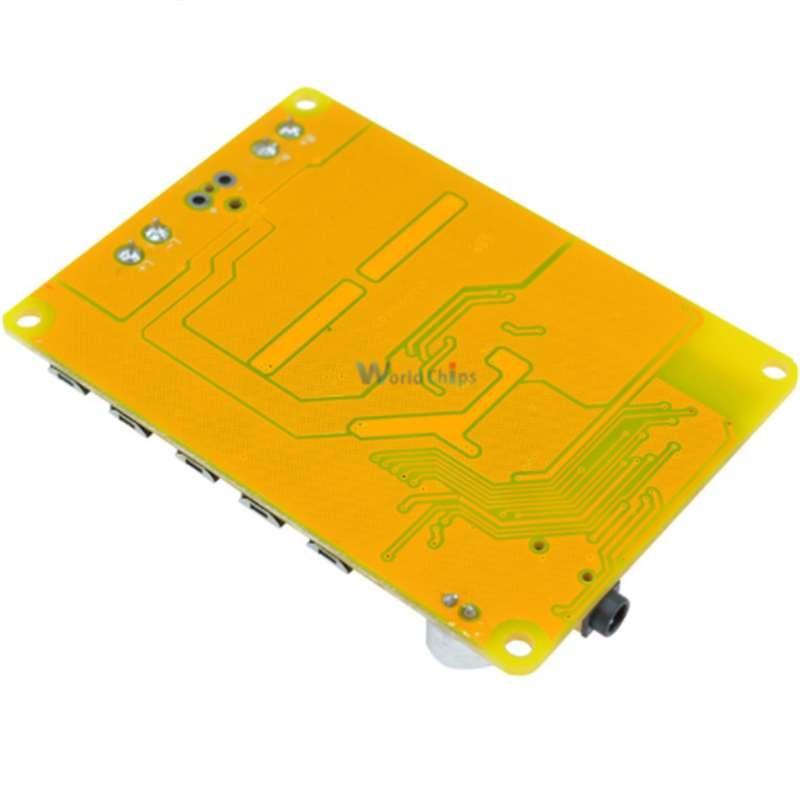

TDA7492 Wireless two-channel stereo amplifier

Features:

Sound quality is very good by using this module. Using CSR8635 Bluetooth chip, Bluetooth V4.0, high software compatibility. Power amplifier chip: TDA7492 double channels sufficient power 50W, better than TDA7492P. With microphone (can call with Bluetooth), AUX interface(wired mode audio input). With 5 buttons for adjustment, convenient and easy operation. Applicable speaker impedance: 4/6/8/16 ohm (8 ohm is the best).

Specifications:

Supply Voltage: DC 10-25V Power Interface: 2.1 DC Socket Audio Input: Bluetooth Receiver V4.0 Amplifier Chip: TDA7492 Output Power: 2*50W Applicable Speaker Impedance: 4/6/8/16 ohm Number of Channels: Two-channel Stereo PCB Board Size: 81 * 58mm / 3.2 * 2.3in Weight: 47g

Package List:

1 * Bluetooth 4.0 Audio Receiver Power Amplifier Board
