Features:

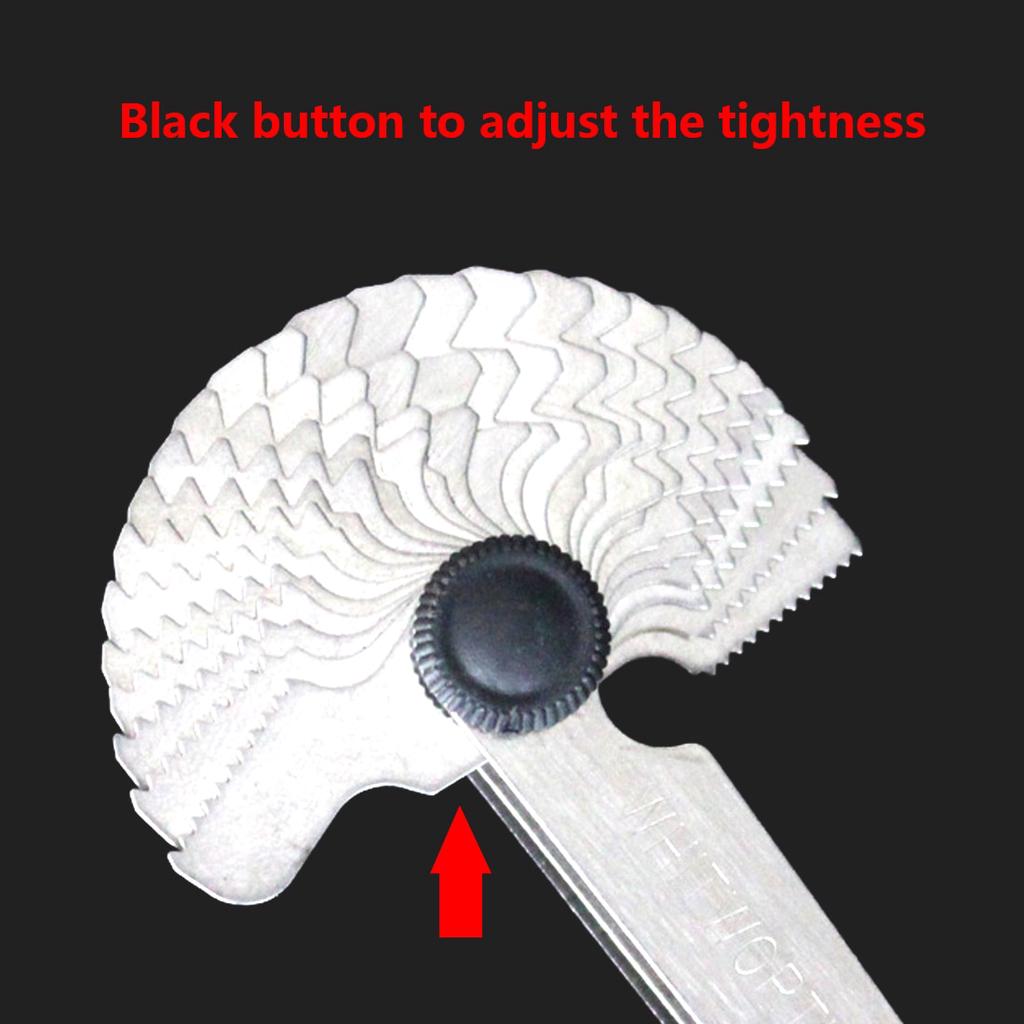

1.Using rotary switch, can be freely adjusted.

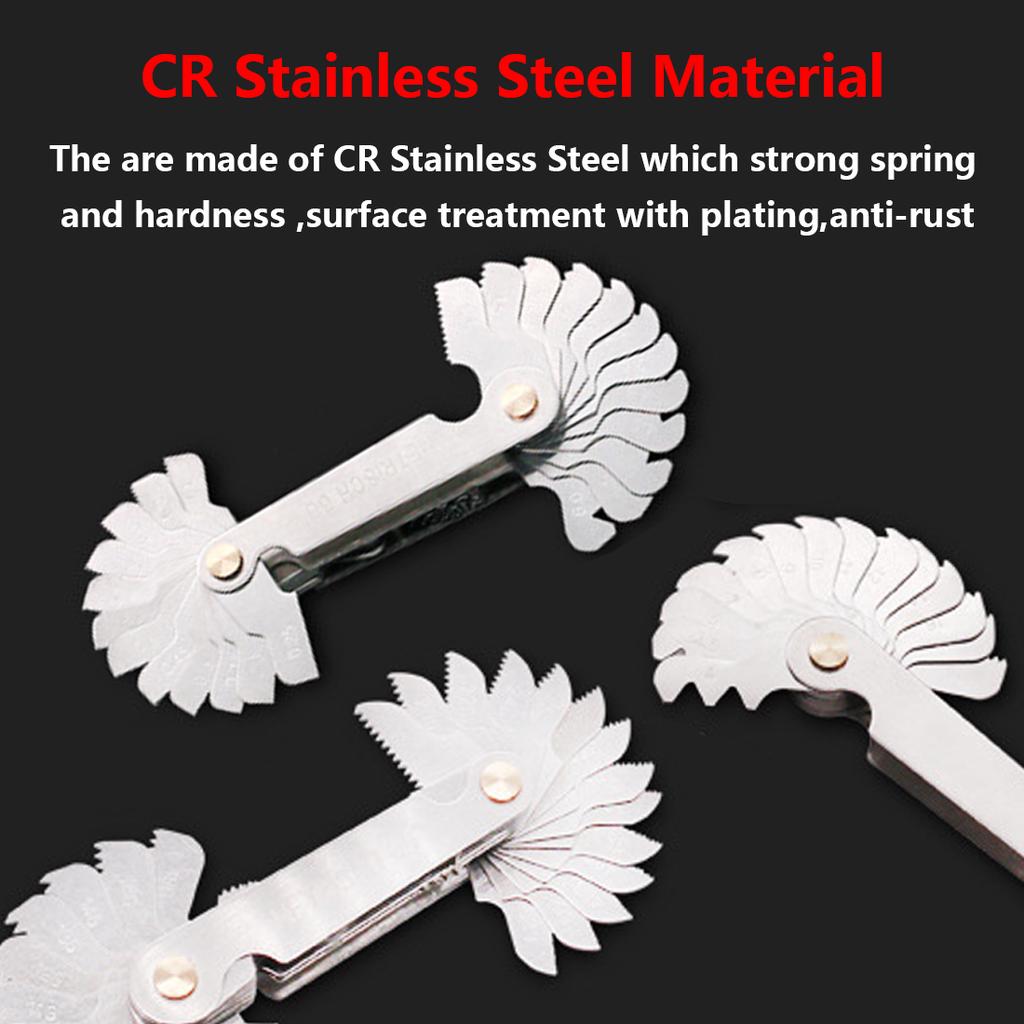

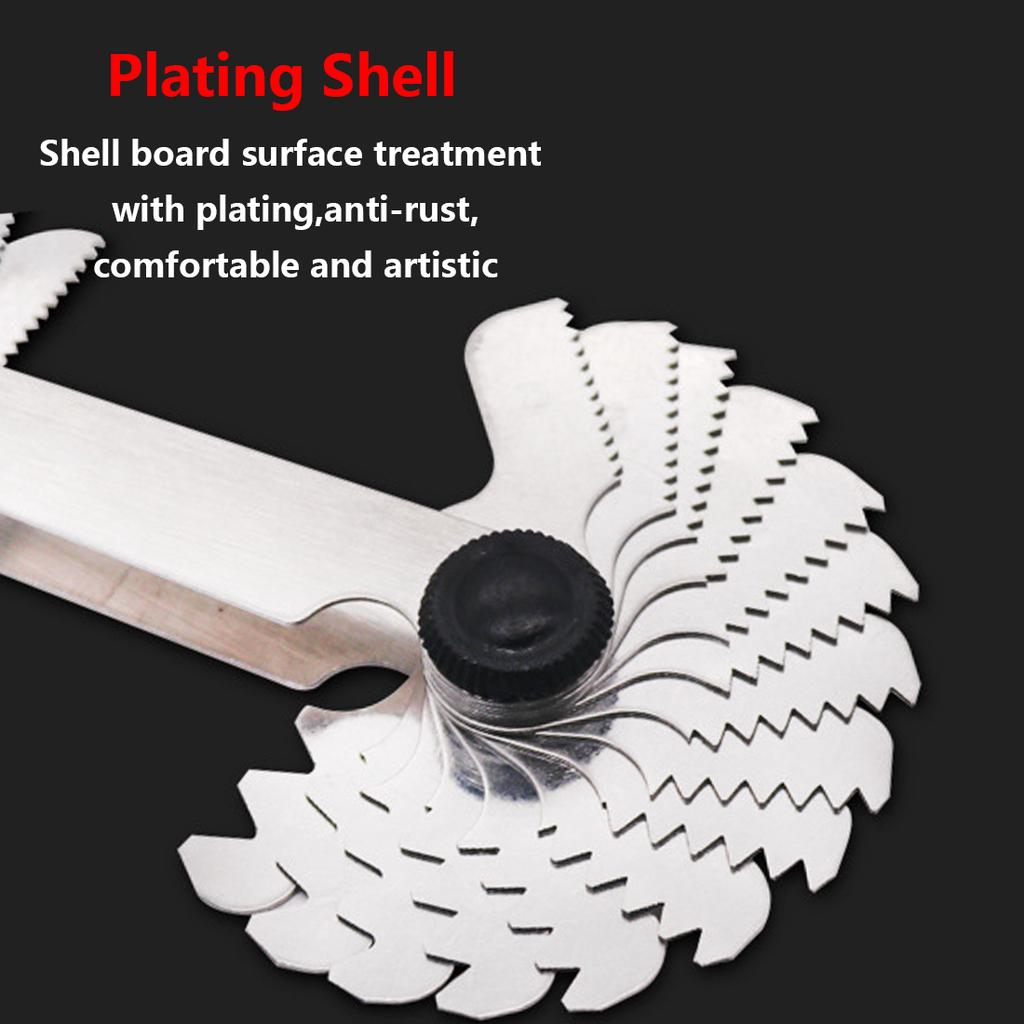

2.Quenching processing, strong hardness , head with a magnetic.
3. It is one kind of a pitch, the pitch multiple stacked up special measuring tools, thread pitch for inspection.
4. Can be used for measuring the metric and inch screw thread. The blade can also be used to measure the AF thread per inch of thread.
Specification：
Type:Metric / inch Screw thread gauge
Material: Steel
Color: Silver
Size: approx. 11x5.5cm/4.33"x2.16"
Measuring range:

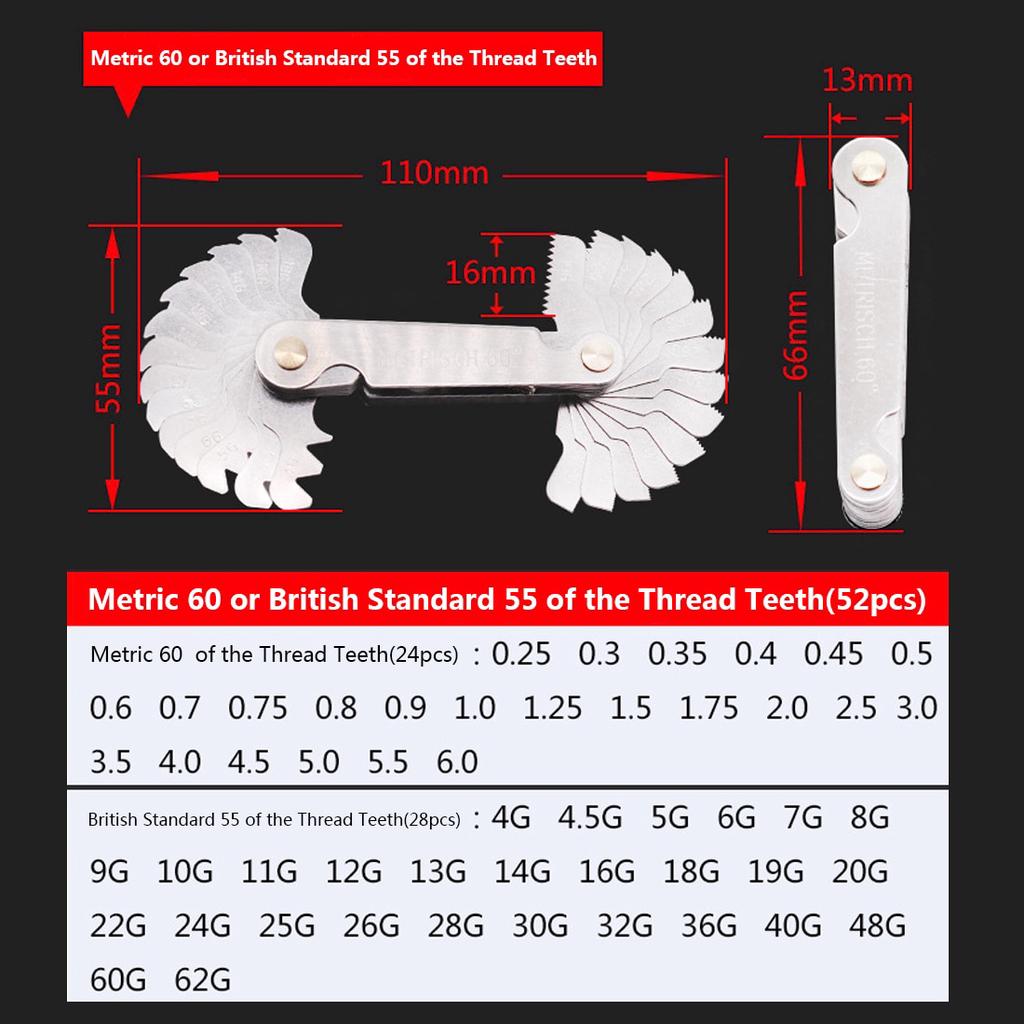

Inch 55 ° specifications:

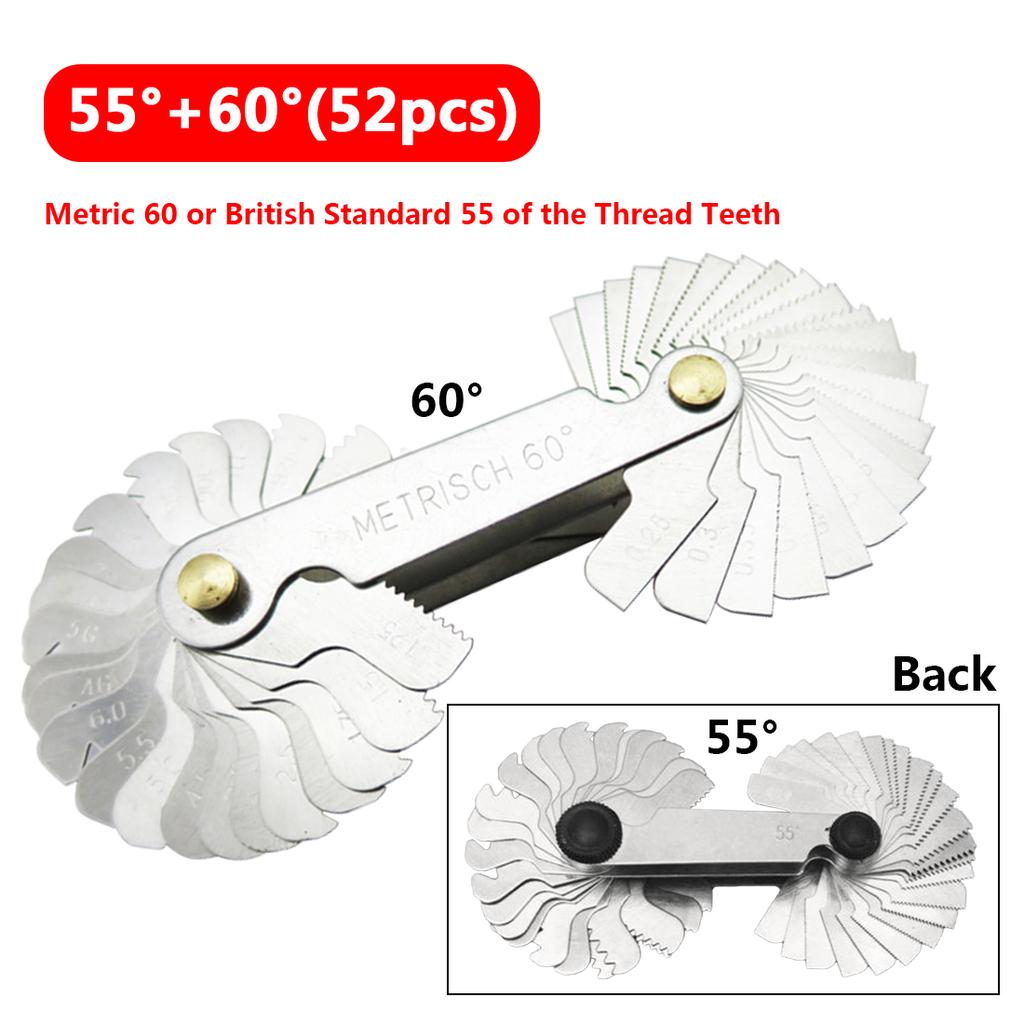

4G,4-1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G , 30G, 32G, 36G, 40G, 48G, 60G, 62G
Metric 60 ° specifications:
0.25,0.3,0.35,0.4,0.45,0.5,0.6,0.7,0.75,0.8,0.9,1.0,1.25,1.5,1.75,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5 6.0
Instructions:

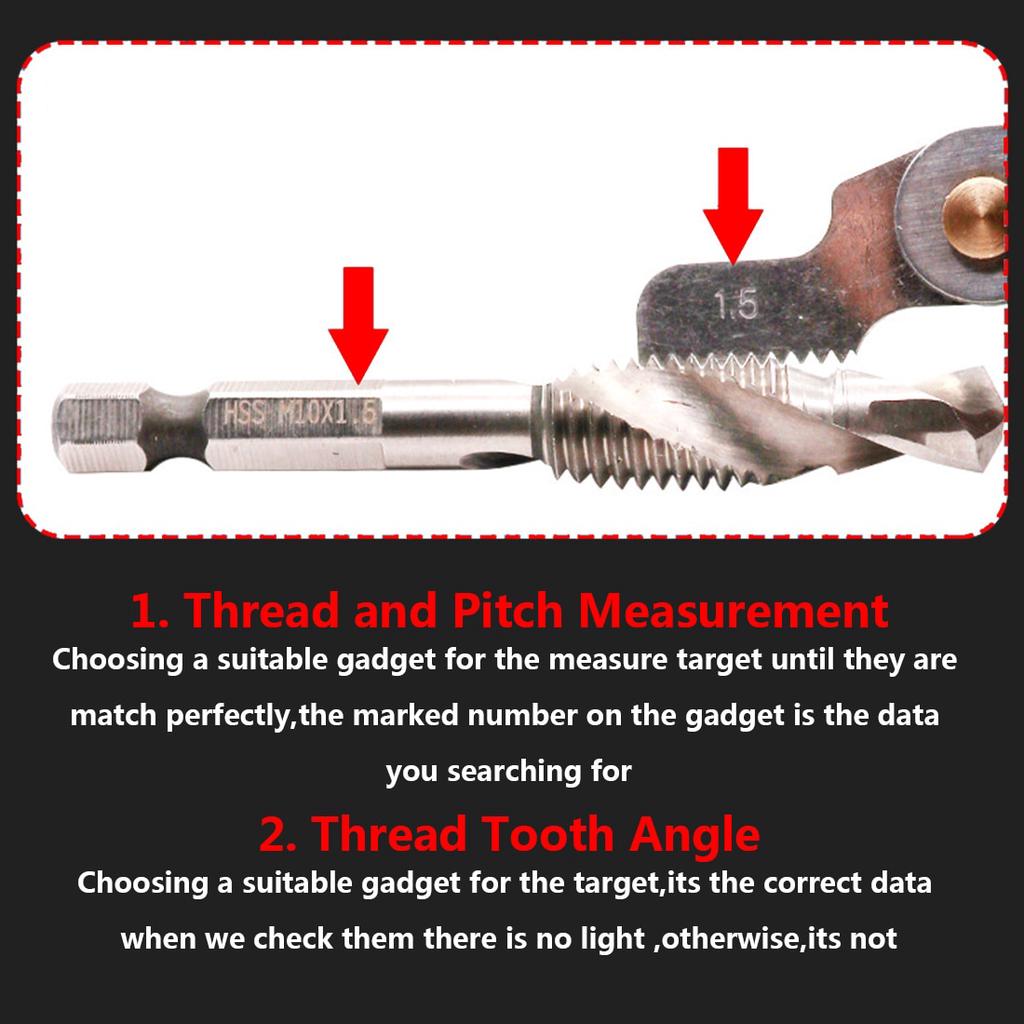

1.measure the thread pitch
a. The thread Pilot Group as a template cards toothed steel thread in the measured workpiece, if not close together, the other for one, until snug.
b.Then mark on the thread size model is the measured workpiece thread pitch.
2. measuring the tooth-shaped corner
a.The thread pitch and the measured workpiece thread model on the same thread on top of the test, then check Talia contact, if there is no gap translucent, tooth-shaped angle measured thread is correct; if there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate.
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!
Package included:
1pc x thread gauge
No-delivery refund
