12K Carbon Fiber Heating Cable 20/30/50/100m Floor Warm Heating Cable 33ohm/m Heating Wires Electric Hotline

Product Name: Carbon fiber heating wire

Insulating materials: Silicone rubber

Temperature: 200 degrees celsius limit

Heating conductor: 12K

High voltage test: 3000V

Leakage current: 0.05mA/m

The product can withstand the power of power: 25W/M

Diameter: 3±0.2 MM

Optional colors: Red/Yellow

Infrared wavelength: 8UM-18UM

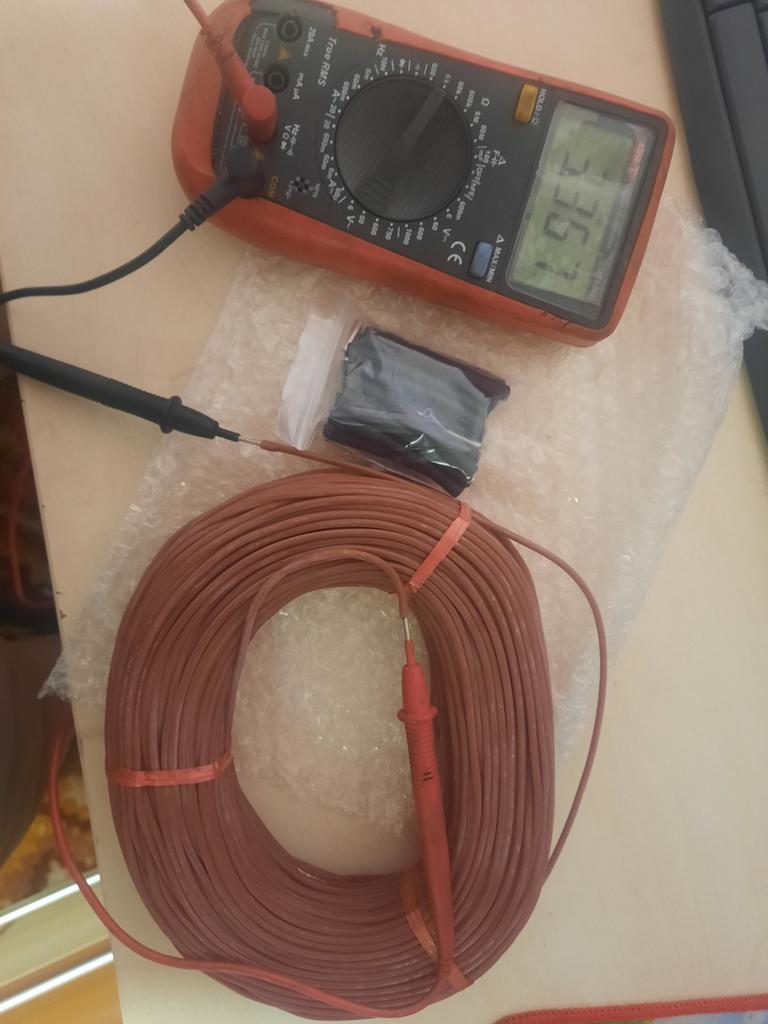

Conductor resistance: 33 ±10%Ohm / M

Length: (custom, not less than 10 meters)

Size:10m/20m/30m/100m

Product Power Calculation:

Voltage * voltage / total resistance = power

For example: 12K carbon fiber, length of 10 meters

220V × 220V / (10 m x 33 Ohm) =150 watts

For example: 12K carbon fiber length of 15 meters

220V × 220V / (15 m x 33 Ohm) =100 watts

The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)

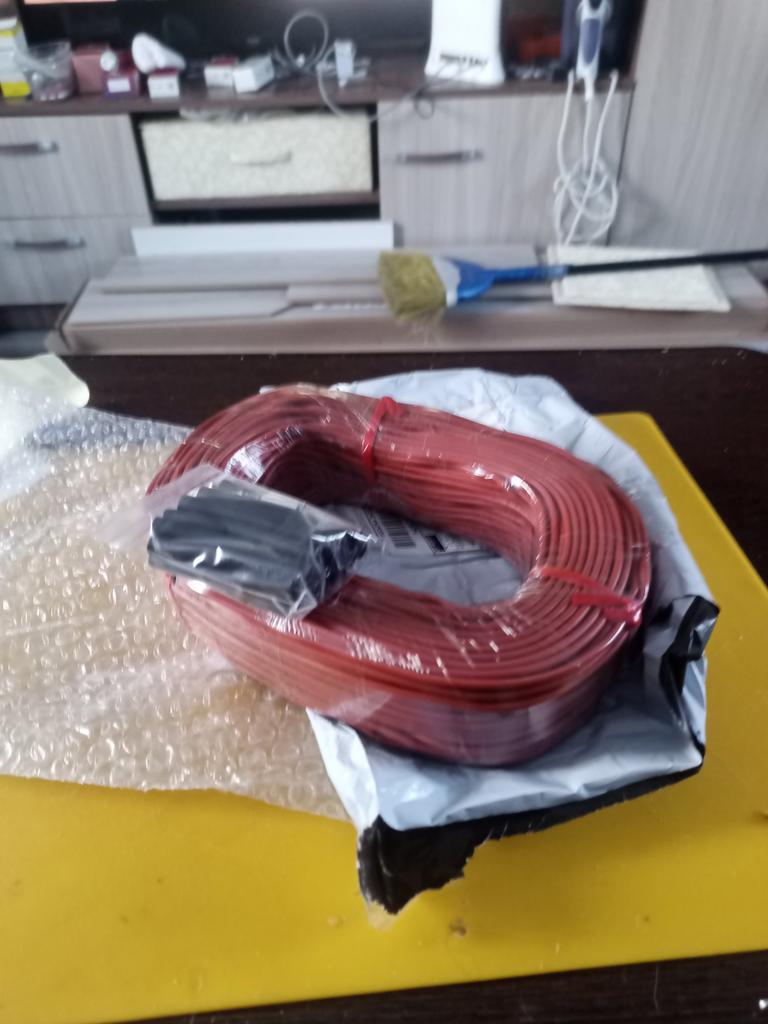

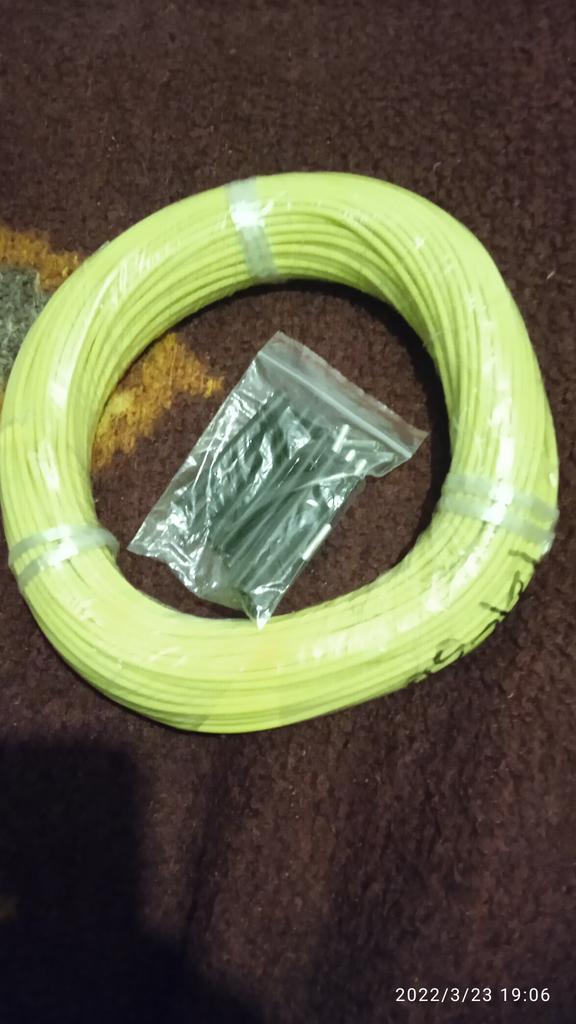

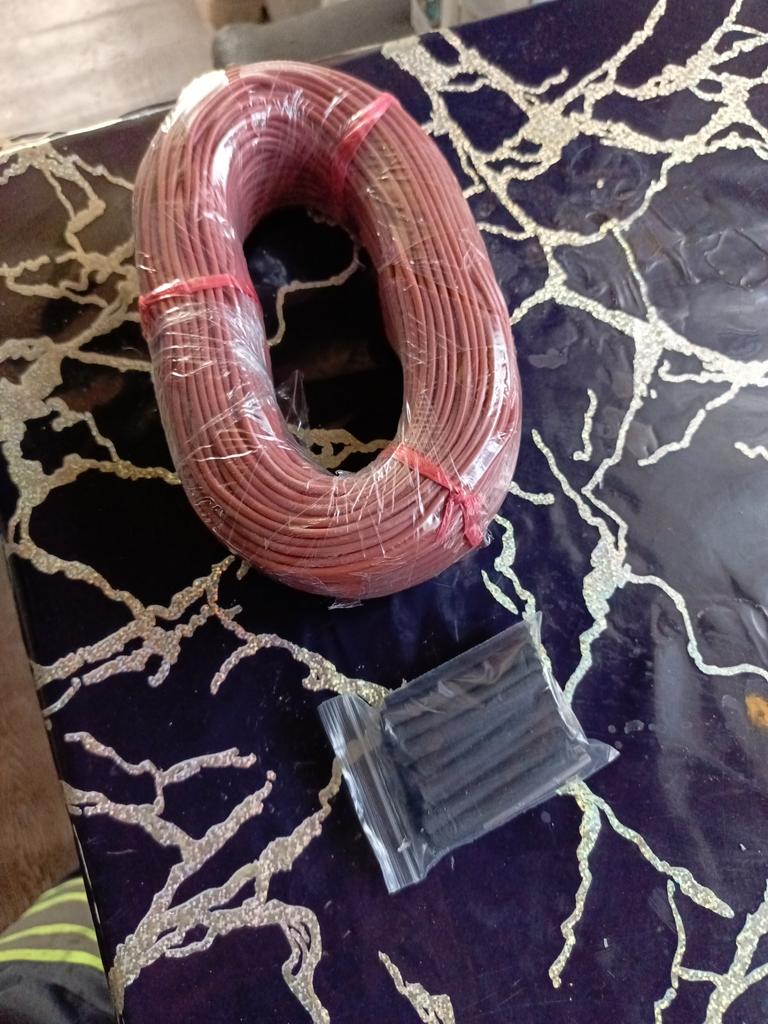

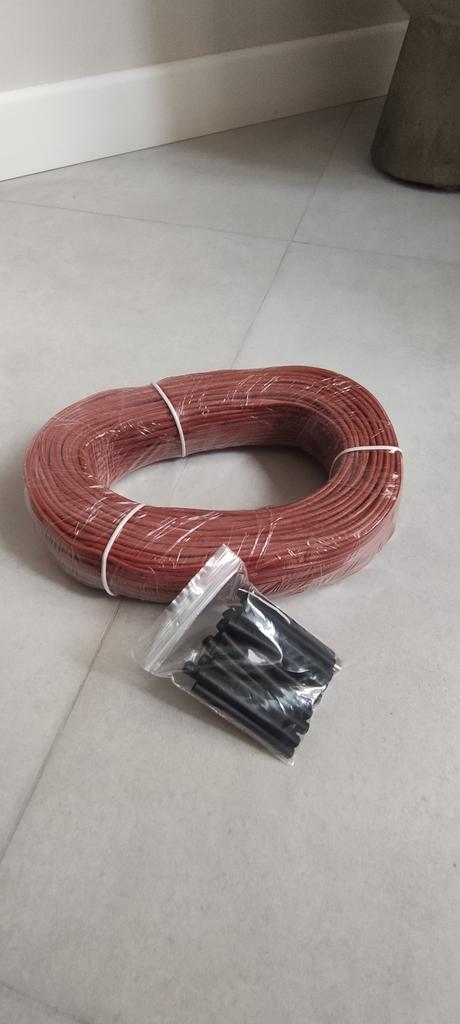

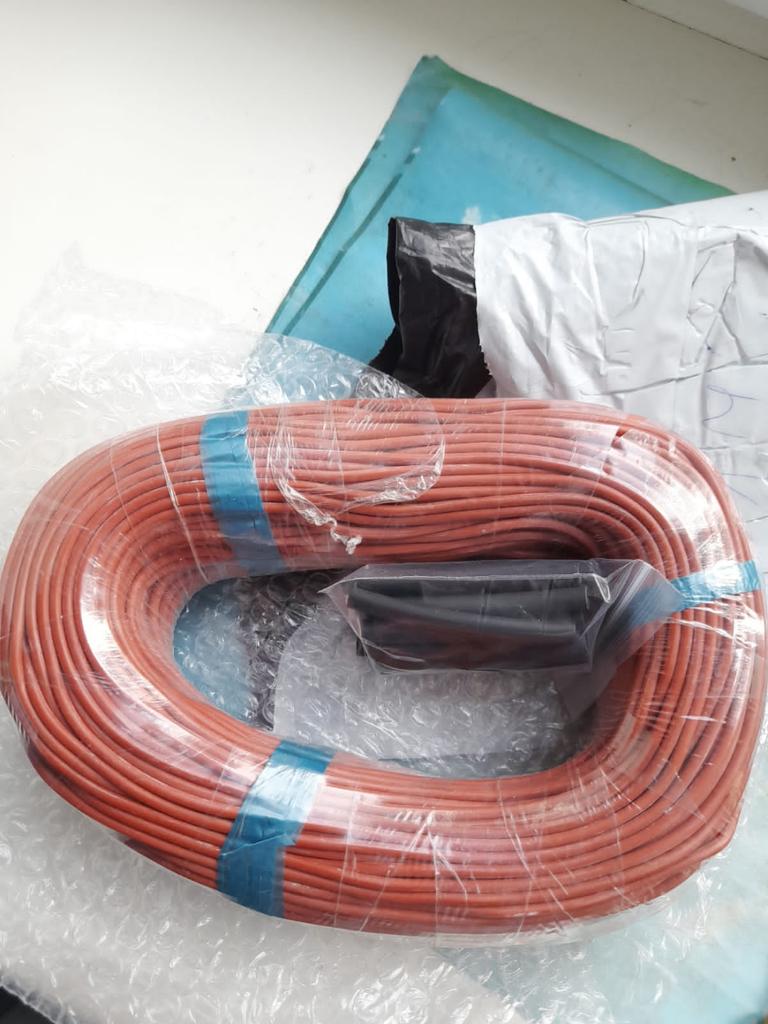

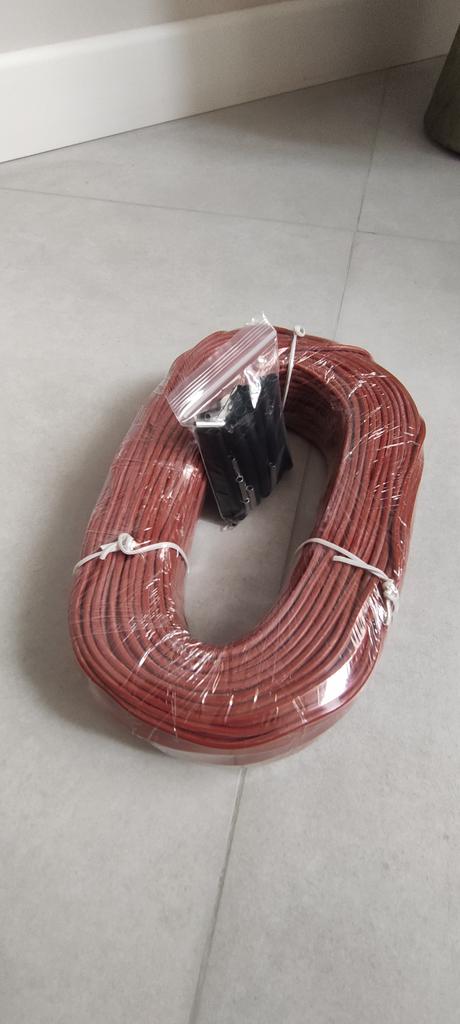

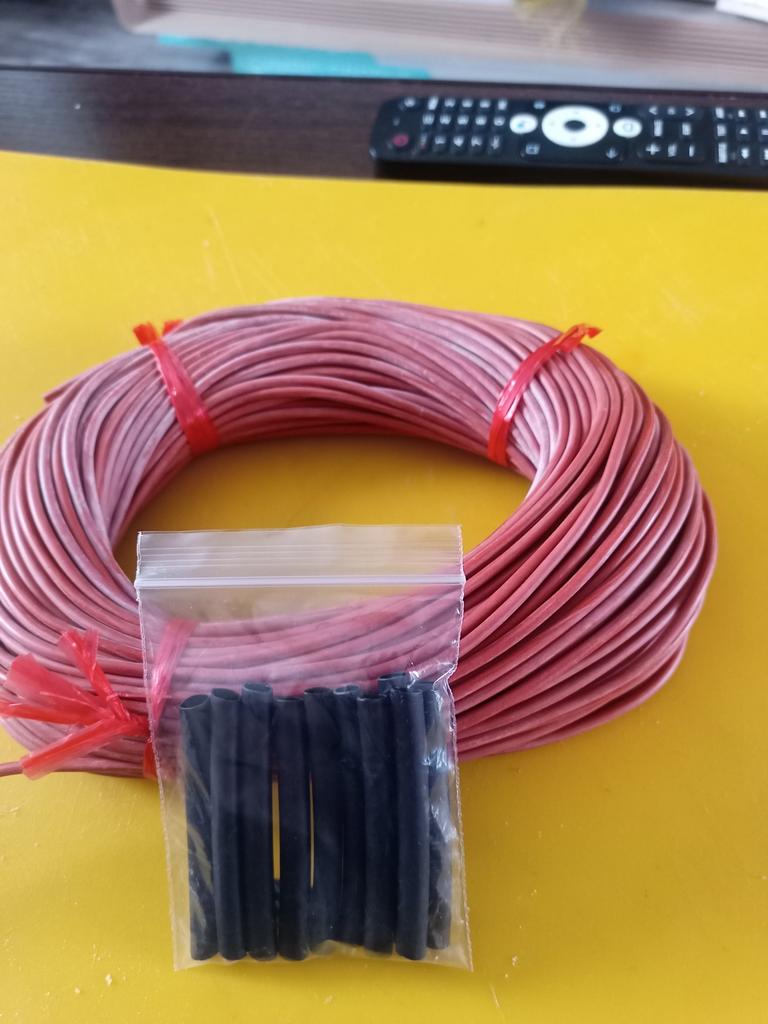

Package Includes: Buy 10m = 10m cable + 2 pcs copper tube + 2 pcs sleeves Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves

Product Advantages:

1. High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

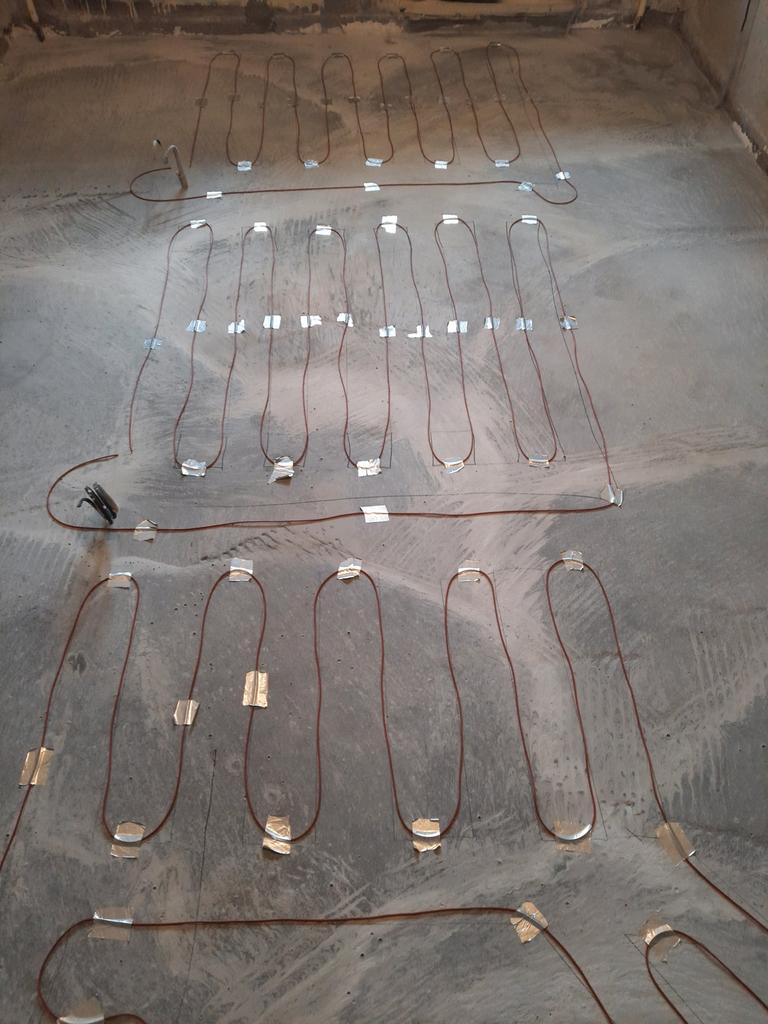

2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.

And etc...
