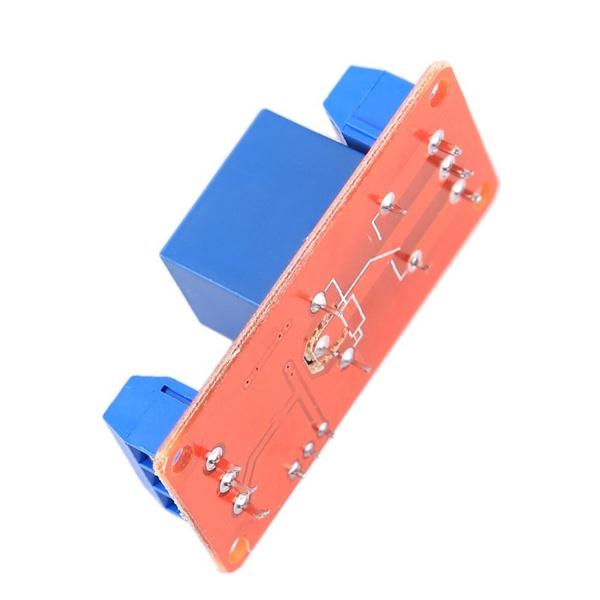

10Pcs 1 Channel 12V Relay Module for Arduino

Features: .100% brand new and high quality .Made of high end material, durable to use .Man-machine interface design, all interfaces can be obtained by directly connecting the terminal, very convenient .The power indicator is green, the relay status indicator is red .SMD optocoupler isolation, have driving capability and stable performance .Notice: 1. High Level Mode: the jumper is set between com and gnd (original). 2. Low Level Mode: take down the jumper, connect VCC to VCC, GND to Control Terminal, IN to 5V, COM to GND. Specifications: .Color: As Shown .Maximum Load: AC 250V / 10A, DC 30V / 10A .Working Voltage: 12V .Module interface: DC+: Positive power supply (VCC)(12V) ; DC-: Negative Power Supply (GND); IN: The control end, the driving current should be more than 4mA .Relay outputs: COM: The control of loop of earth wire; GND: Ground .Product Size: 5 x 2.6 x 1.85cm .Product Weight: 150g .Package Weight: 155g .Packing: Bag

Package Content:

.10 x 1 Channel 12V Relay Module
