Feature :
Parents in the fiber optic cable should pay attention to the first plastic fiber optic connector to take off the connector, the direction of the interface, square up, circular ultra-under, aligned optical interface into it.
Do not insert the wrong side, easy to damage the optical interface Oh, plug anti-damaged we are not responsible.

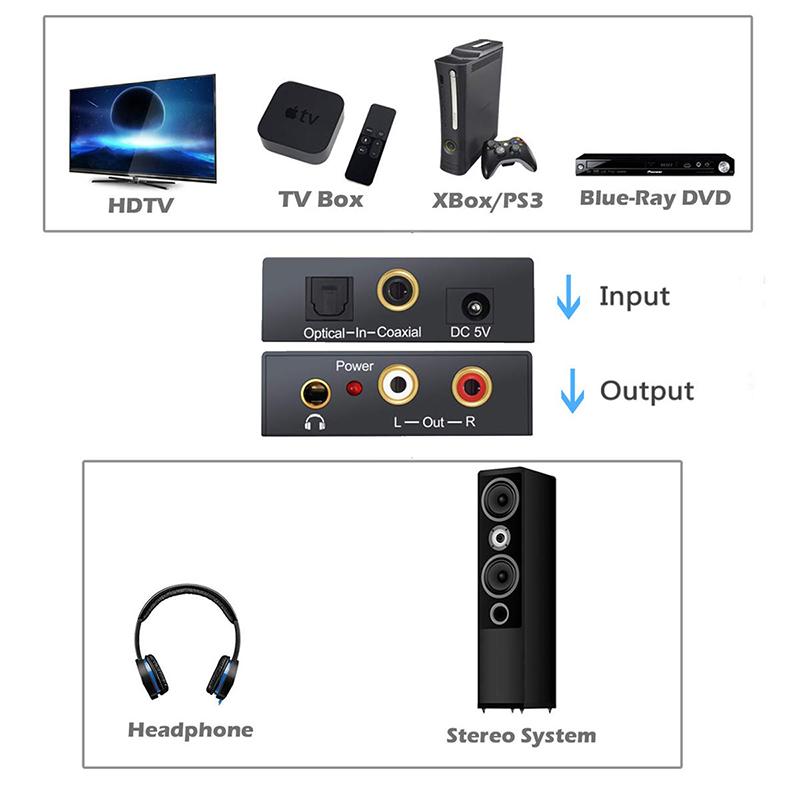

Coaxial digital fiber to analog audio L R converter SPDIF digital audio decoding
Using imported audio processing chip 8416-CZZ. Convert coaxial or optical digital audio signals to analog L / R audio.
Support sampling rate of 44.1 32., 48-96KHz playback. Input code for the 24bit S / PDIF left and right channels.
All connection ports are gold-plated interface materials. Provide electronic noise reduction transmission.
Easy to install, easy to operate. USB power cord, more environmentally friendly, stable and convenient.
Parameters :

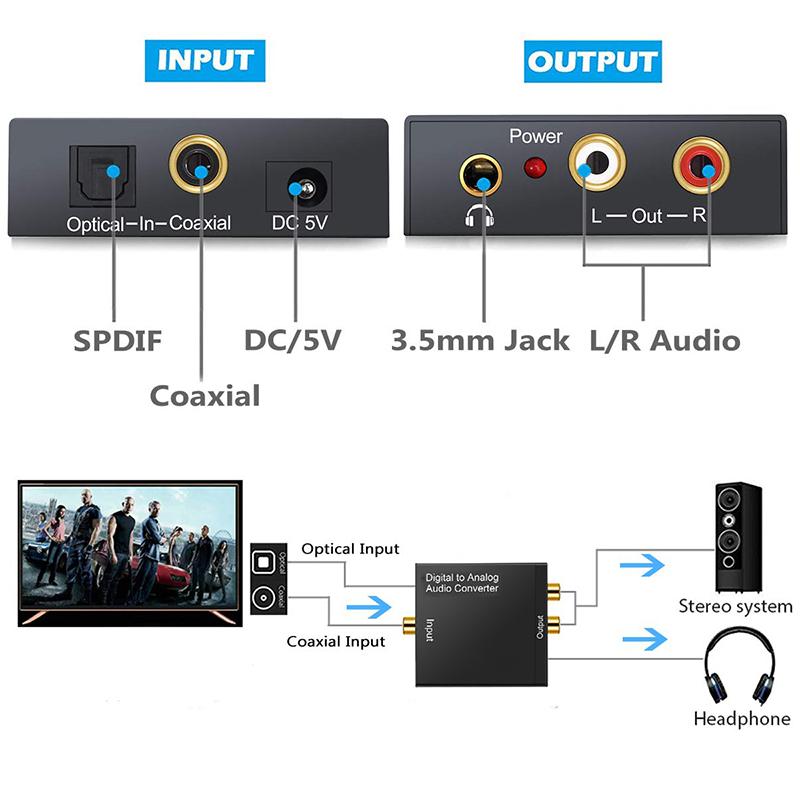

Input: Coaxial or optical digital audio
Output: R / L (Audio Output Connector)

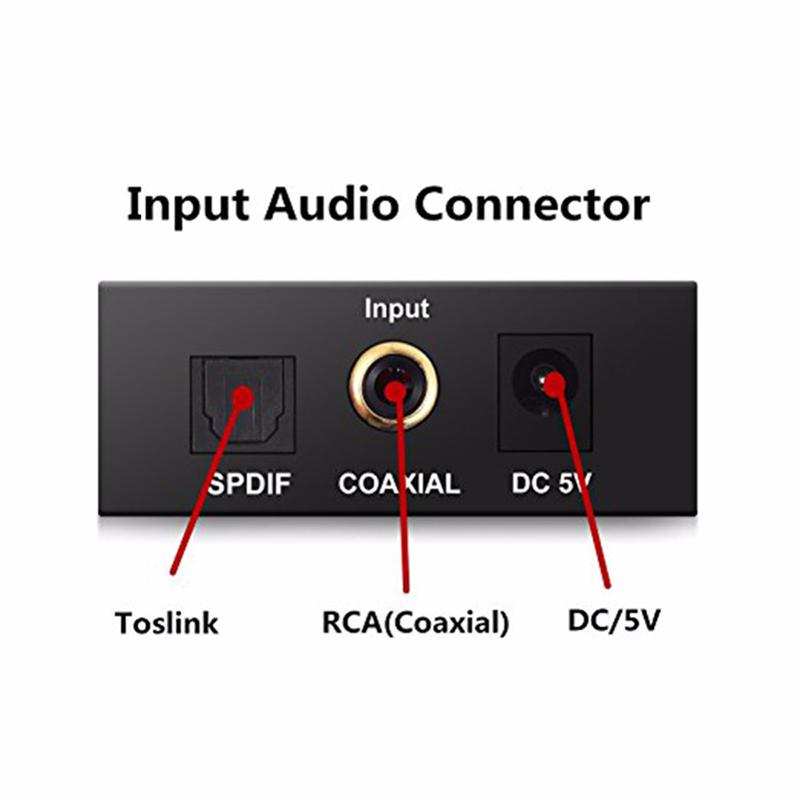

Audio Input Connections: Toslink, 1xRCA (Coaxial)

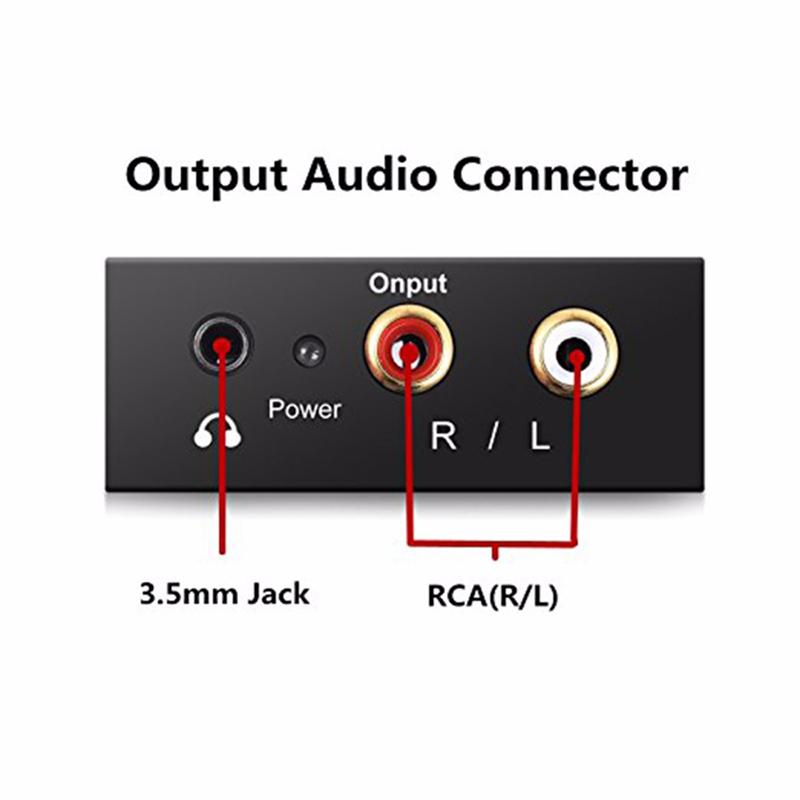

Audio Output Connection: 2xRCA (Right / Left)
Support sampling rate of 44.1 32., 48-96KHz playback
Passed the certification: FCC, UL, CCC, UK
Power input: AC 100-240V 50 / 60Hz
Power type: USB cable power supply
Power: 5W (highest)
Product Size: 51 x 41 x 26mm
Package List:
1 x Analog Converter Decoder
1 x Toslink Cable ( Optical cable )
1 x USB Power Cable
1 x User Manual
Note:
1, The SPDIF input must be Stereo PCM, please configure the output of your device, It won't work with Dolby 5.1
2, Only Support 2.1 Channel, Not for 5.1 Channel, Please Set The Audio Output to PCM or LPCM.
