Right Hand Thread Tap Hand Taps Manufacturing For Through Hole

Features: 100% brand new high quality Made of high-quality materials for durability Straight groove design for through hole and shallow blind hole tapping, not for blind hole tapping. It can be used in conjunction with manual equipment or special processing consoles, such as tapping machines, a bench drill, CNC lathes, machining centers, etc. Control the speed according to the hardness of the material. The higher the hardness of the processed product, the slower the speed. Recommended feed speed: ordinary steel: 6-15m/min; hard steel: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min.

Product parameters: Size: 7/8"-14 UNF Material: high speed steel Orientation: Right hand Cutting Diameter: 7/8", TPI: 14. Tap Length: 4.65"/118mm, Thread Head Length: 1.06"/27mm. Shank Diameter: 16.0mm, Square Head: 12.5mm x 12.5mm (L*W).

hint: 1. Before tapping, confirm whether the diameter of the round hole is appropriate, and take protective measures during work. 2. When tapping, it is necessary to add water or coolant for cooling to prevent the temperature from being too high and reduce the loss of tapping. If the rotation is difficult, the tapping should be suspended. 3. For the complex tapping process, be sure to choose the appropriate cutting oil, and apply anti-rust oil for maintenance after use.

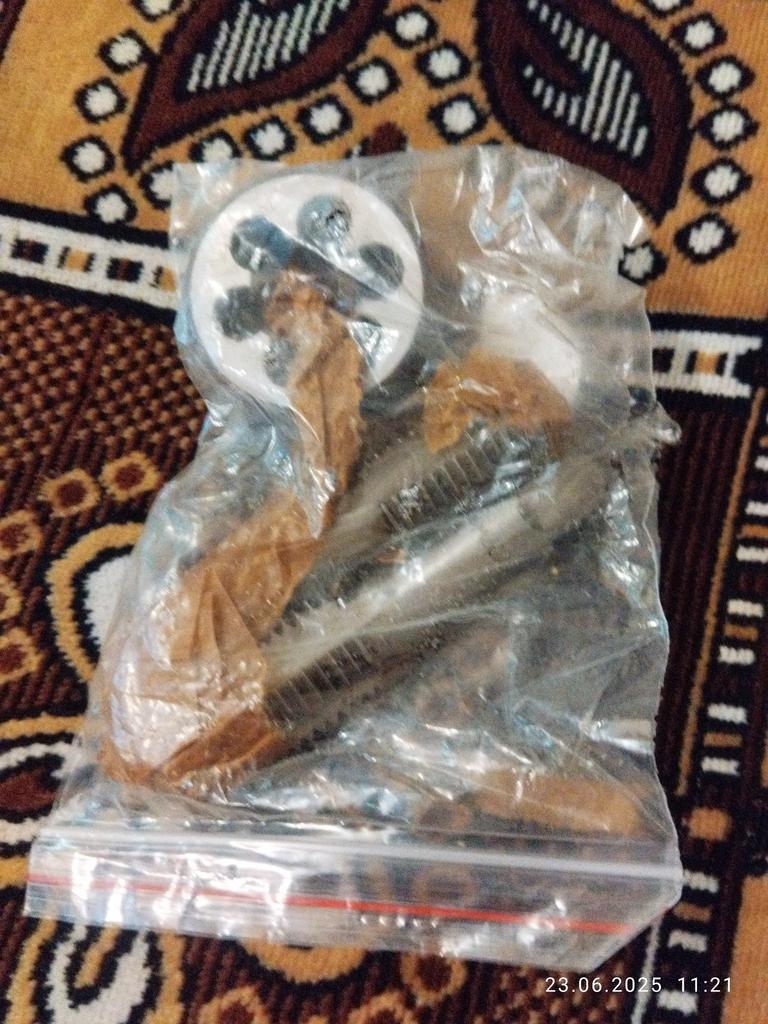

Package Included: 1 * 7/8"-14 UNF Right Hand Thread Tap

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
