The laser level meter can emit visible lase horizontal, vertical and oblique lines for the automatic leveling separately or simultaneously. It provides accurate horizontal and vertical data for indoor construction stakeout and calibration, easy to operate and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry, wall stud layout and partition installation.
Features:
Mini size, lightweight and portable, carefully polished body and long-lasting ABS housing make this laser level perfectly shock resistant, wear resistant and impact resistant.

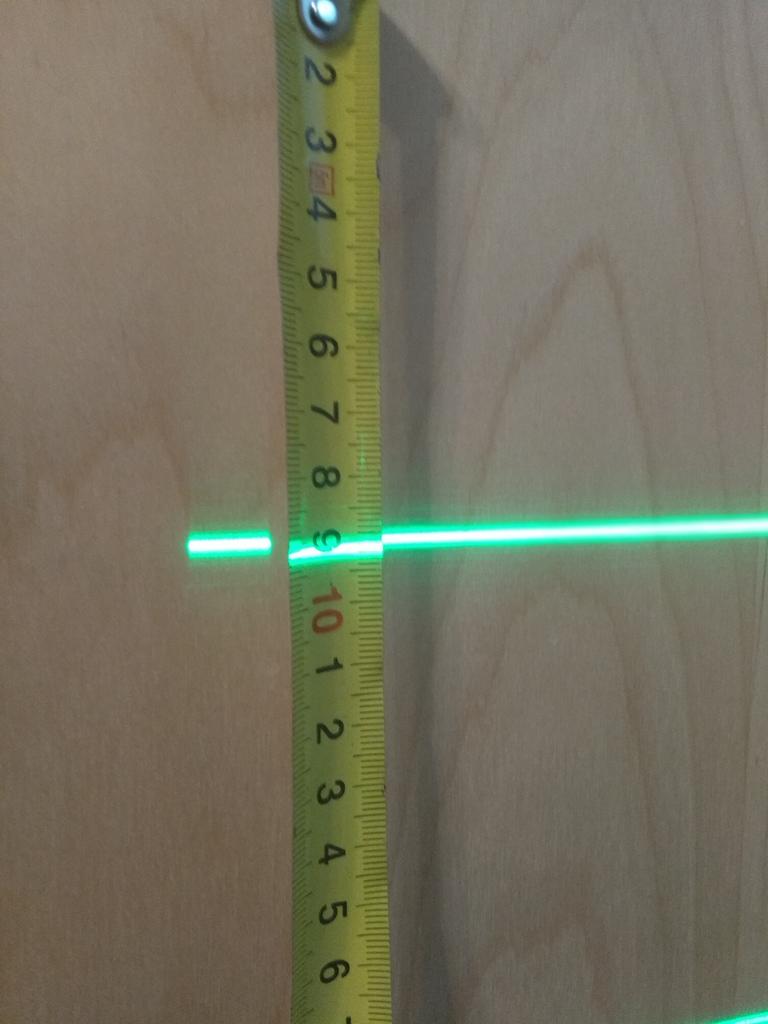

Using fine quality laser diodes and high precise conical mirrors, the laser lines emitted are fine and bright with high accuracy.

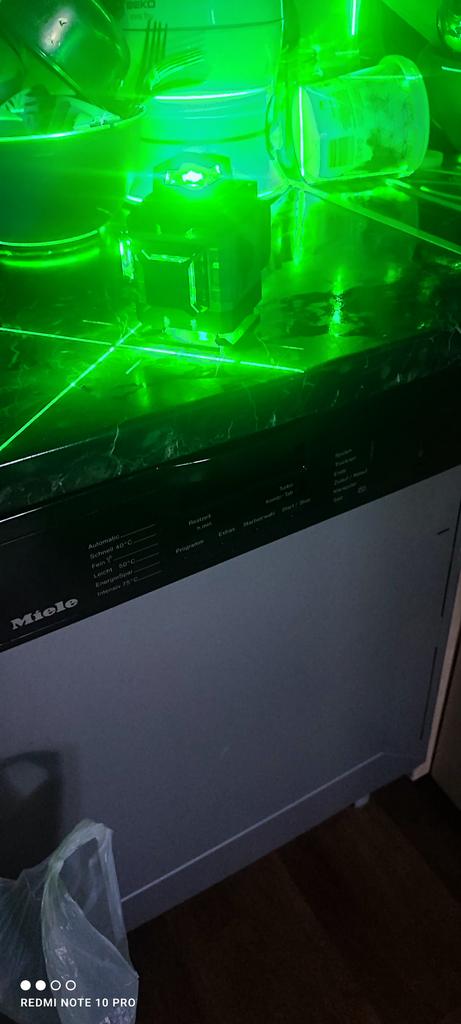

Output 16 visible laser horizontal and vertical lines separately or simultaneously for finer positioning, with 3° self-leveling system, high flexibility and stability.
Equipped with self-test calibration function, ≤3° automatic leveling, but if the angle is over 3°, the laser light will keep blinking and the laser level will make a beep sound to remind you to reset them on a flat ground.
Press the "*" button for 3 seconds to enter the tilt mode, you can place the laser tool at arbitrary angle to make tilt lines, will not flash the line and will not promote beeping sound.
The bottom of the laser level reserved with 1/4inch screw thread for easy connection, it also can be used with tripod by 1/4inch to 5/8inch thread adapter (included) to adjust the working height of the machine.
Equipped with a bubble level to help you check whether the laser level is horizontal or not.
The T-shape bracket with 7mm wall mounted distance, which has 360° rotatable fine adjustment mechanism, up and down regulation and 50mm fore-and-aft regulation distance, all the structures can make the machine quickly find the target (1/4 inch screw size).
There is a window clip holder for works with wall-mounted bracket, with clamping ranges of 27-41mm, suitable for a variety of laser levels.
The laser level lift bracket is height adjustable design, 67mm adjustable ranges, anti-slip texture design for increasing friction, more stable placement.
Stylish remote controller design, with long control distance, which makes it suitable for indoor and outdoor use, continuous laser and pulsed laser.
Ergonomic buttons designed on the remote controller, wear-resistant, with high sensitivity to quickly switch the line mode, and with a comfortable grip feel.
"V/-"=vertical line, "H/+"=horizontal line, and you can adjust the quantity of laser lines easily by press the "V/-"or "H/+" button, and long press "V/-" button to reduce luminance and long press "H/+" button to increase luminance.
Scanning QR code on the back of remote controller to download mobilephone APP, convenient to control the level machine(the voice control function is not supported).

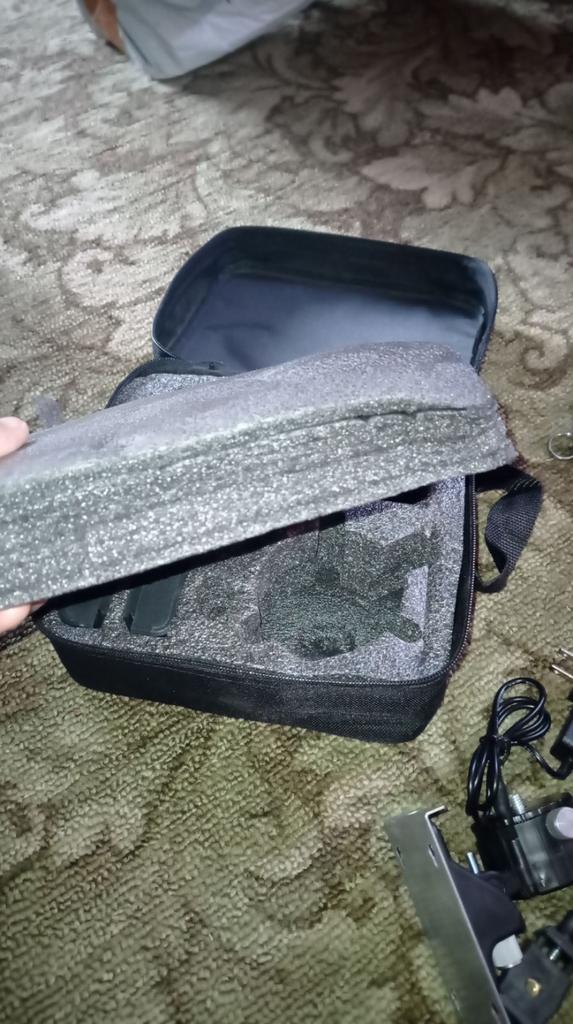

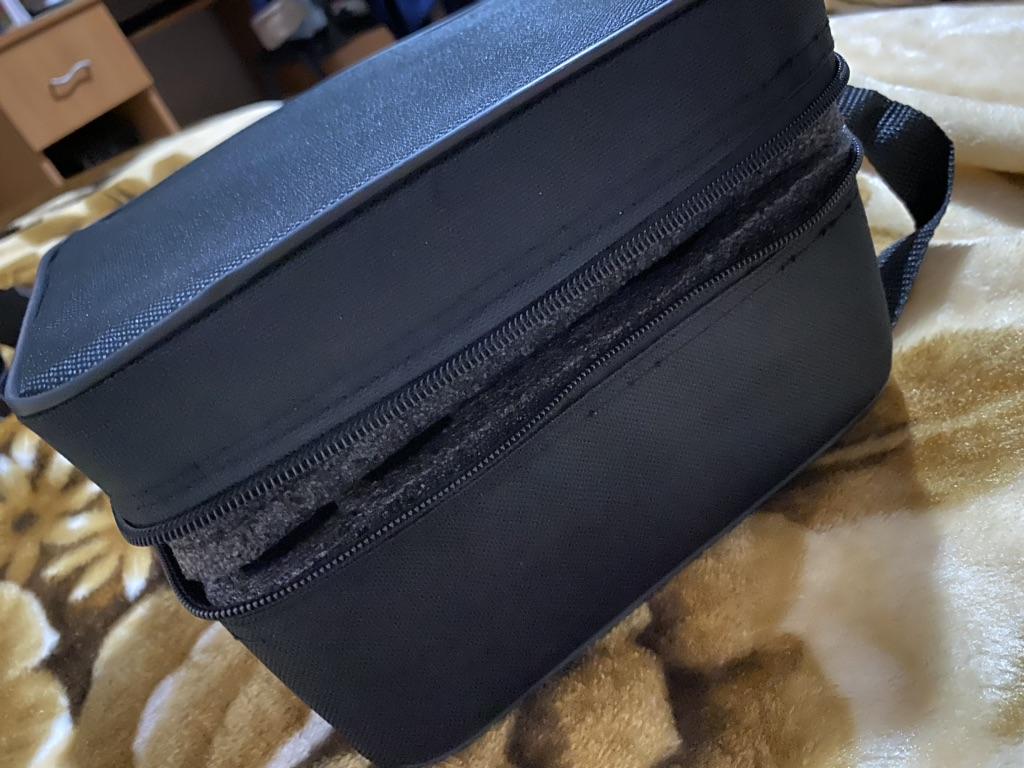

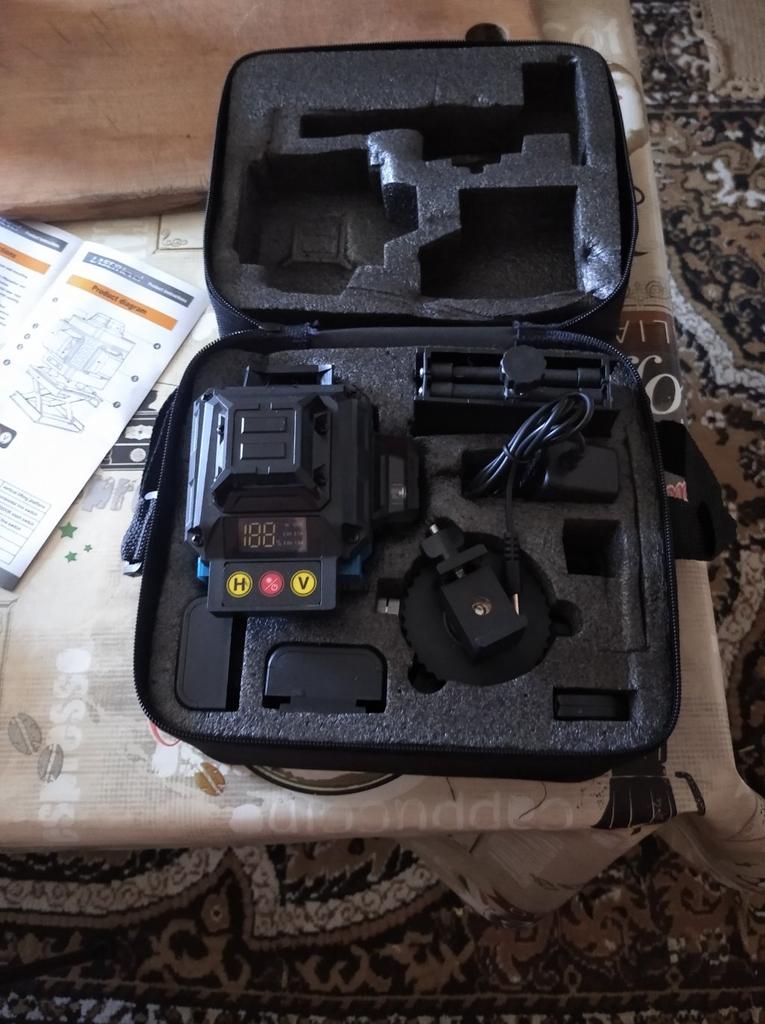

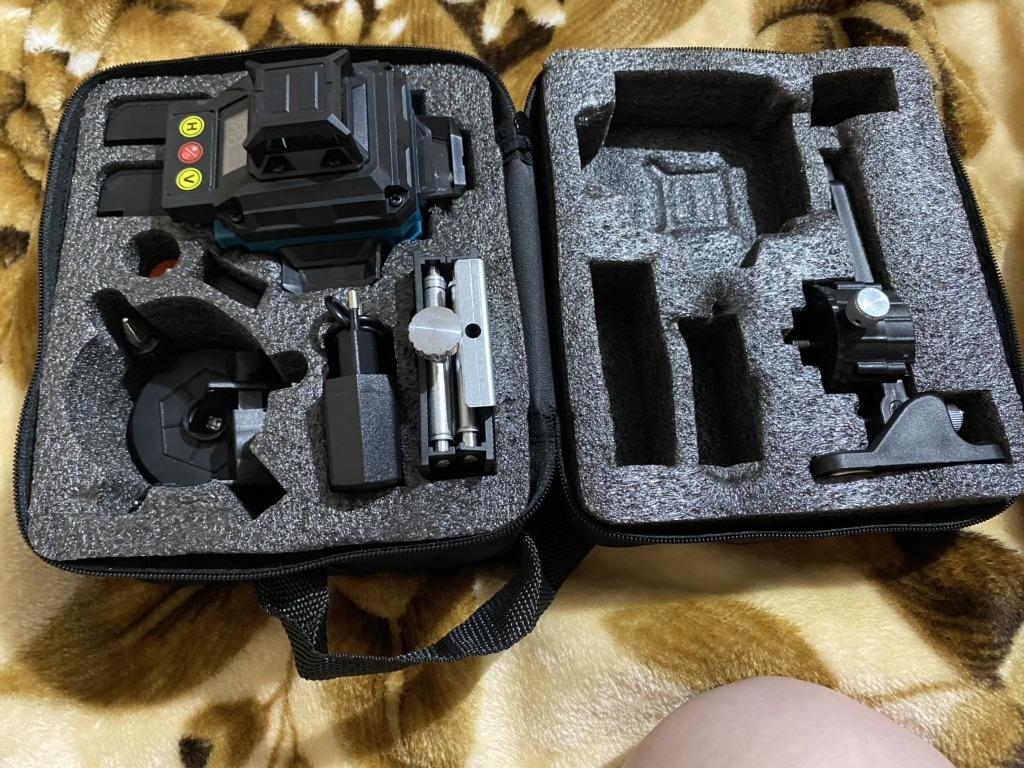

Comes with EVA carrying bag, waterproof and rainproof, easy to carry, providing quick and convenient mobility and storage in a complex environment.
Note:
Please do not let the laser line shoot to your eyes directly.
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable lithium batteries, 3.7V, 2400mAh (included)
Line type: 4 * 360°, 16 lines
Wavelength: 520/505nm (Green)
Self-leveling angle: ±3°
Wall mounted distance: 7mm
Working distance: 25m
Platform lifting height: 67mm
Level machine size (assemble with battery): 131 * 105 * 125mm / 5.16 * 4.13 * 4.92in
Base size: 98 * 83 * 74mm / 3.86 * 3.27 * 2.91in
Wall mounted bracket size: 155 * 68 * 86mm / 6.10 * 2.68 * 3.39in
Iron board size: 100 * 60 * 12mm / 3.94 * 2.36 * 0.47in
Platform size: 114 * 92 * 30mm / 4.49 * 3.62 * 1.18in
Clip holder size: 62 * 25 * 28mm / 2.44 * 0.98 * 1.10in
1/4inch to 5/8inch adapter size: 23 * 23 * 32mm / 0.91 * 0.91 * 1.26in
Carrying bag size: 220 * 195 * 160mm / 8.66 * 7.68 * 6.30in
Item weight: 1374g / 3.03lb
Package size: 230 * 205 * 175mm / 9.06 * 8.07 * 6.89in
Package weight: 1528g / 3.37lb

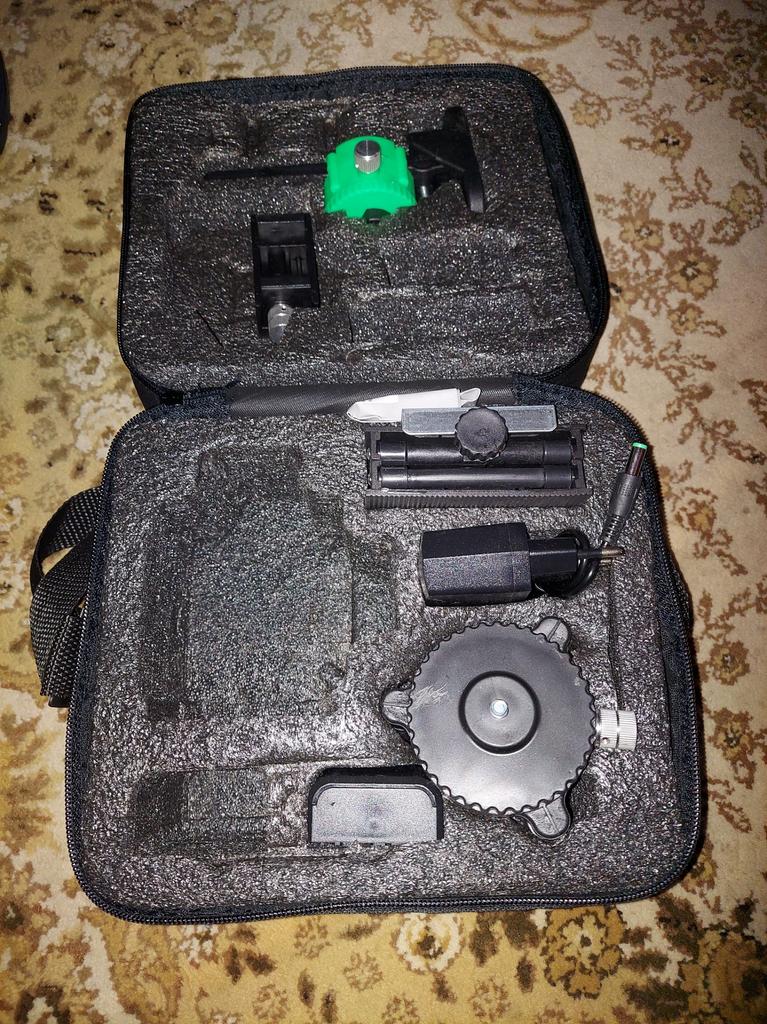

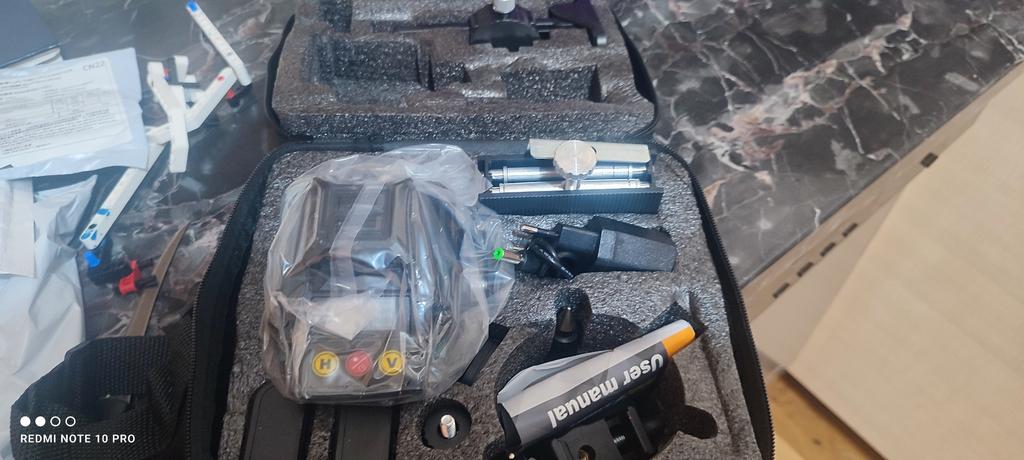

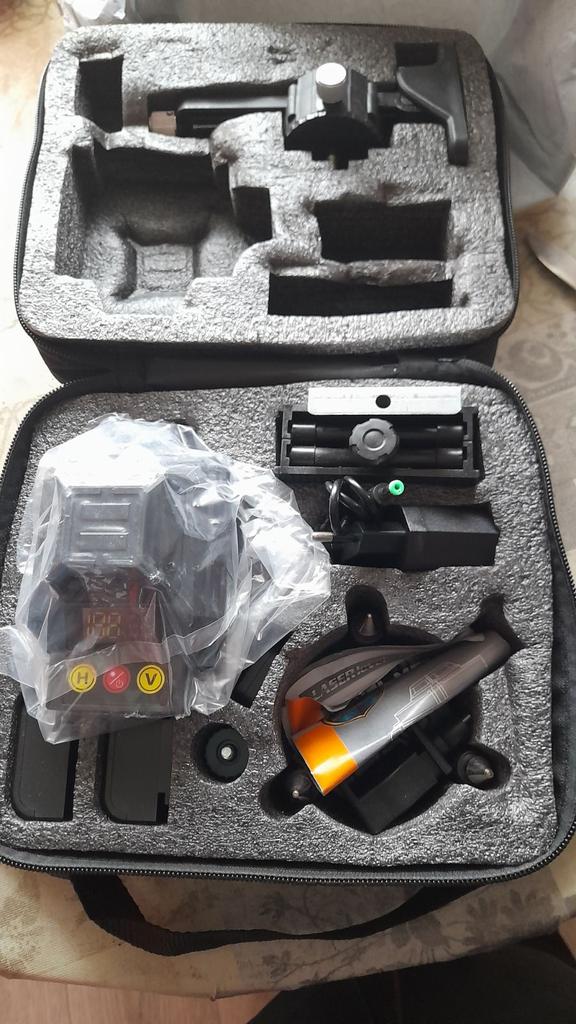

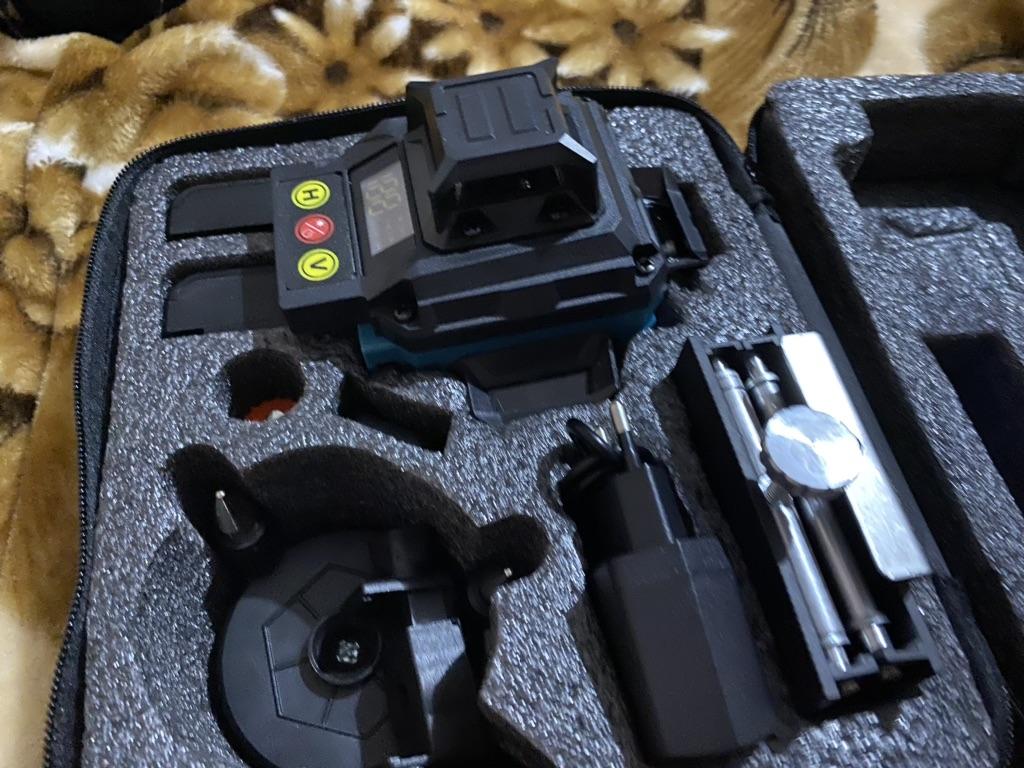

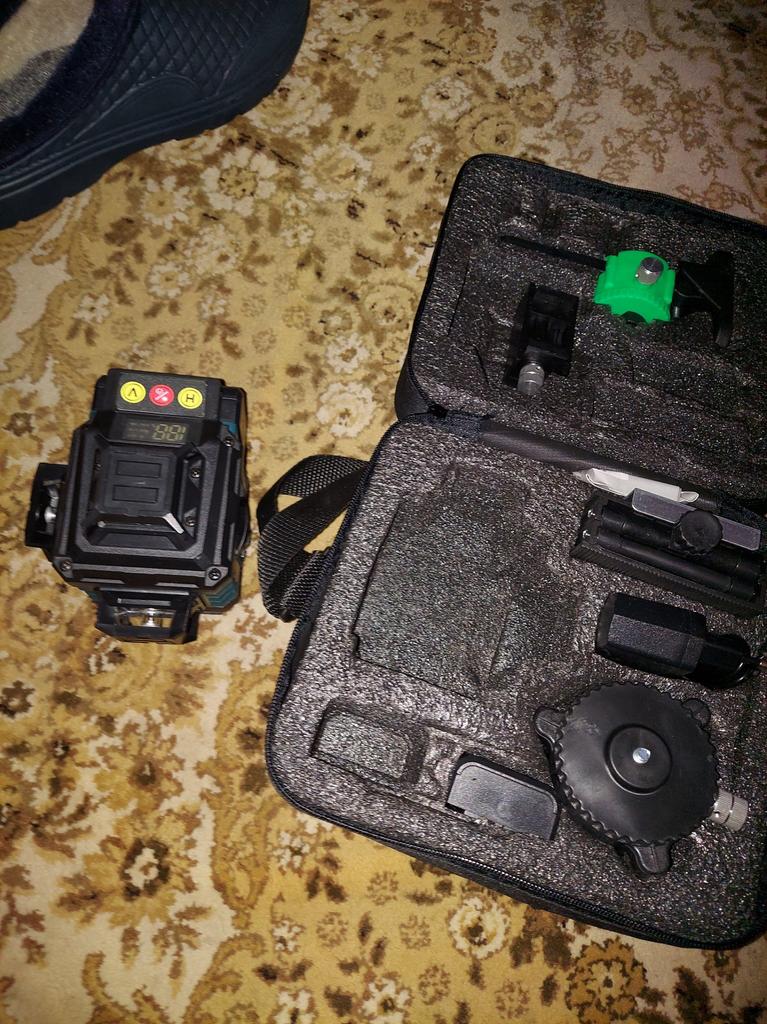

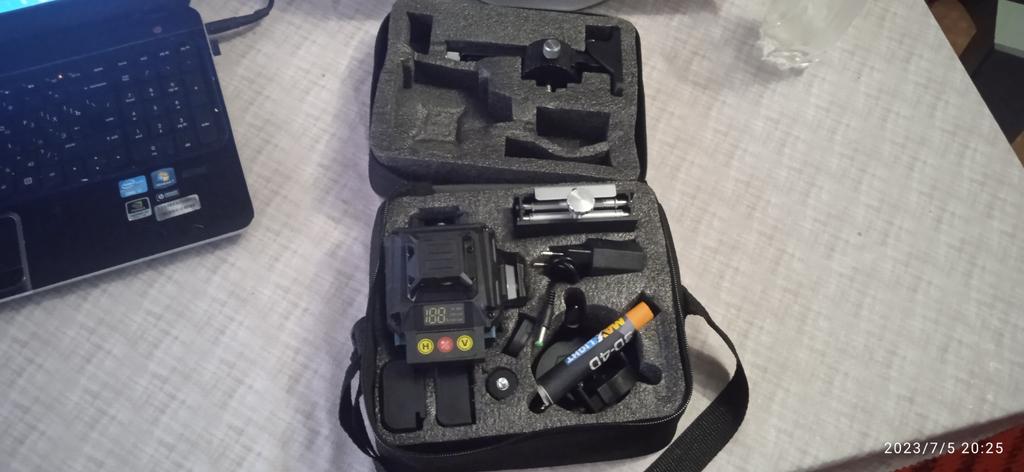

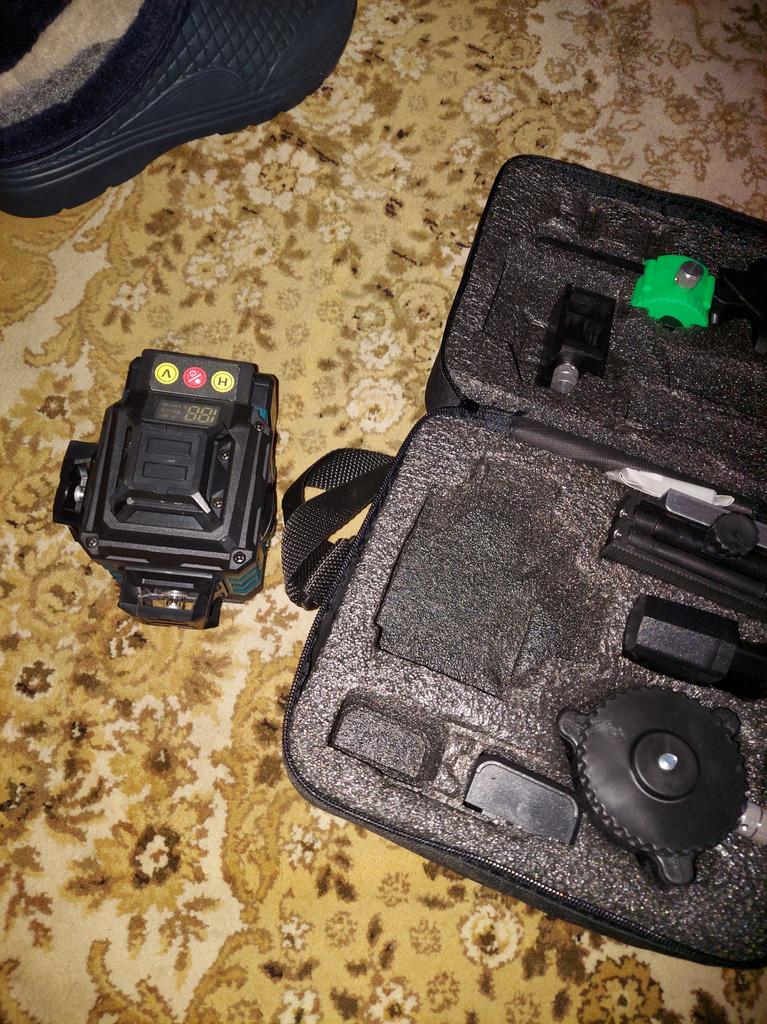

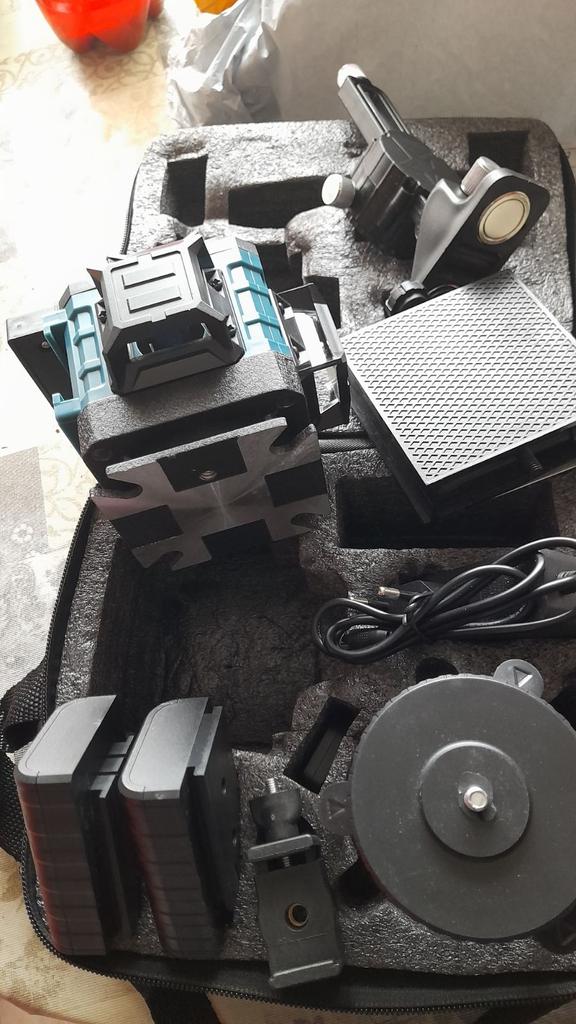

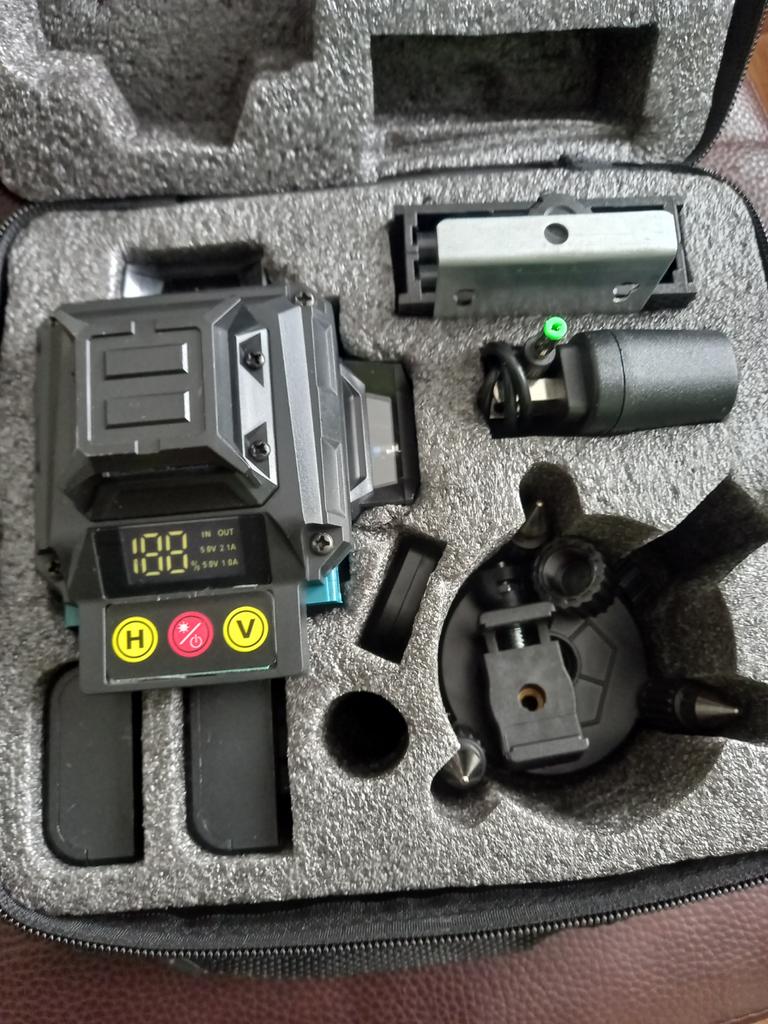

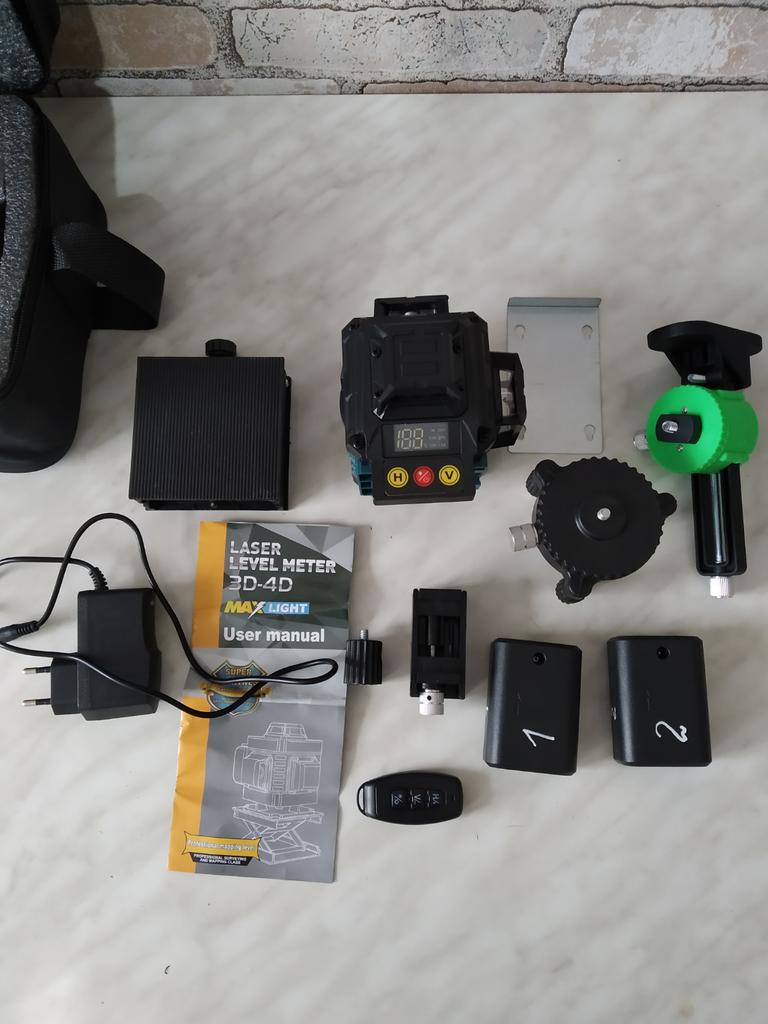

Packing List:
1 * Level Machine

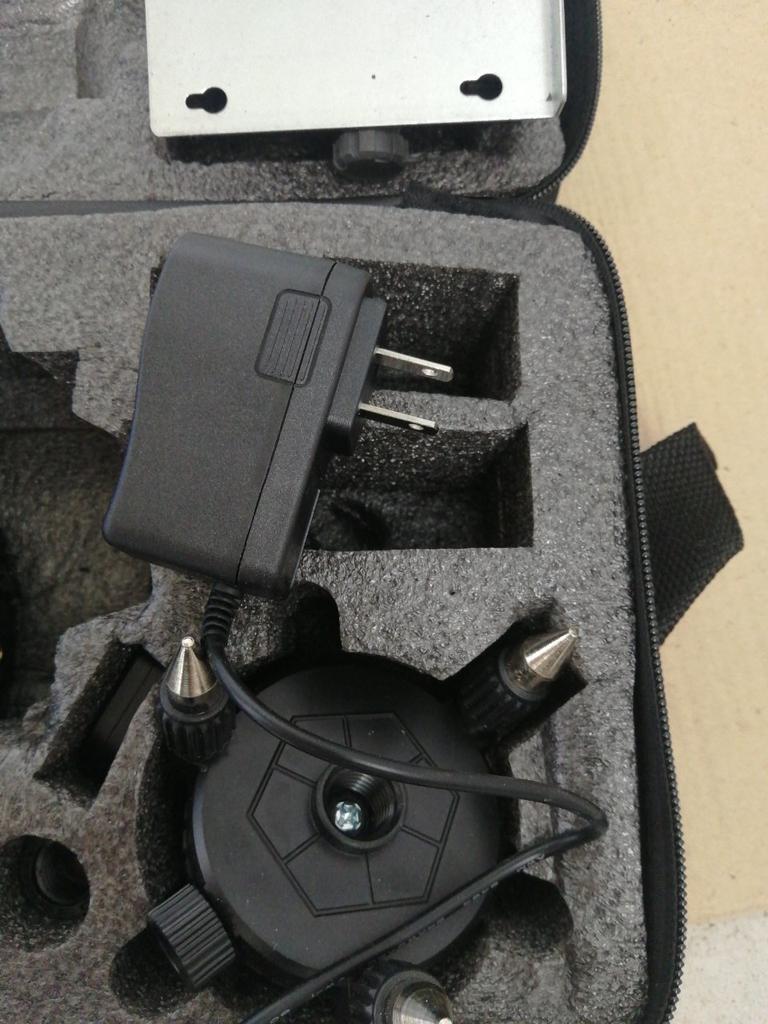

1 * 360° Rotation Base
2 * Battery
1 * Battery Adapter
1 * Wall Mounted Bracket
1 * Iron Board
1 * Lifting Platform
1 * Remote Controller
1 * Clip Holder
1 * 1/4inch to 5/8inch Adapter
1 * Guideline
1 * Carrying Bag
