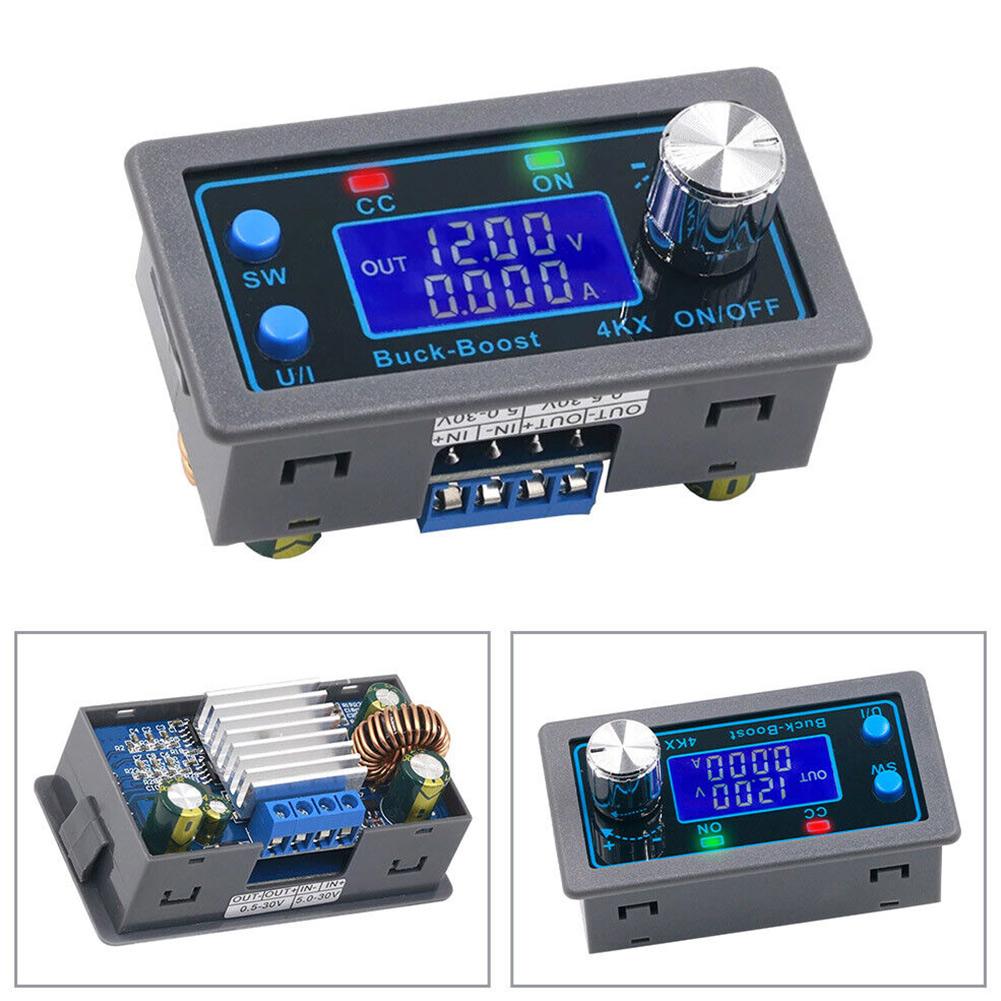

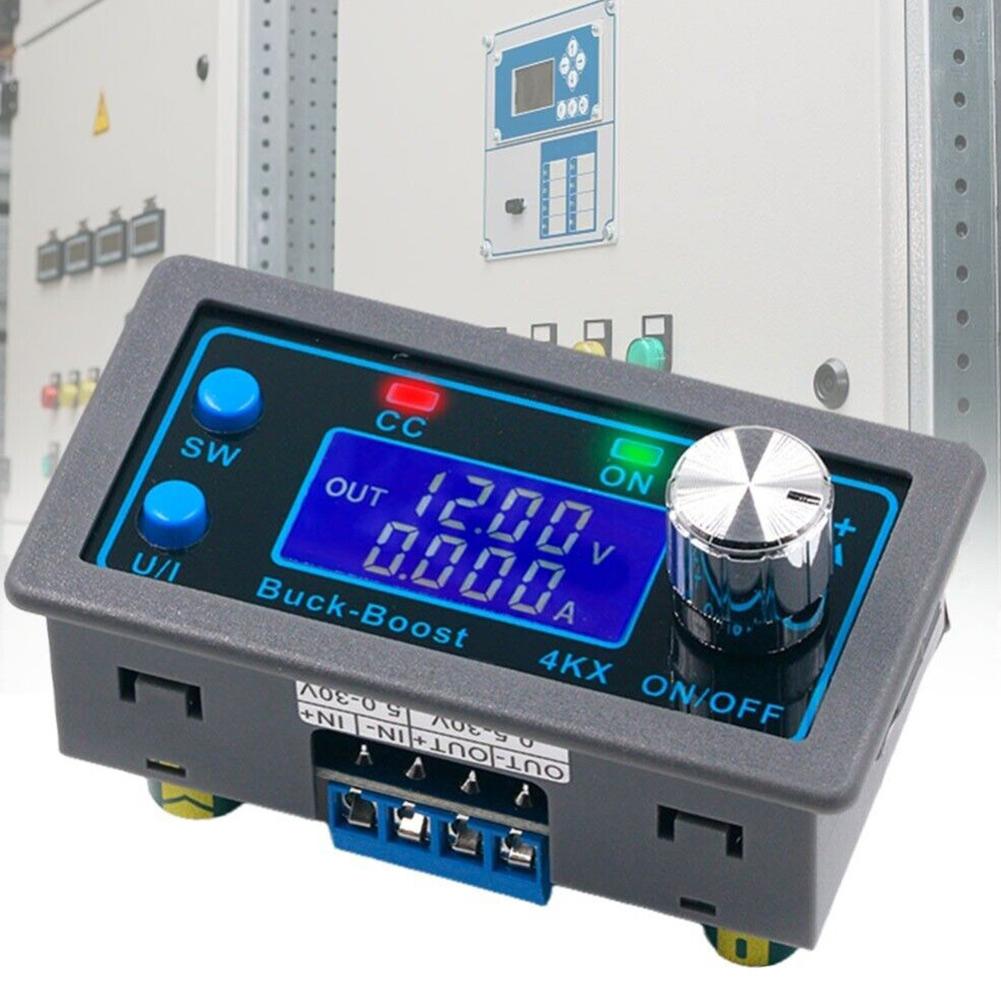

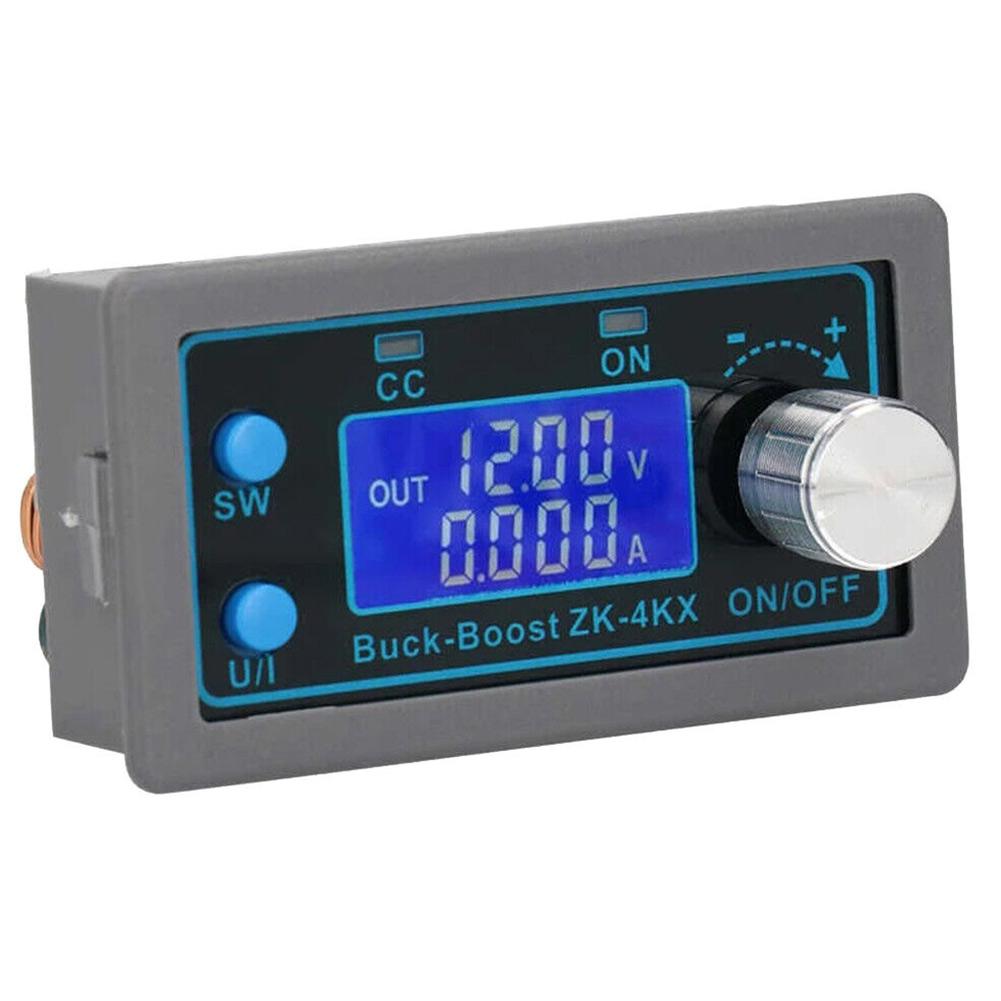

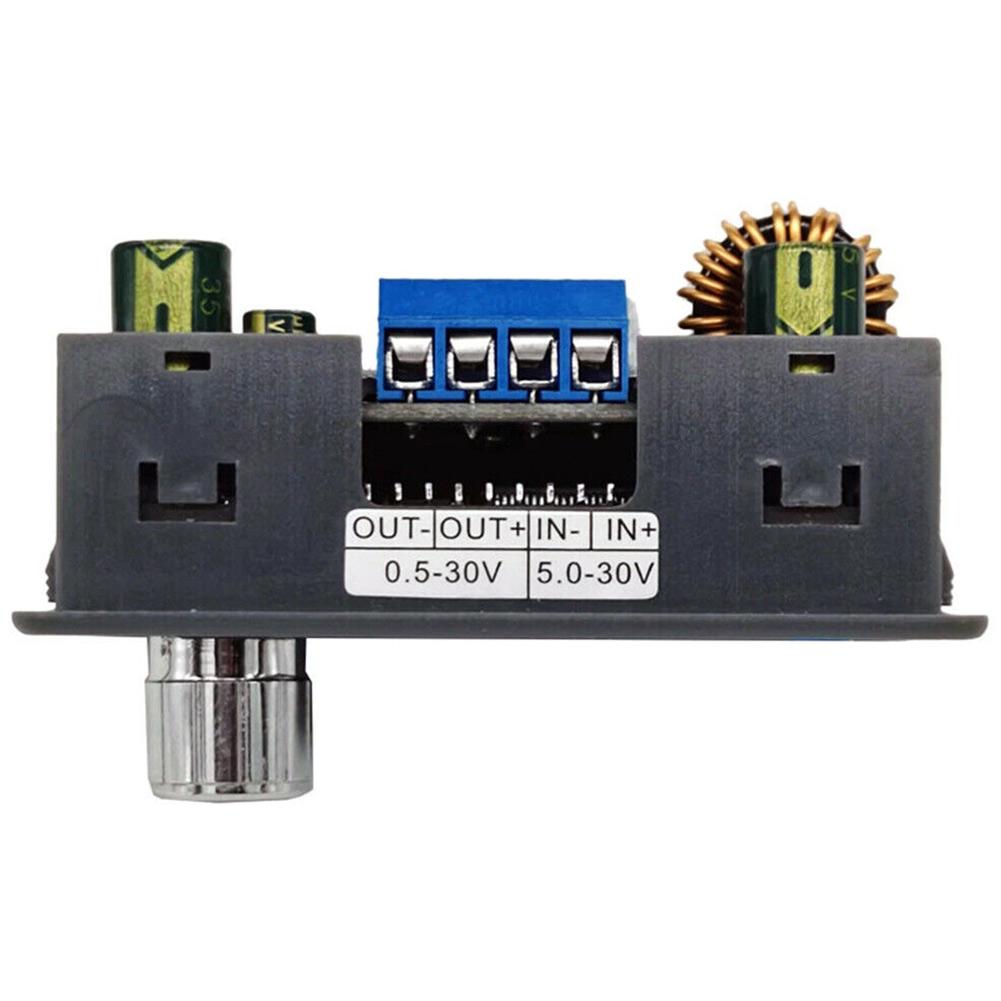

5.0-30V Converter 50W Heat Dissipation Durable 0.01V Voltage Display

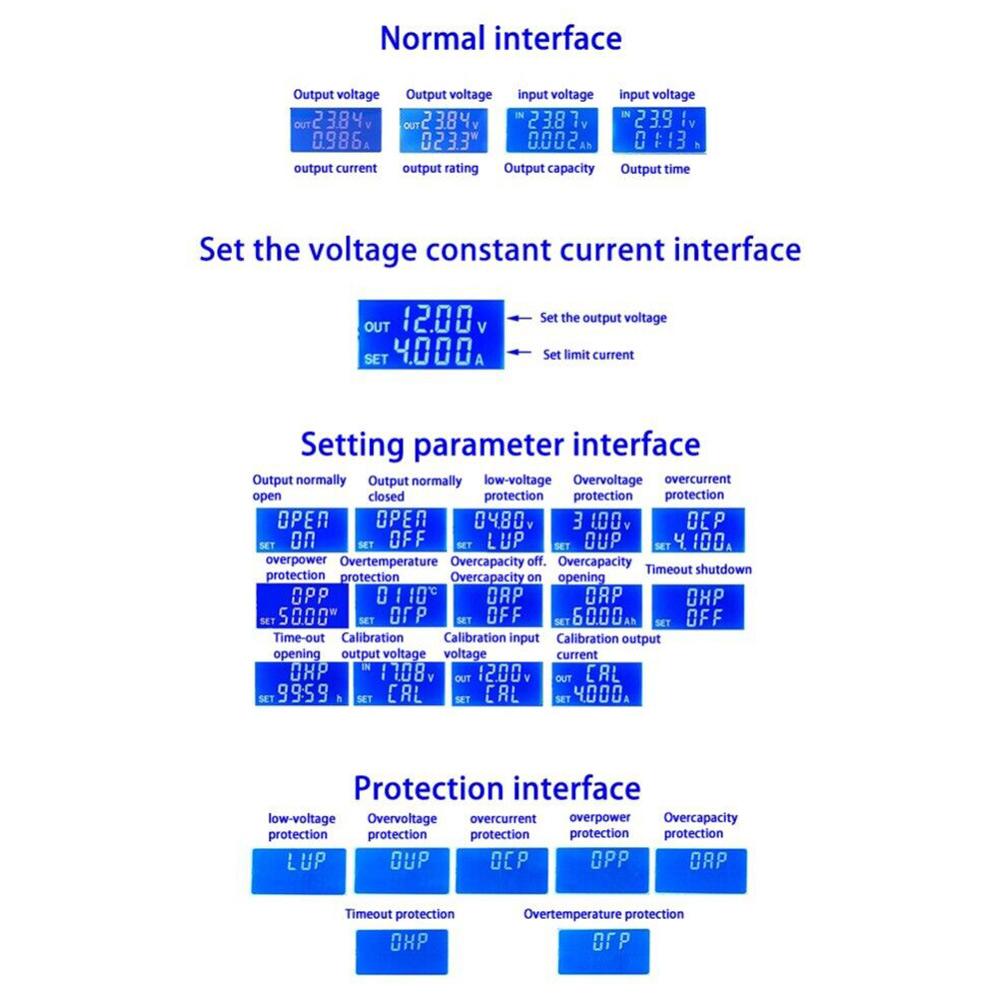

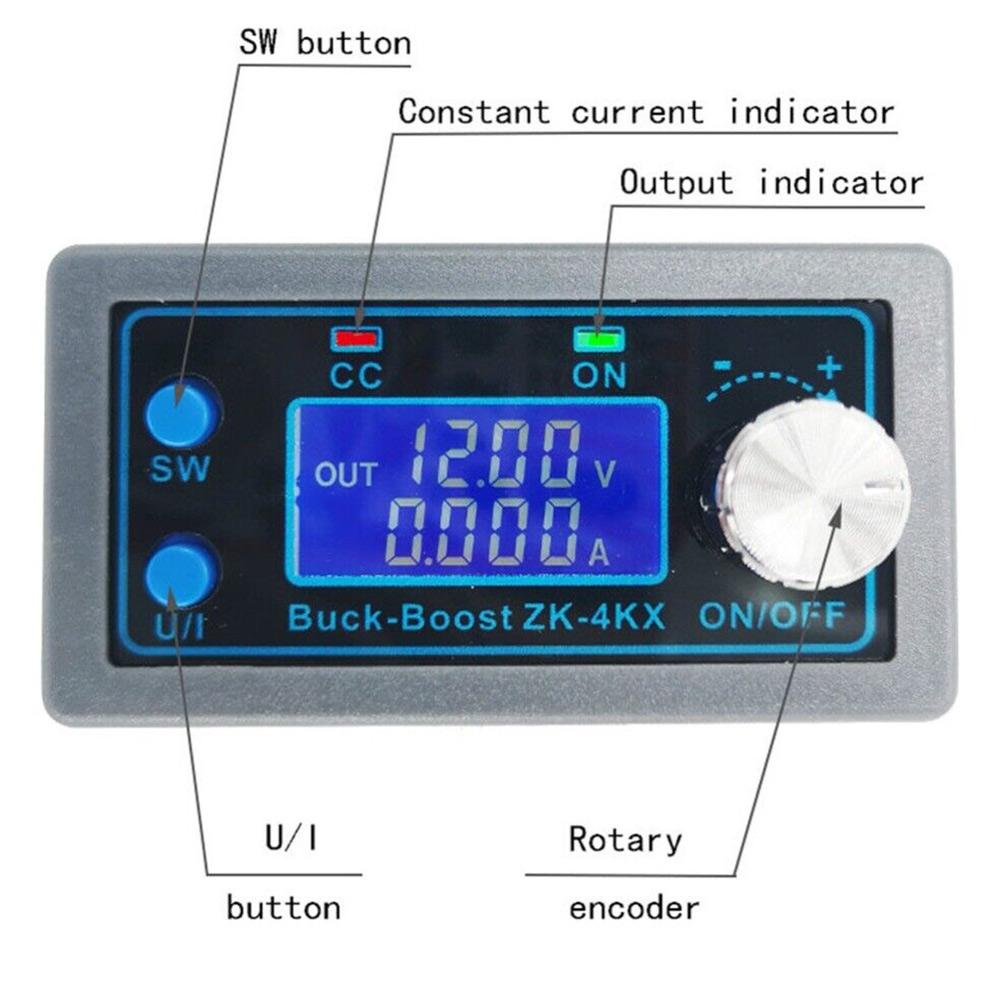

Features: *Made of high quality materials, durable *Digital display voltage and current. *CNC adjustment enables accurate and fast adjusting. It can boost and lower voltage, with an adjustable output voltage of 0.5-30V, and an adjustable current limit of 0-4A. *Anti-reverse connection protection of input end, so that it will not burn out when there is a reverse connection. *Anti-backflow protection at the output end. No need to add an anti-backflow diode when charging. *The module can be set to ON/OFF by default. *Multiple software protection mechanisms are available, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output will be automatically turned off.

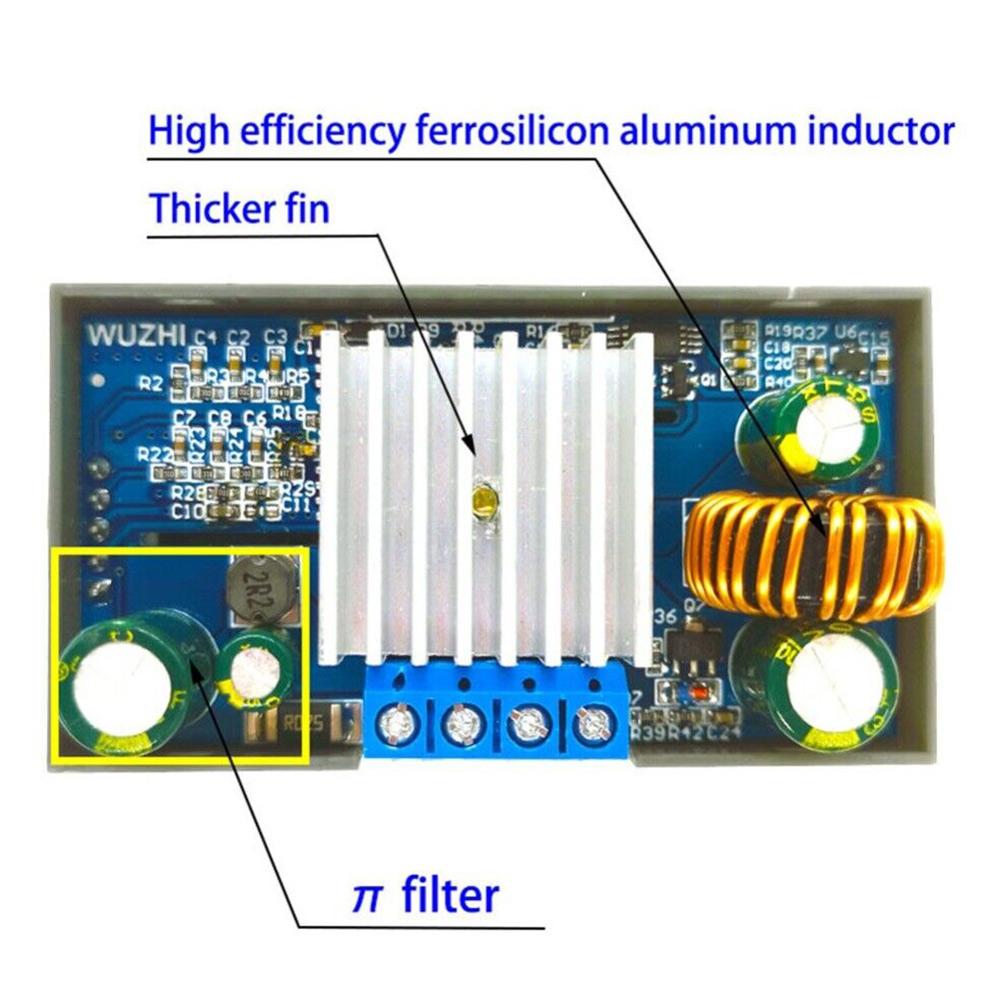

Specification: Input voltage: 5.0-30V Output voltage: 0.5-30V Output current: can work stably at 3A for a long time and can reach 4A under enhanced heat dissipation Output power: natural heat dissipation 35W; strengthen heat dissipation 50W Voltage display resolution: 0.01V Current display resolution: 0.001A Conversion efficiency: about 88% Soft start: yes (it may fail when the module is power-on with a high-power load) Operating frequency: 180KHZ

Package Contents: 1 x Converter

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
