Power Transformer Power AC 220V CQC04001011449 Output

Feature

*High

Quality: This product is made of high quality silicon steel sheet with low eddy current loss.Selection of full copper wire, resistant to high temperature and high voltage. *Power Transformer : It can transform AC 220V input voltage to AC 6V 9V 12V 15V 24V output voltage *The

Product Feature : Nylon flame retardant rubber core, flame retardant tape, high temperature resistant lead, and the product is safer to use. *Safe To Use: All transformers are treated with vacuum impregnated insulation varnish which has high safety and reliability *Your

satisfaction is our priority. If there is any quality problem of our product or you are not happy with your purchase in our store, please kindly contact us and we are always ready to help

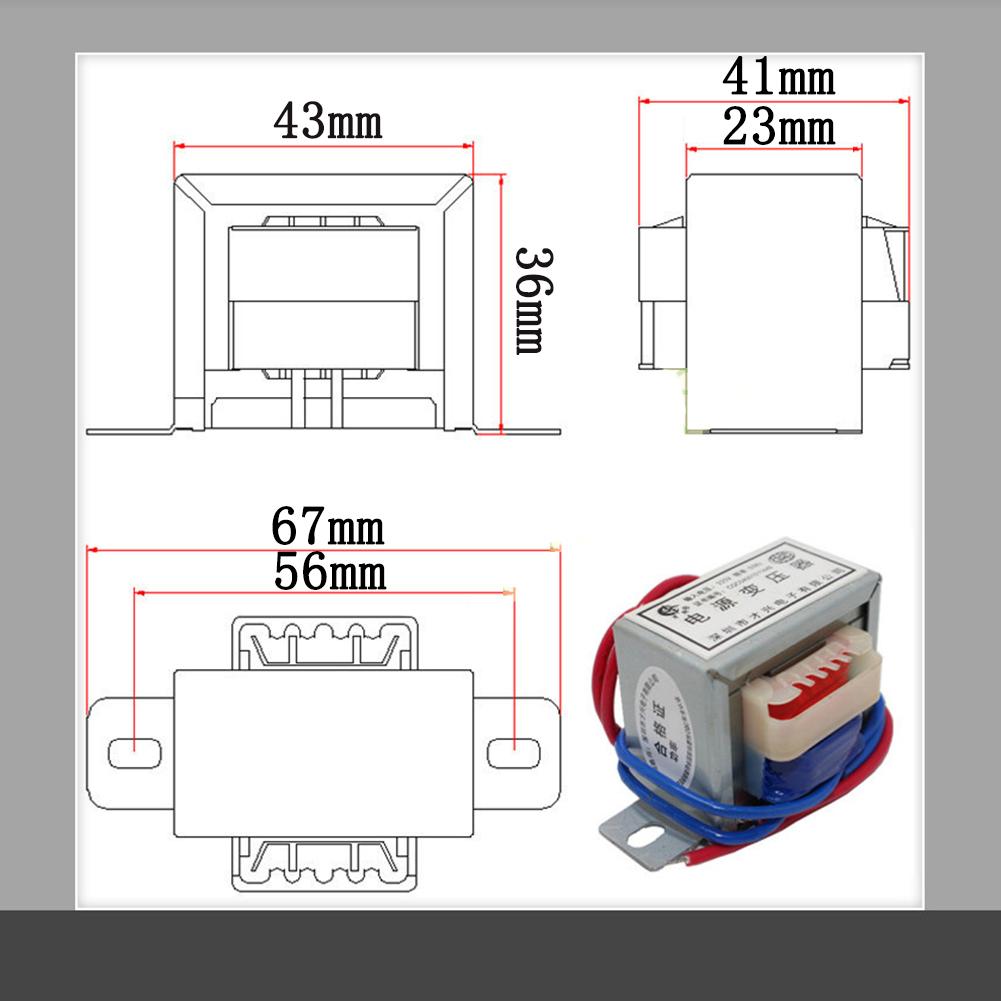

Specification: Product name：AC power transformer Certification number：CQC04001011449 Core model：：EI41*20 rated power：5W Input voltage：AC 220V/50Hz Single output voltage：Single voltage output 6V 9V 12V 15V 24V Frequency characteristics：Low frequency Core shape：EI　type Moisture-proof method：Open style cooling method：Natural cooling Cooling form：Liquid/oil immersed structure type：Isolation transfomer Coil material：All copper enameled wire Single net weight：0.24KG Dimensions：Length 43mm *width 23mm*height 36mm(with iron bridge size) Installation size：Coil width:41mm,pitch:67mm,pitch:56mm Bipolar linear：Red line initial pole input Blue line secondary output Length of each line：Input line length 130mm Output line length 130mm Materials：The

products are made of high-quality materials,high-quality silicon steel sheets,imported all-copper enameled wires,nylon flame-retardant rubber cores,flame-retardant Mara tapes, high-temperature-resistant leads,and al speaker transfomers are treated with vacuum impregnated insulating paint Remarks：The rated vollage of transfomeris made according to the

load vollage.When no-load measurement is made, the voltage will show about 10%　higher, which is a nomal phenomenon. After loading, it will drop to the rated vollage. Please feel free to use it. For example, for no-load load

Packing list: 1*Power transformer
