Bearing Thrust Ball Bearing 1 Pcs Accessories Miniature

Features:

brand new high quality Made of high-quality materials for durability The separable parts of the thrust ball bearing are interchangeable. This facilitates installation and removal as well as maintenance inspections. Thrust ball bearings consist of shaft washers, se at washers and ball and cage assemblies. They are designed to carry axial loads and axially position the shaft in only o ne direction and must not carry any radial loads. Chromium steel (GCr15) shaft and housing washers provide high and uniform hardness, good wear resistance.

Product parameters: Shaft/Housing Gasket Material: Chrome Steel (GCr15) Bearing Ball Material: Chrome Steel (GCr15) Cage Material: Stamped Steel Accuracy class: P0

Model 2: F3-8M Inner diameter (d): 3mm Outer Diameter (OD): 8mm Thickness (B): 3.5mm Dynamic load rating (Cr): 600N Rated static load (Cor): 480N Speed limit (grease): 11000rpm Speed limit (oil): 15000rpm

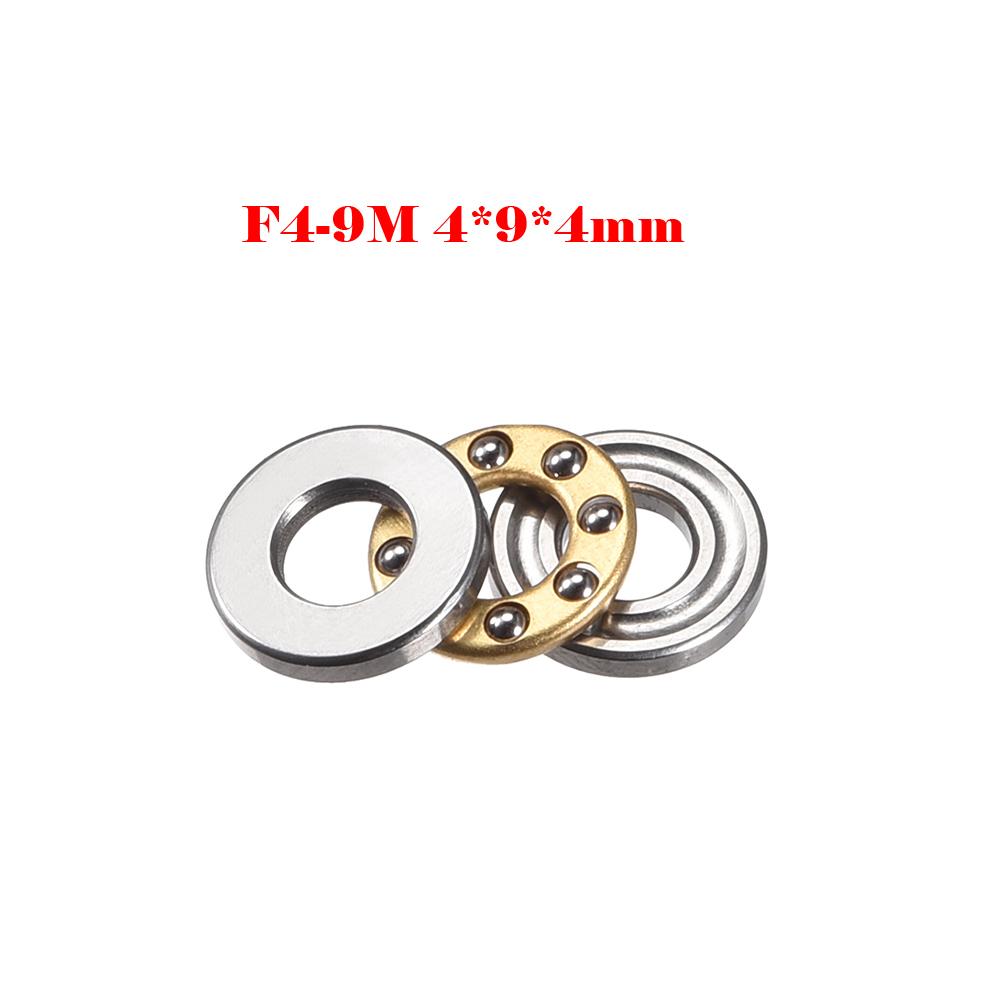

Model 2: F4-9M Inner diameter (d): 4mm Outer Diameter (OD): 9mm Thickness (B): 4mm Dynamic load rating (Cr): 800N Rated static load (Cor): 520N Limit speed (grease): 8000rpm Speed limit (oil): 12000rpm

Model 3: F5-10M Inner diameter (d): 5mm Outer Diameter (OD): 10mm Thickness (B): 4mm Dynamic Load Rating (Cr): 950N Rated static load (Cor): 830N Speed limit (grease): 5100rpm Speed limit (oil): 8100rpm

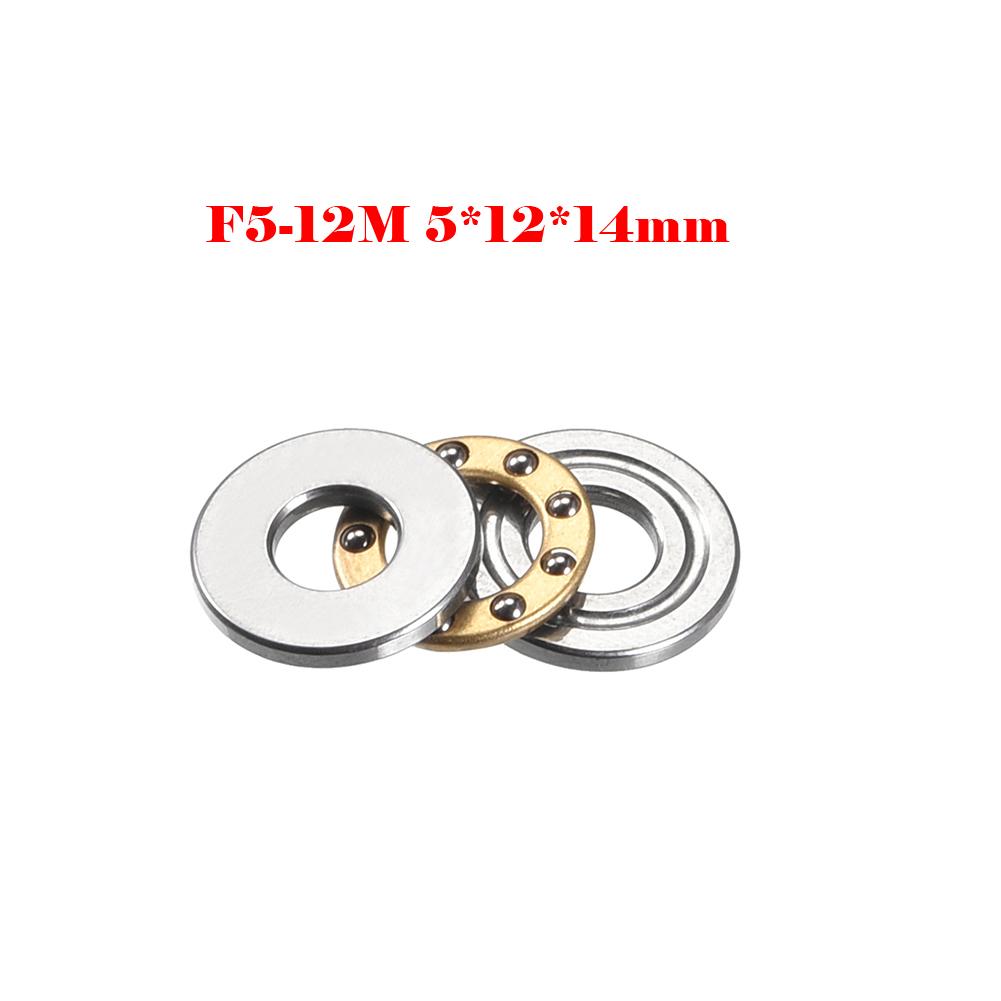

Model 4: F5-12M Inner diameter (d): 5mm Outer Diameter (OD): 12mm Thickness (B): 4mm Dynamic Load Rating (Cr): 988N Rated static load (Cor): 880N Speed limit (grease): 5000rpm Speed limit (oil): 8000rpm

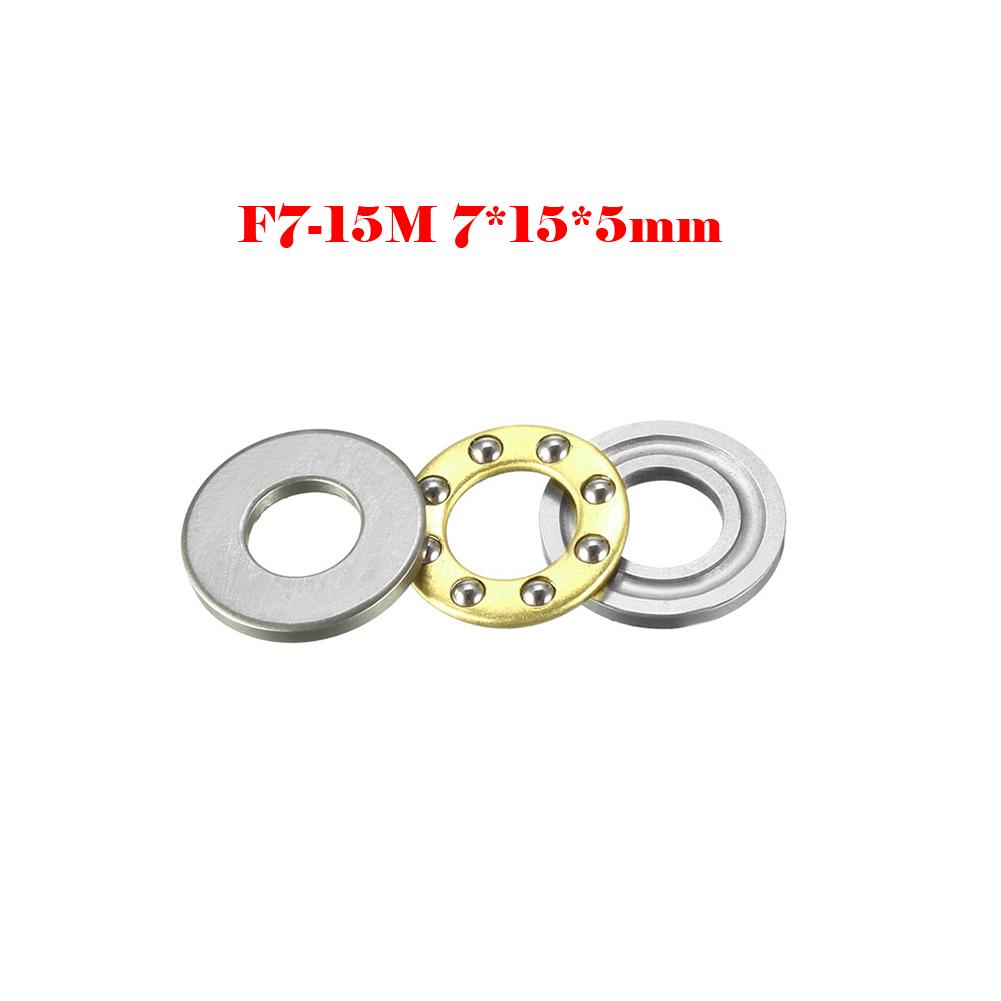

Model 5: F7-15M Aperture (d): 7mm Outer diameter (D): 15mm Thickness (B): 5mm Dynamic Load Rating (Cr): 2.2kN Rated static load (Cor): 2.0kN Speed limit (grease): 3600rpm Speed limit (oil): 7100rpm

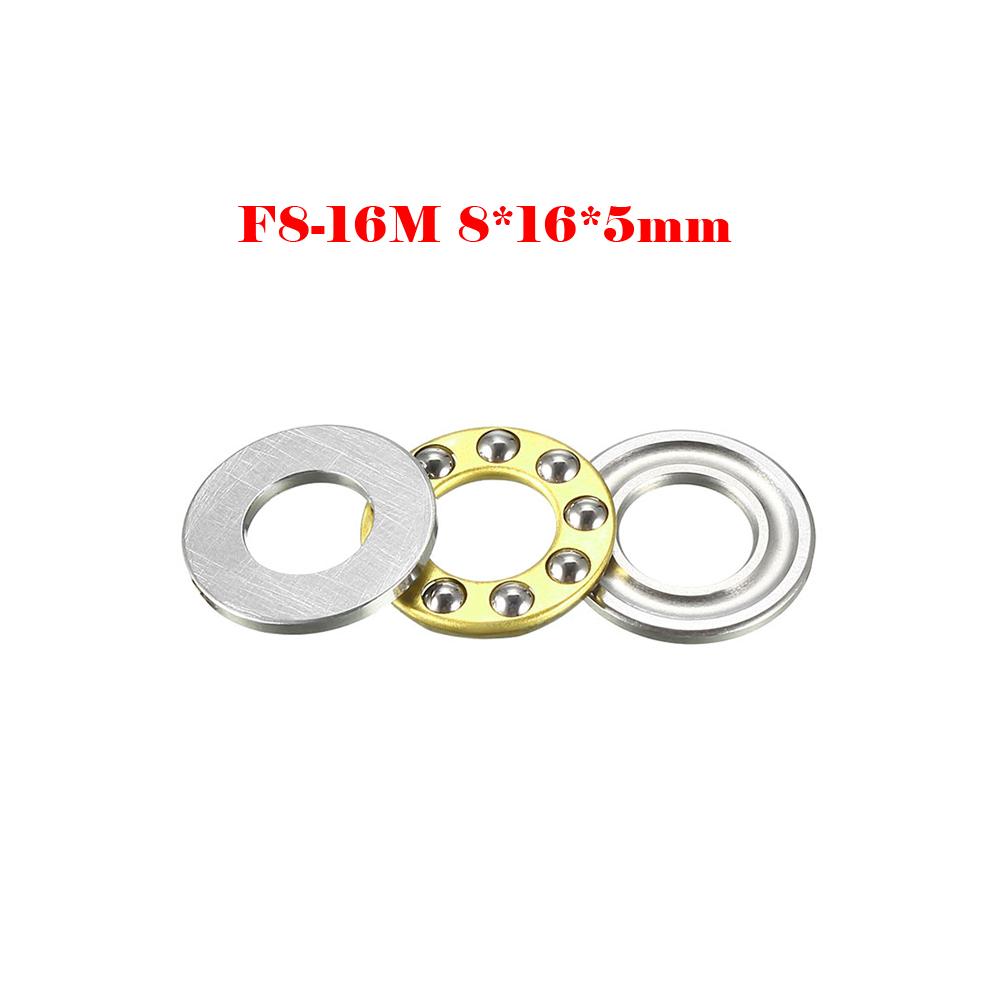

Model 6: F8-16M Aperture (d): 8mm Outer diameter (D): 16mm Thickness (B): 5mm Dynamic Load Rating (Cr): 2.5kN Rated static load (Cor): 3.0kN Speed limit (grease): 4000rpm Speed limit (oil): 8000rpm

Model 7: F10-18M Aperture (d): 10mm Outer diameter (D): 18mm Thickness (B): 5.5mm Dynamic Load Rating (Cr): 2.23kN Rated static load (Cor): 2.721kN Limit speed (grease): 2500rpm Speed limit (oil): 4500rpm

Model 8: F12-21M Inner diameter (d): 12mm Outer Diameter (OD): 21mm Thickness (B): 5mm Dynamic load rating (Cr): 2100N Rated static load (Cor): 2600N Speed limit (grease): 1800rpm Speed limit (oil): 3000rpm

Package includes: (optional) 1 * Thrust ball bearing

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
