Applicable Models & Years

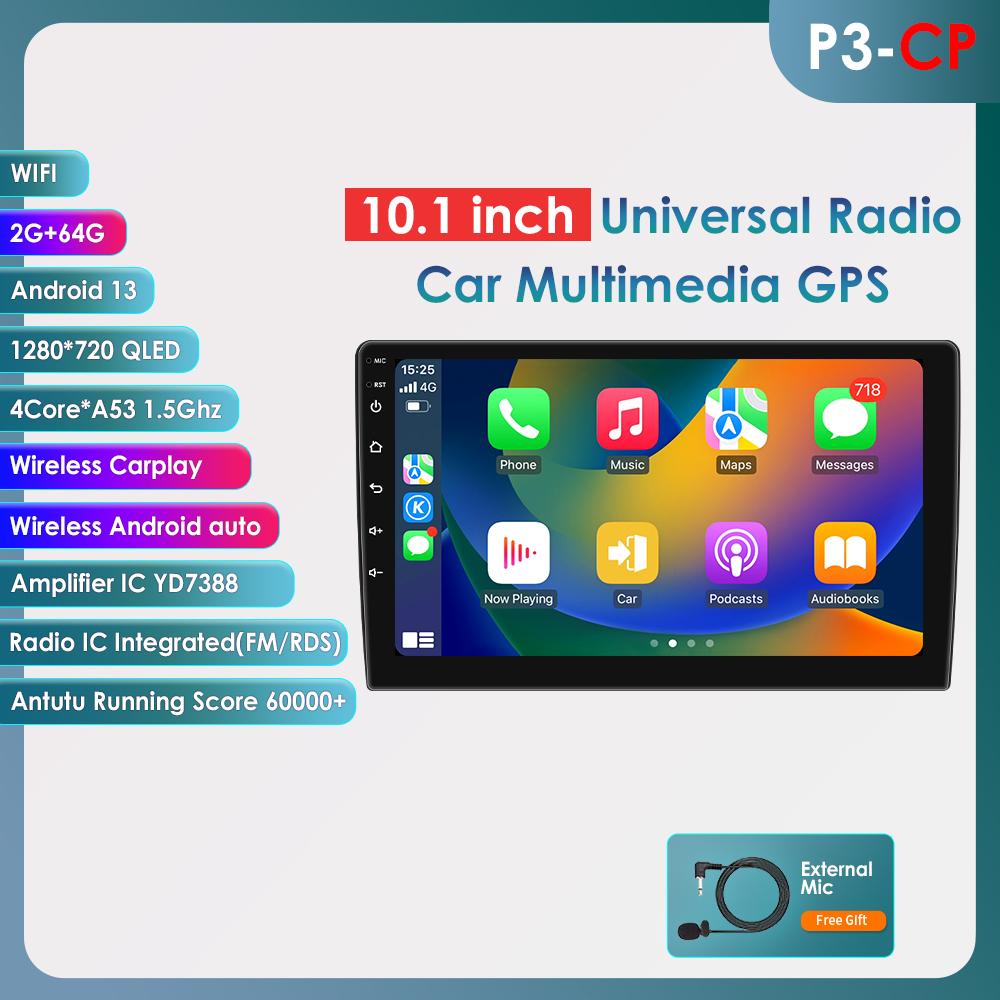

for universal radio ,also can as the head unit with other frame with its power cable accessories together as the whole item for all of the 10.1 inch car model and year .
Note:Years just for your reference,please confirm the certer console of your vehicle before bidding. if the buyer needs the extra wire adapter which not on accessories picture show ,which needs the buyer order by theirself separately.
10 Options:
Option 1:S8 8Core 8GB (RAM) + 128GB (ROM)----suport 4G-LTE & WIFI with External Mic, Cooling Fan.
Option 2:S7 8Core 6GB (RAM) + 128GB (ROM)----suport 4G-LTE & WIFI,External Mic, Cooling Fan.
Option 3:S5 8Core 4GB (RAM) + 64GB (ROM)----suport 4G-LTE & WIFI,External Mic, Cooling Fan.
Option 4:S4 8Core 4GB (RAM) + 32GB (ROM)----suport 4G-LTE & WIFI,External Mic, Cooling Fan.
Option 5:S3 8Core 3GB (RAM) + 32GB (ROM)----suport 4G-LTE & WIFI,External Mic, Cooling Fan.
Option 6:S2 8Core 4GB (RAM) + 32GB (ROM)----suport WIFI,External Mic, Cooling Fan.
Option 7:S1 8Core 3GB (RAM) + 32GB (ROM)----suport WIFI,External Mic, Cooling Fan.
Option 8:XL 4Core 2GB (RAM) + 32GB (ROM)----suport 4G-LTE & WIFI,External Mic, without Cooling Fan,as follow item parameters are not for it. more details check on option picture shows;.
Option 9:HC2 4Core 2GB (RAM) + 32GB (ROM)----suport WIFI,External Mic, without Cooling Fan,without DSP ,as follow item parameters are not for it. more details check on option picture shows;.
Option 10:HC1 4Core 1GB (RAM) + 32GB (ROM)----suport WIFI,External Mic, without Cooling Fan,without DSP.as follow item parameters are not for it. more details check on option picture shows.
as follow datas all for 8Core option Item Parameters:
General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 10.1 inch
System
- Operation System:Android 12
- CPU: Octa Core ,UIS 7862A 1.8Ghz*8 (for S1/S2/S3/S4 Version) / UIS 7862S 2.0Hhz*8 (for S5/S7/S8 Version)
- RAM: 3GB / 4GB / 6GB / 8GB
- ROM: 32GB / 64GB / 128GB
Display
- Touch Screen: Yes
- Resolution: 1080*720 QLED Screen
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
WiFi/4G LTE
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G LTE module: Built-in (S1 /S2 Version not included,which only support the WIFI)
- 4G LTE sim card slot: Yes
- 4G LTE Antenna: YES
- You just need to insert the 4G LTE sim card before you can enjoy the 4G LTE serivce.
Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Audio
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Amp IC: YD7388
- SNR: Noise rations:=90dB
Video
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
GPS
- Operation System: Android
- Support Maps: Android Map, IGO, Sygic, Kudos
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support google maps online navigating
Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
- Bluetooth Version: 5.0
Radio
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- It doesn't support XM radio, but you can access the same channels using the XM radio app.
1. Smart Car Infrtainment: AI Voice Control System Open safe Driving
2. Car Model: This unit will fit the following car model
3. User interface:
S Series(can set as 4 color type: Purple/ Dark blue / Black / Golden) included S8/ S7/ S6/ S5/ S4/ S3/ S2/ S1 version
4. Extreme Performance: A new generation of new CPU architecture, equipped with Two A75,six A55,super performance release ,easy to deal with daily needs.
The specific CPU model please refer to the products configuration table.
5. Support Carplay / Android auto: Phone / Music / Maps / Podcasts Make your journey easier and more fun.;support wireless carplay,wired android auto,wireless android auto(which needs to set its cell phone wifi hotspot's AP Band as 5 Ghz band).
6. Built-in DSP BU32107EFV: We use BU32107EFV and BD37534FV DSP IC in different configurations products.The specifit difference please refer to the first picture of product configurations table.
7. Professional radio chip: Receive more stable radio station ,less radio noise, higher performance during driving.
(We use 4745,TDA7708 and integrated radio IC in different configurations products, the specific different please refer to the products configuration table.)
Online Radio(needs to buy the Pro version AI assistant code to active)
with an internet data connection,you can listen to online channels with no noise interference compared to traditional radio ,allowing your journey to enjoy the ultimate listening experience.
Customize settings ,Supports 20 countries ,add to favorites, Quality broadcast.,we will open up more national radio staions ,thanks you for your supports.
8. Bluetooth 5.0 Dual Channel: Stable and long distance Bluetooth connection. Stable and long distance WIFI connection.
(On its main interface can show "Model phone battery display")
9. Built-in 4G Network: Please enter the SIM card before turn on the device. Include the 4G card slot, and the 4G antenna!(this Function for S3 / S4/ S5/ S6/ S7/ S8 version)
10. Audiovisual Feast
11. 8Core 1280*720 QLED Screen : Fine picture quality, true color, suiltable for more scenes, to meet your requirements
12. Button color changing function: Original Light color ,Red ,Yellow ,White ,Green ,Blue ,Cyan ,Purple.
13. AI Voice Car System Relax Driving, if needs this function,please choose the option with AI assistant function ( which will BE actived before ship out), if option without it , will not got it before arrive.
14. Weather Display (BE actived before ship out)
15. Multiple Desktop Window Function (For example: GPS ,OBDII , DVR , TPMS )
16. Navigation , Weather Display , Split Screen ,Bluetooth phone,Radio functions ,One key to enter the secondary page, Customizable application add,delete,move.
17. can Support Torque Pro ( OBD2 & Car ) / DAB+ Box / TPMS Function / Supports AV-OUT / HD 1080P ADAS DVR Camera / and etc, but needs the buyer to order the adapter separately if needs.
18. GPS Navigation: Supports Online and Off line Google map, Navitel, Waze, Herewego
To avoid congestion choose lanes recently , the way of voice complement sensory information.
19. Optical and coaxial digital audio output : This function is only supported by S5/S6/S7/S8 series
20. Split Screen : You can use 2 apps at the same time (such as: Navigation + Music , ADAS Camera + Music ,etc.)
