Product Description

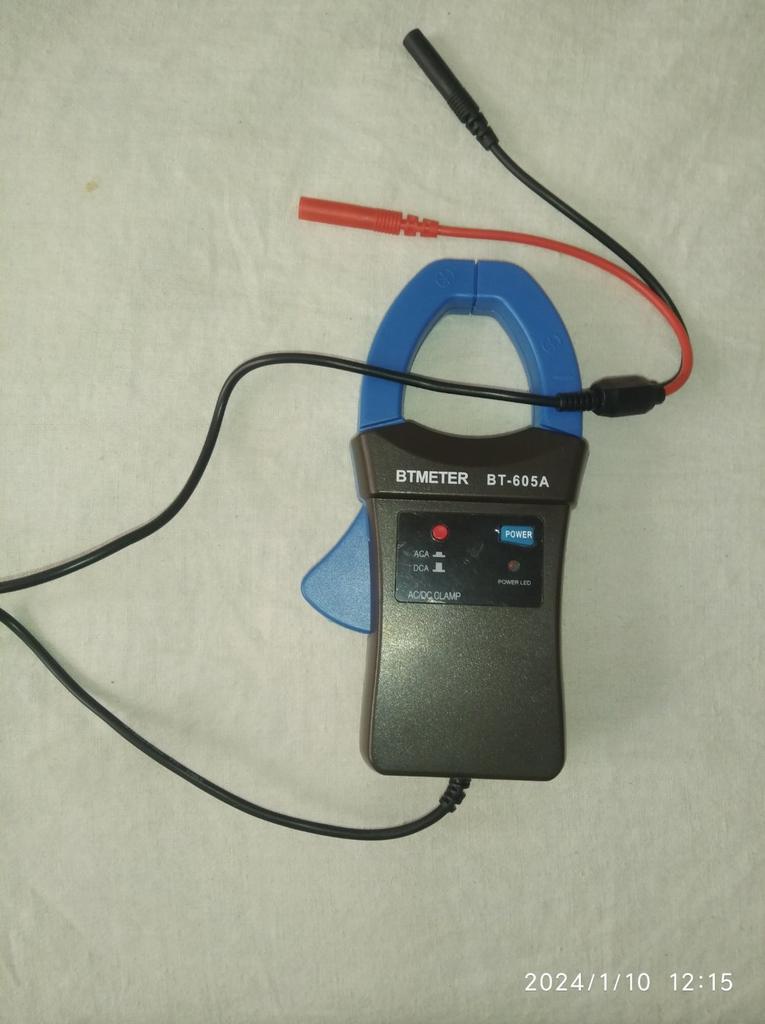

【AC/DC 600A Clamp-on Probe】Capable of measuring AC/DC up to 600 amps, BT-605A clamp adapter is built for higher current measurement.
【Great Companion to DMMs】1mV per ampere output & standard 3/4 inch banana plugs makes it compatible with most multitesters that features with 1mV sensitivity.
【Accurate Ampere Measurement】+/- 3.0%+10 accuracy for signal output conversion. The arrow on the Jaw indicates the DC current direction of positive current flow ( from positive to negative)
【Easy to Use】Maximum Jaw Caliber Size up to 1.77 inches (45mm), allows you to make accurate AC or DC amperage measurement up to 600 amps without breaking the circuit.
【Tips】Putting an amp-clamp on a power cord wouldn’t get a reading, you’ll need to put an amp clamp around the live wire only, or use an “AC line splitter”.
Specifications
✲ DC Current: 600 A
✲ AC Current: 600 A
✲ Jaw Caliber: 1.77inch
✲ Output Conversion: 1mV/1A
✲ Conversion Accuracy: +/- 3.0% + 5 digits
✲ Output Impedance: 10K
✲ Dimension: 7.05*3.54*1.42 inch
Tips for BT-605A
☀Perfectly work with BTMETER multimeters, such as: BT-770M, BT-770N, BT-770K, BT-90EPD, BT-90EPC,etc.
☀When perform DC current measurement, always press “REL” key on multimeter to zeroes it out.
☀When perform AC current measurement, always use the clamp go round the live wire only, or use "AC line splitter"
☀Connect the black banana plug of the BT-605A AC/DC Current Clamp Adapter to "COM" port and the red banana plug to the "µA mA" port.
☀Press “SELECT” button on the multimeter and press AC/DC button on the Clamp Adapter to choose “DC” or “AC” measurement .
☀The arrow on the right side of the Jaw indicates the DC current direction of positive current flow ( from positive to negative ).
▶ The Russian warehouse has stock, and the delivery address is Russian orders. We will ship from the Russian warehouse. You can receive the products in about three to ten days.
Measuring Current Range: 600A
Display Type: Analog Only
DIY Supplies: ELECTRICAL
Signal Output: 1mV/1A
DC/AC Switch: Yes
Power LED: Yes
Jaw Caliber: 45mm
