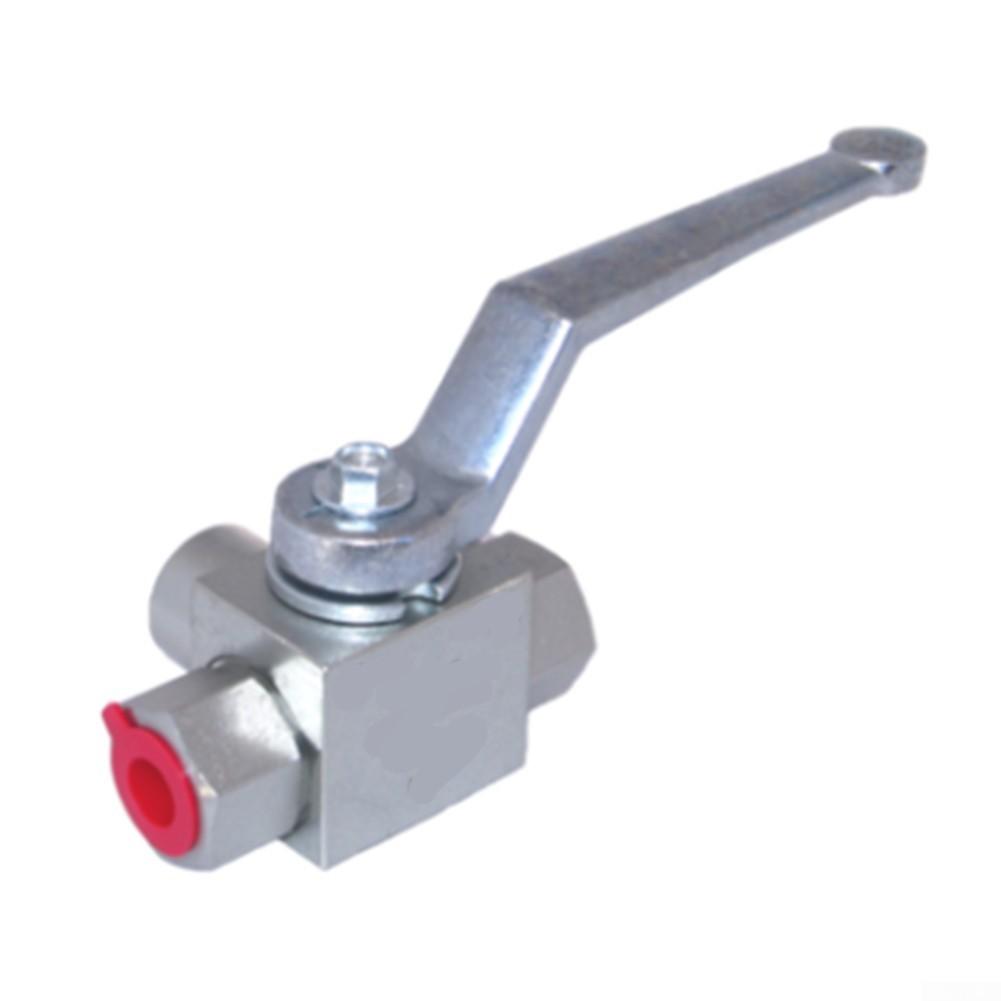

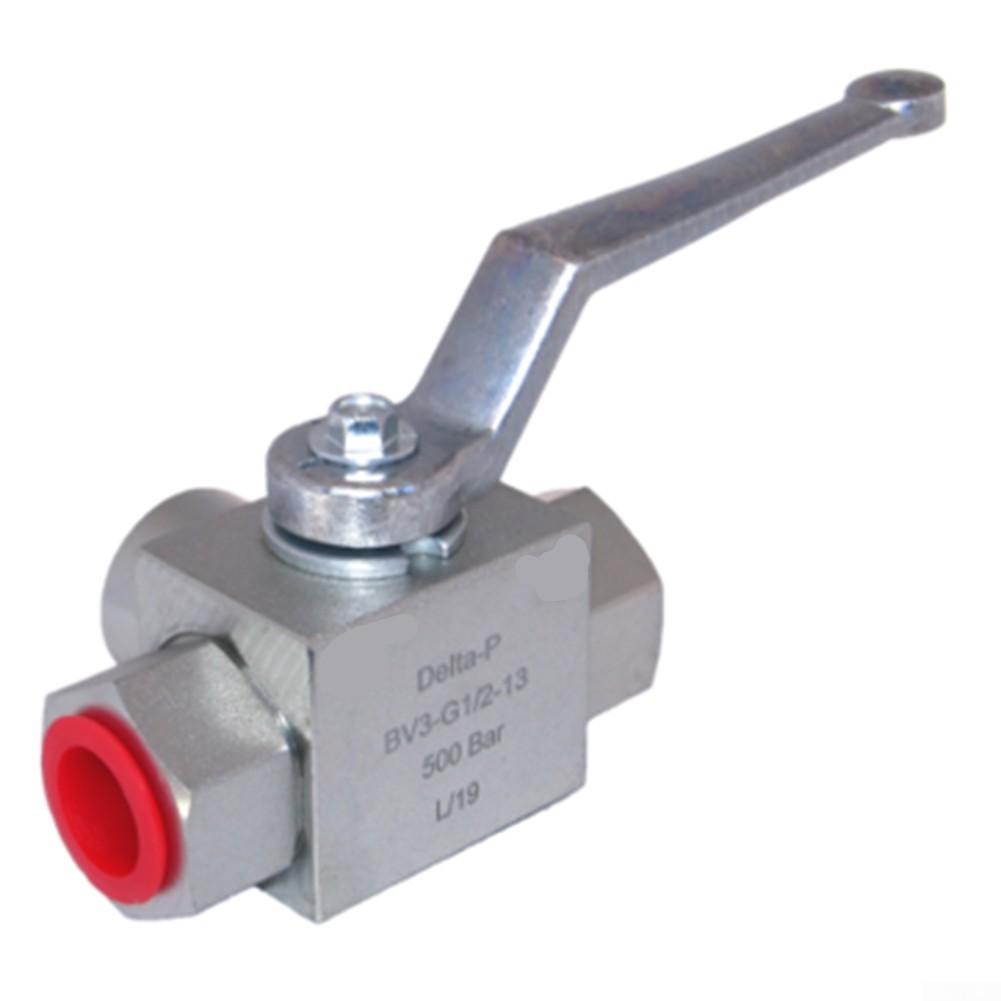

500 Bar Ball Valve Carbon Steel Hard Seal Manual Rubber

Features: * Brand new and high quality * Made of high quality material, durable * Diameter: 1/4" to 3/4" BSP * Valve operation: manual * Construction material: carbon steel * Working pressure: 500 bar * Name: Hydraulic high pressure ball valve * Lining Material: Rubber * Seal material: Rubber * Model: G1/4, G3/8, G1/2, G3/4, (optional) * 500 bar (7250 PSI) working pressure * Maximum seal float design * Operating temperature: -20°C to +100°C * Valve body material: carbon steel * Connection form: internal thread * Drive mode: manual * Additional parameters: 500 * Using medium: water, oil, gas, various strong corrosive chemical media, etc. * Nominal pressure (PN): 320 * Type (channel position): Tee * Sealing method: hard seal * Applicable industry: Petroleum

Package Contents: 1*Hydraulic three-way high pressure ball valve

Notes: 1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
