Features:
*Brand new and high quality
*Made of high quality material, strong and durable
*This module cannot be used in parallel.
*The current of each module can be adjusted up to 15A.

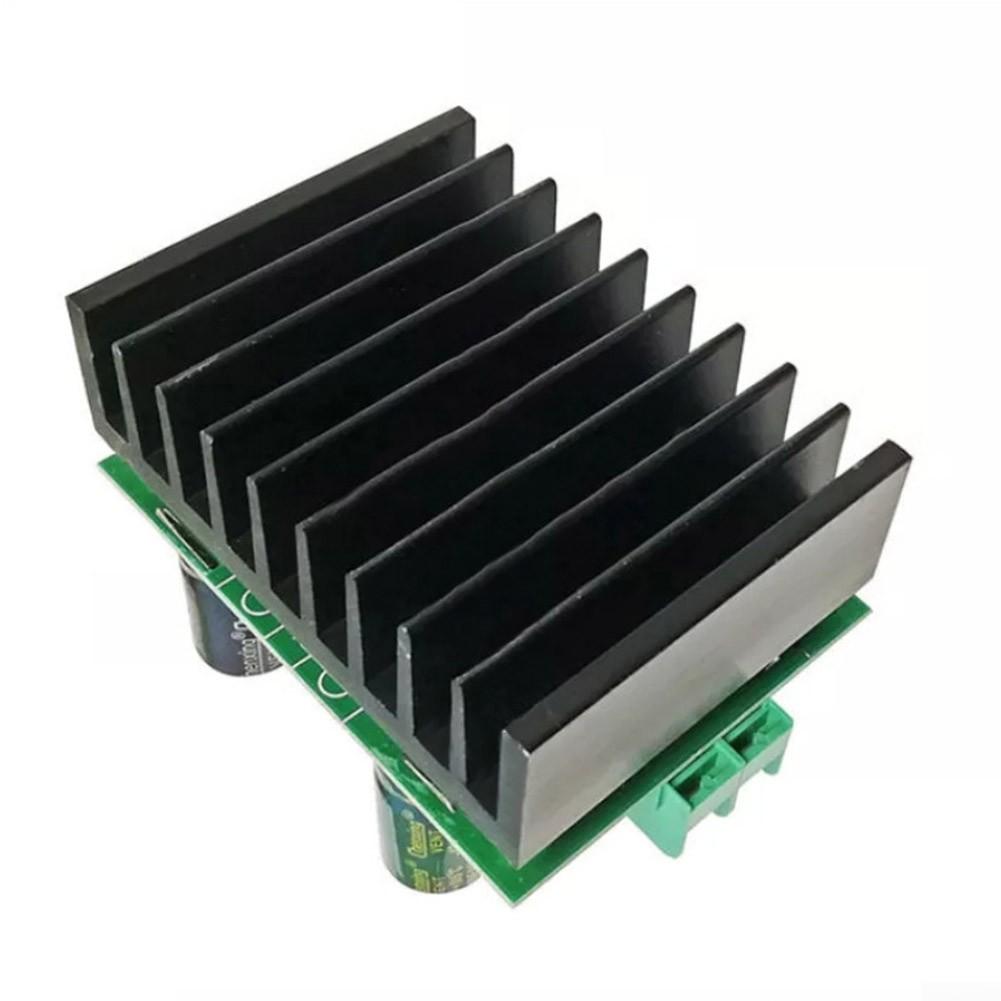

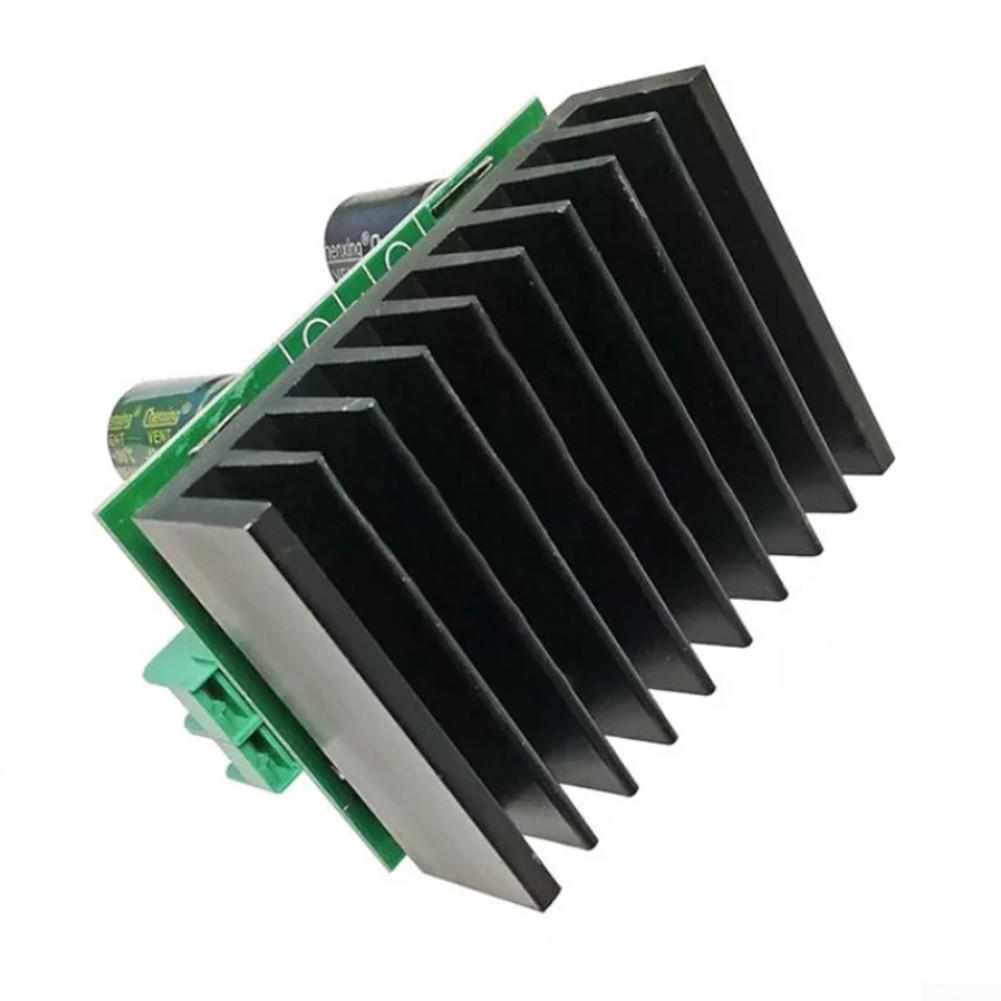

*Working temperature: -40 to +85 degrees (the ambient temperature is too high, please strengthen the heat dissipation)
*Working frequency: 150KHz
*Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current, and differential pressure)
*Over-current protection: Yes (with current reduction adjustment, adjustable output current limit, current exceeding current limit,
*The output current is automatically reduced to a minimum of 5A, which will vary depending on the nature of the load current. )
*Short-circuit protection: With (input 20A fuse) double short-circuit protection, it is safer to use.
*Input reverse polarity protection: no, (if necessary, please connect a diode in series)
*Output counter fill: Yes, no blocking diode needed for charging.
Specification:

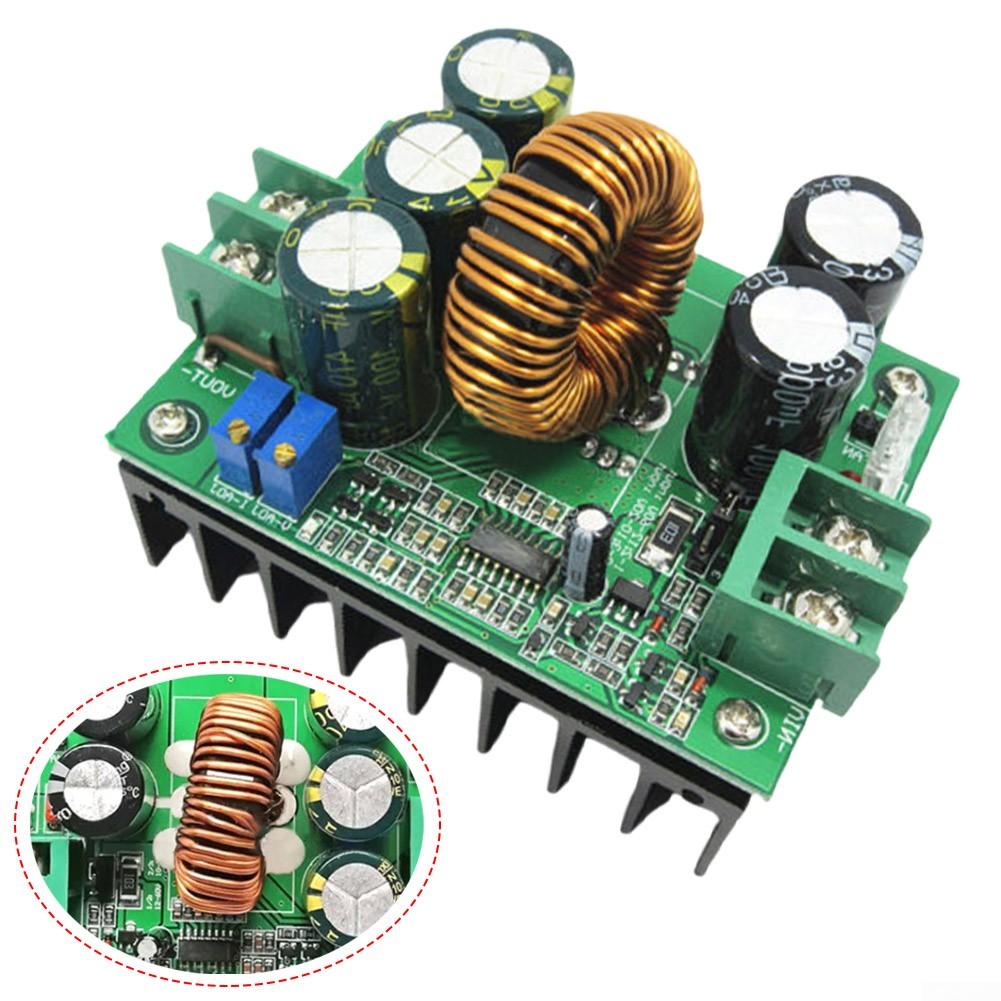

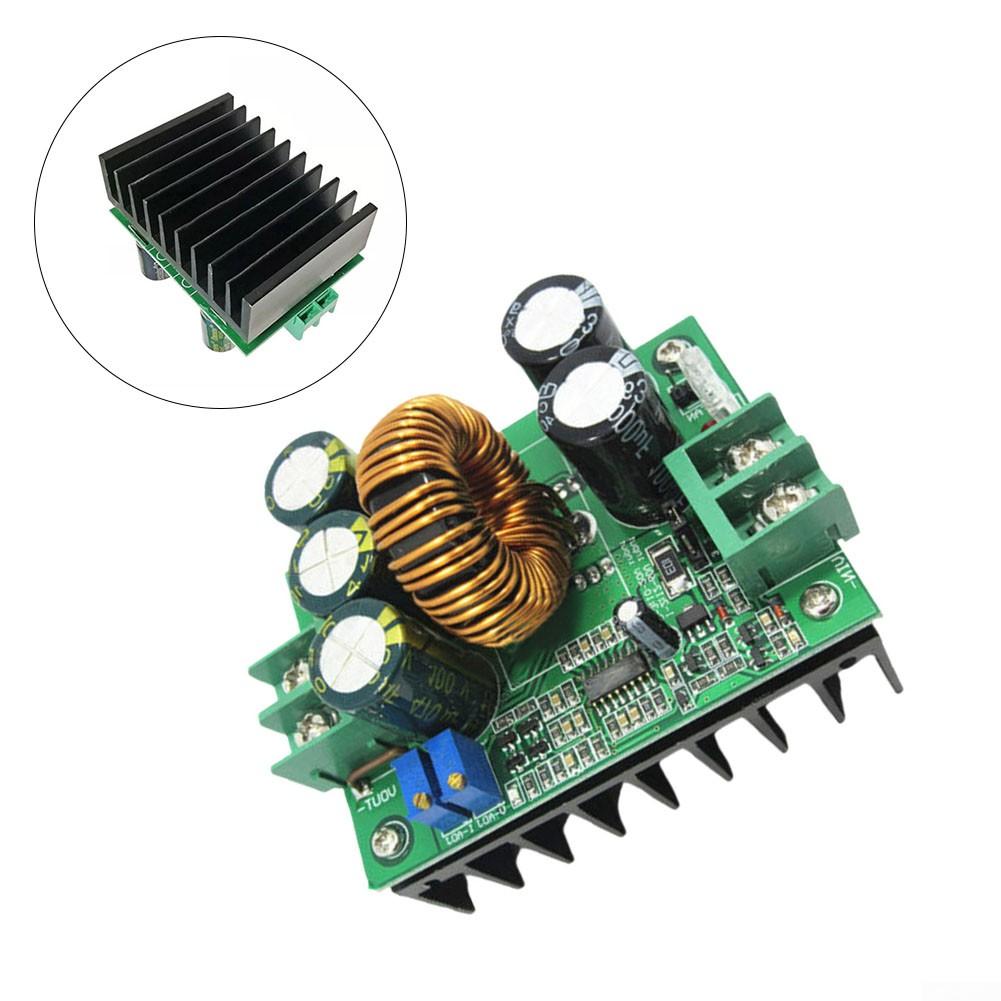

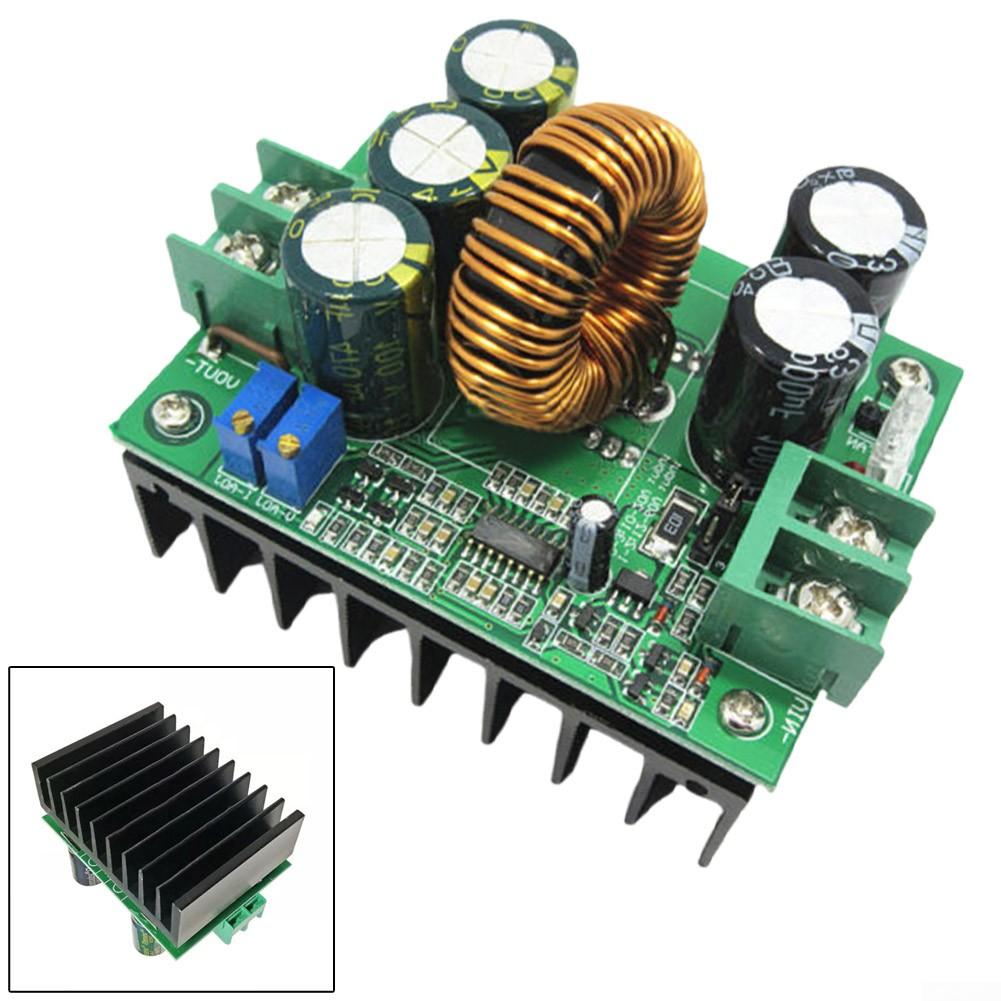

*Module attribute: non-isolated boost module (BOOST)
*Input voltage: 10 - 60V (jump cap switch)
*Input current: 20A
*Quiescent current: 15mA (12V to 20V, the higher the output voltage, the greater the current)
*Output voltage: 12-80V continuously adjustable
*Output current: 20A MAX is greater than 18A, please strengthen heat dissipation (related to input and output pressure, the greater the pressure, the smaller the output current)
*Constant range: 20A
*Output Power:
*Input voltage × 20A, such as: input 12V × 20A = 240W, input 24V × 20A = 480W,
*Input 36V x 20A = 720W, Input 48V x 20A = 960W, Input 60V x 20A = 1200W
*Installation: four 3mm screws
*Connection method: press-fit terminal output
*Dimensions: 85mm x 63mm x 64mm (L x W x H)
instruct:
*1. Default input voltage range: 12-60V DC
*2. Output voltage and current adjustment method:

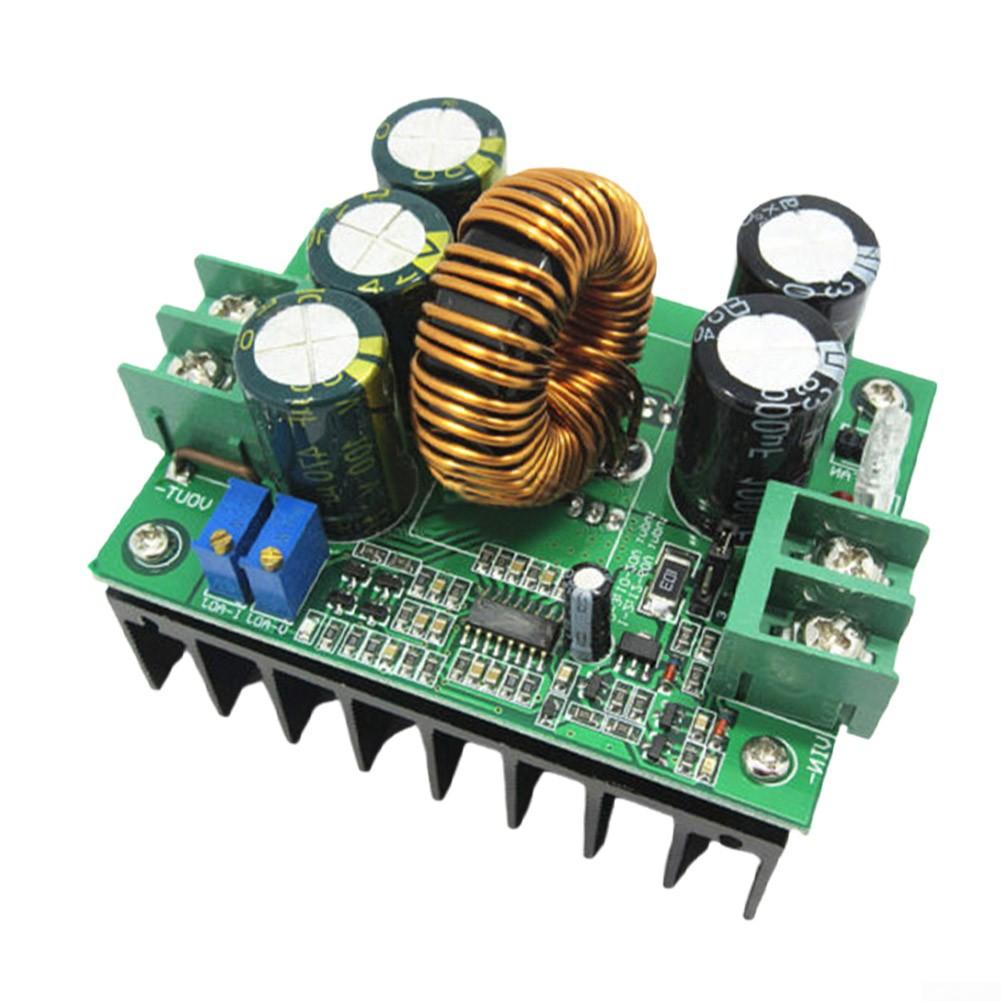

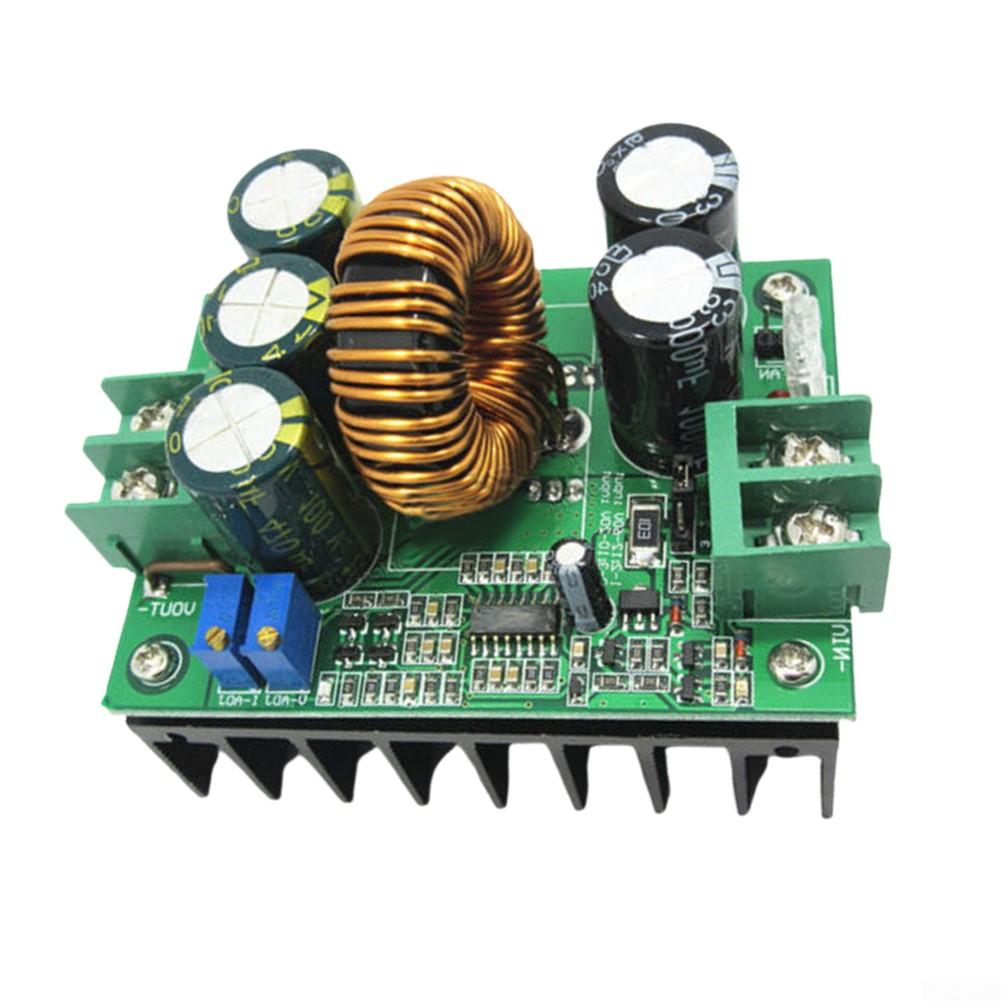

*(1) Adjust the output voltage: Adjust the V-adj potentiometer to adjust to a stronger matching output voltage according to the actual needs of the load equipment voltage.
*(2) Adjust the output current: Rotate the I-adj potentiometer counterclockwise for about 30 turns to minimize the output current, then connect the load device and adjust the potentiometer to the required current.
*(3) For battery charging, discharge the battery, then receive the output, adjust CC to the current you need, (for charging, it must be used when the battery is fully charged, because the more battery power remaining, the smaller the charging current.
*(4) Please do not use the short circuit method to adjust the current, the circuit structure of the boost module cannot be adjusted by the short circuit method.
Package Included:
1X1200W 20A DC Converter Boost Power Module
Notes:
1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
