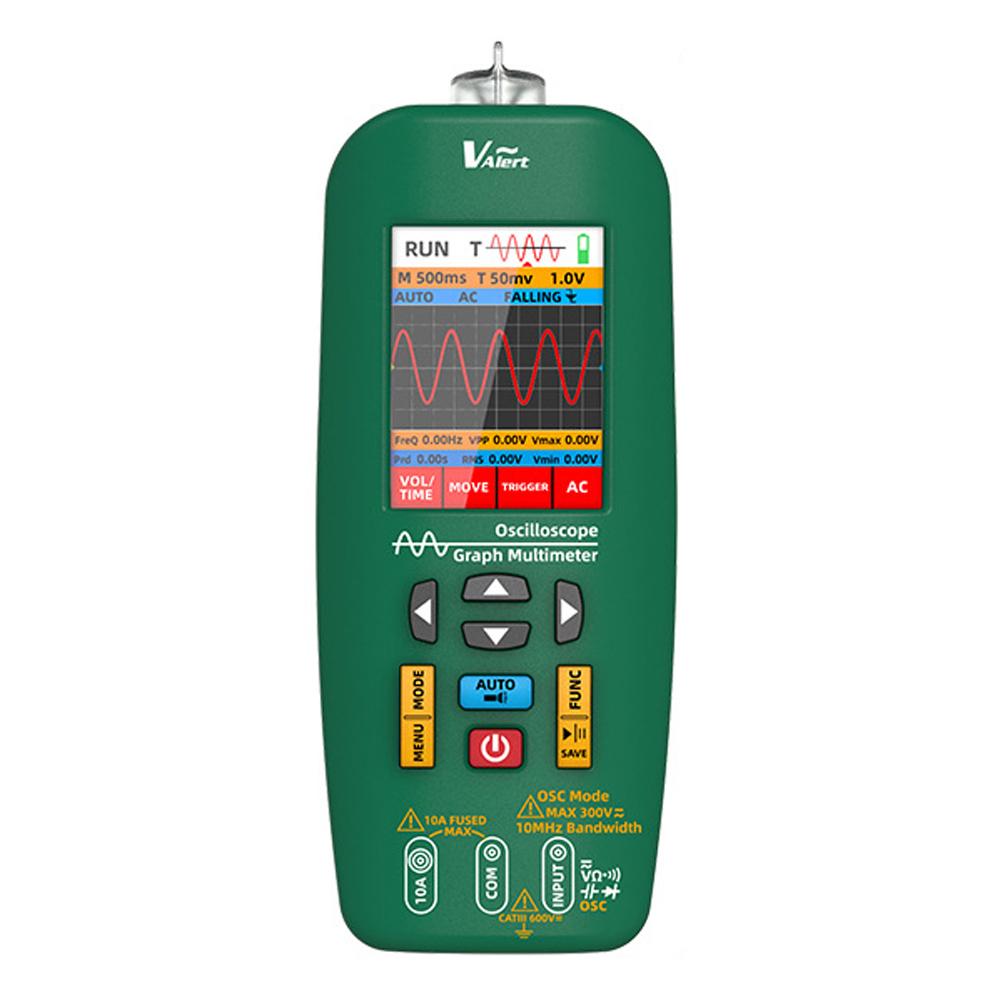

This product is an example of a combination of an oscilloscope, an electrical test pen, and an autorange multimeter. It can detect whether the circuit is energized, simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Multifunctional design, with auto-ranging, 6000 count true RMS measurement, data hold, and automatic shutdown functions. Supports voltage, resistance, capacitance, diode, current and frequency test. It can easily handle measurement in various fields, widely used in the fields of testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc.
Features:
Concise Appearance: Compact and portable body, with a simple and elegant appearance, easy to carry, does not occupy the space, say goodbye to the traditional bulky and difficult to carry. With silicone protective cover for safer use. Folding stand design on the back, convenient for testing, practical to use.
3in1 Design: This product ingeniously integrates the functions of a digital oscilloscope, electrical test pen, and multimeter into one device. It can detect whether the circuit is powered, simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals.

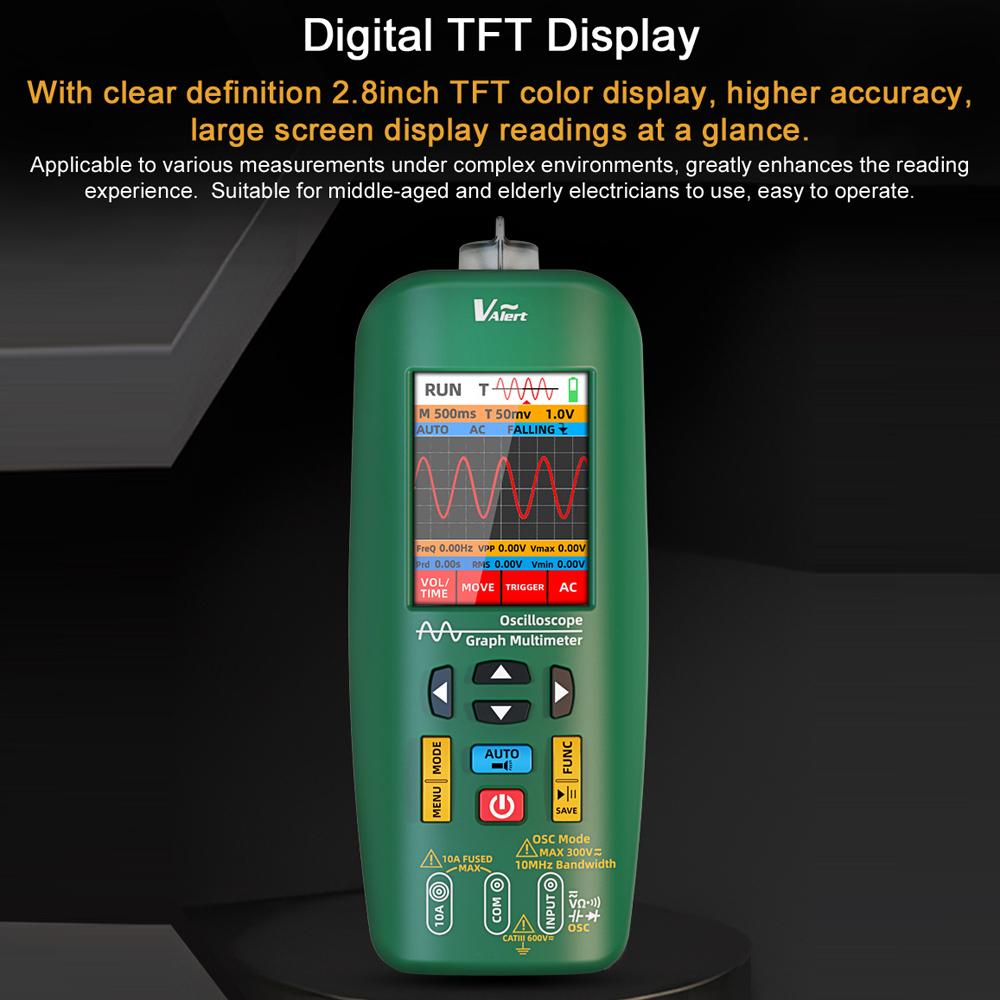

Digital TFT Display: With clear definition 2.8inch TFT color display, higher accuracy, large screen display readings at a glance. Applicable to various measurements under complex environments, greatly enhances the reading experience. Suitable for middle-aged and elderly electricians to use, easy to operate.

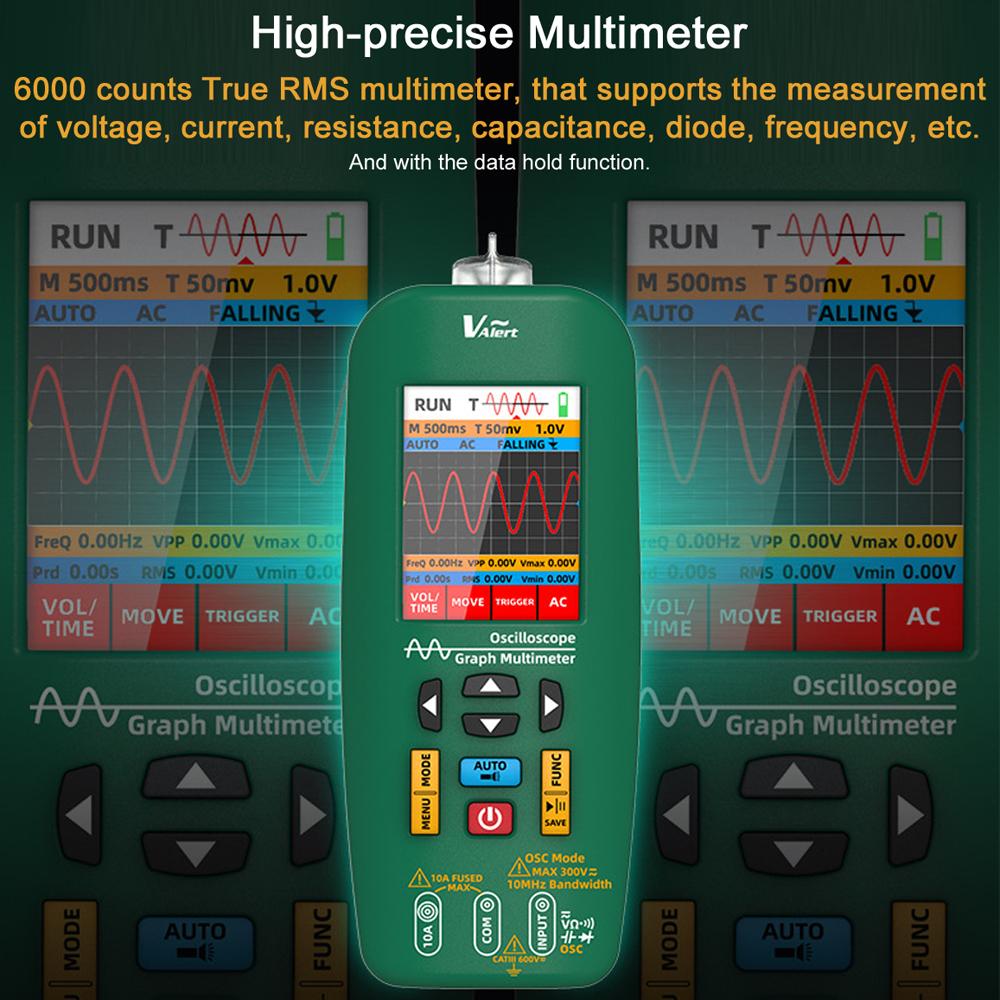

High-precise Multimeter: 6000 counts True RMS multimeter, that supports the measurement of voltage, current, resistance, capacitance, diode, frequency, etc. And with the data hold function.
Digital Oscilloscope Function: With 10MHz bandwidth, 48NSaS real-time sampling rate, auto-tuning measurement waveform display with voltagetime base, shift, trigger, and coupling (DCAC) functions, to meet the waveform capture needs of different users. No complicated operation, you can quickly detect and display the waveform. 3V 1KHz standard squarewave output, 64KB waveform storage depth, a total of 24 pictures can be stored.
Electrical Test Pen: It can be used to detect whether the circuit is energized or not, with dual-sensitive electric pen mode, inductive, and contact electric pen mode, which is very convenient for circuit maintenance and testing.
Data Storage: The multimeter interface is intuitive and simple, one screen with four data displays, supports Chinese and English interface switching, can be saved as a screenshot, can also be exported through the USB imaging export, and can be restarted at any time. Support firmware upgrades.
Wide Applications: It can easily handle measurement in various fields, such as testing and debugging electronic circuits, troubleshooting and repairing electronics, communications, computers, etc. Suitable for use in the electrical testing industry, electrician industry, electronic overhaul industry, LED industry, auto repairing industry, and so on.
Specifications:
Name: 3in1 Multimeter
Material: plastics+silicone
Battery: 1 * built-in 2000mAh battery (included)
Current: 0-10A
Voltage: Maximum input voltage 600V
Frequency: 40-1000Hz
Resistance: 0-60M
Capacitance: 0-99.99mF
On-off: less than 50 Ohm
Bandwidth: 10MHZ
Real-time sampling rate: 48NSaS
Input impedance: 1M Ohm
Maximum input voltage: +-300V
Horizontal sampling rate ranges: 1.5Sas - 48MSas
Waveform interpolation sweeprate: 100nsdiv -20sdiv
Time base accuracy: 20ppm
Sampling depth: 64KB
Vertical sensitivity: 200mVdiv - 100Vdiv
Rise time: less than 10ns
Gain accuracy: +-3percent
Trigger mode: automatic normal single

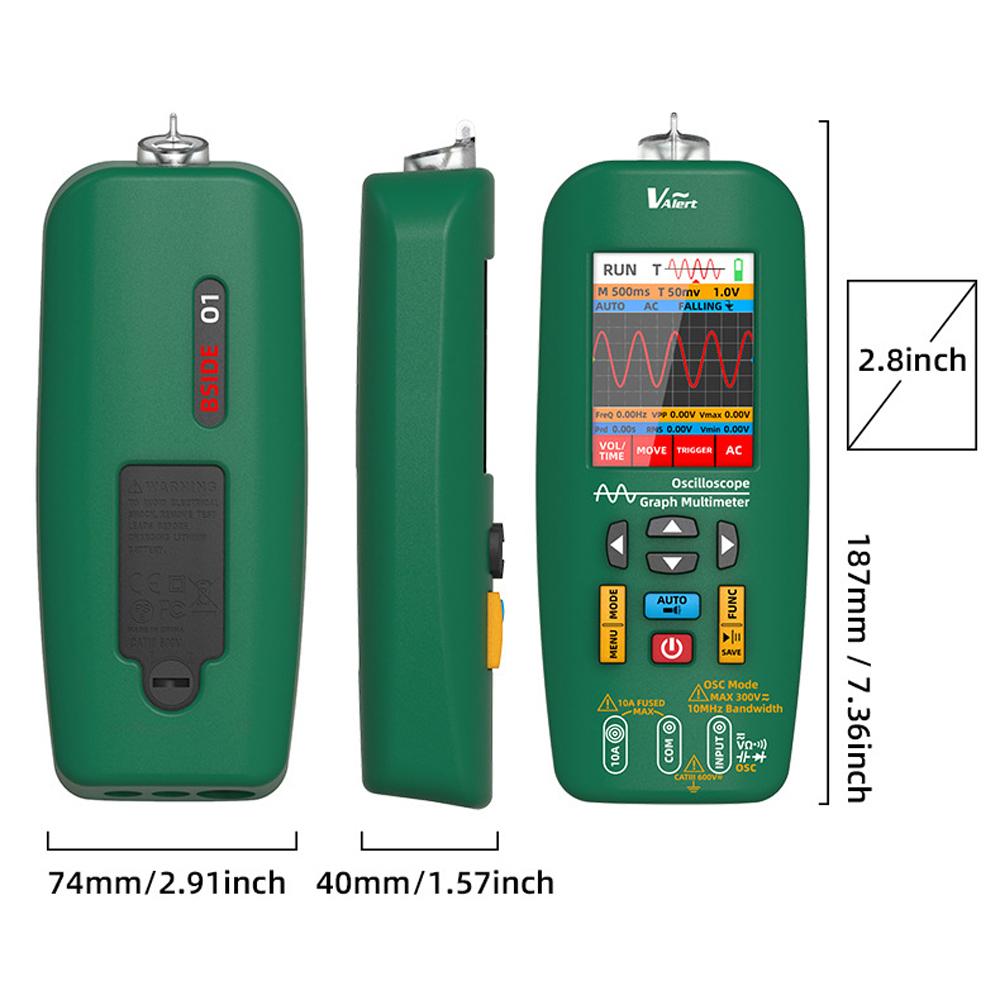

Item size: 187 * 74 * 40.5mm 7.36 * 2.91 * 1.59in
Item weight: 269g 9.49ounce
Package size: 232 * 130 * 52mm 9.13 * 5.12 * 2.05in
Package weight: 515g 18.17ounce
Packing List:
1 * 3in1 Multimeter
