The new and old models to optimize the circuit structure, making the power more stable. At the same time increasedInput anti-reverse(With 150A MOS anti-anti) andEnter low battery (low voltage) protection, And low battery protection voltage from 9-50V adjustable to adapt to a variety of batteries. Do not use the battery when the battery power loss caused by damage to the power module and the batteryThe
Power Description: Since the input current of this power supply is 20A, the output power is related to the input voltage. Input voltageThe higher the higherThe higher the power, such as input 12V * 20A power is 240W. Input 24V * 20A is 480W. At this time is high power. As the cooling area is limited, the input voltage exceeds 10A or the output current reaches 10, please add 12V fan cooling.

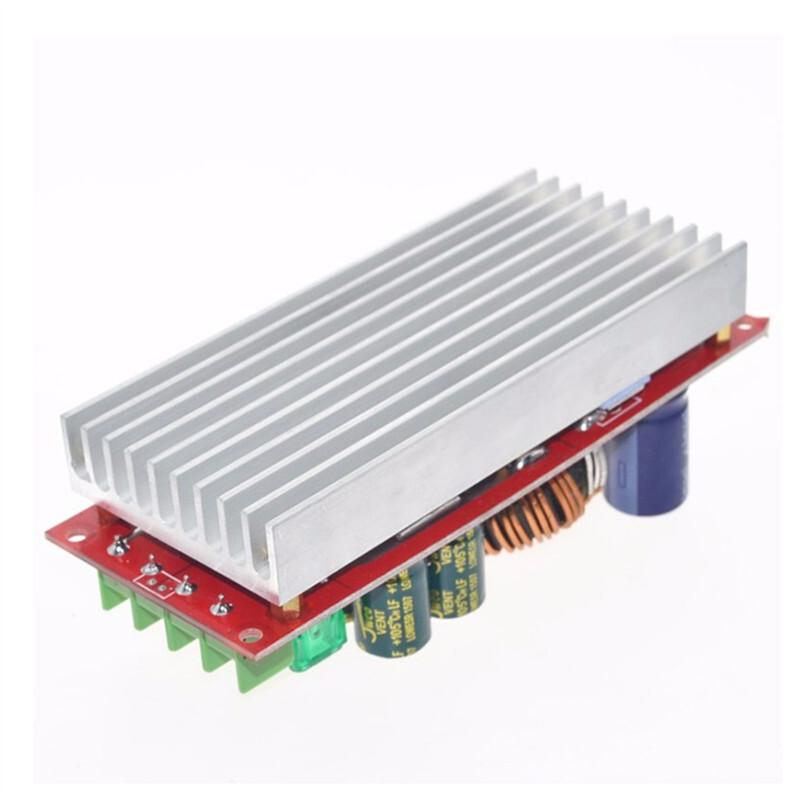

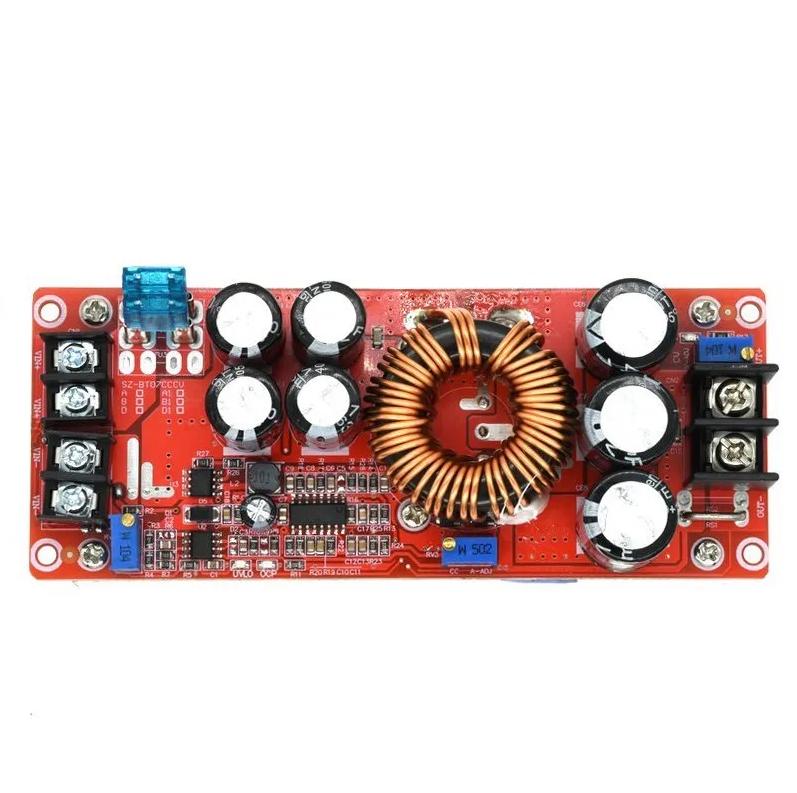

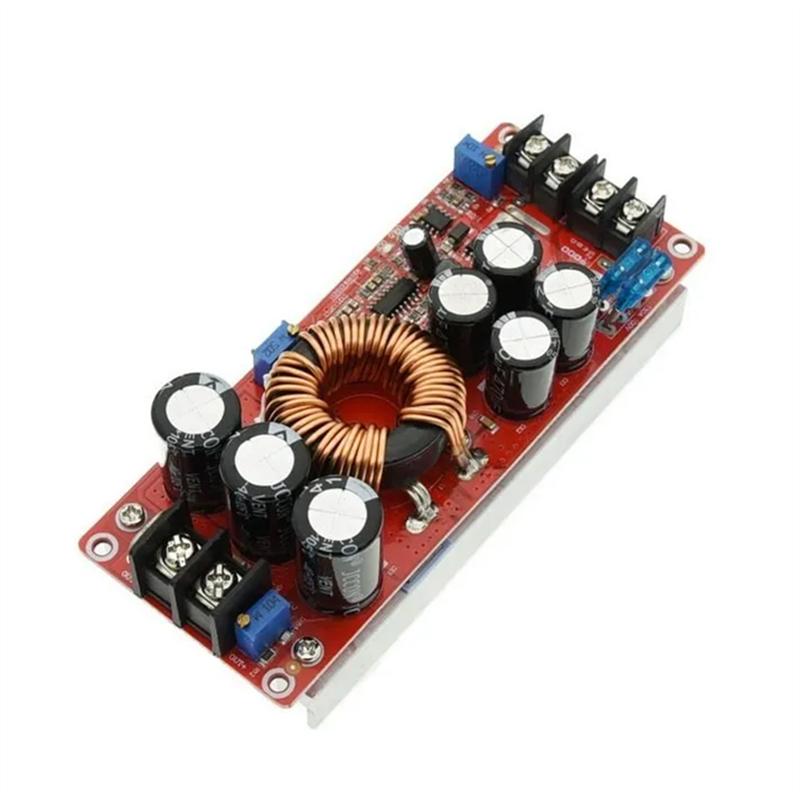

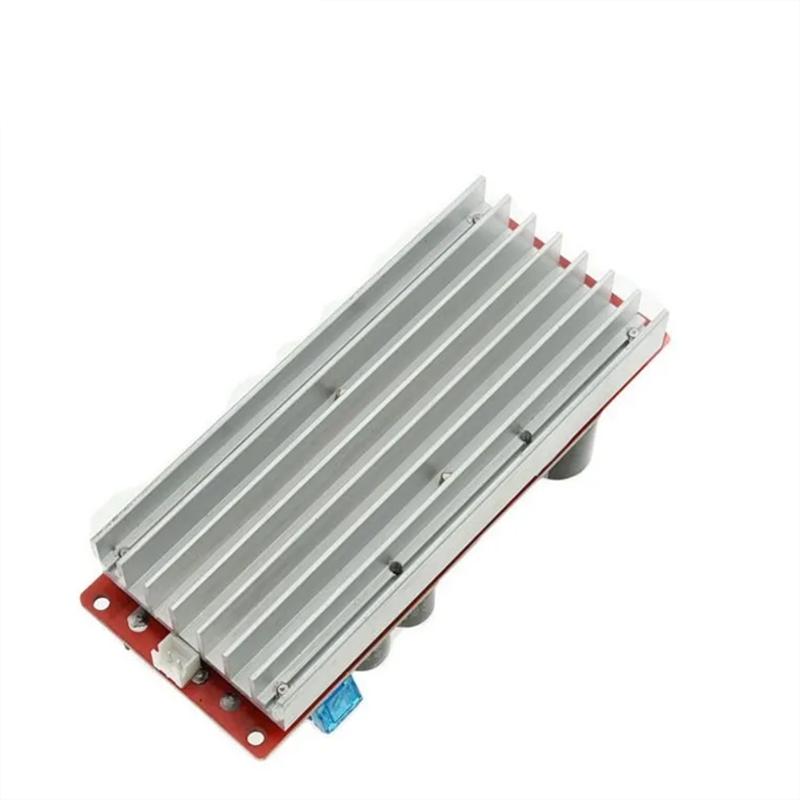

Module name: 1200W boost constant current module
Module nature: non-isolated step-up module (BOOST)
Input voltage: DC10-60V (direct input 10-60V without jumper cap selection voltage)
Input current: 20A (MAX) more than 15A Please add fan cooling (plus fan cooling input voltage at 12-24V when the input current can reach 25A)
Static operating current: 15mA (12V liters 20V, the higher the output voltage, the static current will increase)
Output voltage: 12-80V continuously adjustable.
Output current: 18A MAX more than 10A please strengthen the heat (with the input and output pressure, the greater the greater the smaller the output current)
Constant current range: 0.5-18A (+/- 0.3A)
Input anti-reverse: Yes (150A power MOS anti-anti)
Low battery protection: Yes (9-50V adjustable)
Operating temperature: -40 ~ +85 degrees (when the ambient temperature is too high, please strengthen the heat)
Operating frequency: 150KHz
Conversion efficiency: 92% -97% (efficiency and input, output voltage, current, pressure difference., Differential efficiency of small efficiency)
Input overcurrent protection: Yes (input more than 25A, automatic protection, power supply does not boost)
Short circuit protection: Yes (input 30A fuse) Dual short circuit protection, use more secure.
Input reverse protection: a (150A power MOS tube anti-anti-can be a long time reverse)
Installation: 4 3mm copper pillars
Wiring method: Terminals (please use high current copper wire)
Module size: Length 130mm Width 52mm Height 53mm
Output power: = input voltage * 20A, such as: input 12V * 20A = 240W input 12V when the high power of 240W
Input voltage * 20A such as: input 24V * 20A = 480W, that is: input 24V when the power of 480W
Note: input 12V when the high power is 240W, input 24V high power 480W, input 36V when the high power 720W
