Features:
High-Accuracy and Fast 3D Scans: The otter 3d scanner delivers industry-leading 0.02mm accuracy and fast scanning speeds of 20fps. With this level of precision, it can capture even the smallest details of an object, allowing you to create highly accurate 3D models quickly and easily.
One with Everything: Employs Innovative Four-lens Stereo Vision, that excels in handling both large and small things, the CR-Scan Otter realizes possibilities of scanning various objects, ranging in size from 10*10*10mm to 2000*2000*2000mm, from tiny coins to large vehicles, all covered in one scanner.
Unequalled Scanning Performance: It
Features a set of long-focal dual lenses for scanning small objects with rich details and a set of short-focal dual lenses for capturing larger objects within a single range of up to 1350 mm x 840 mm@1000mm, ensuring improved tracking and scanning of larger objects.
Unique Face Algorithm with Eye Safety: Face & body mode is equipped with a unique face mapping algorithm that enables the capture of intricate details, including hair. His mode uses near-infrared light, which is invisible to the human eye, making it safe and comfortable for your eyes. You can scan skin and faces worry-free.
24-bit Full-color Scanning, True-to-Life Reproduction: Equipped with a million-pixel full-color RGB camera and an exclusive color mapping algorithm, ensuring exceptional capture of model details and colors. And built-in 2 supplemental LEDs helps the scanner capture details precisely. Even in low-light environments, this allows for the most realistic texture effects.
Stable Scanning and Easy Operation: Equipped with One-Shot 3D imaging technology, the 3d scanner naturally stabilized and less likely to tracking loss. Fast back tracking speed ensures smoother handheld scanning. Design with ring indicator light, touch button and ble feedback, making scanning seamless, it allows for real-time exposure adjustment and offers comfortable and simple operation.

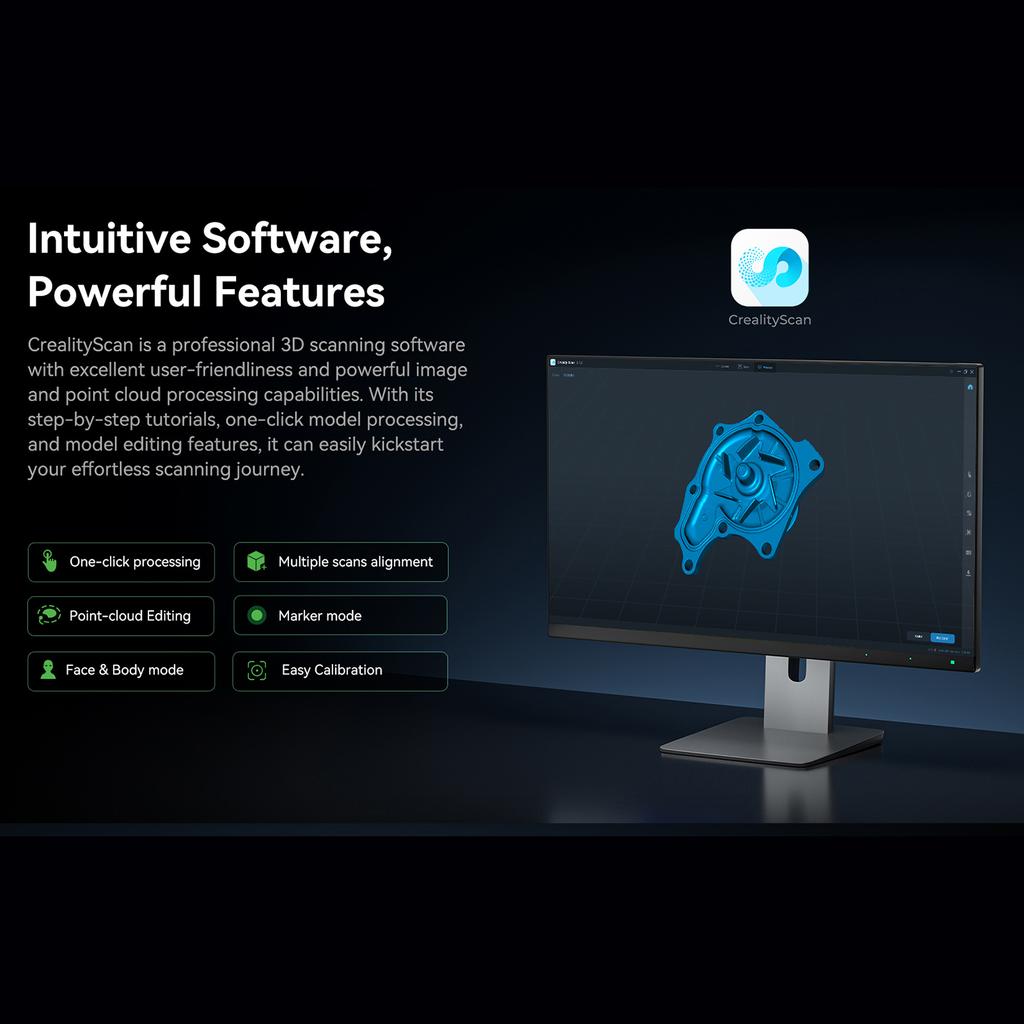

User-friendly Software: It supports multiple data format outputs, OBJ, STL, and PLY. This compatibility with a wide range of CAD, 3D modeling, and design software, compatible with both Mac and Windows operating systems. Widely apply in modeling, animation, presentation, printing, and design, expanding the possibilities of your scans.

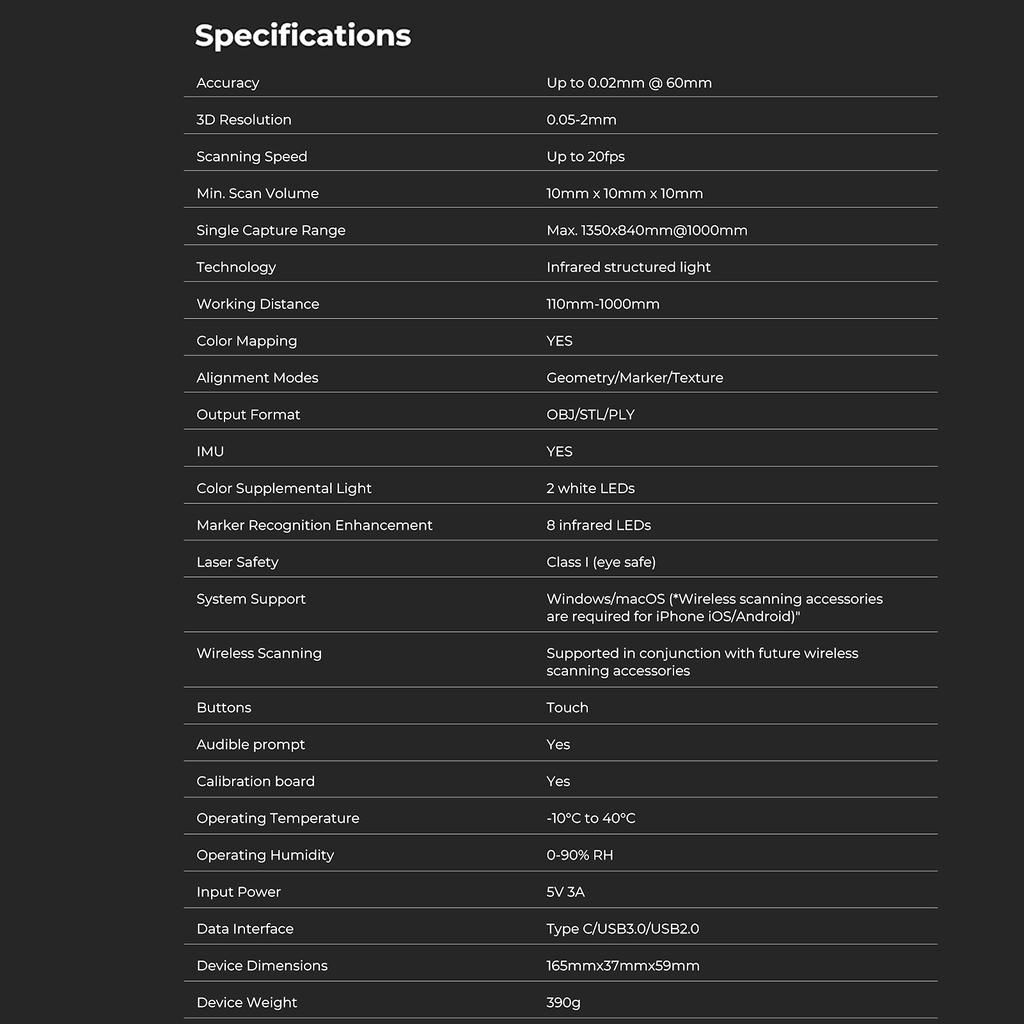

Specification:
Model: Otter
Accuracy: Up to 0.02mm @ 60mm[1]
3D Resolution: 0.05- 2mm
Min. Scan Volume: 10mm x 10mm x 10mm
Single Capture Range: Max.1350x840mm@1000mm
Technology: Infrared structured light
Working Distance: 110mm-1000mm
Color Mapping: Yes
Alignment Modes: GeometryMarkerTexture
Output Format: OBJSTLPLY
IMU: YES
Color Supplemental Light: 2 white LEDs
Marker Recognition Enhancement: 8 infrared LEDs
Laser Safety: Class I (eye safe)
System Support: WindowsmacOS
Operating Temperature:-10 degrees C to 40 degrees C
Operating Humidity: 0-90percent RH
Input Power: 5V 3A
Data Interface: Type CUSB3.0USB2.0
Device Dimensions: 165mmx37mmx59mm
Device Weight: 390g
Packing List:
1 x Otter 3D Scanner Kit
No-delivery refund
