Description:
- 【Premium Material】: The Heim Joints Rod End Set is made from premium Alloy, ensuring wear resistance, durability, and long term use.
- 【High Performance】: The Heim Joint Rod End Set has a large load capacity, high reliability, and stable performance.
- 【Rod End Heim Joint Set】: The Heim Joints Rod End Set includes left and right threaded hinge joints, a pipe adapter, an offset gasket, and a cardboard nut.

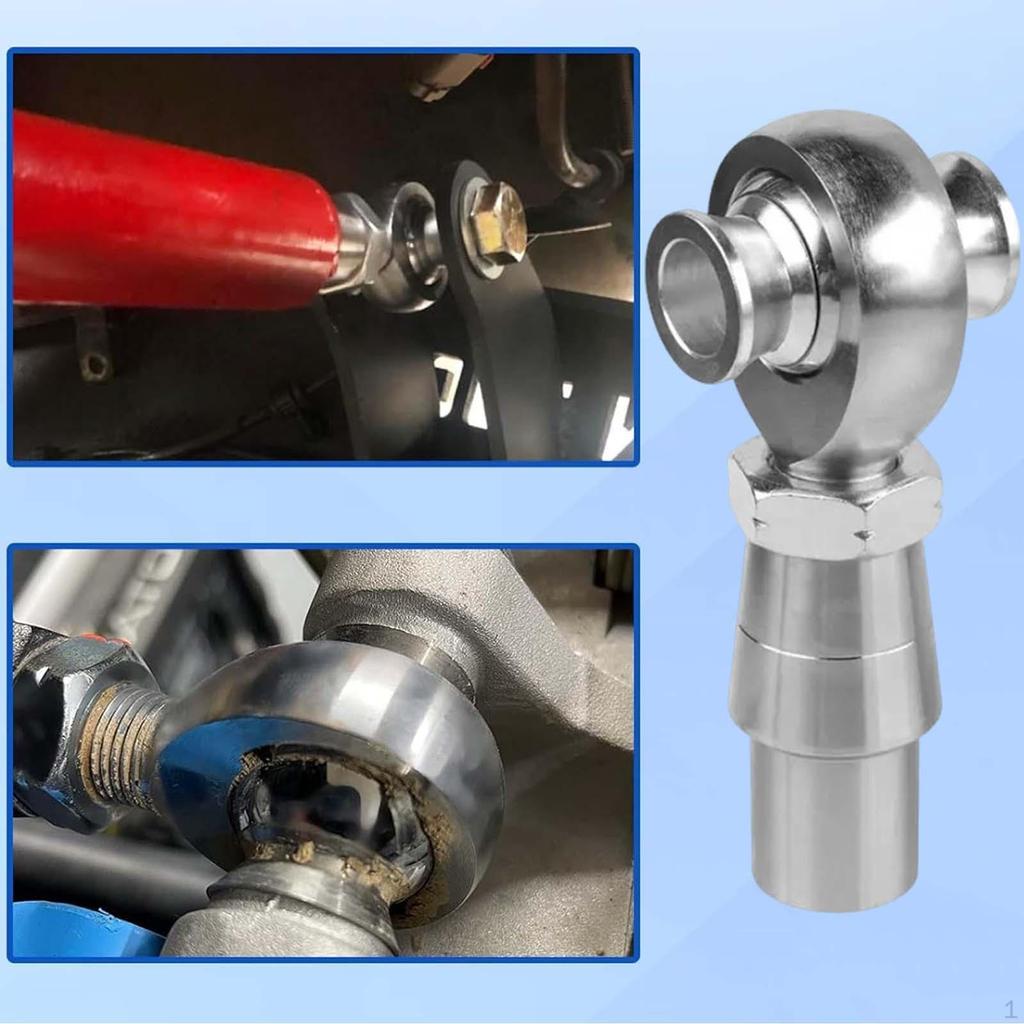

- 【Wide Application】: The Heim Joint Rod End Set is ideal for steering and suspense links on traction rods, steering joints, and warm rods.
- 【Easy Installation】: The heim joint can be easily welded and comes with additional hardware for paired installation.
Specification:

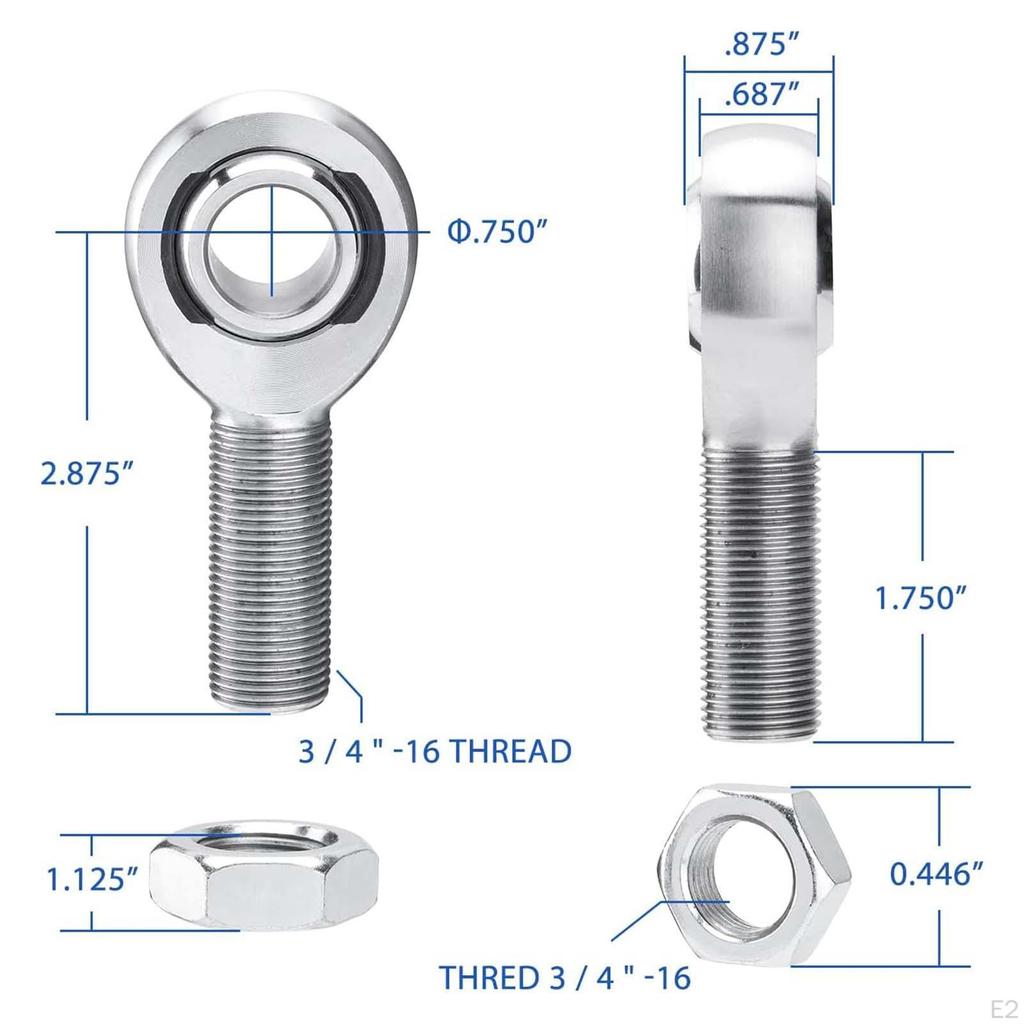

- 0.75 inch:
- Thread size 3/4"-16 Thread
- Ball hole 0.750"
- Ball width 0.875"
- Centerline length 2.875"
- Thread length 1.750"
- Rated load capacity 28081 pounds
- 3/4 plug
- Fits tube size 1-1/4" OD x .120" wall x 1.01" ID.
- Height offset spacer 3/4"-5/8"

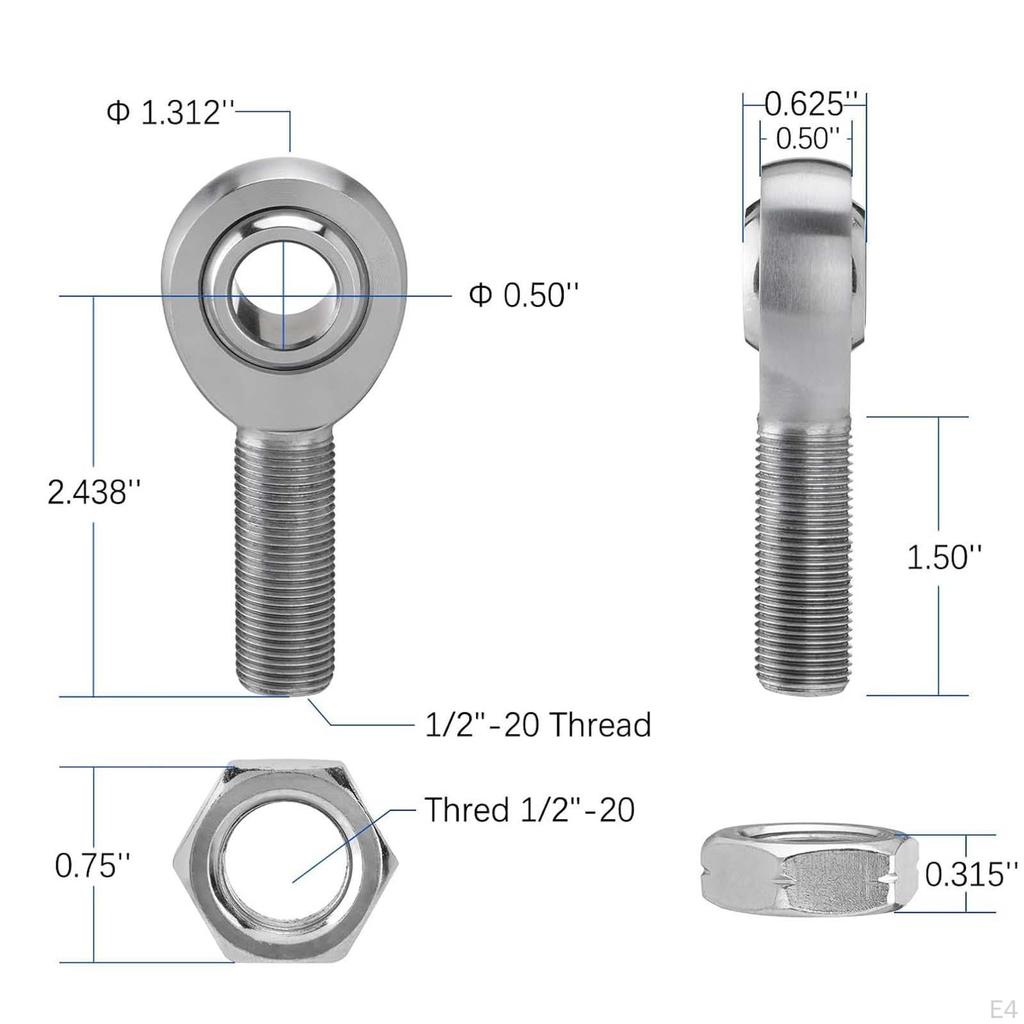

- 0.5 inch:Thread size 1/2"-20 Thread
- Ball hole 0.50"
- Ball width 0.625"
- Center line length 2.438"
- Thread length 1.50"
- Rated load capacity 16238 lbs
- 1/2 plug
- Thread size 1/2"-20

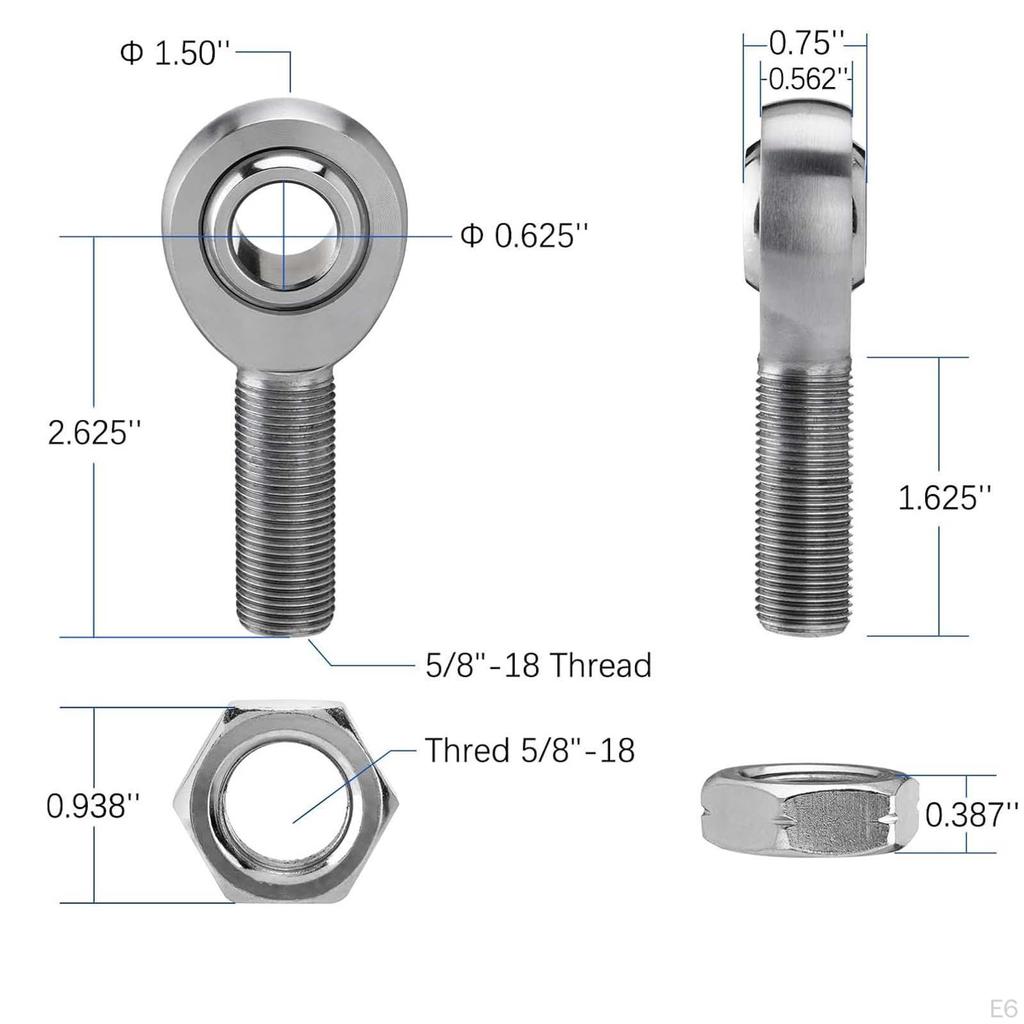

- 0.625 inch:Thread size 5/8"-18 Thread
- Ball hole 0.625"
- Ball width 0.75"
- Center line length 2.625"
- Thread length 1.625"
- Rated load capacity 17955 lbs
- 5/8 plug
- Thread size 5/8"-18
Package Includes:
1 Heim Joint Rod End Set
Note:
Please allow slightly errors 1-2cm differences due to manual measurement.
