About this item
1.This motorcycle phone charger comes with an independent power switch and dual USB fast charging QC3.0+PD3.0 ports, which makes it convenient for you to charge two devices at the same time while riding, so that you can enjoy a long trip without worrying about your cell phone and other devices running out of power.
2.Multi Protection - Certified by multiple safety certifications and a built-in smart chip, the car charger with an intelligent control chip offers multiple protection against overcurrent, short-circuit, overvoltage, under-voltage, over-temperature, and overpower protection, which will guard the safety of your devices
3.LED Voltmeter & ONOFF Switch - The motorcycle charger is equipped with an independent switch button and an on/off switch, you will know the health of the battery while driving. Monitories the battery and electrical system automatically and indicate the voltage on the screen, to avoid power consumption, easy to use. (TIPS: Please replace the battery as soon as possible if the voltage is lower than 12V)
4.Quick Installation - Two types of installation, handlebar mounting, and screw mounting, can meet most of the models on the market installation use.(please check that your motorcycle's handlebar diameter size is 1.9-2.2cm / 0.75-0.87inch), Please identify the "+" and "-" poles when installing, to ensure safe.
5.Wide Compatibility - The motorcycle USB charger input voltage is (12V-24V). It can automatically adjust the voltage output according to your device (USB-A: 5V/3.4A, 9V/2A, 12V/1.5A TYPE-C:5V/3A 9V/3A 12V/2.5A).
Product advantages:
【1】 The product comes with a single USB+Type-C fast charging port, supporting both Type-C output and USB PD2.0/PD3.0 (PPS), DCP (Apple and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Fast Charging Protocol FCP and High Voltage SCP, Samsung Fast Charging Protocol AFC (MAX 12V), MTK PE+1.1 and MTK PE+2.0 fast charging protocols. It can automatically identify the fast-charging protocol supported by the output end connected to the device
【2】 The input voltage of the product is 12V-24V, which can be installed on vehicles such as cars, motorcycles, beach bikes, SUVs, boats, etc., with a wider installation range
【3】 The product is equipped with a built-in power MOS, which can provide a maximum output power of 20W. It can automatically adjust the output voltage and current according to the recognized fast charging protocol, thus adapting to the maximum charging power of each mobile phone; And it has the function of automatic adjustment of overcurrent point. When the device connected to Type-C interface supports high voltage SCP, it will prioritize the output of high voltage SCP. Compared with PD output, the charging power is higher, and it supports a maximum output of 10V/2.5A
【4】 The product has a line compensation function, which increases the output current and correspondingly increases the output voltage to compensate for the voltage drop caused by the impedance of the connecting line. It also has a soft start function to prevent the impact current during startup from affecting the stability of the input power supply
【5】 The product is equipped with a voltage display and features high-end logo lighting on the body, making it more aesthetically pleasing and meeting the aesthetic needs of customers
【6】 The product comes with a waterproof cover, with a waterproof rating of IP66. Simply cover it to prevent water damage, even in rainy weather, there is no need to worry
【7】 The product comes with an independent button switch, which can be used and stopped with just one press, making it easy and fast to operate
【8】 The product design adopts an integrated SAE socket, which can be directly plugged into the original car SAE socket for use, and comes with a 1.4-meter OT terminal connection wire. One end of the wire is designed with an SAE socket, and the SAE socket end can be directly plugged into the product. The OT connection end can be directly connected to the car's power supply, meeting various installation needs of customers
【9】 The product comes with two mounting brackets for handlebars and screws, with two fixing methods to meet the needs of most car models on the market
Product use: It can be used to power most car products such as mobile phones, tablets, IPADs, navigation and GPS
Scope of use: It can be installed on DC12-24V cars, motorcycles, beach cars, SUVs, boats and other means of transportation
Product features: It has multiple protection functions: input overvoltage and undervoltage protection; output overcurrent, overvoltage, undervoltage, short circuit protection; reverse connection protection; chip internal high temperature protection.
Specifications:

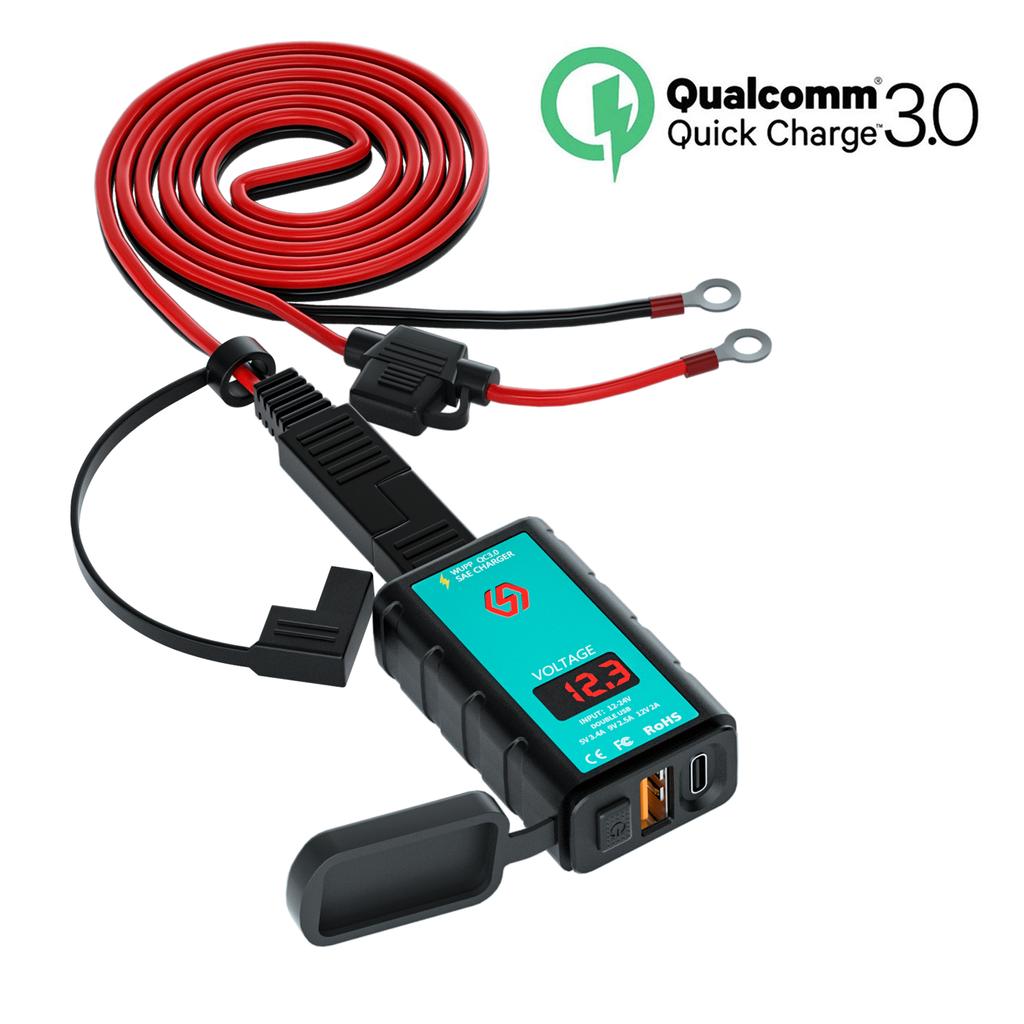

Product Name: Square fast charging single USB+Type-C charger with voltmeter+button switch+integrated SAE socket+1.4m OT terminal wire
Product Model: ZH-1422B3
Net weight of product: 135g
Product gross weight: 155g
Packaging Method: Paper Box
Packaging size: 7.3x5.5x11.4cm
Product Material: ABS+Silicone+Copper+PVC
Product Color: Black
Product size: Length 66.6mm, Width 38mm, Height 21.3mm
Input voltage: DC12V-24V
Output parameters: USB port output: QC3.0: 5V 3.4A/9V 2A/12V 1.5A; Type-C output: QC3.0: 5V 3.4A/9V 2A/12V 1.5A
Output power: USB output: 18W; Type-C output: 30W
Color of voltmeter: Red
Monitored voltage range: 6-30V
Installation method: handlebar installation, screw fixation (two fixed installation methods)
Installation handle diameter: 19-22mm
Product Usage: Can be used to power most car accessories such as mobile phones, tablets, iPads, navigation, and GPS
Scope of use: Can be installed on DC12V-24V vehicles such as cars, motorcycles, beach bikes, SUVs, boats, and other means of transportation
Product features: There are multiple protection functions: input overvoltage and undervoltage protection; Output overcurrent, overvoltage, undervoltage, and short-circuit protection; Reverse connection protection; High temperature protection inside the chip
Note:
1. About the Color: Due to the differences on the screen and the lighting, the item's color may be slightly different from the picture.
2. About the size: the measurements are made by hand, t
Product accessories: handlebar mounting bracket * 1, screw mounting bracket * 1, large screw * 2, small screw * 1, handlebar fixing screw * 1, anti-slip gasket * 1, 1.4-meter SAE socket+OT terminal connection wire * 1
