About this item:

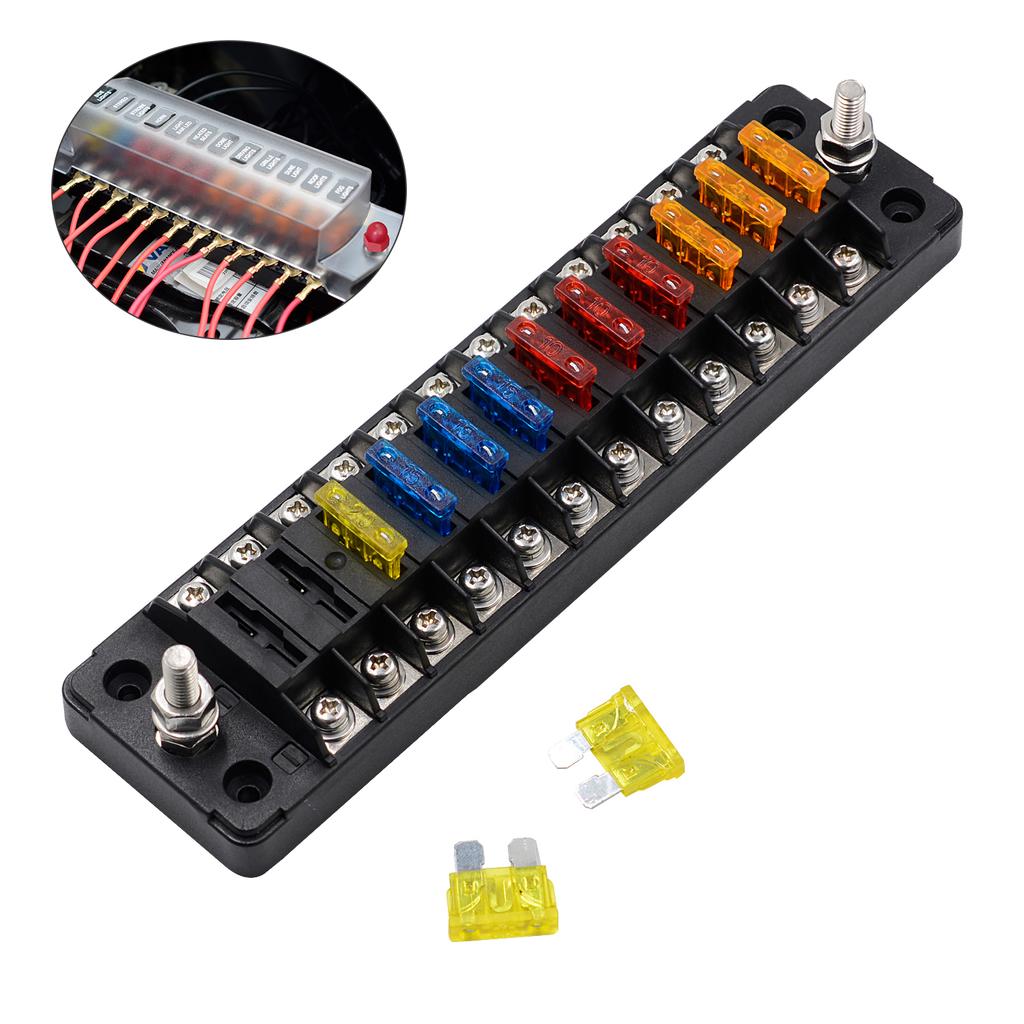

1.12-Way fuse box with 24pcs fuses as one kit is perfect for car, truck, RV, bus, yacht, boat use

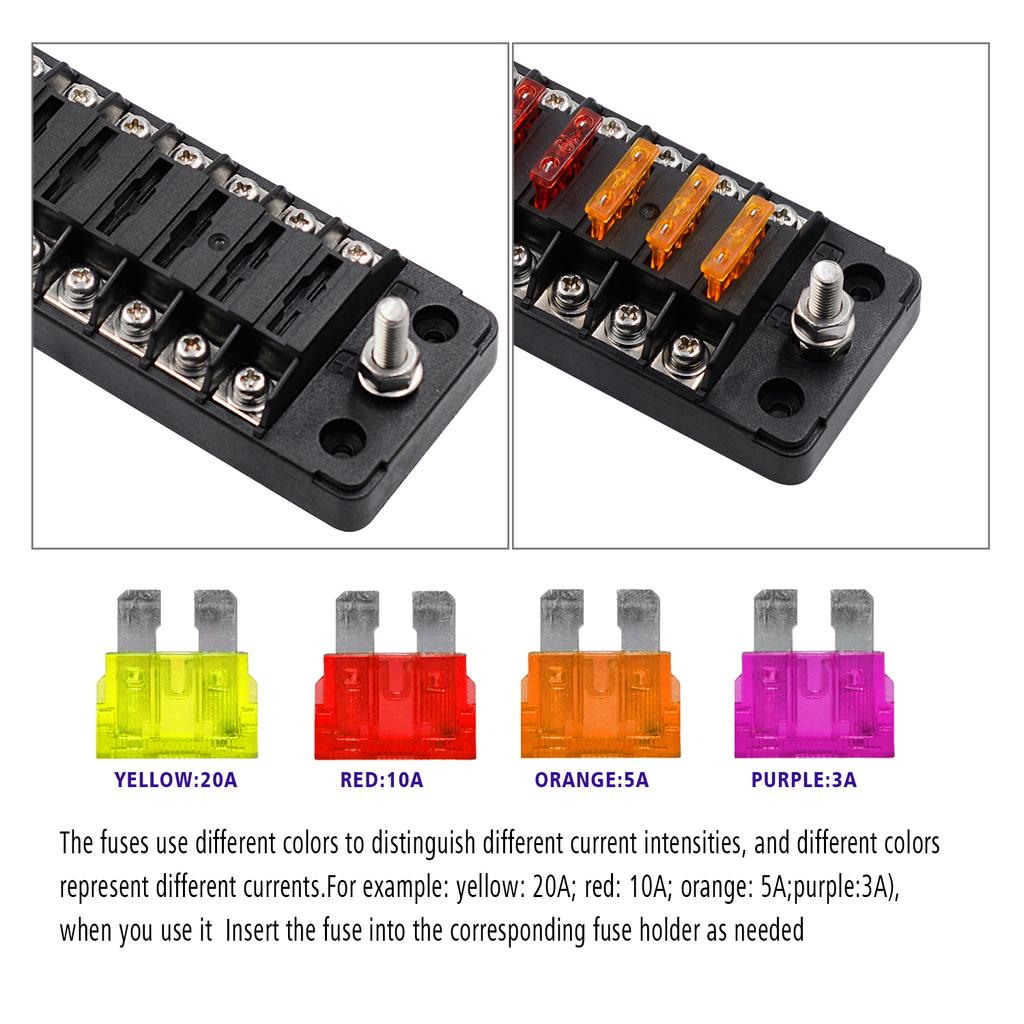

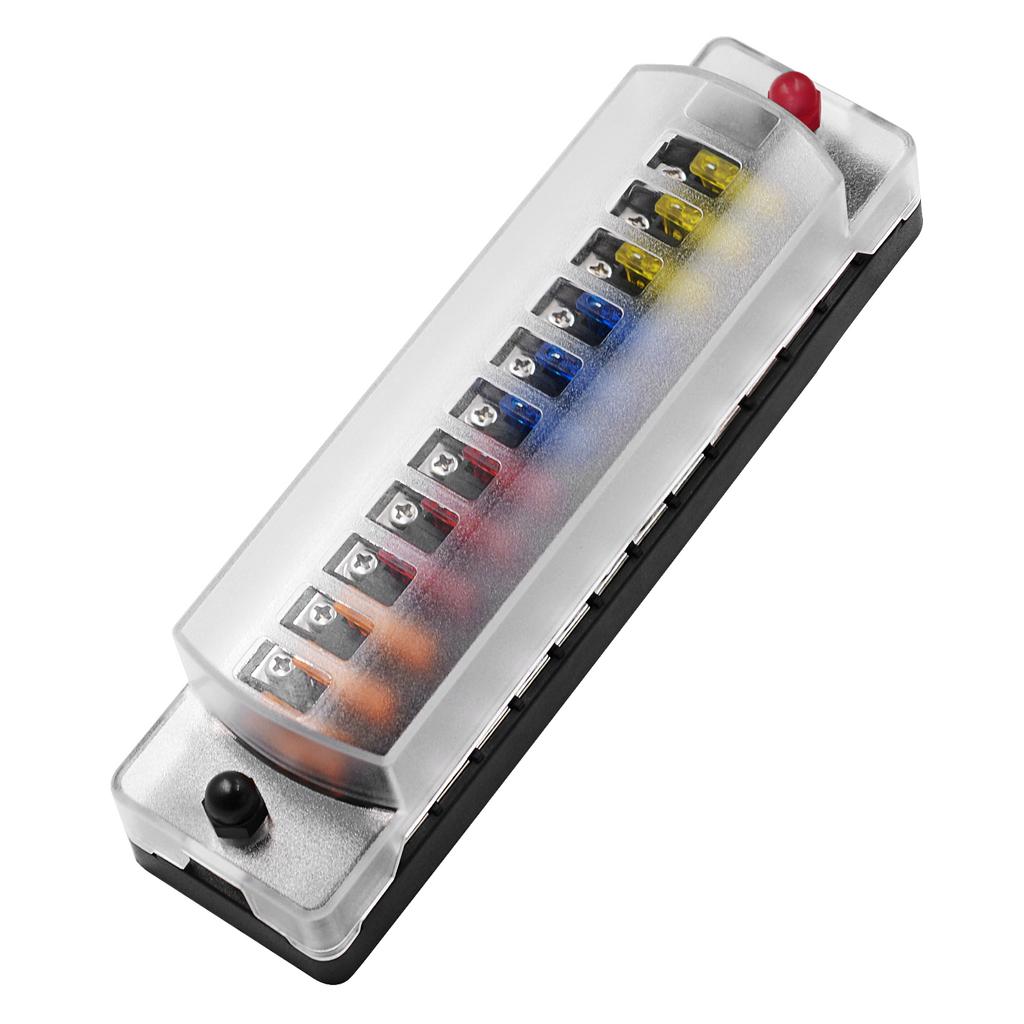

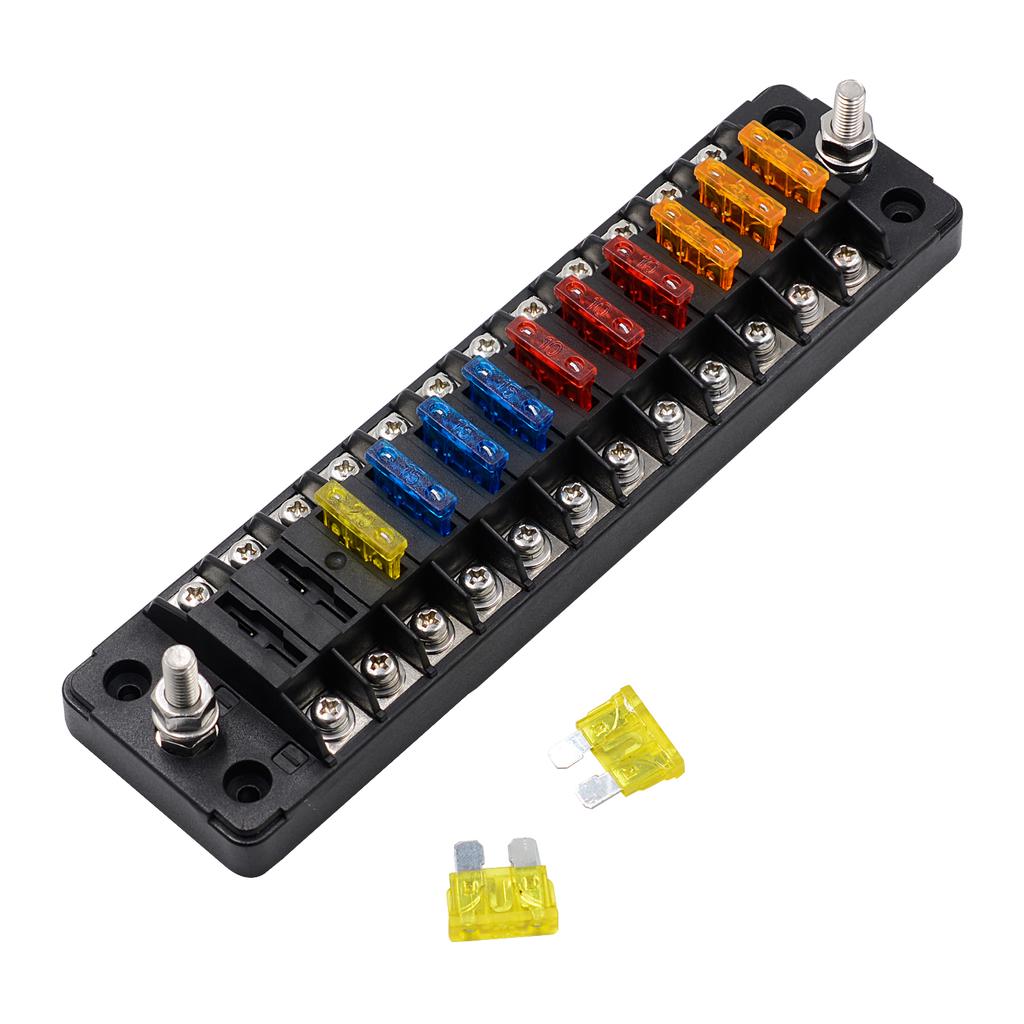

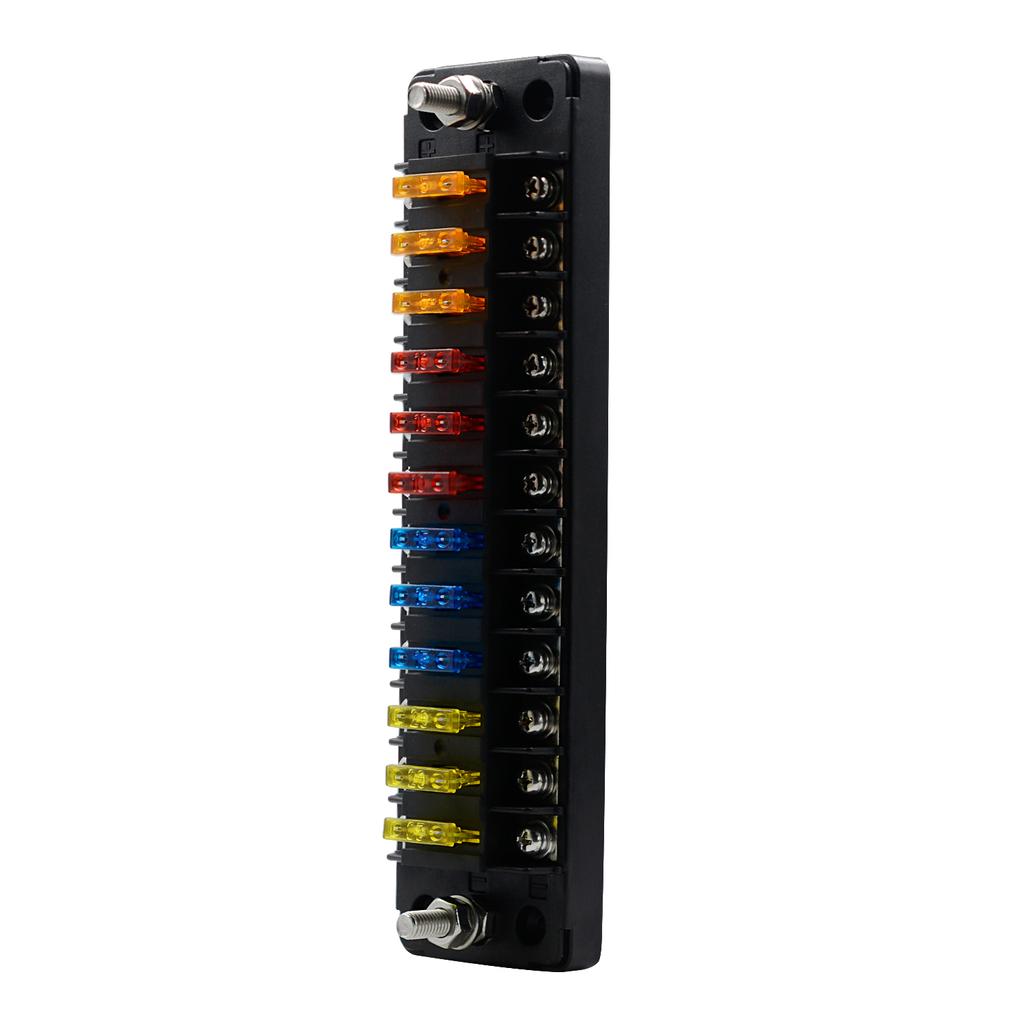

2.You can distinguish the fuses with different colors, 20A(yellow), 3APurple), 10A(red), orange is 5A.

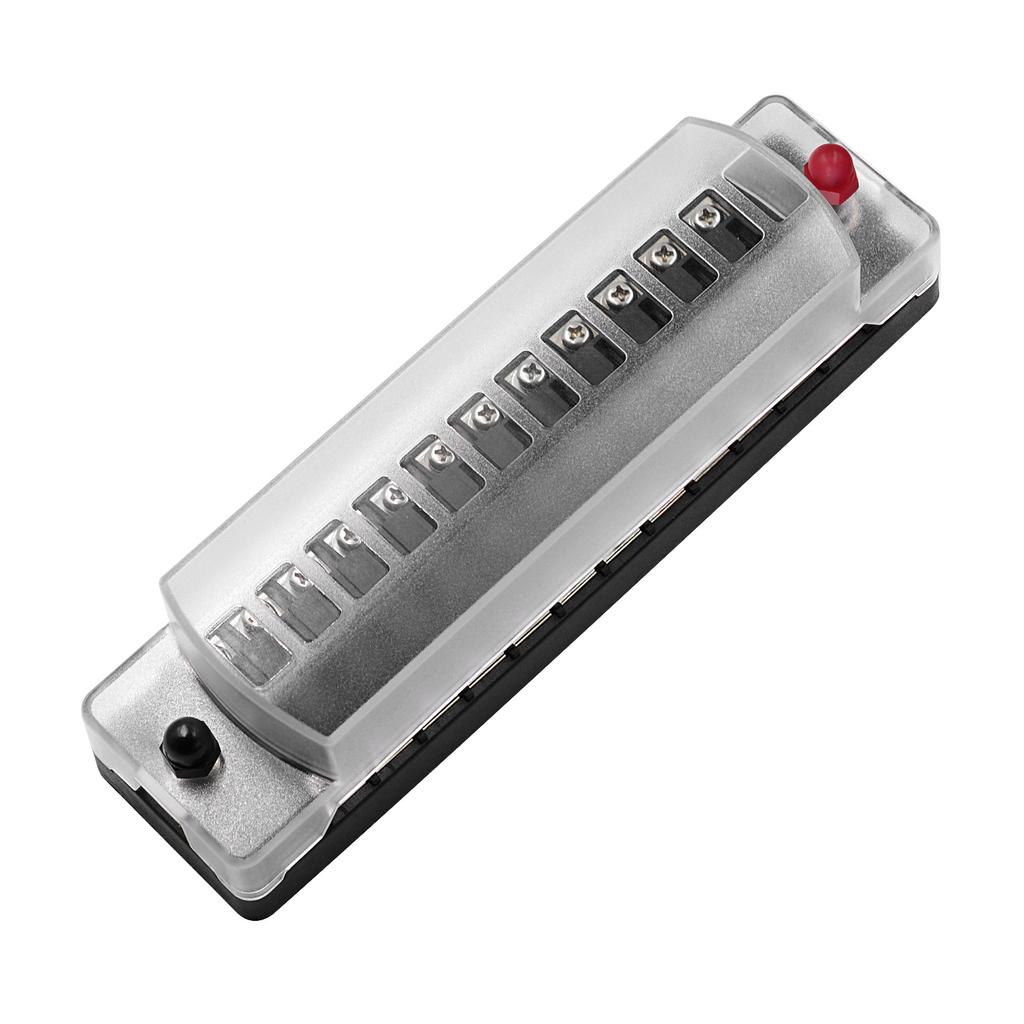

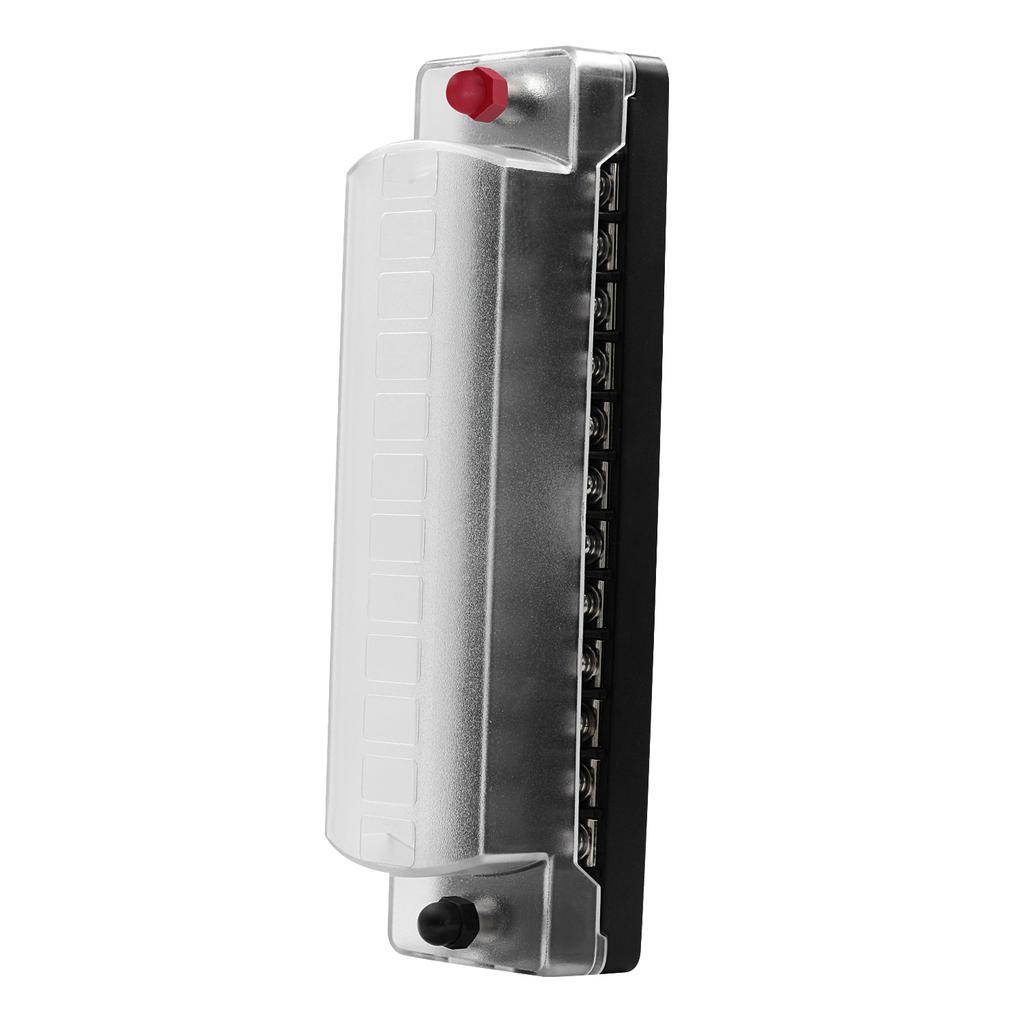

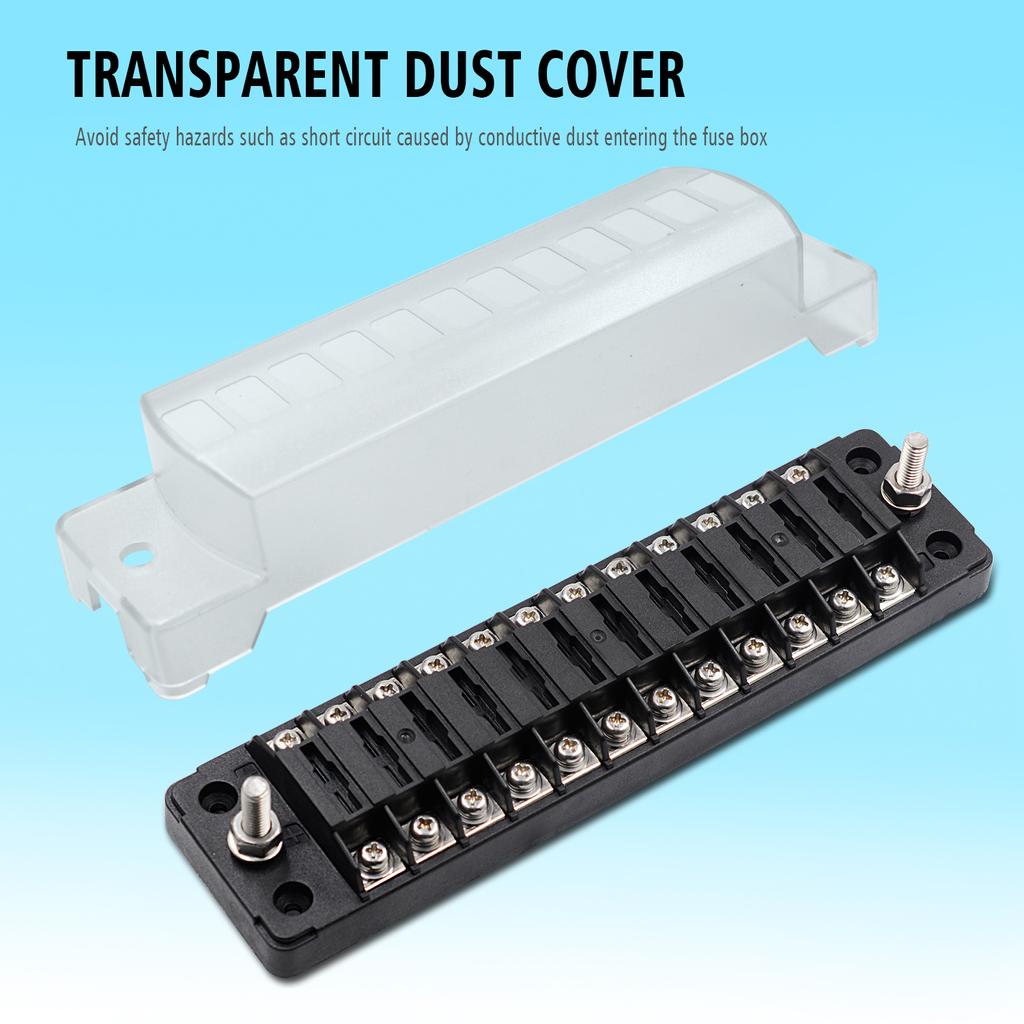

3.Comes with transparent splash proof and dust proof cover & stickers, easy to identity and operate.
4.This fuse box is suitable for all kinds of automotive and marine applications, including 12V & 24V systems (maximum voltage 32V).
5. The product comes with double fuses for delivery. If the fuse burns out during use, it can be replaced immediately from the backup fuse. Additionally, multiple fuses are provided, and the fuse for each fuse can be selected based on the current appliance
Product advantages:
【1】 The product is made of PA66 anti flame retardant, high and low temperature environmentally friendly material, which fully meets the conditions that the fuse holder must have good mechanical strength, insulation, heat resistance, and flame retardancy, and should not produce phenomena such as breakage, deformation, combustion, and short circuit during use
【2】 All fasteners are made of stainless steel. The input and output end of the fuse box are fixed with tightened screws for faster installation. The fuse box is fixed with self-tapping screws for easier and safer installation

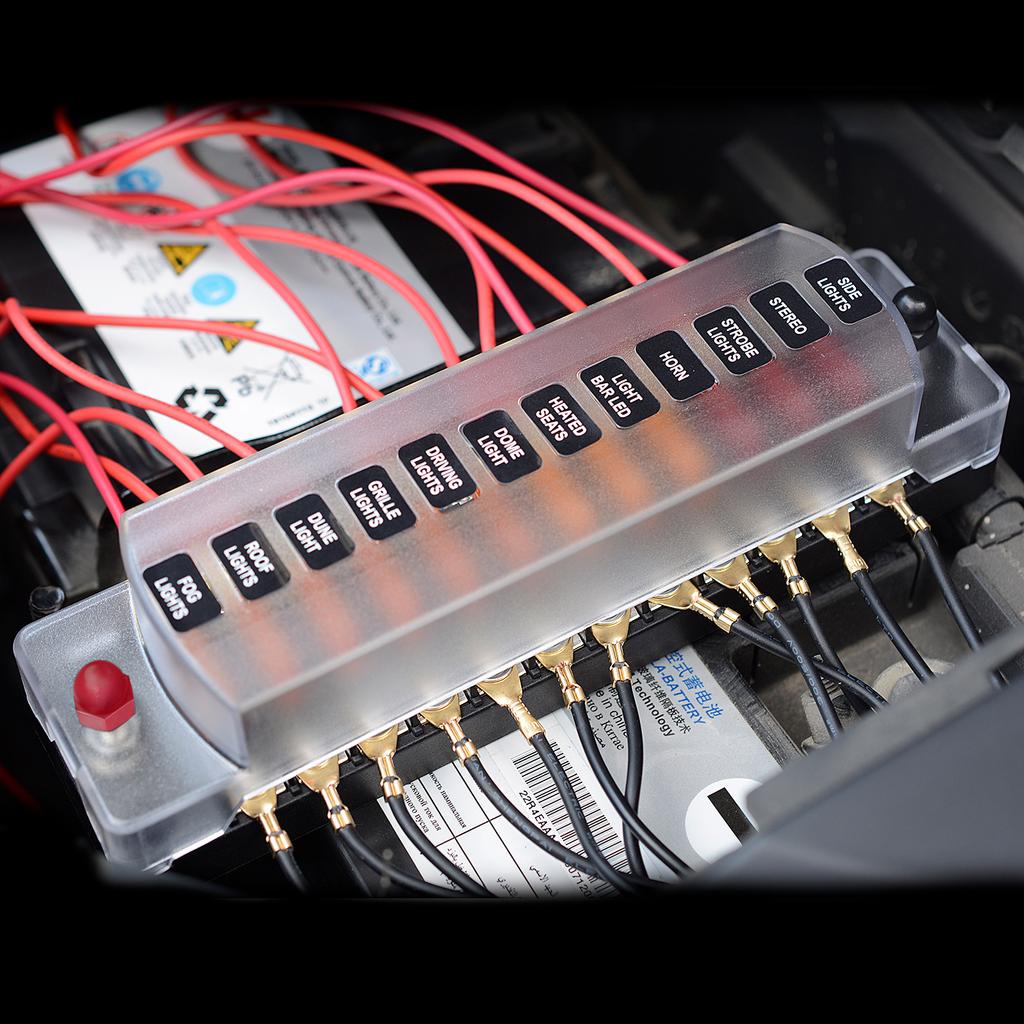

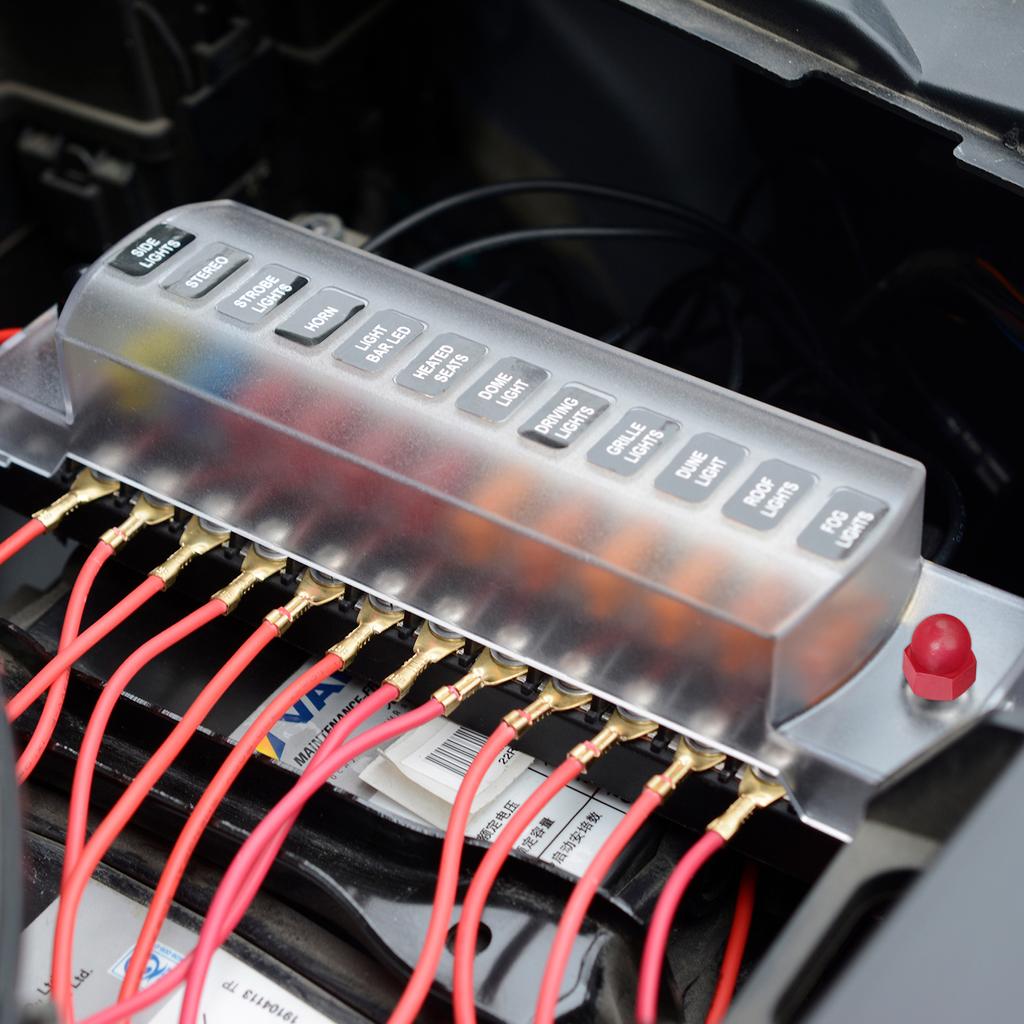

【3】 The product comes with a sticker that can be attached to the electrical appliance we are connected to according to the name on the sticker. When the fuse breaks, we can immediately identify which electrical appliance is at fault, saving time and effort
Specifications:

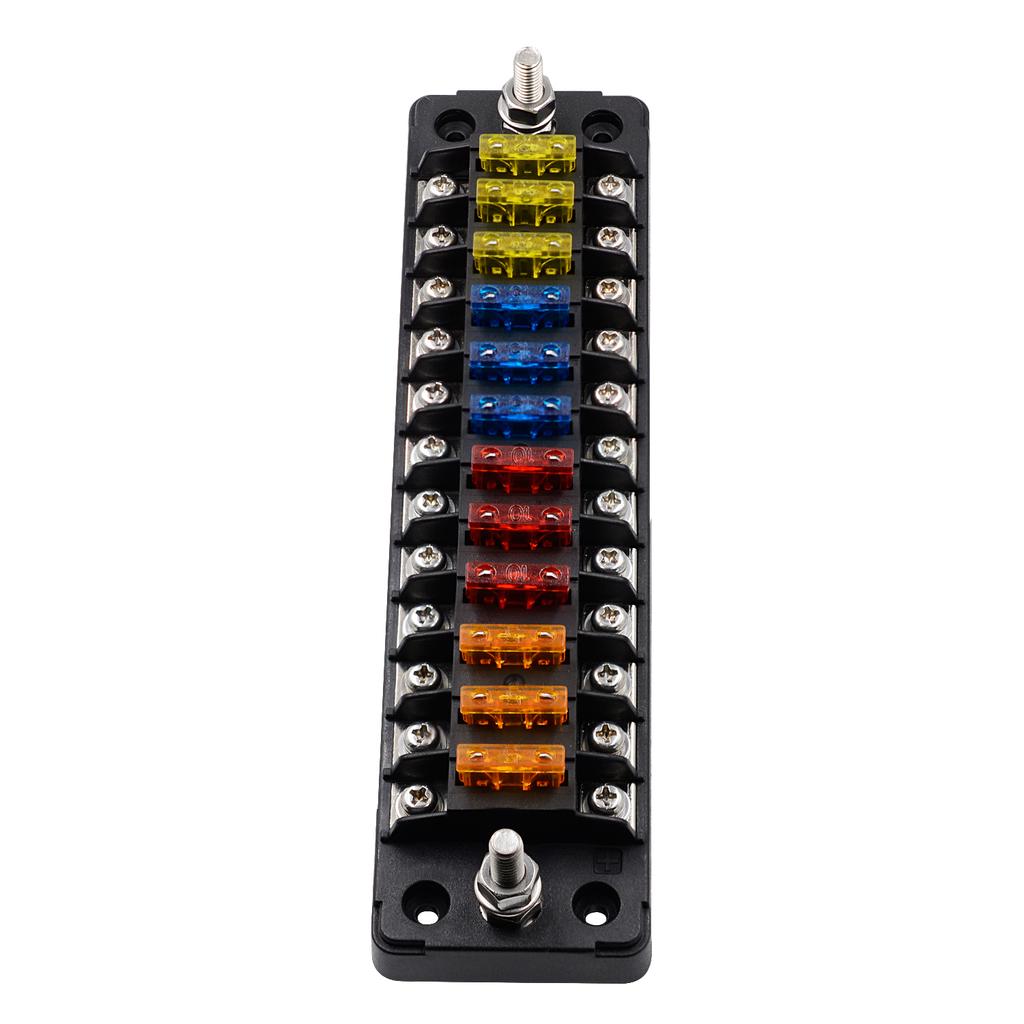

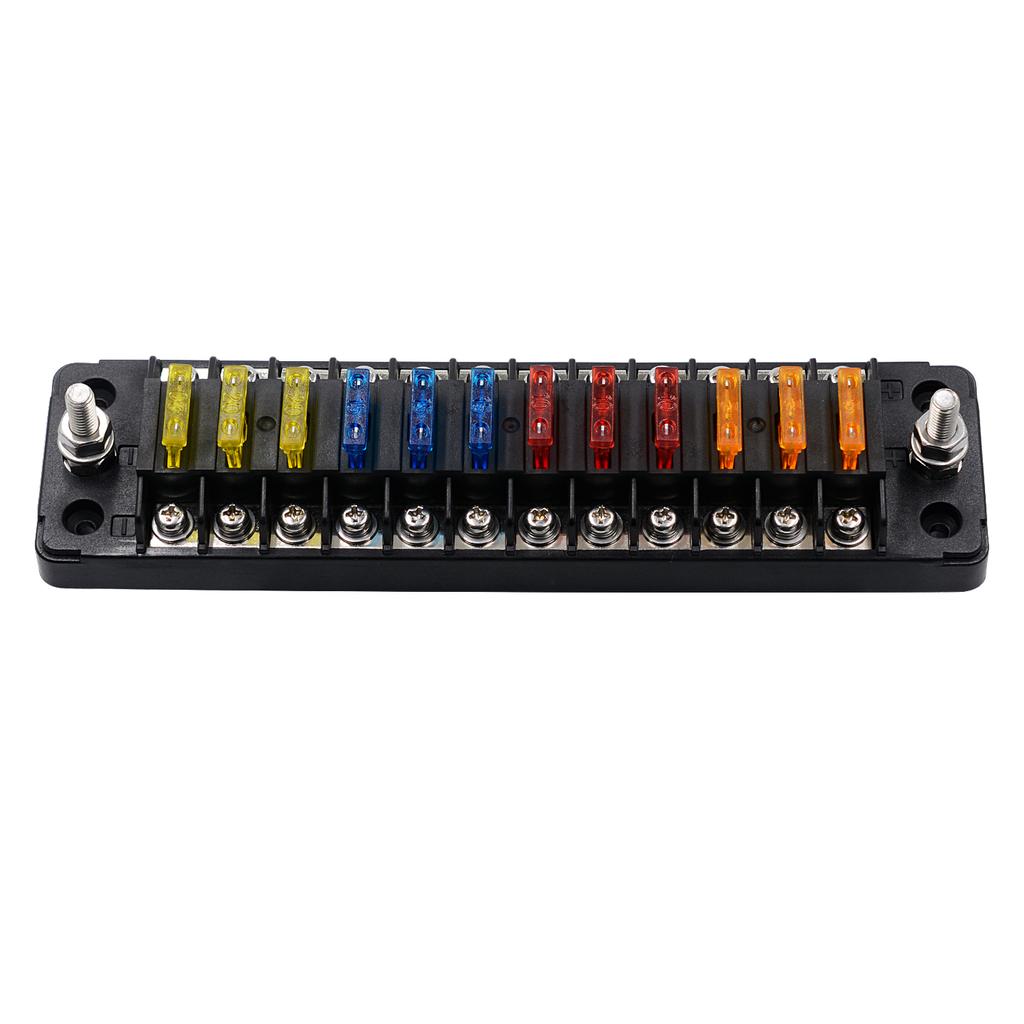

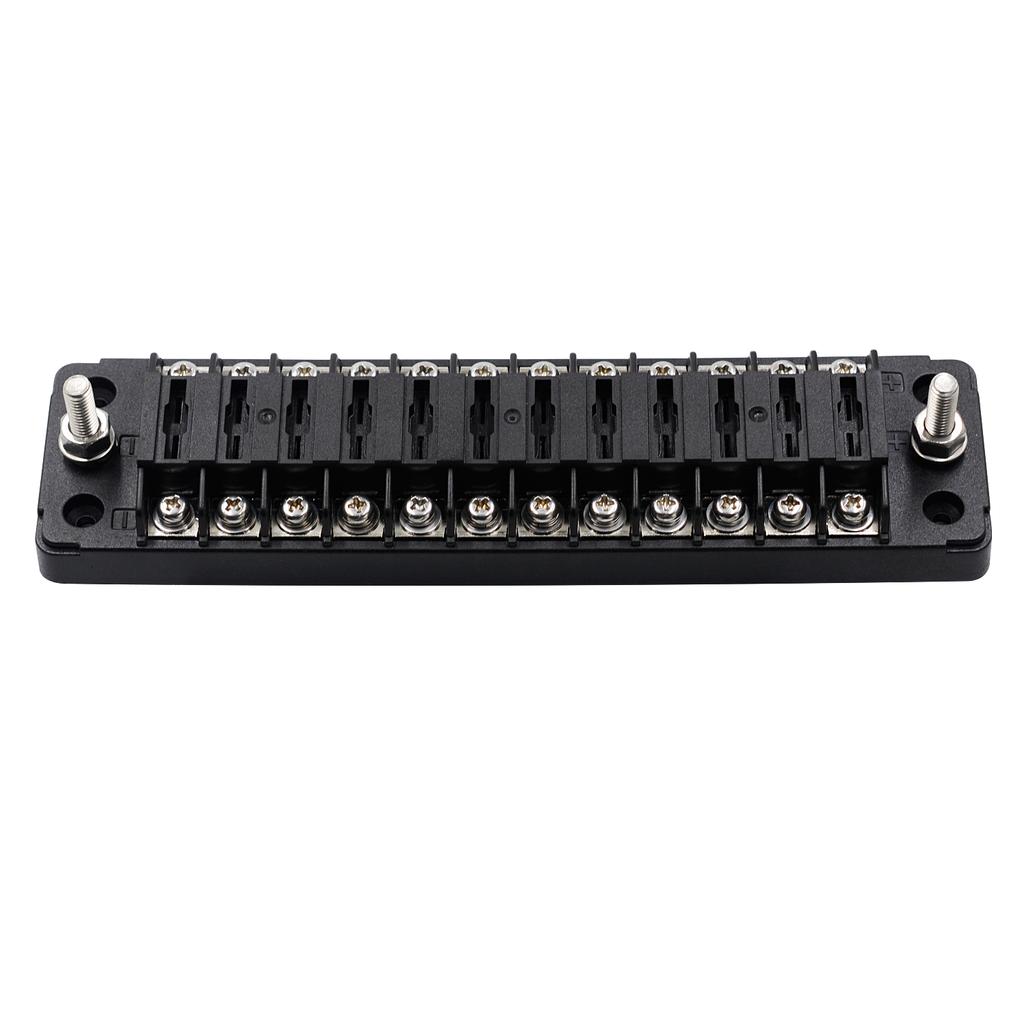

Product Name: FB1902 Twelve way Independent Positive and Negative Pole Fuse Box
Product Model: ZH-978A2
Net weight of product: 297g
Product gross weight: 303g

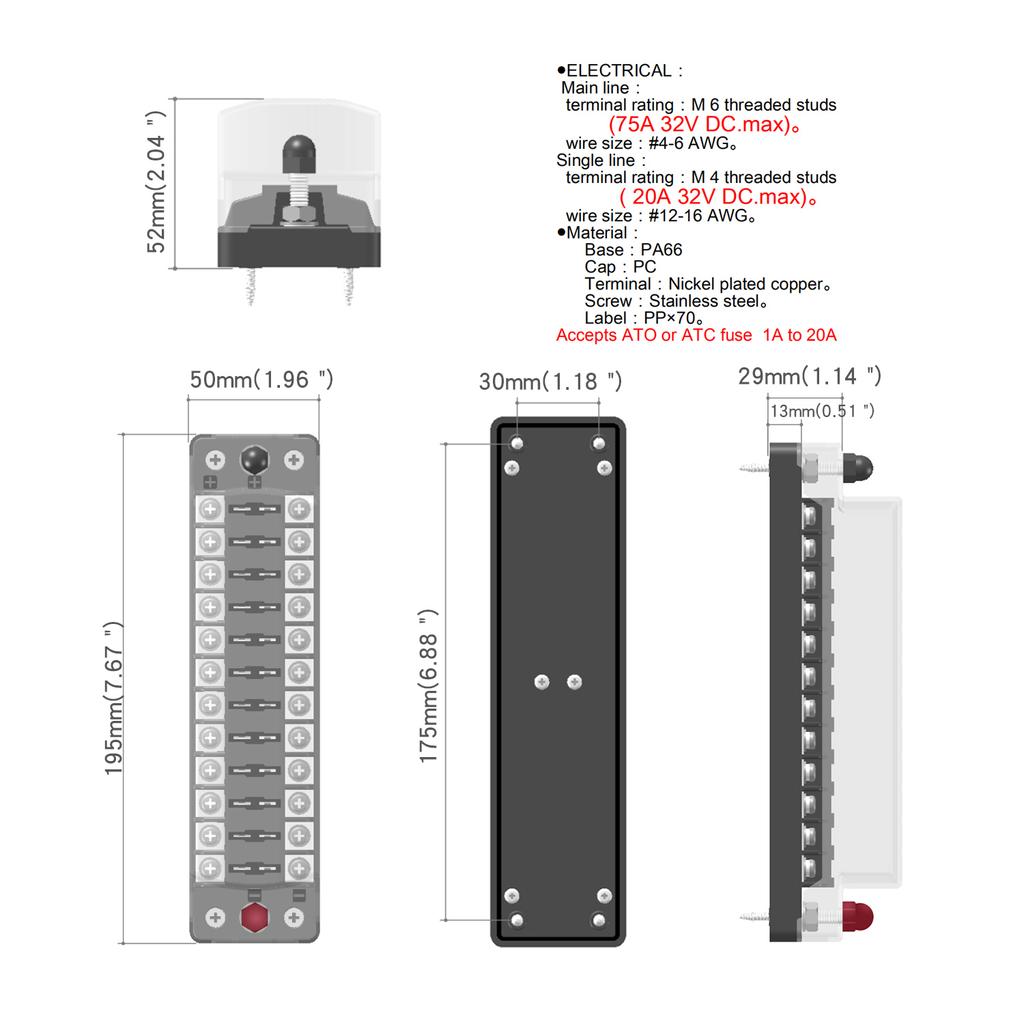

Product size: 19.5 * 5 * 5.2cm
Packaging method: PE bag
Packaging size: 30 * 13 * 5.5cm
Product Material: PA66 body, PC dust cover, nickel plated copper terminal block, stainless steel screws, PP × 70 sticker
Rated input voltage: 32V
Rated input current: 75A
Main terminal: M6 threaded stud (75A 32V DC maximum)
Main wire: # 4-6AWG
Single wire terminal: M4 threaded stud (20A 32V DC maximum)
Single wire conductor: # 12-16AWG
Fuse type: accepts ATO or ATC fuses from 1A to 20A
Installation scope: Can be installed on small cars, off-road vehicles, RVs, buses, yachts, boats, etc.

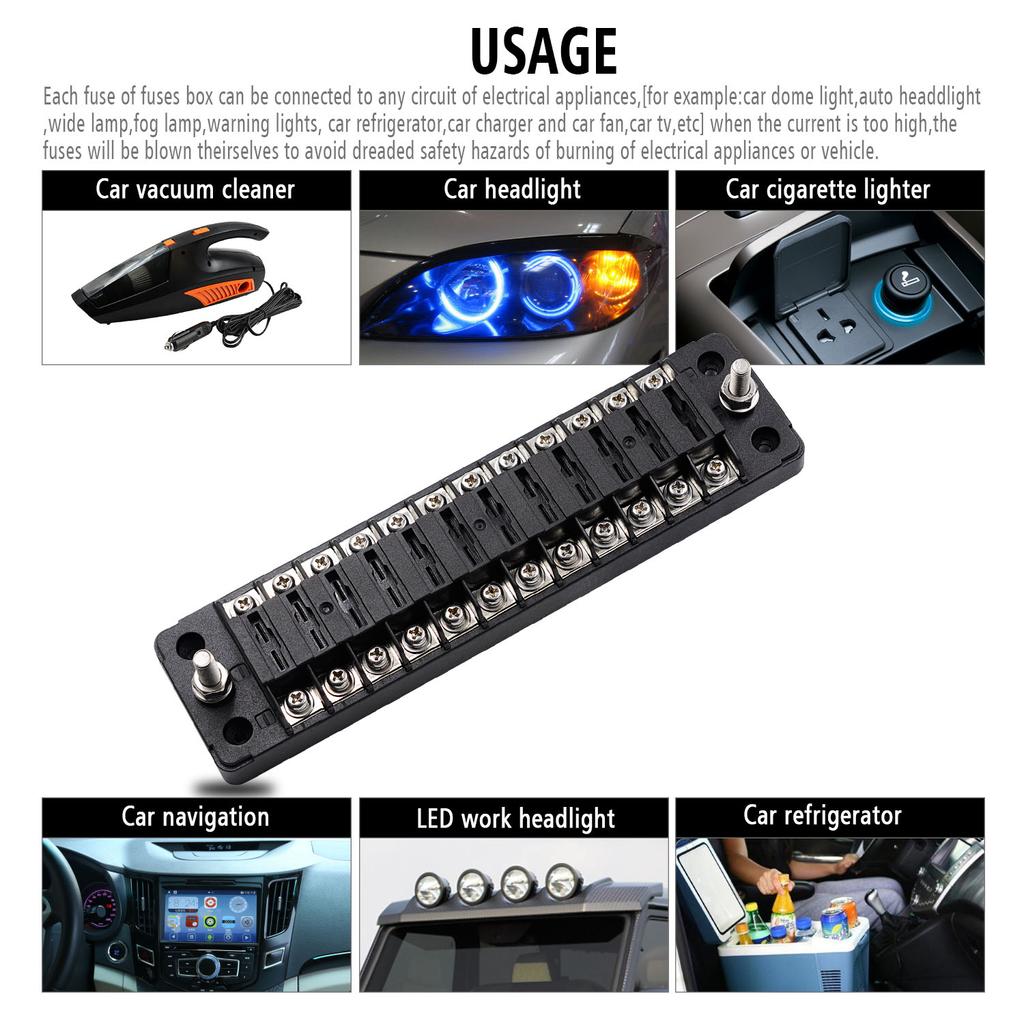

Scope of use: It can be directly connected to any electrical appliance on small cars/off-road vehicles/RVs/buses/yachts/boats, such as car roof lights, car headlights, side lights, fog lights, warning lights, car refrigerators, car chargers, car fans, car TVs, etc.
The function of a fuse: When a circuit malfunctions or is abnormal, the current continuously increases, and the increased current may damage some important or valuable components in the circuit, burn the circuit, or even cause a fire. Fuses protect electronic devices from damage caused by overload currents and can also prevent serious injuries caused by internal faults in electronic devices. Therefore, each fuse has a rated specification, and when the current exceeds the rated specification, the fuse will melt. If the fuse is correctly installed in the circuit, it will automatically melt and cut off the current when the current rises abnormally to a certain height and temperature, thus protecting the safe operation of the circuit

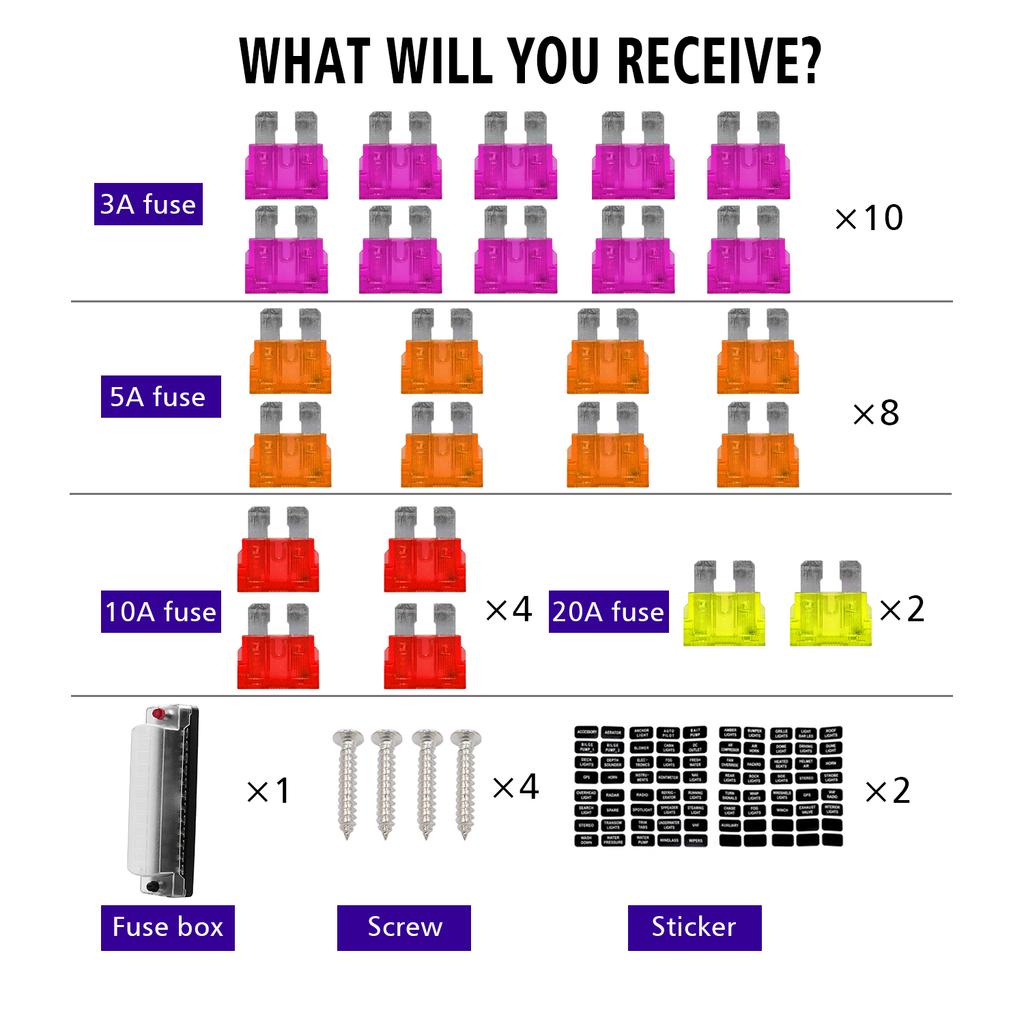

Product accessories: sticker X2; Self tapping screw X4; 20A insurance chip X2; 10A insurance pad X4; 5A insurance chip X8; 3A insurance sheet X10
