Feature:
1. There are multiple groups of rated voltages available, voltage input range is from 176V to 552V.
2. Professional against overvoltage, undervoltage, and unbalanced voltage.
3. The voltage relay is compatible with three‑phase three‑wire and three‑phase four‑wire input.

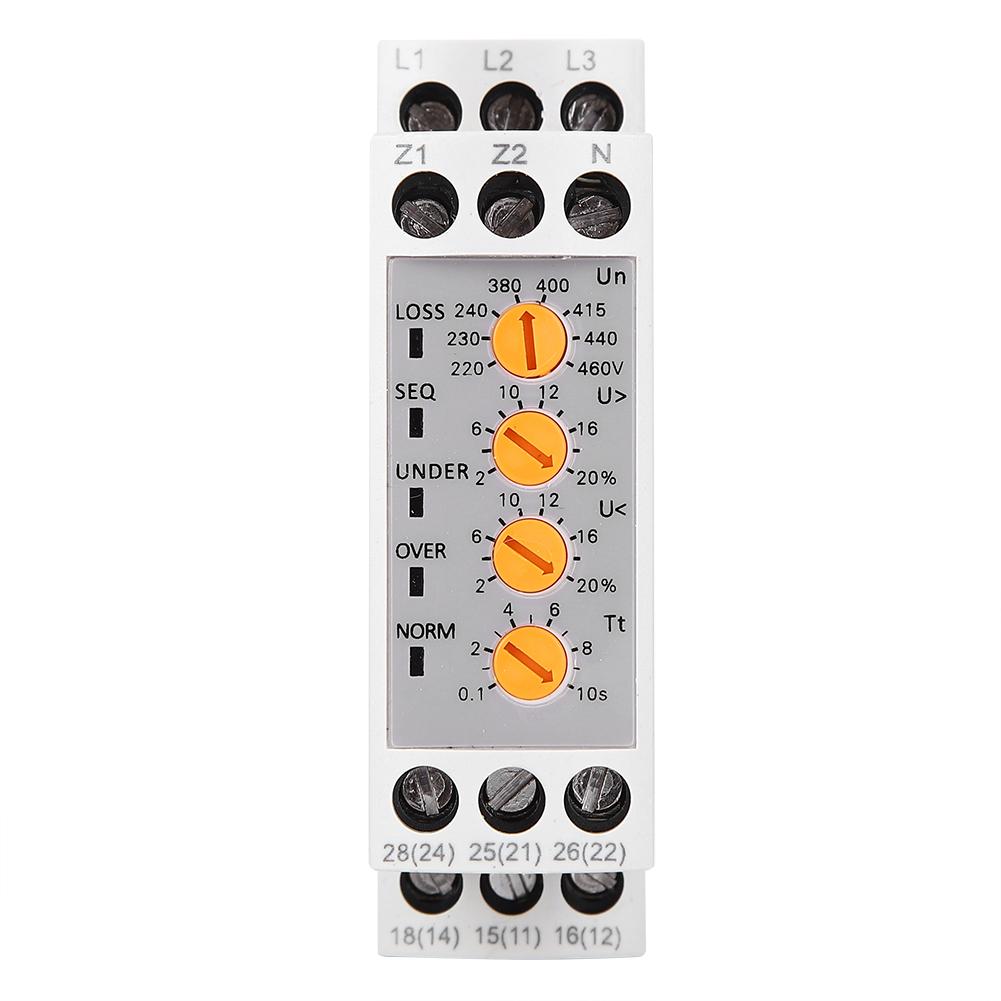

4. There are five LED lights indicating working status, you can know the working state of the relay.
5. The voltage protector has standard modular structure, use rail installation.
Specification:
Condition:100% Brand New
Material: Plastic
Color: As Pictures Shown

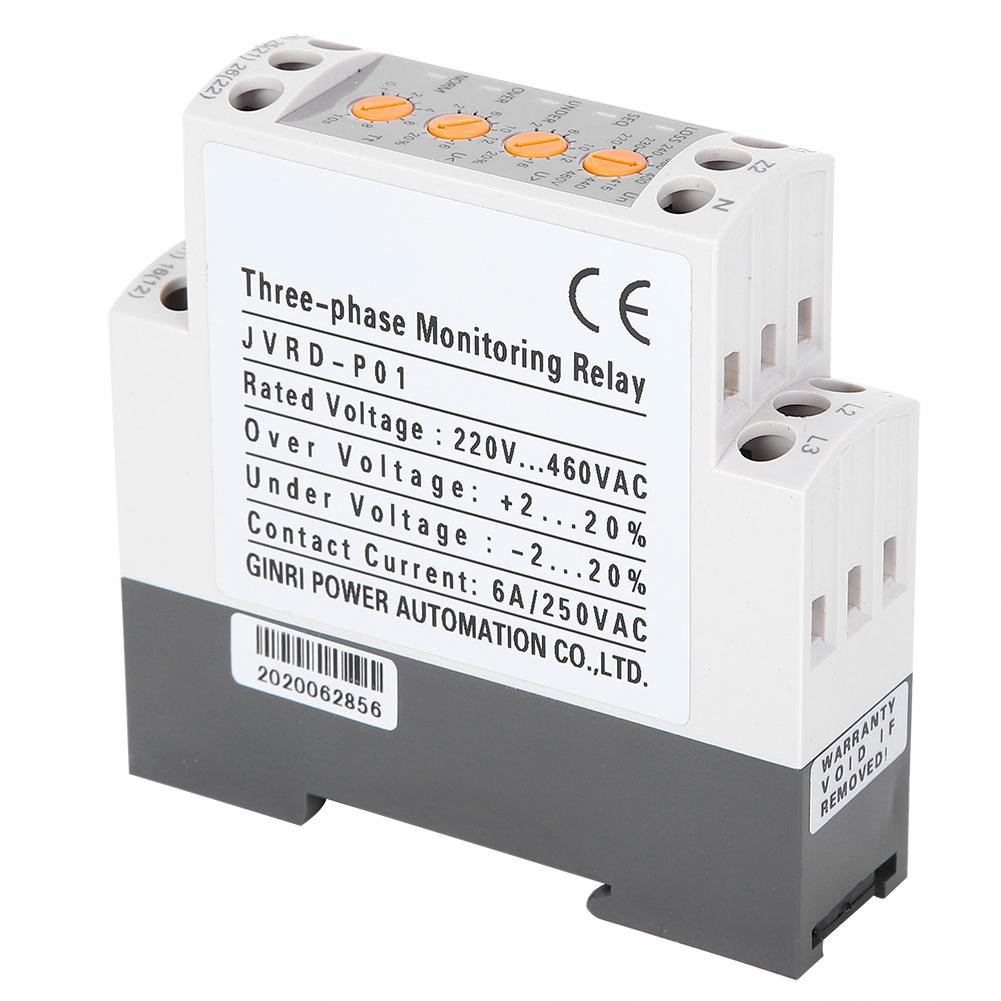

Model: JVRD-P01

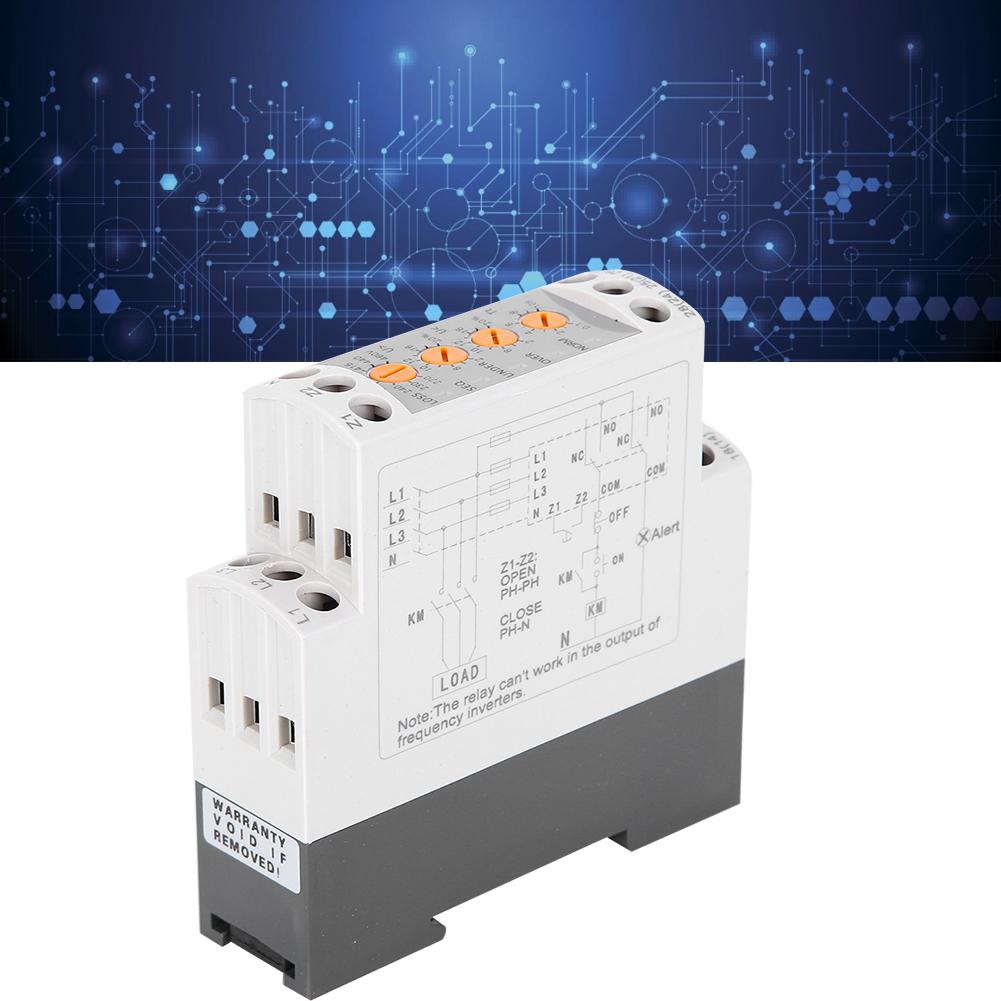

Monitoring Circuit: L1, L2, L3 or L1, L2, L3, N
Overvoltage and Undervoltage Adjustment Range: 2-20%
Action Delay Range: 0.1-10s (Overvoltage, Undervoltage, Unbalance Delay)
Phase Sequence Delay of Open Phase: 100ms
Knob Setting Accuracy: 5%
Reset : Automatic Reset
Contact Form: 2 Open and 2 Closed
Contact Capacity: 6A 250VAC/24VDC (Resistive)
Use Category: AC15, DC13
Level: P20
Mechanical Life: 1 x 10
Electrical Life: 1 x 10
Working Temperature: -20℃-+55℃
Installation : 35mm/1.4in Rail
Size(H x W x D): Approx. 79 x 23 x 79 mm/3.11 x 0.93 x 3.11in
Typical Applications: Motors, Fans, Pumps, Compressors, Cranes, Cranes, Elevators, Cranes, Elevators, Machine Tools, Central Conditioning, Refrigeration Equipment, Laser Equipment, Industrial Control Systems
Package List:
1 x Voltage Relay
1 x Instruction
