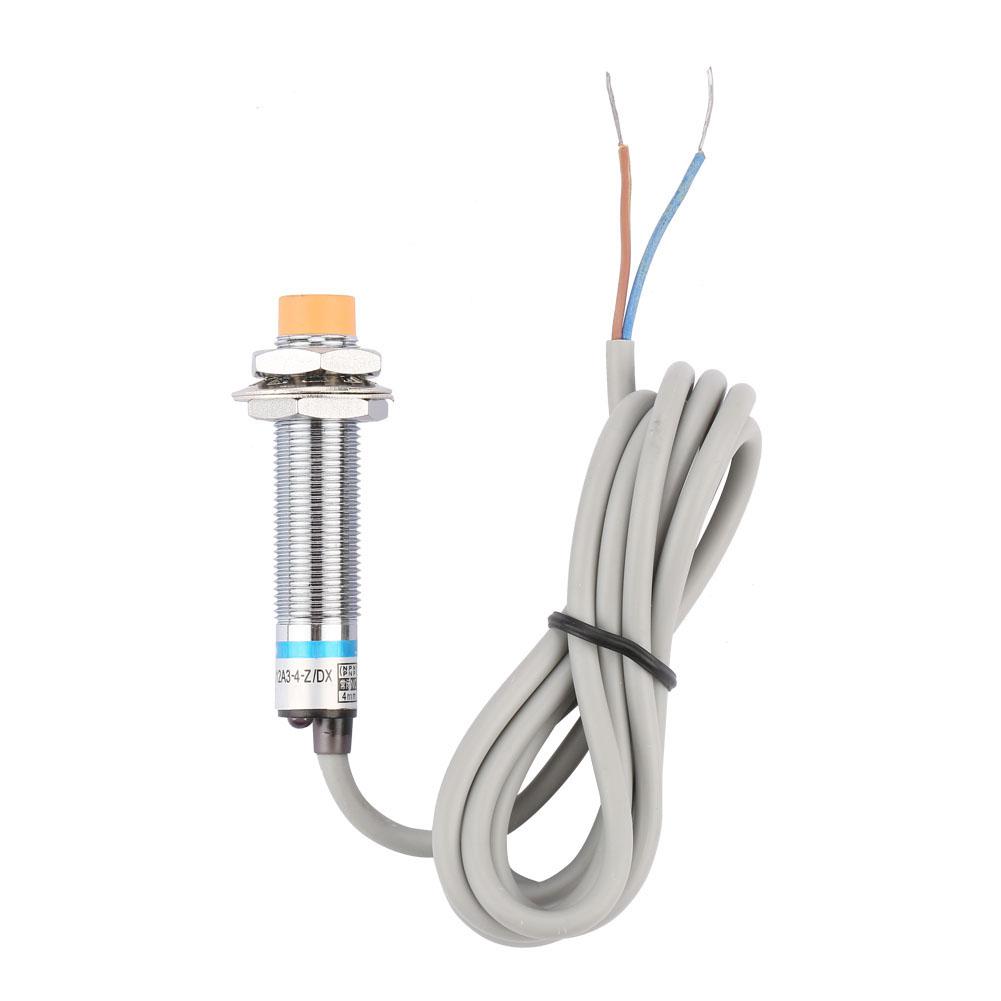

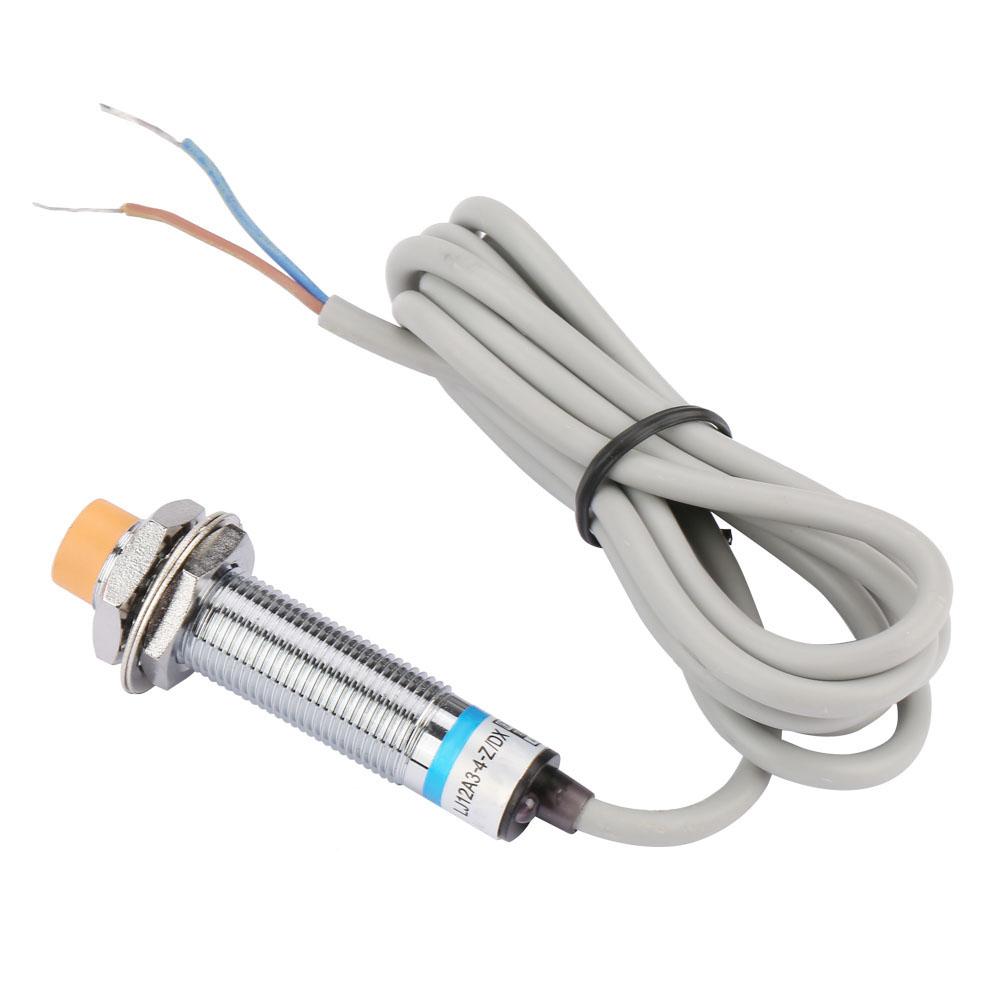

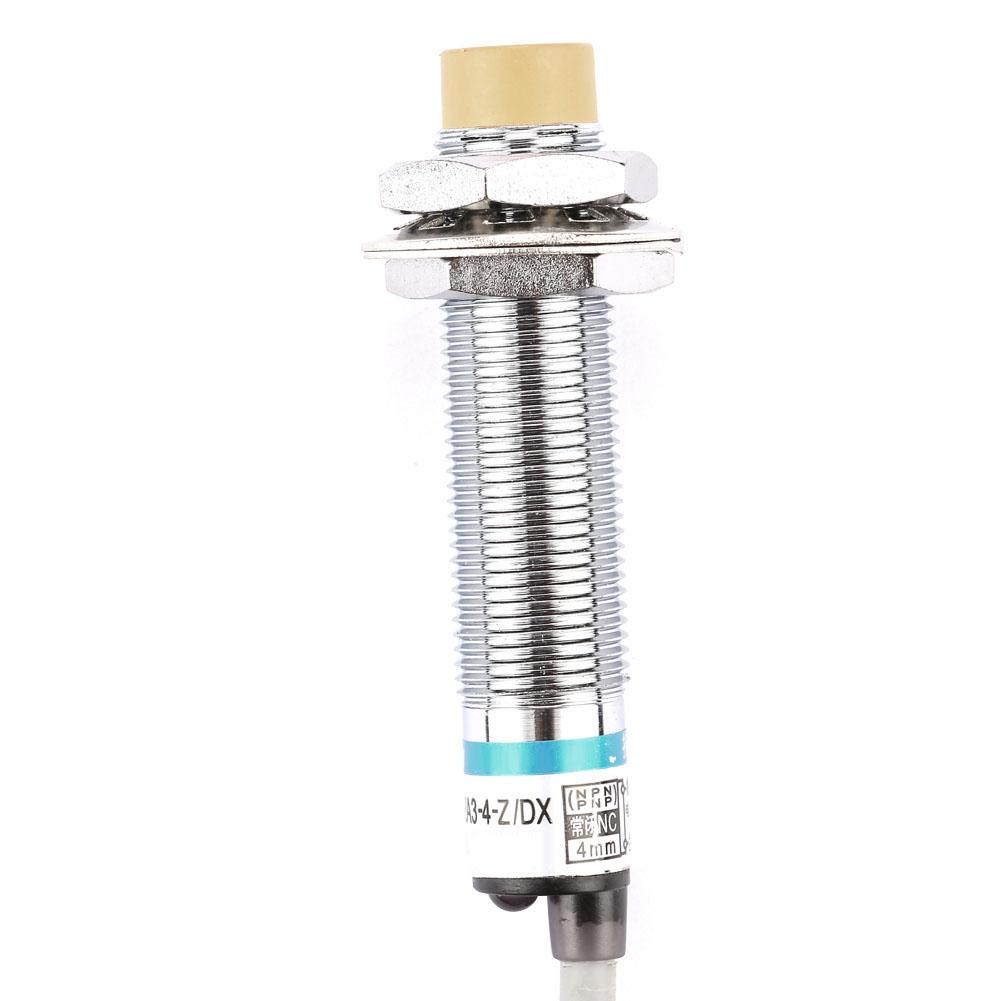

4mm Inductive Proximity Sensor Switch 2-Wire Normally Close LJ12A3-4-Z/DX

Features: This is a normally close proximity switch sensor with 4mm detection distance. When proximity switch is close to some target object, it will send out control . It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. High sensitivity, quick response, stable performance. Non-contact detection avoids the sensor and the target object from damages. Specification: Model: LJ12A3-4-Z/DX Detection distance: 4mm ± 10% Setting distance: 0-3.6mm Delay distance: <10% of detection distance Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal) Standard detection object: Iron 15*15*1mm Response frequency: 0.5kHz Supply voltage: DC12-24V (6-36V) impulse (P-P) below 10% Withstand voltage: AC1000V 50/60Hz 1min Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop : N.P.D type: reverse connection , absorption, load short circuit , type A: absorption Ambient temperature and humidity: -30~65 ℃ , 35-95%RH Temperature influence: Temperature range -30~65℃, at 23 ℃ , ± 15% detection distance; Temperature range -25~60 ℃ , at 23 ℃ , ± 10% 0detection distance Insulation impedance: >50M Ω Housing material: Nickel plated brass Detection : ABS Weight: Approx. 80g/2.8oz Package list: 1 * Inductive Proximity Switch
