Feature:
1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion.
2. High‑quality ABS material , high temperature and resistance, can be used for a long time.
3. 35mm standard rail installation, easy installation and disassembly, and does not occupy space.
4. Realize the isolation of input, output, power supply and , strong anti‑interference ability and high reliability.
5. Has excellent insulation, moisture-proof, anti-leakage, anti-vibration, anti-aging, anti-corona performance, etc.

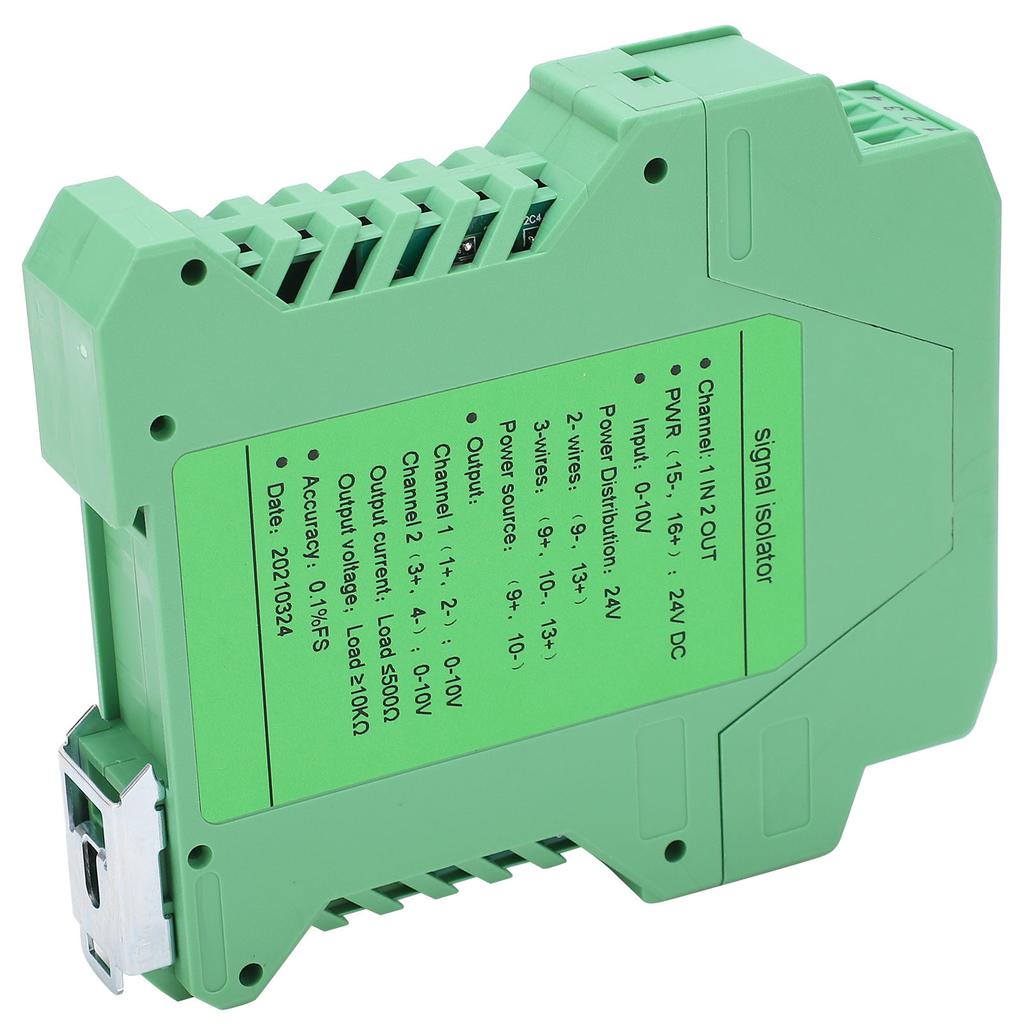

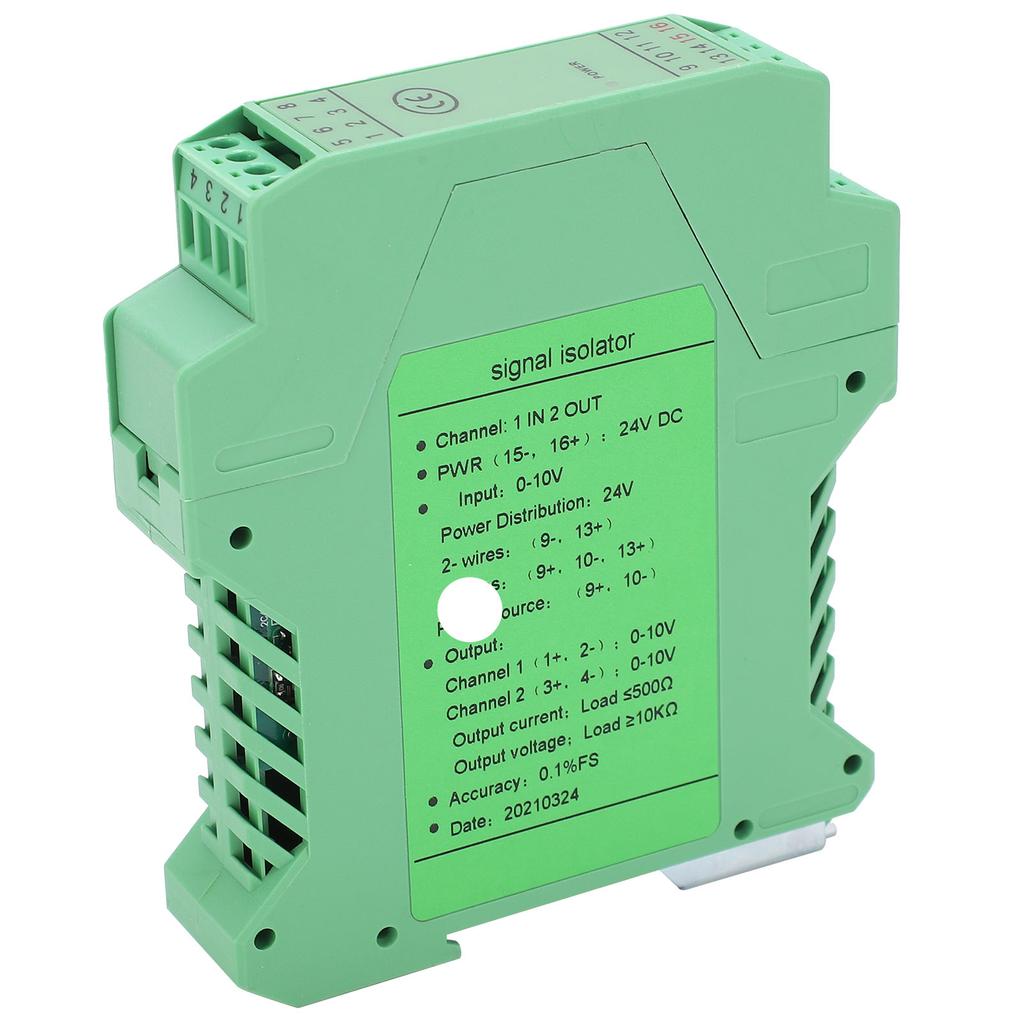

Specification:

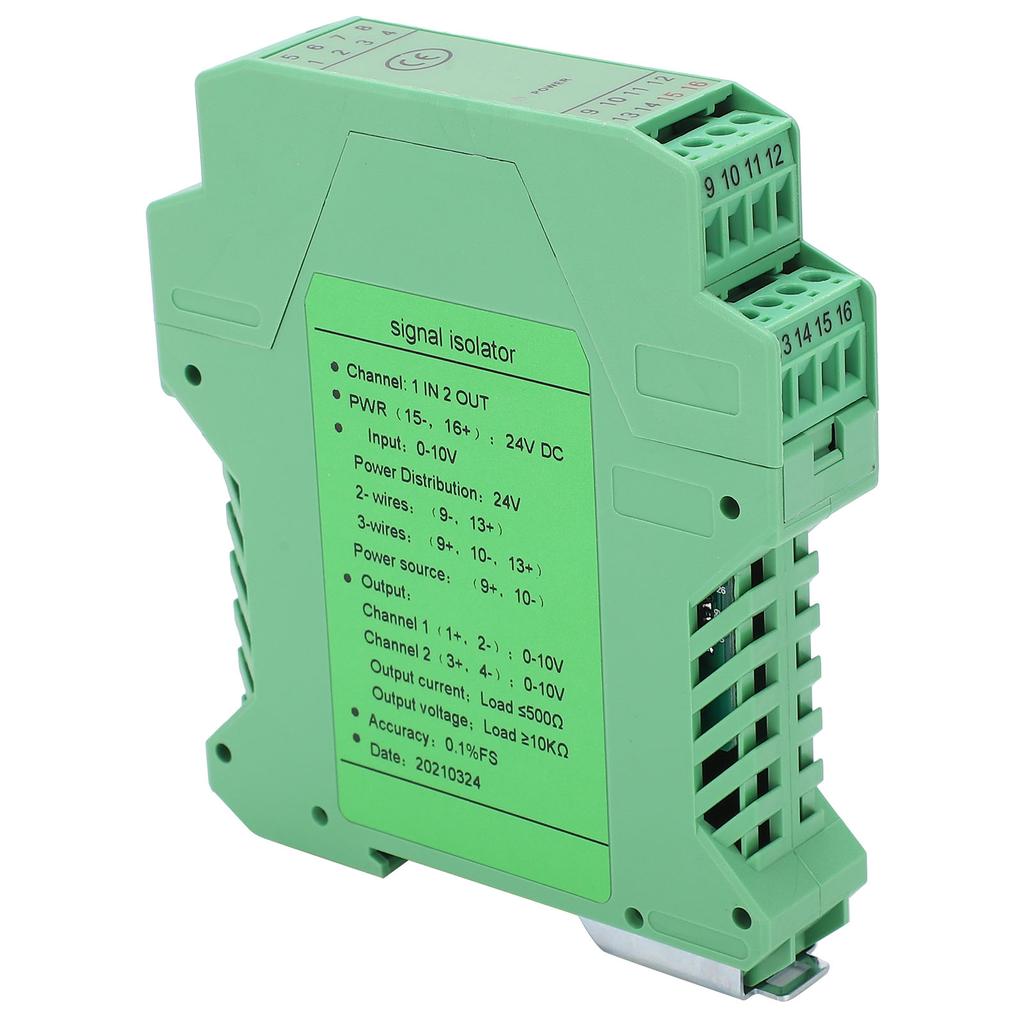

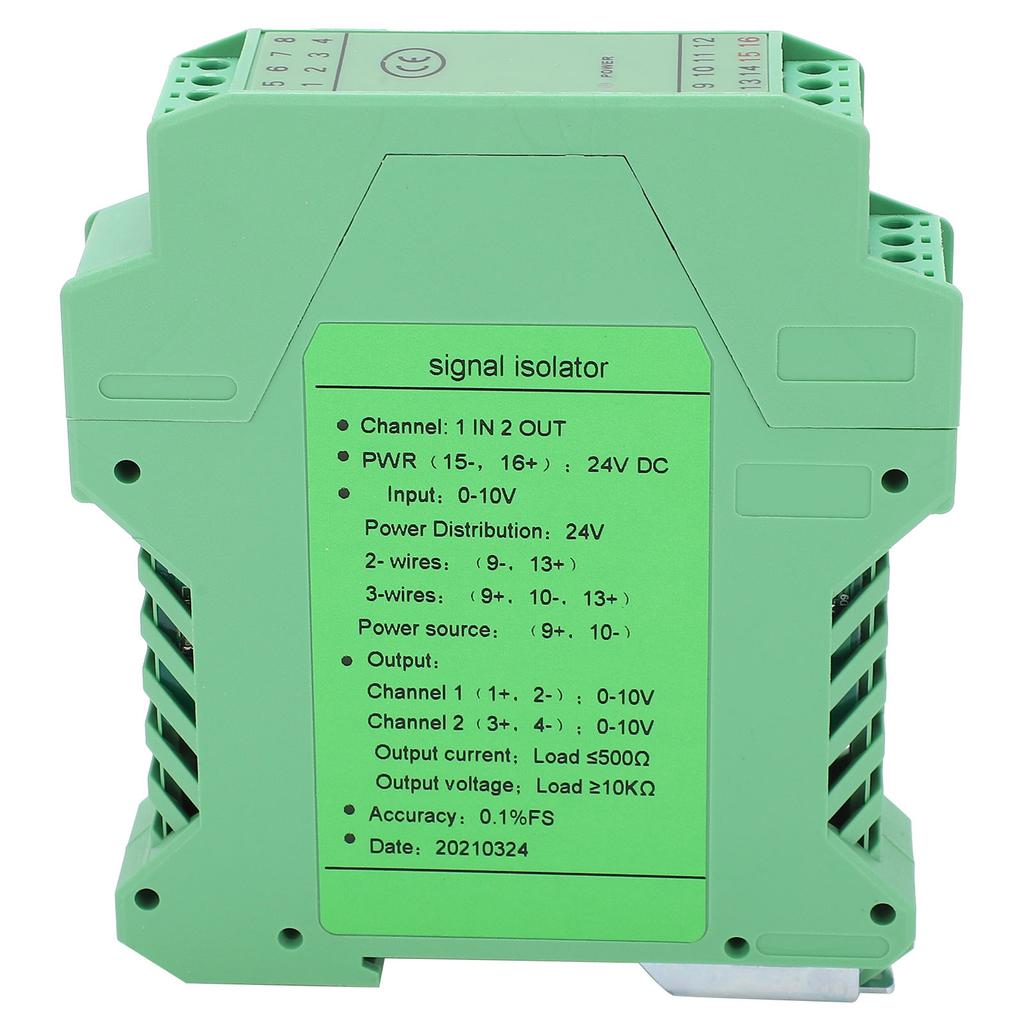

Item Type: Isolator
Material: ABS
Model: GLG
Channel: 1 in 2 out
(15-, 16+): 24V
Input: 0-10V
Distribution Voltage: 24V

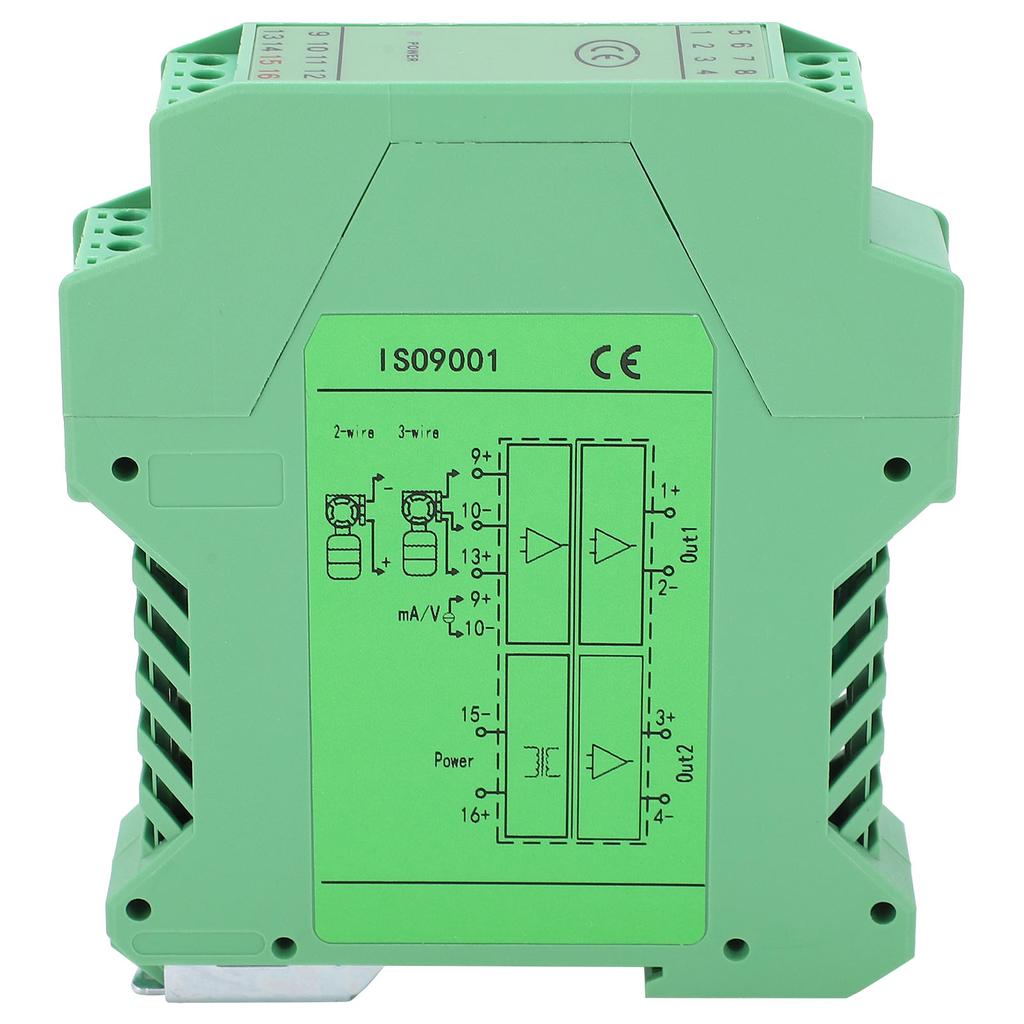

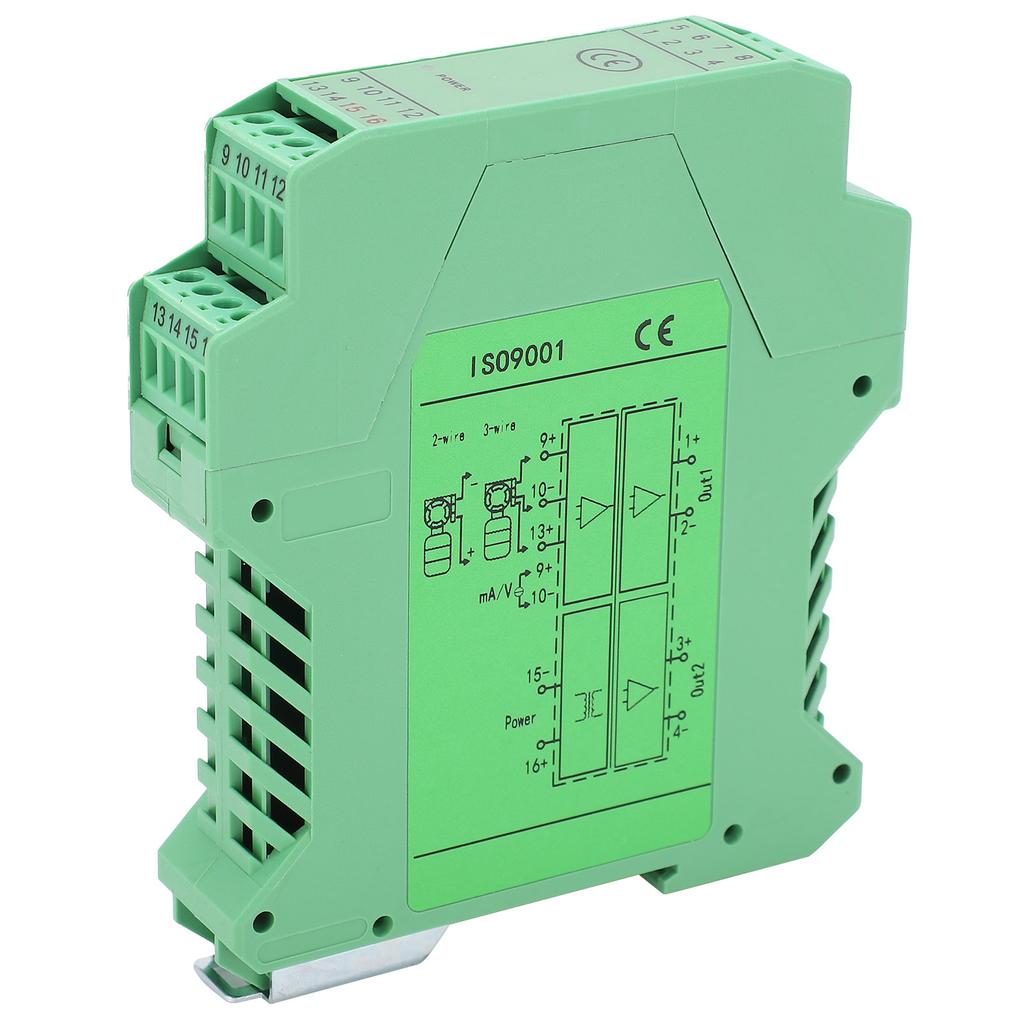

2-Wire System: (9-, 13+)
3-Wire: (9+, 10-, 13+)
Power Supply: (9+, 10-)
Output:
Channel 1 (1+, 2-): 0-10V
Channel 2 (3+, 4-): 0-10V
Output Current: Load≤500Ω
Output Voltage: Load≥10KΩ
Accuracy: 0.1% FS
Working Temperature Range: -20-+55℃
Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1)
Applicable Field Equipment: 2-wire, 3-wire transmitter, current source
Product Description:

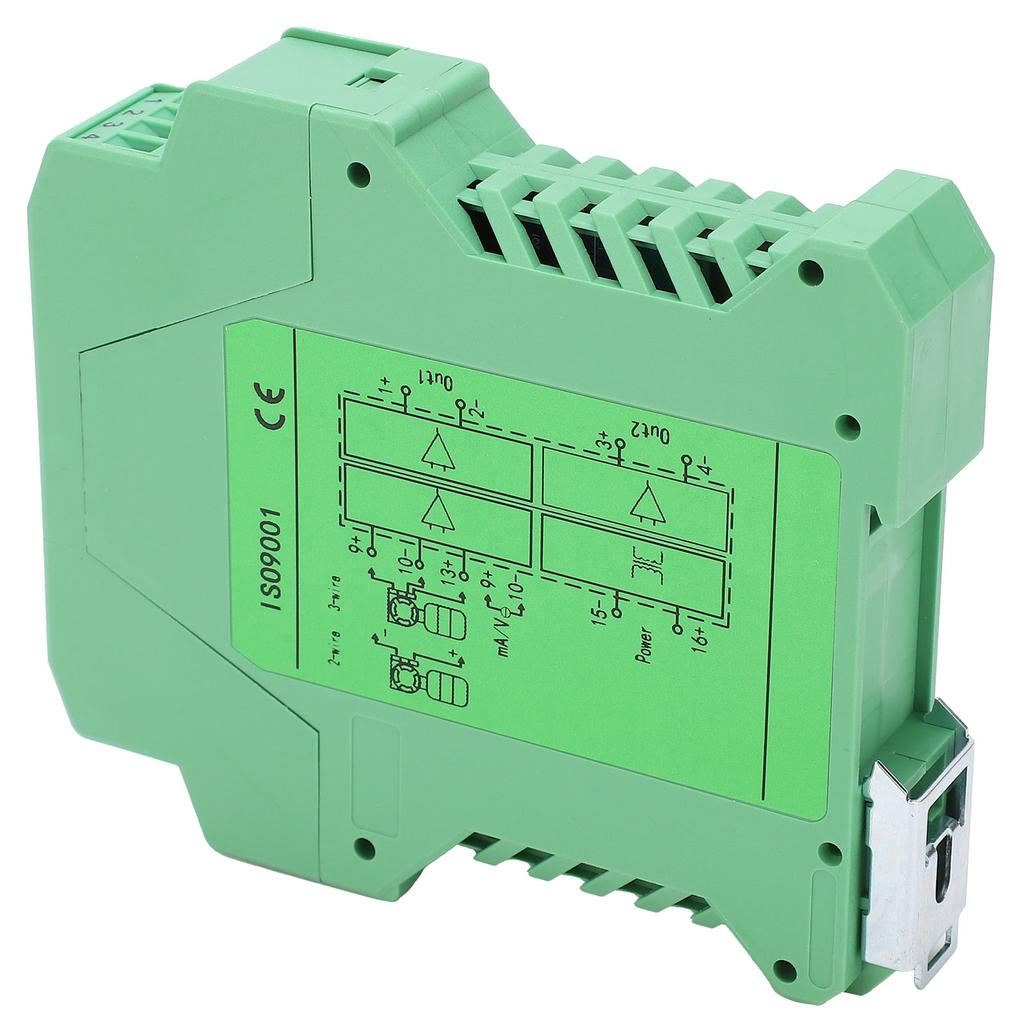

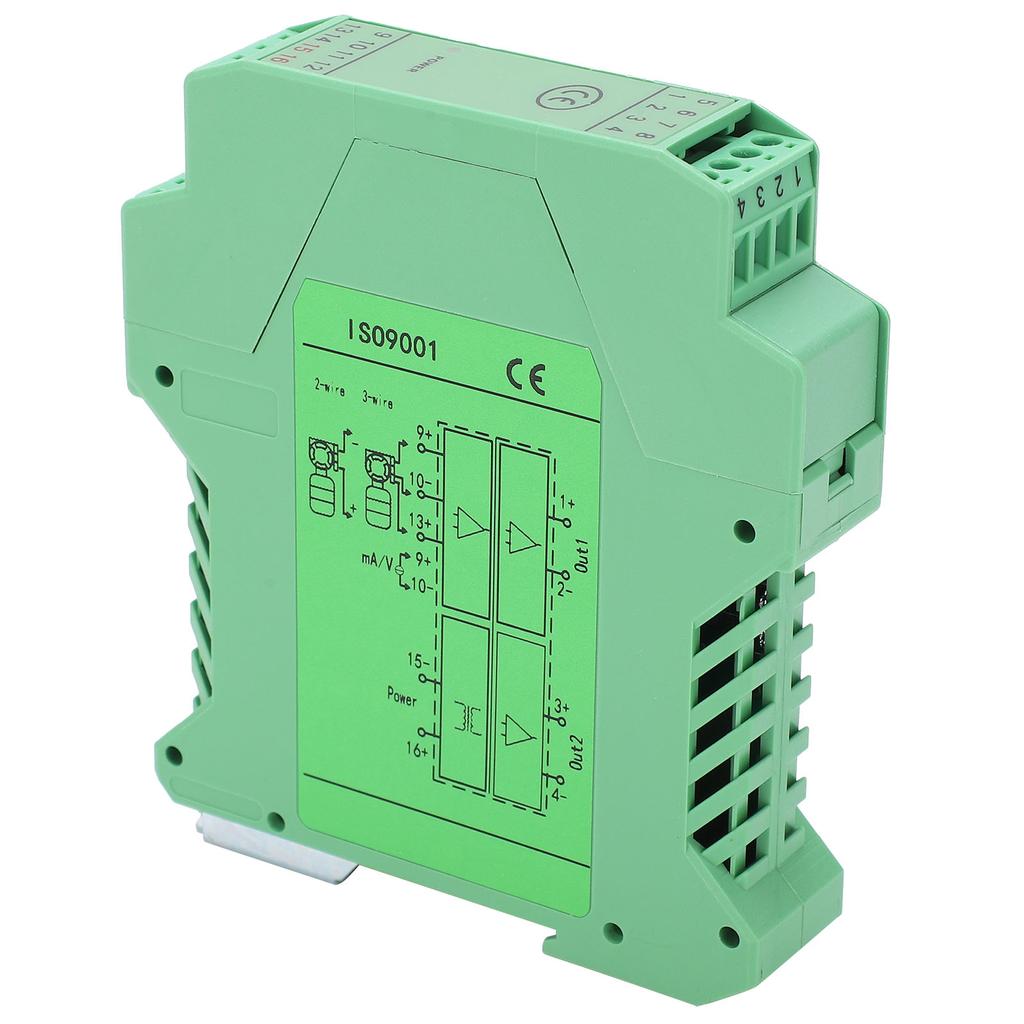

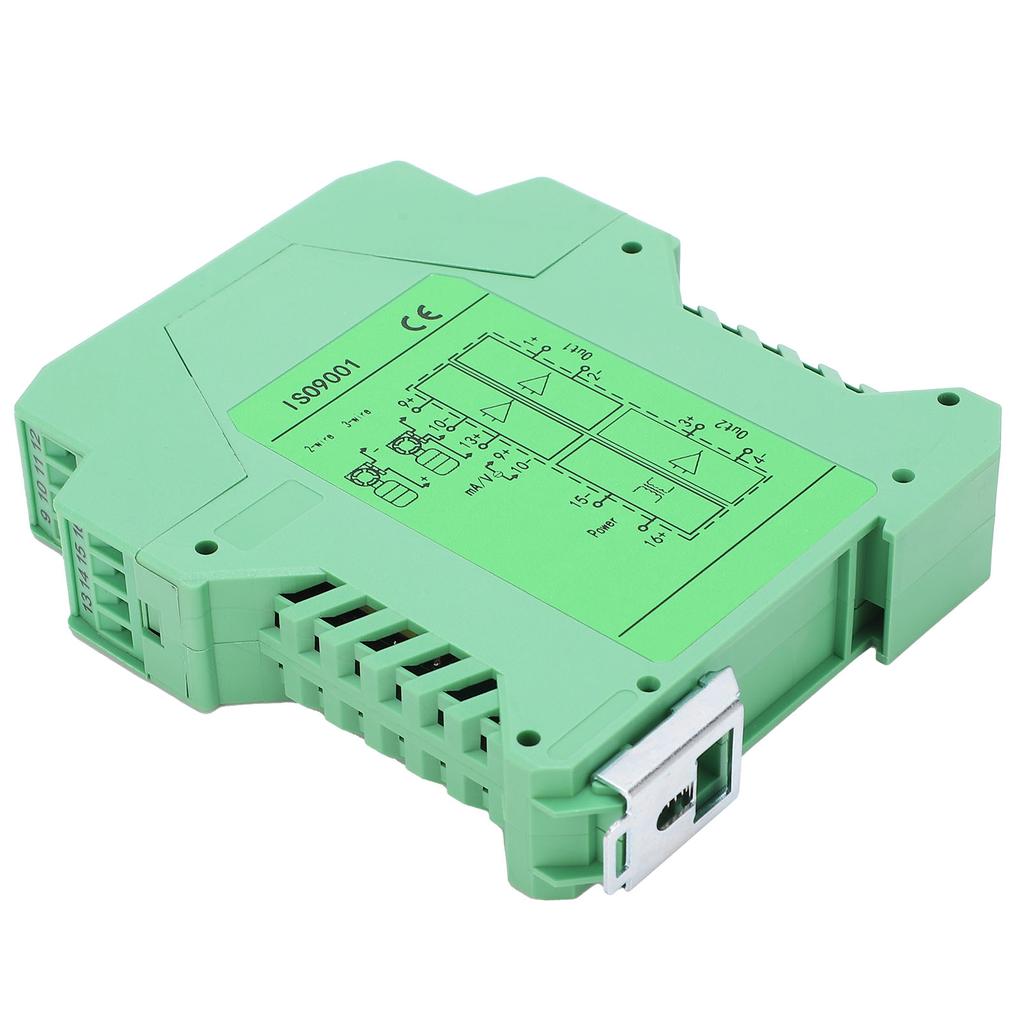

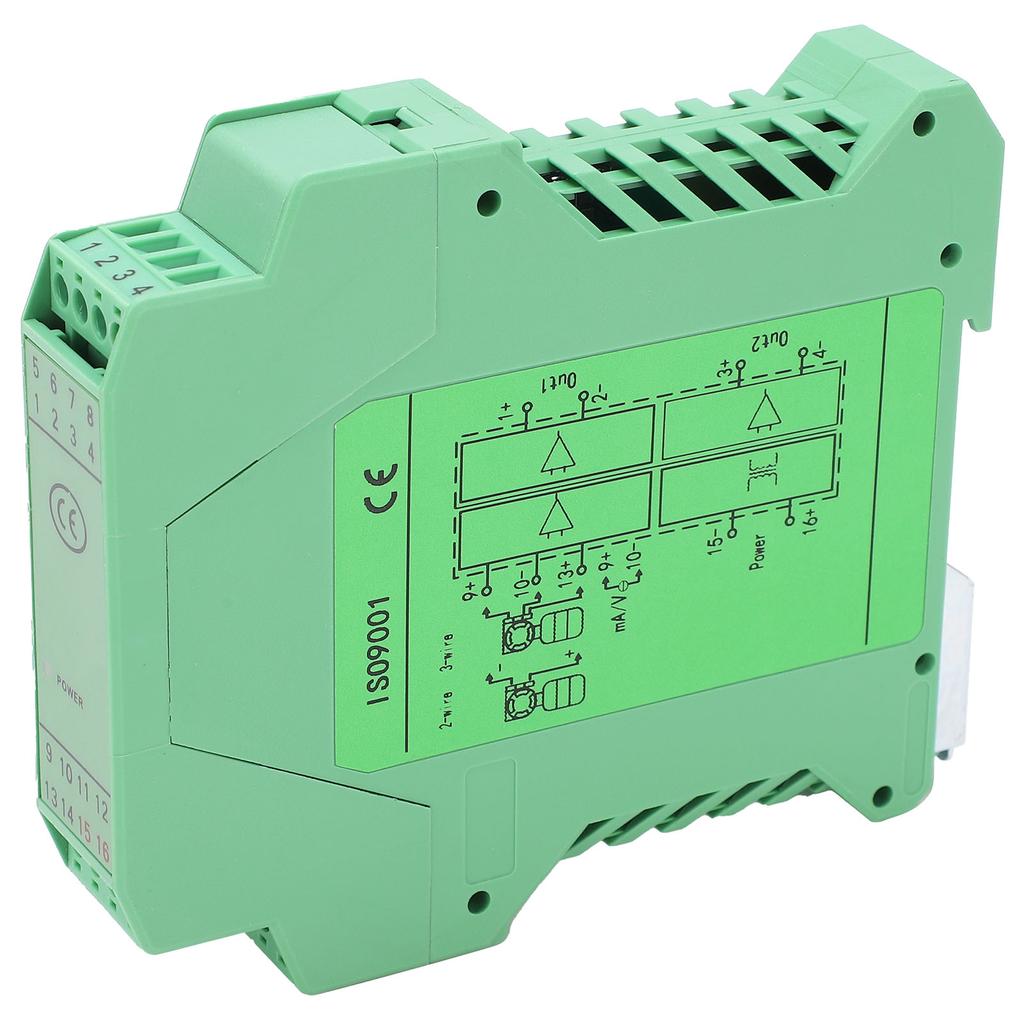

DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with high accuracy, high linearity, low temperature drift and other characteristics.
Package List:
1 x Isolator
Note:
The installation location must not have strong vibration, and the intensity of electromagnetic interference from the terminal, power supply terminal and space exceeding the third category of the IEC61000‑4 series of industrial field electromagnetic interference, and the use environment must not be harmful to metal and plastic parts. substance.
