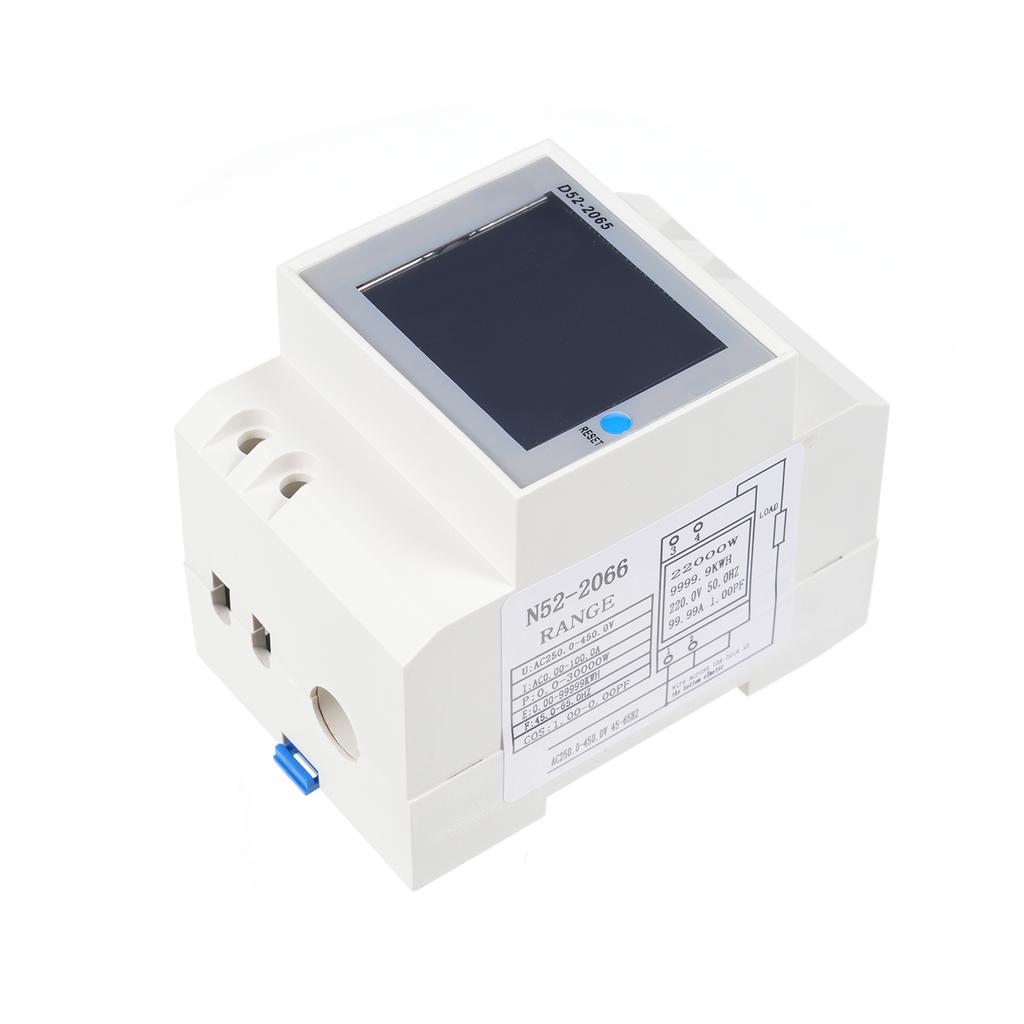

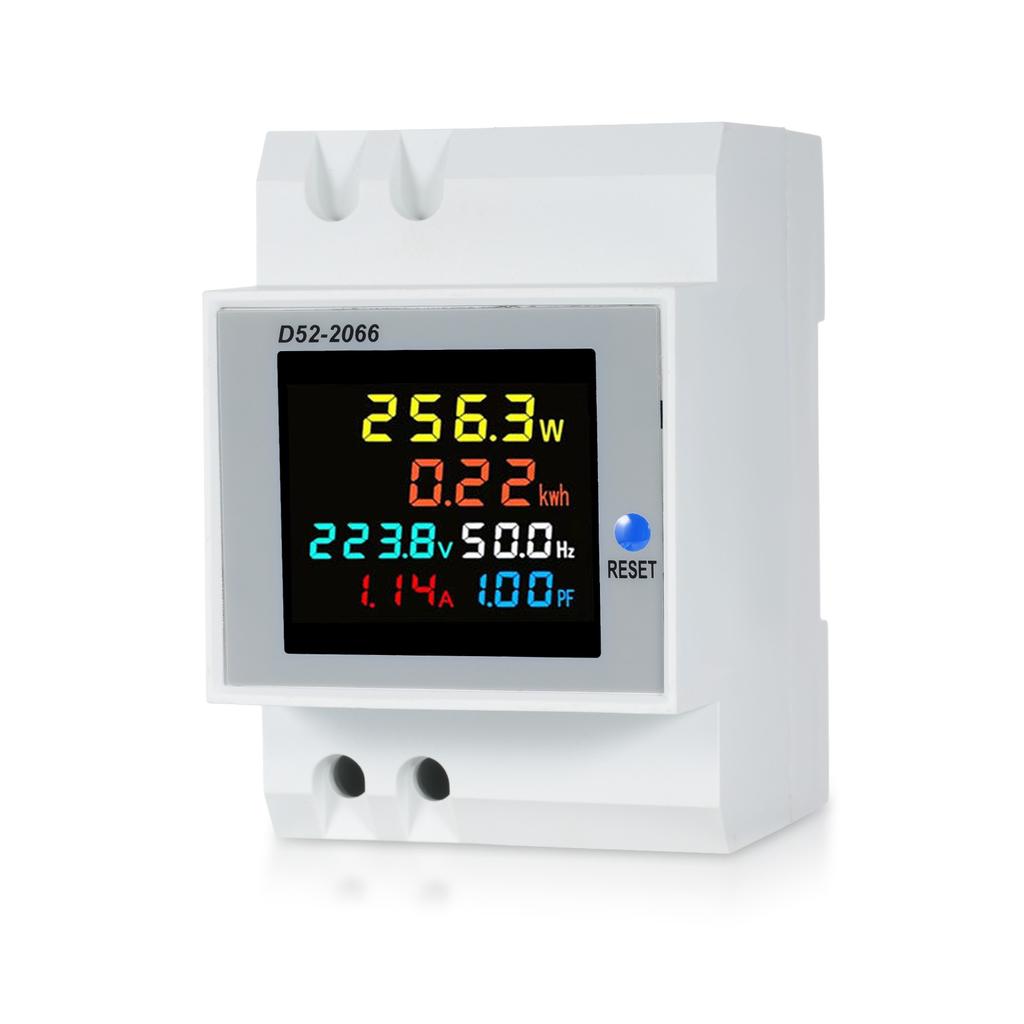

D522066 guide rail type digital display multifunction meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electric energy on the instrument. The meter uses a color fullview highdefinition LCD display to display the measurement results.
Features:

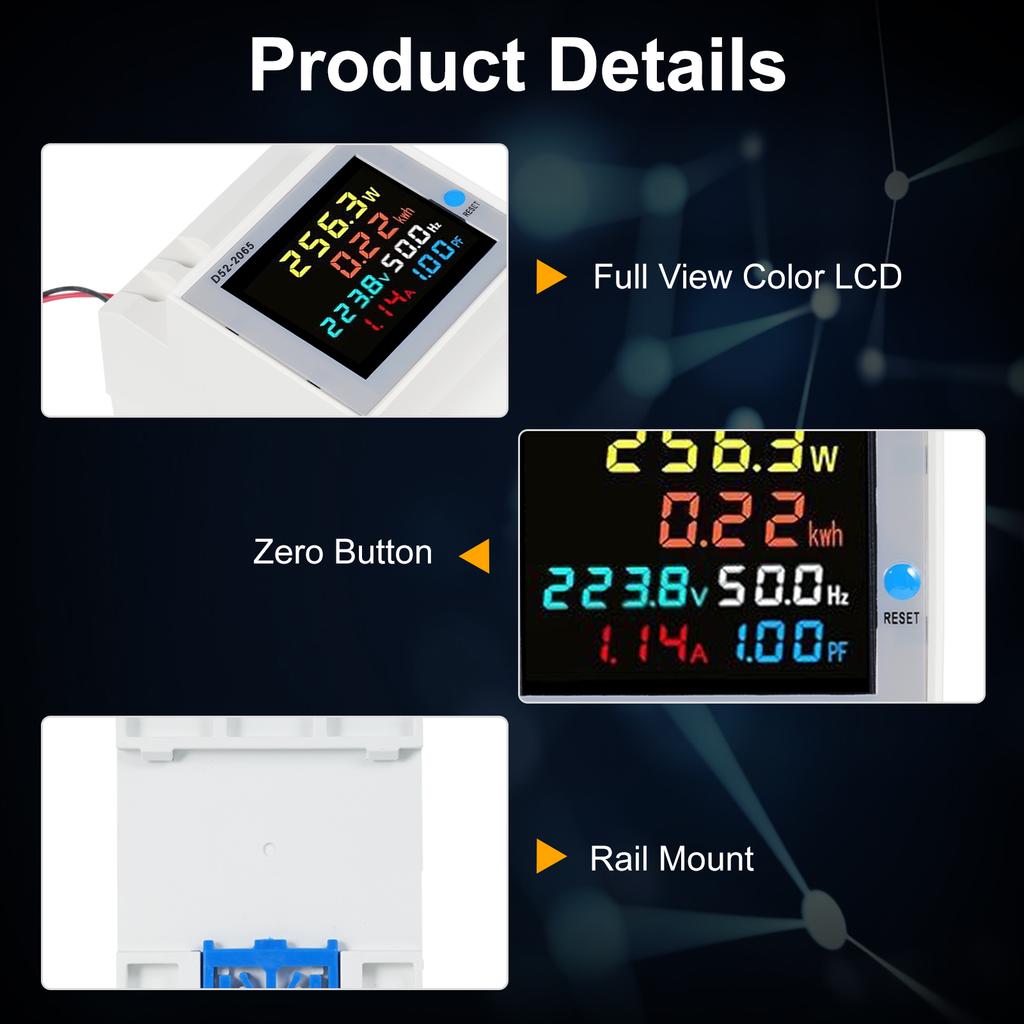

Better Visual Experience: Color LCD HD display, 178 degrees wide viewing angle, no dead angle, with backlight function, this AC power meter singlephase can be clearly seen no matter day or night.
Premium Quality: This singlephase power consumption meter is made of high quality ABS flame retardant material and sensitive chip to ensure the safety of use.?

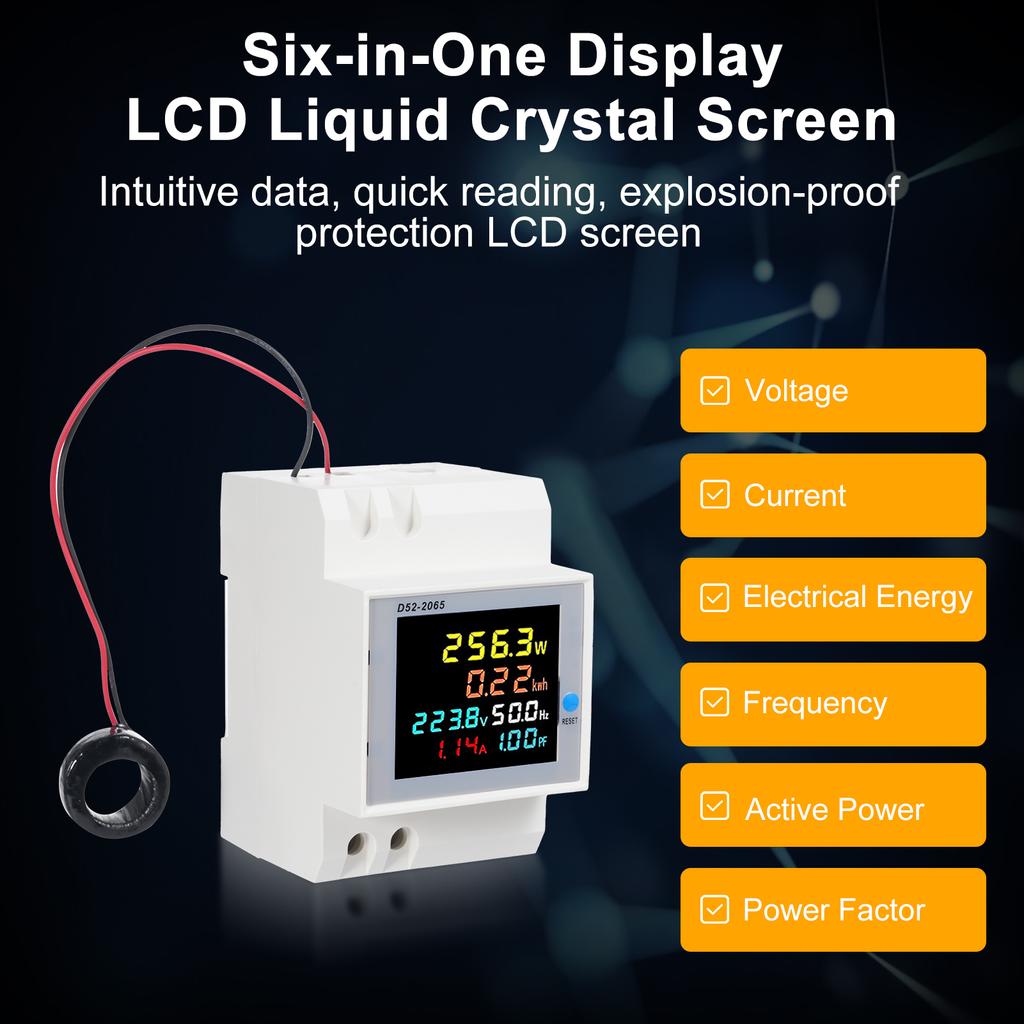

6in1: The DINrail digital multifunction meter is a meter that displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency, and electrical energy on the meter.
Easy to Use: If you need to reset the meter measurement (when measuring from zero), long press the RESET button on the right side of the meter panel for 5 seconds until the meter displays 0, then release the button, at which time the meter starts measuring from zero.
AutoSave Data Function: When the measurement voltage is disconnected or power failure, the meter will automatically save the current test data, when reconnecting the measurement power supply, the meter will continue to accumulate on the original saved data.
Wide Applications: Suitable for chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment, etc.
Specifications:

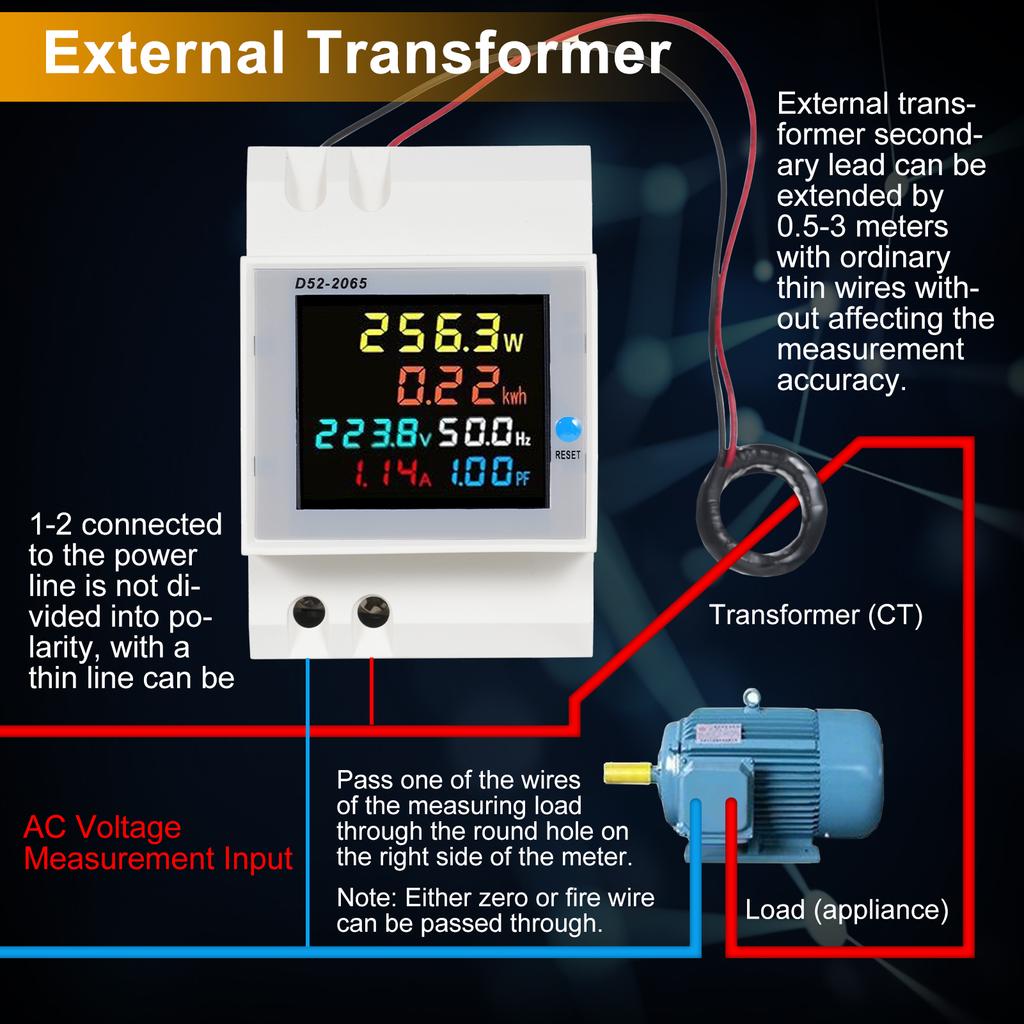

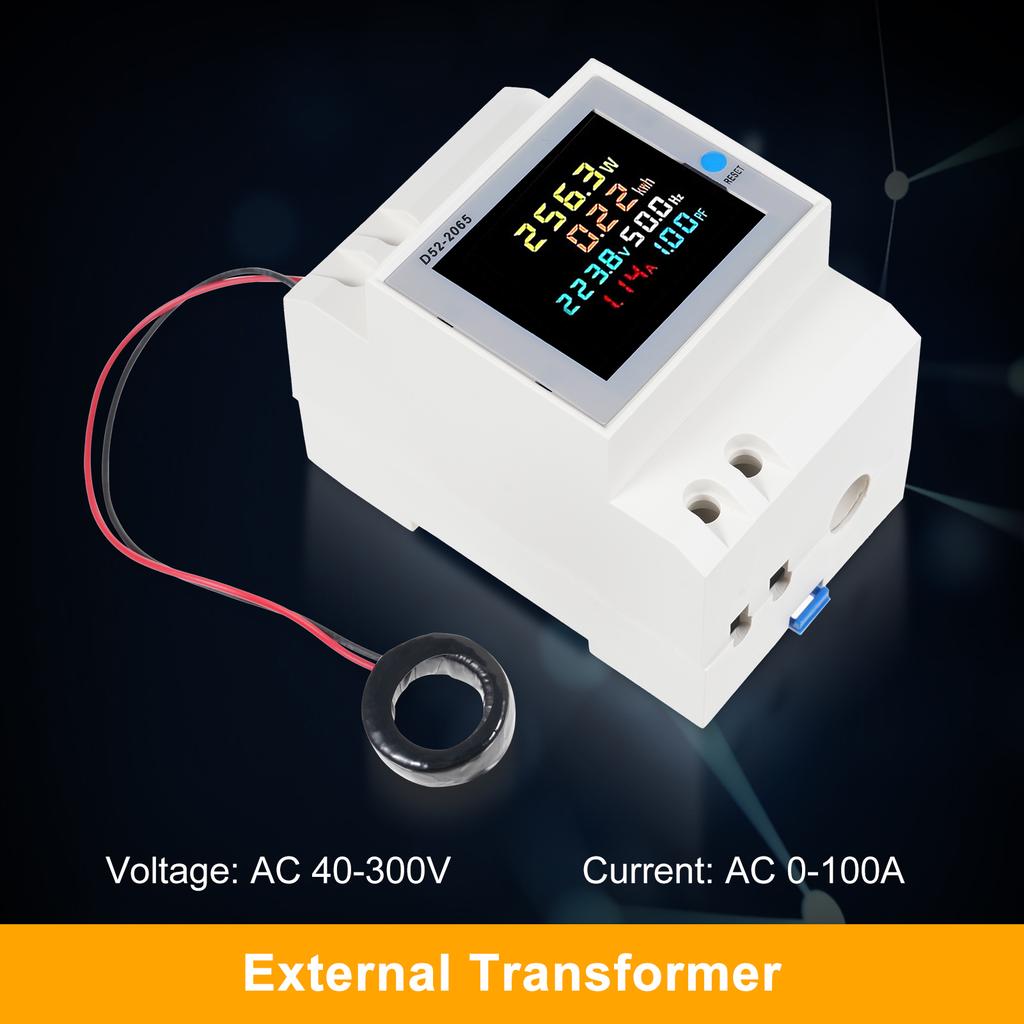

Type: Builtin transformer External transformer (Optional)
Measuring Range: AC 40300V AC 250450V (Optional)
Model: D522066 D522065 (Optional)
Material: ABS
Measurement Accuracy: 1percent +2 words
Alternating Current: AC 0100A, current display resolution is 0.01A
Power Frequency: 45.0Hz65.0Hz
Power Fator: 0.001.00PF
Active Power: Measuring range is 045000W, the display resolution between 09999.9W is 0.1W, the rest is 1W
Electricity: Measurement range is 099999kwh, 0999.99kwh minimum display resolution is 0.01kwh
Measuring Speed: About 2 times per second
Mounting Method: Rail type

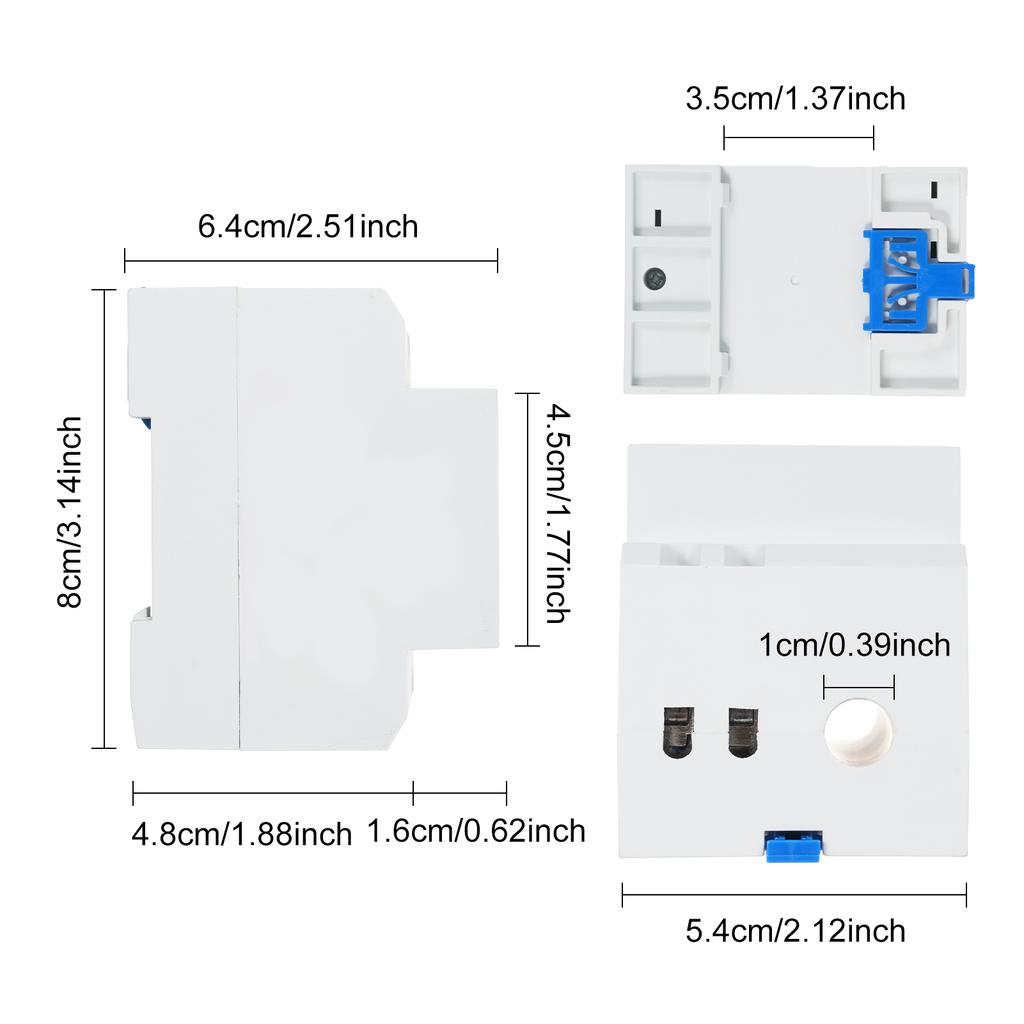

Item Size: 80 * 54 * 64mm 3.15 * 2.12 * 2.51in
Item Weight: 122g 4.30oz
Package Weight: 143g 5.04oz
Package Size: 9 * 8 * 7.5cm 3.54 * 3.15 * 2.95in

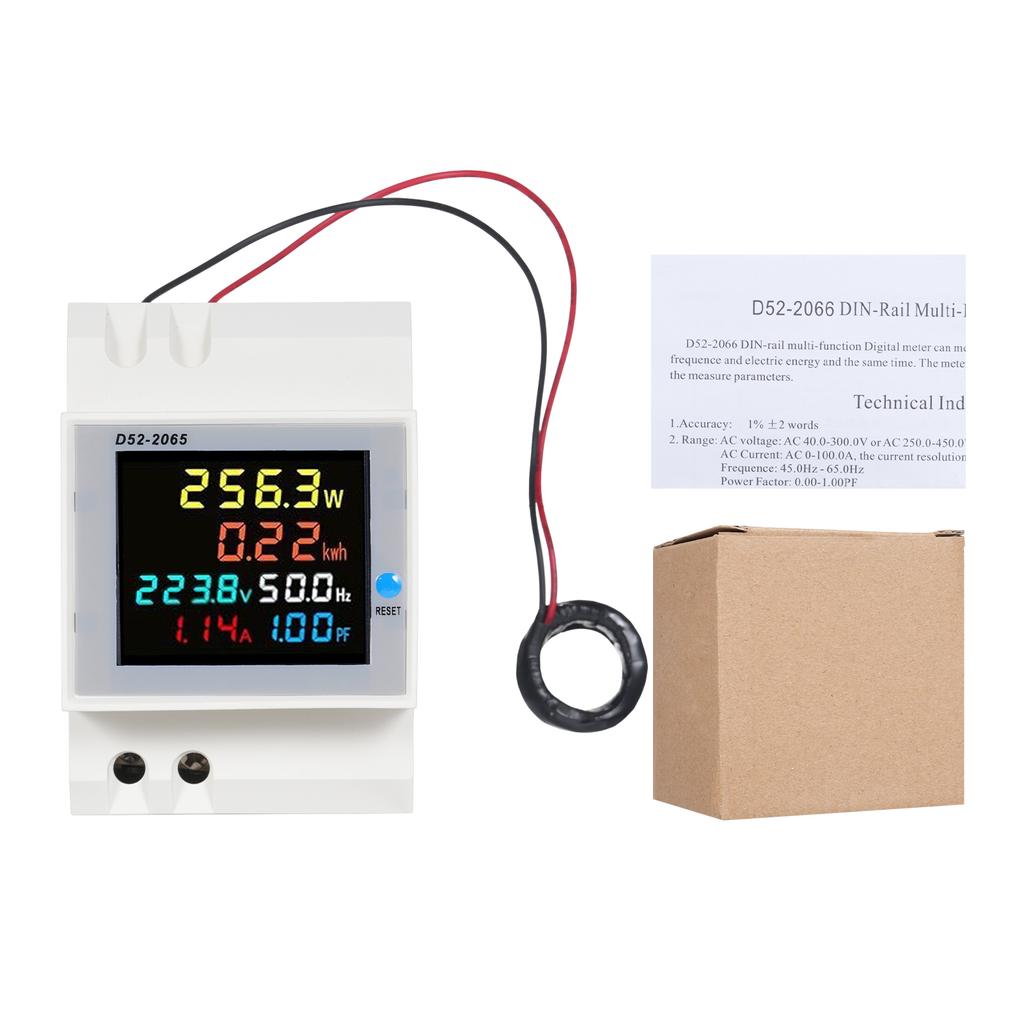

Package List:
1 * WattHour Meter
1 * User Manual (English)
