This instrument is a convenient measuring instrument, which can quickly, nondestructively and with high accuracy perform the measurement of the hardness of common metal materials. That is, it is used in the laboratory and also in the engineering field. Through the instrument measurement conditions set, can meet a variety of measurement needs.
Features:
A Variety of Values: With high definition bright screen, one key conversion, one measurement can display 7 kinds of hardness values (HLD, HB, HV, HS, HRA, HRB, HRC).
MultiFunction: Data saving function, easy to record and view. 10 minutes automatic shutdown function.
HighPrecision Measurement: Accurate measurement value, display value error + 6percent (HLD = 800), display value repeatability of 0.8percent ; can automatically calculate the average hardness value.
Easy to Use: The hardness tester supports "Forged Steel" materials. When testing "Forged Steel" specimens with the Dtype impact device, the HB value can be read directly, eliminating the need for manual tabulation.
Wide Application: Widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. Is the material nondestructive hardness testing professional necessary instrument.
Specifications:
Model: LS200
Material: ABS
Measuring Direction: Support 360o (vertical down, slant down, horizontal, slant up, vertical up)
Measuring Range: (170960)HLD, (17.969.5)HRC, (19683)HB, (801042)HV, (30.6102.6)HS, (59.188)HRA, (13.5101.7)HRB
Hardness Unit: Richter (HLD), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Rockwell A (HRA), Vickers (HV), Shaw (HS)
Display Value Error: +6percent (HLD = 800)
Display Value Repeatability: 0.8percent (HLD = 800)
Display: Industrialgrade 128 * 64 graphic dot matrix LCD liquid crystal
Power Supply: 1800mAh rechargeable lithium battery
Continuous Working Time: About 20 hours
Operating Conditions: Operating temperature 10 celsius ~50 celsius
Storage Temperature: 30 celsius ~60 celsius
Relative Humidity: less than 90percent
Applicable Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloy, copperzinc alloy (brass), coppertin alloy (bronze), pure copper, forged steel
Language: Chinese and English optional
Item Size: 148 * 83 * 30mm 5.82 * 3.26 * 1.18in
Item Weight: 201g 7.09oz
Package Weight: 636g 22.43oz
Package Size: 23 * 19 * 5cm 9.05 * 7.48 * 1.97in

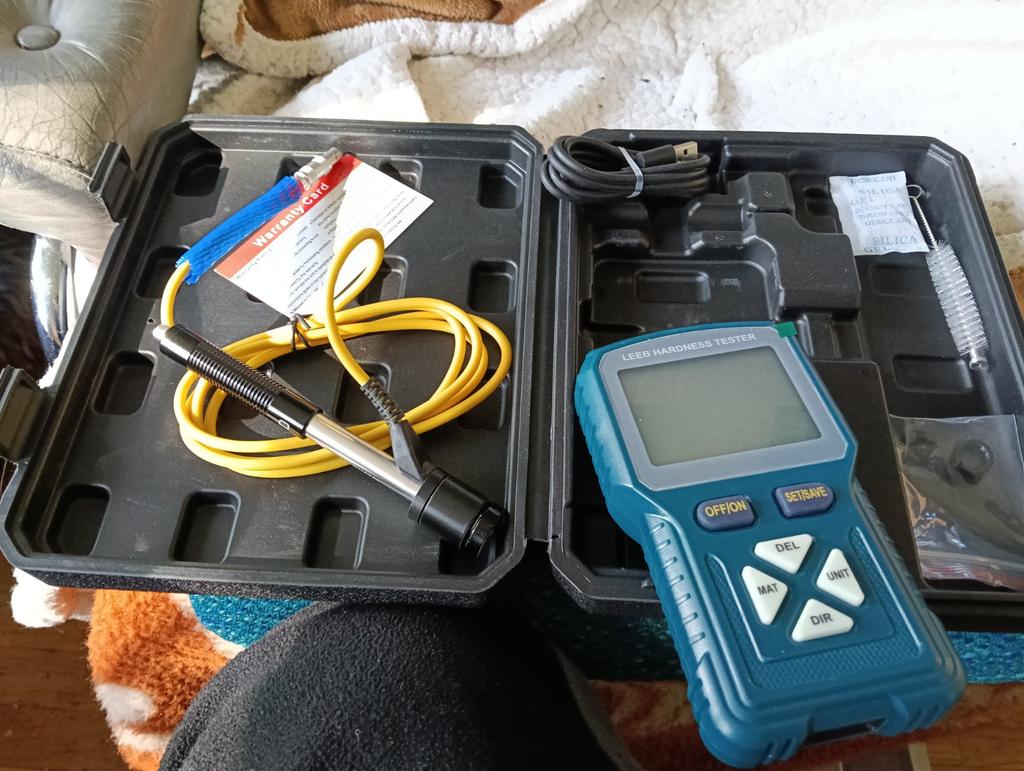

Package List:
1 * Digital Hardness Tester
1 * DType Impact Device (1 set)
1 * Support Ring
1 * Cleaning brush
1 * USB Cable
1 * User Manual (English)
