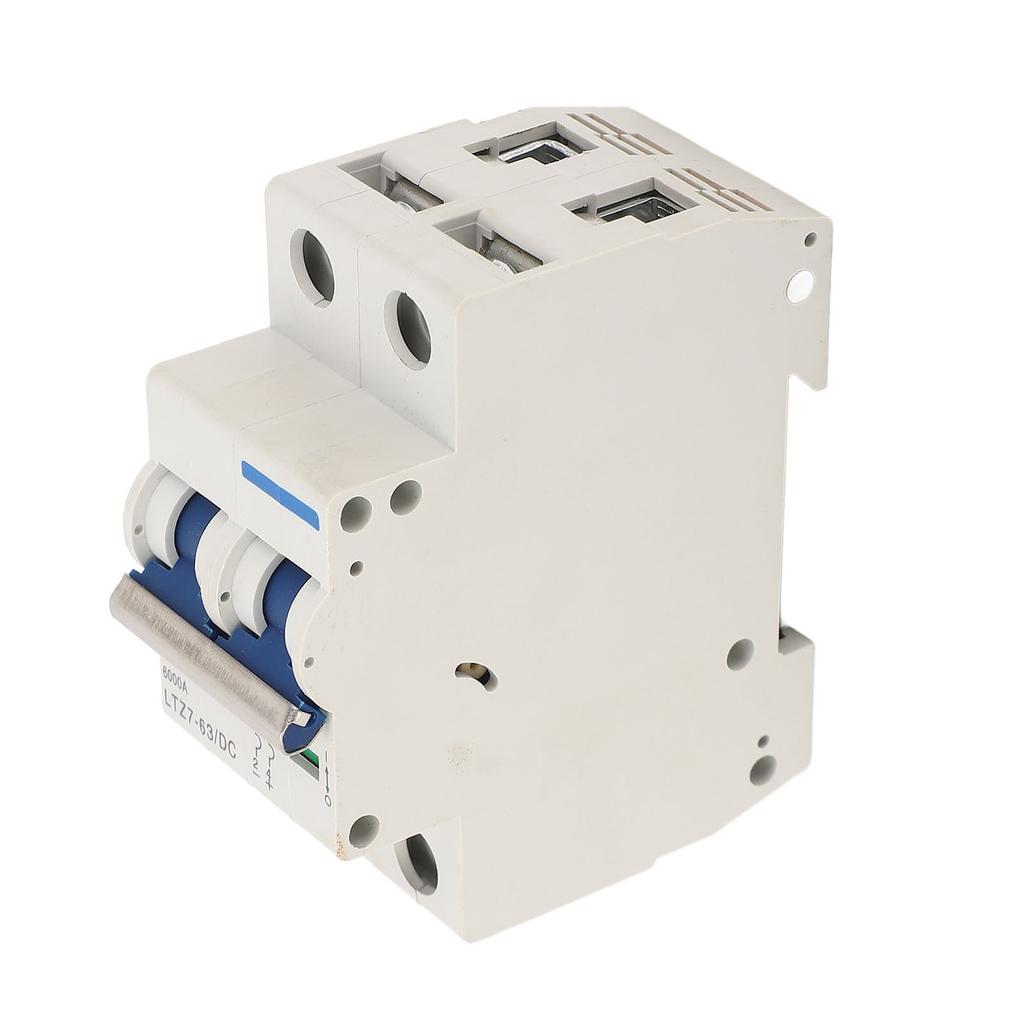

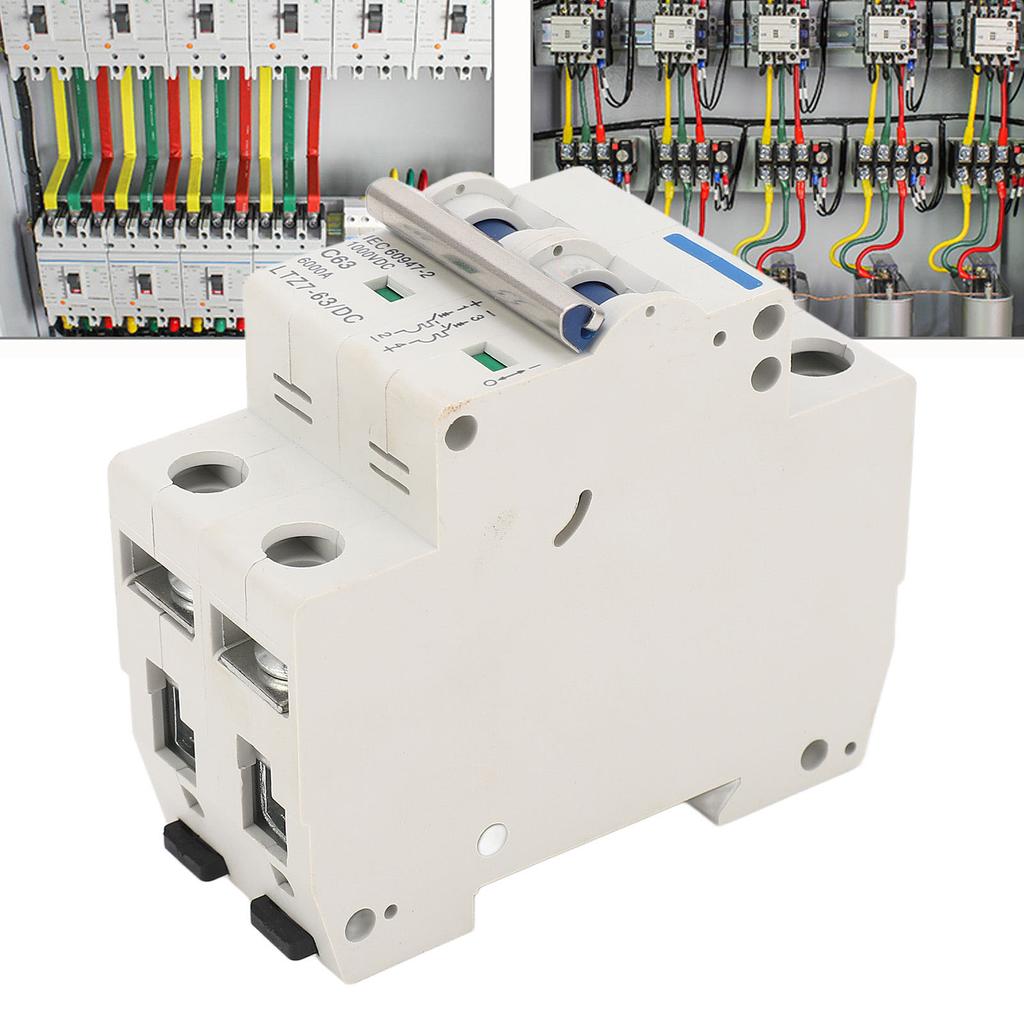

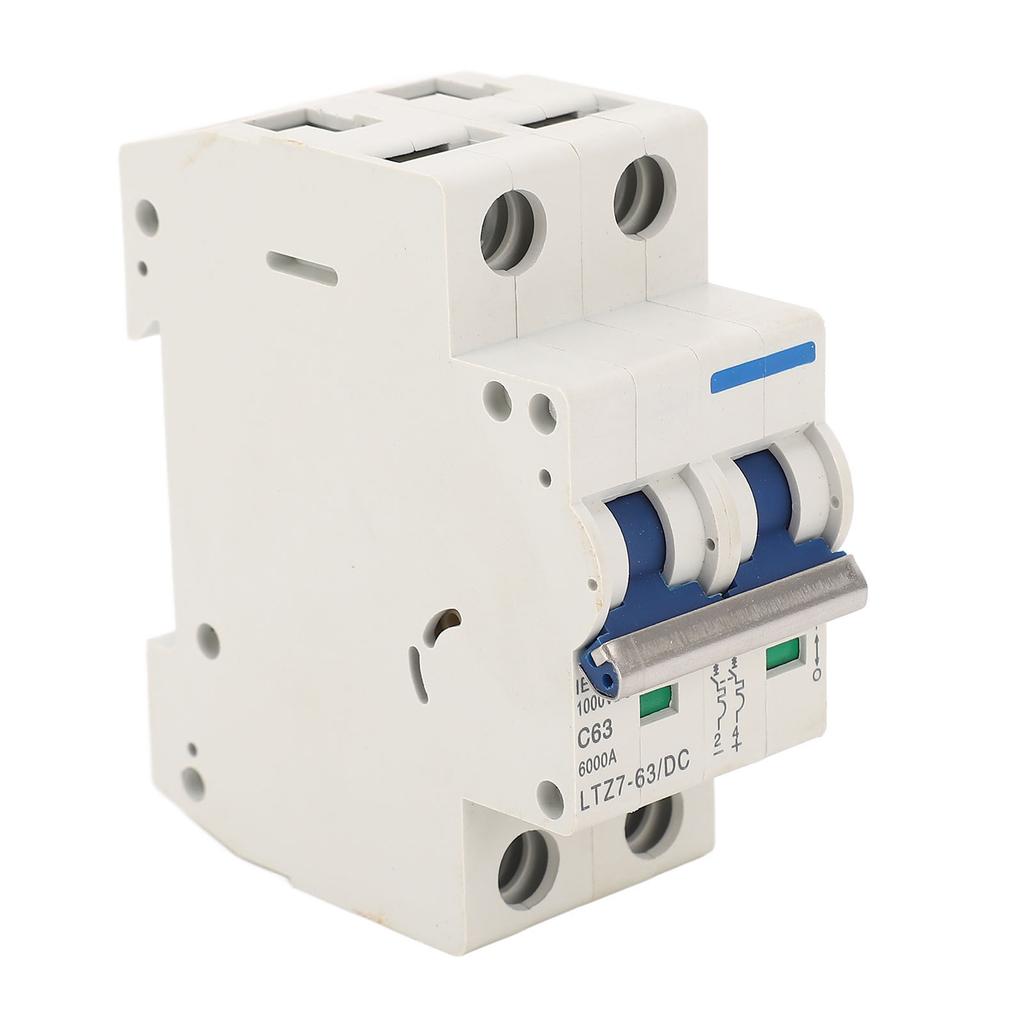

2P Miniature Circuit Breaker Flame Retardant Short Circuit Protection Disconnect Switch for Solar PV

Feature: 1. POWERFUL MINIATURE DC CIRCUIT BREAKER: With a maximum voltage of DC1000V and a current of 63A, it has effective wire break protection and backflow prevention protection functions, suitable for DC solar synthesizer boxes, controllers, etc. 2. MAIN FUNCTION: Used to defend distribution facilities from overload and short circuit damage, and can also be used for control and isolation. 3. QUICK RELEASE: The electromagnetic release system can immediately release in the event of a circuit short circuit, protecting circuit safety. 4. ARC EXTINGUISHING: DC arc extinguishing is more difficult than AC, the DC circuit breaker has a magnetic system for auxiliary arc extinguishing, and scientific arc suppression coil design makes the photovoltaic power generation system safer. 5. 35MM DIN RAIL INSTALLATION: Used for DC power systems, ship power systems, solar photovoltaic systems, or other DC systems. Specification: Item Type: DC Circuit Breaker Material: PC Function: Overload, short circuit, infrequent operation, anti backflow protection Rated Voltage: DC1000V limit Rated Current: 63A Breaking Capacity: 6KA Specification: 2p Standards: IEC60947 2, GB14048 2 Protection Level: IP20 Working Temperature: -25 ℃ to +70 ℃ Storage Temperature: -40 ℃ to +85 ℃ Package List: 1 x DC Circuit Breaker
