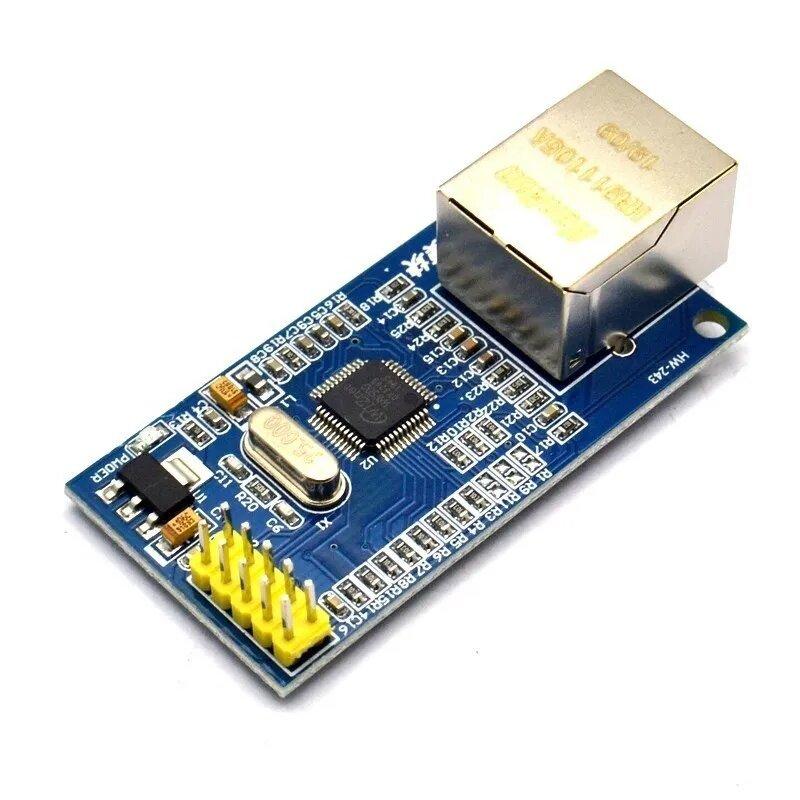

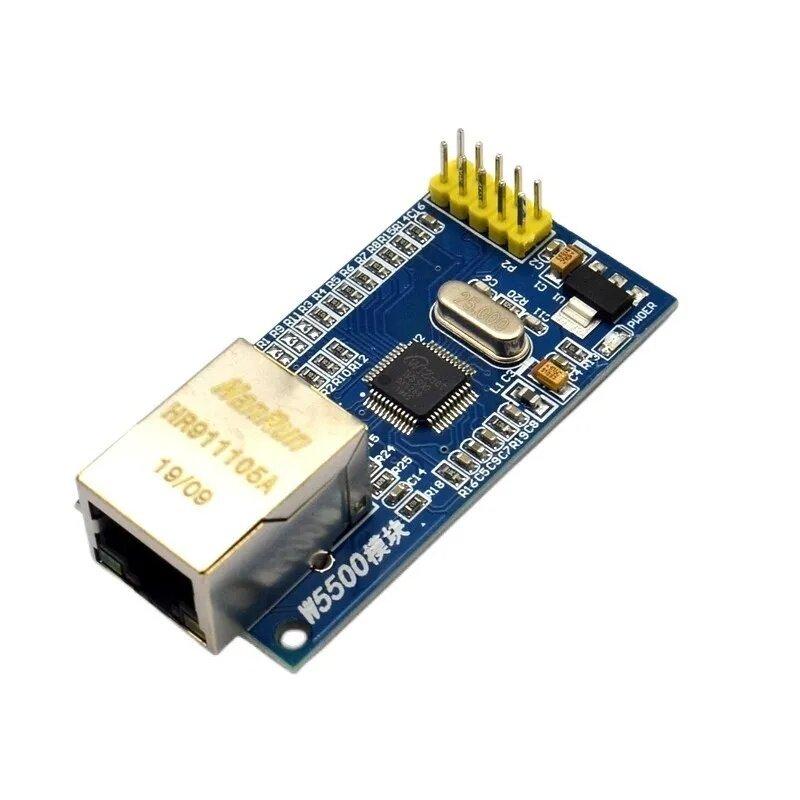

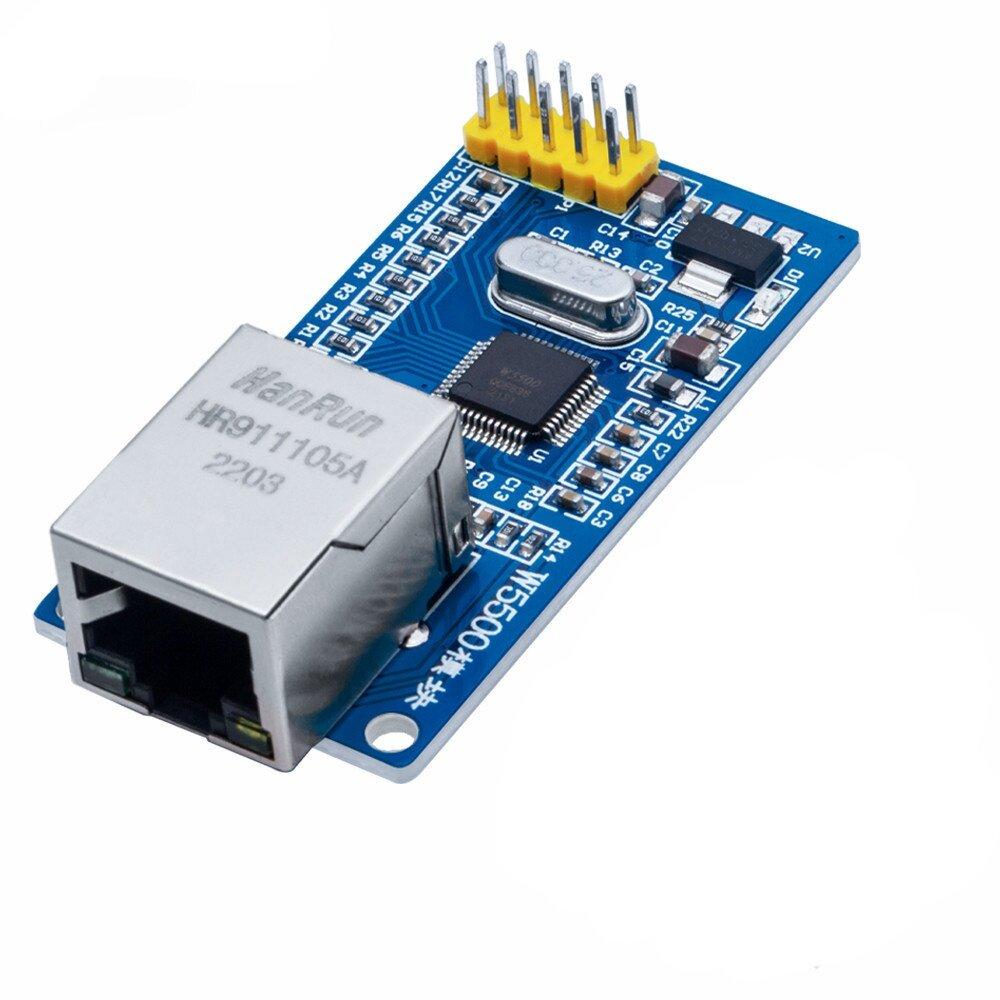

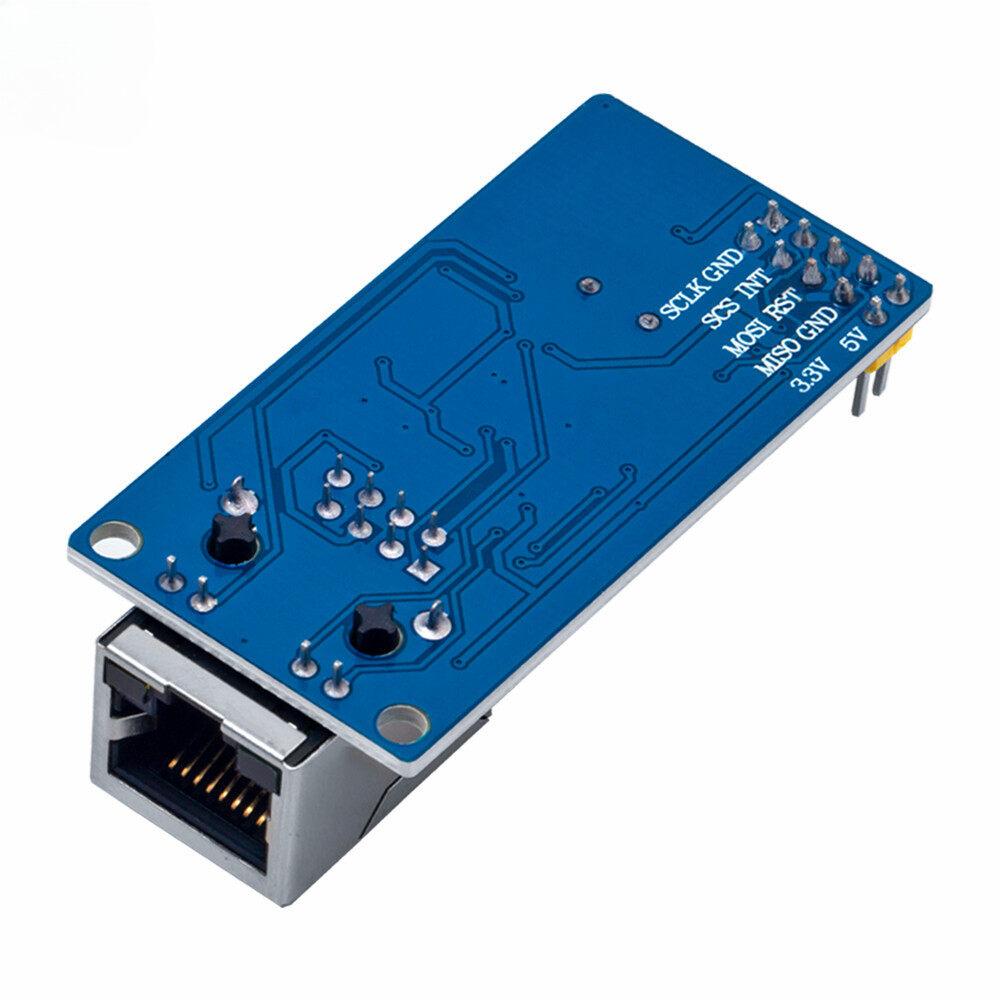

W5500 Ethernet Shield LAN Network Module Support TCP/IP 51/ STM32 Microcontroller Program With 32k Bytes SPI 3.3V/5V Over W5100

Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE

Supports 8 independent sockets simultaneously

Supports Power down mode

Supports Wake on LAN over UDP

Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)

Internal 32Kbytes Memory for TX/RX Buffers

10BaseT/100BaseTX Ethernet PHY embedded

Supports Auto Negotiation (Full and half duplex, 10 and 100-based )

Not supports IP Fragmentation

3.3V operation with 5V I/O signal tolerance

LED outputs (Full/Half duplex, Link, Speed, Active)

48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)

Specifications:

Chip type: W5500

Supports both 3.3V & 5V.

Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE

10BaseT/100BaseTX Ethernet PHY embedded

Supports automatic response (full duplex / half duplex mode)

Supports 8 independent sockets simultaneously

Internal 32Kbytes Memory for Tx/Rx Buffers

Power off mode: support

Network wake: support

SPI interface (SPI MODE 0, 3),convenient connection with MCU

Size: 55mm x 28mm

Color: Blue
