Copper Stud Bolt 12V Circuit Breaker with Auto Reset and Regulatory Specifications of SAE J553 SAE J1171 and UL1500

Hign-concerned Chemical : None

Origin : Mainland China

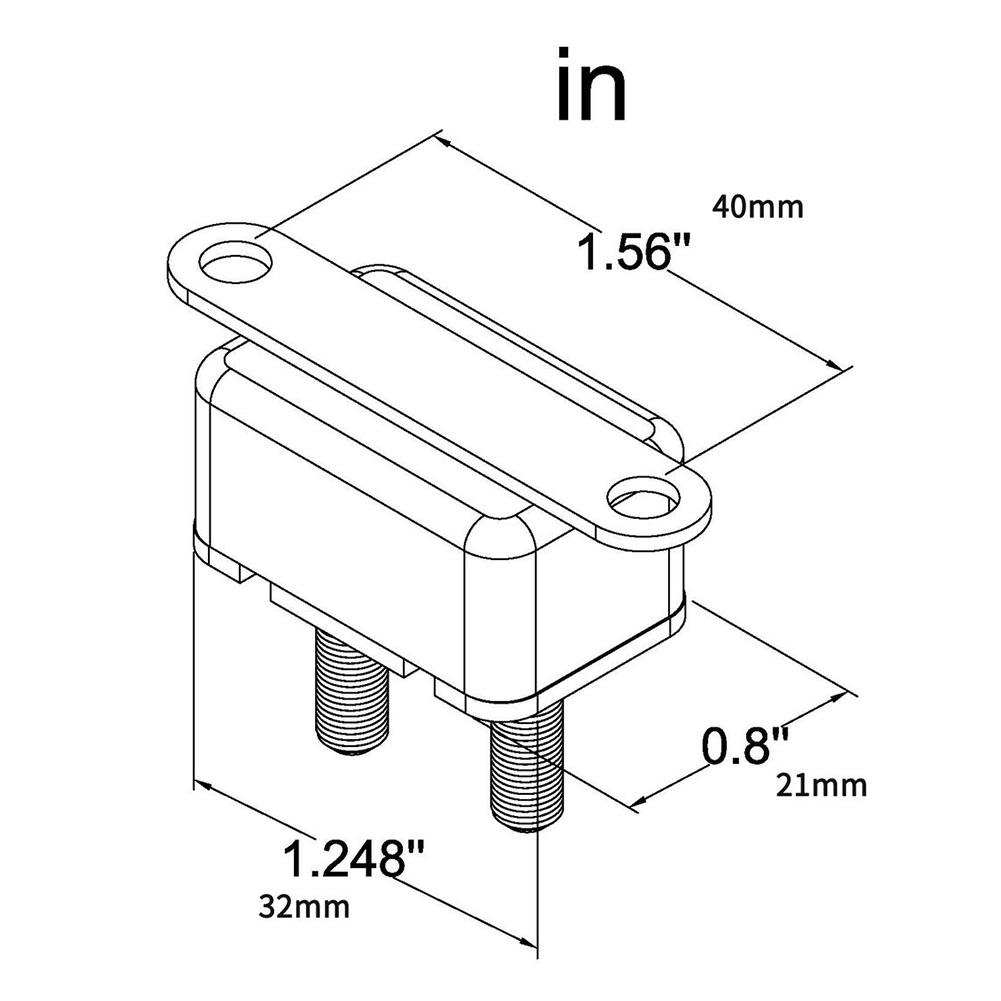

Feature : 12V 30A/40A/50A Stud Type Circuit Breaker Battery chargers, trucks, buses, RVs, trolling motors, etc SAE J553;SAE J1171;UL1500" Voltage 12V Rated Current30A/40A/50A(For choose ) Mounting Parallel (Lengthwise) Mounting Bracket Reset Type T1, Auto Reset Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF) Interrupt Capacity 2.5kA @ 12Vdc Dimension 1.248"x0.693"x0.8" inch Regulatory Sepcification ：SAE J553; SAE J1171; UL1500 Termination 10-32 thread Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF) Fitment = YES

Package Included : 1 Piece Circuit Breaker 2 Pieces Screw Nuts

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
