Features:

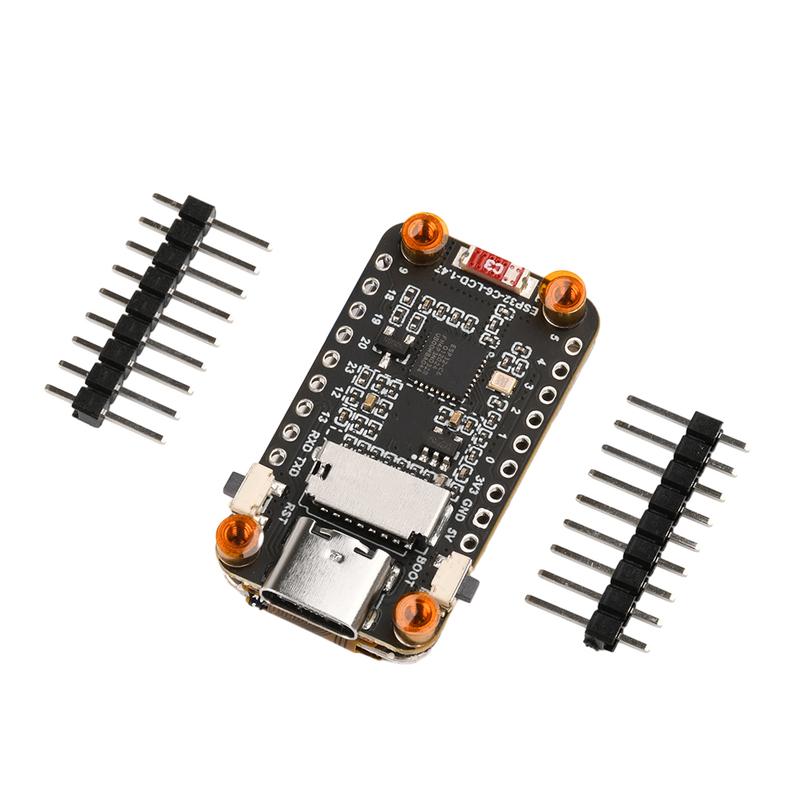

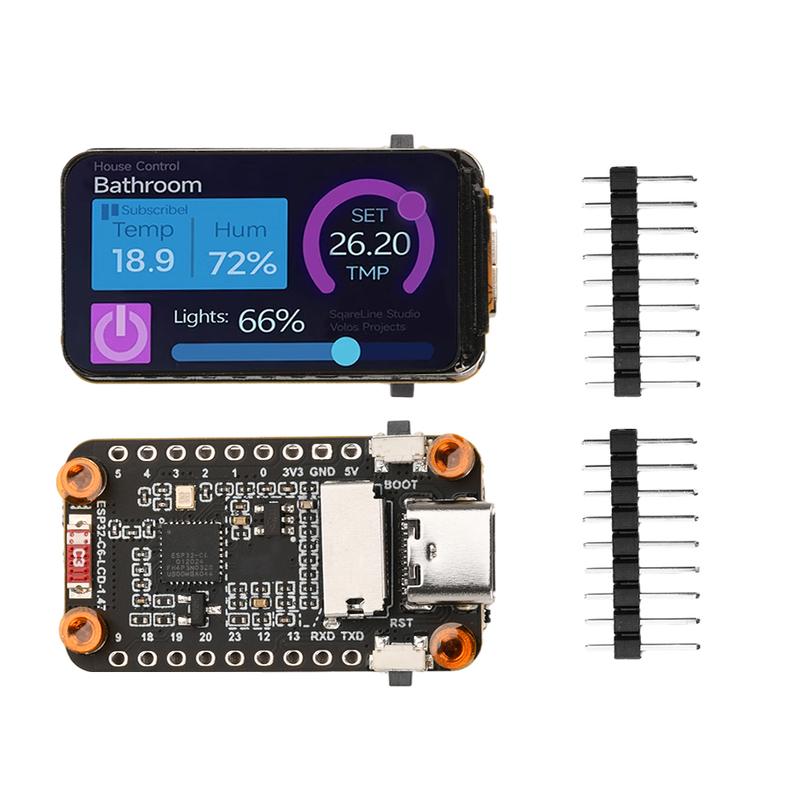

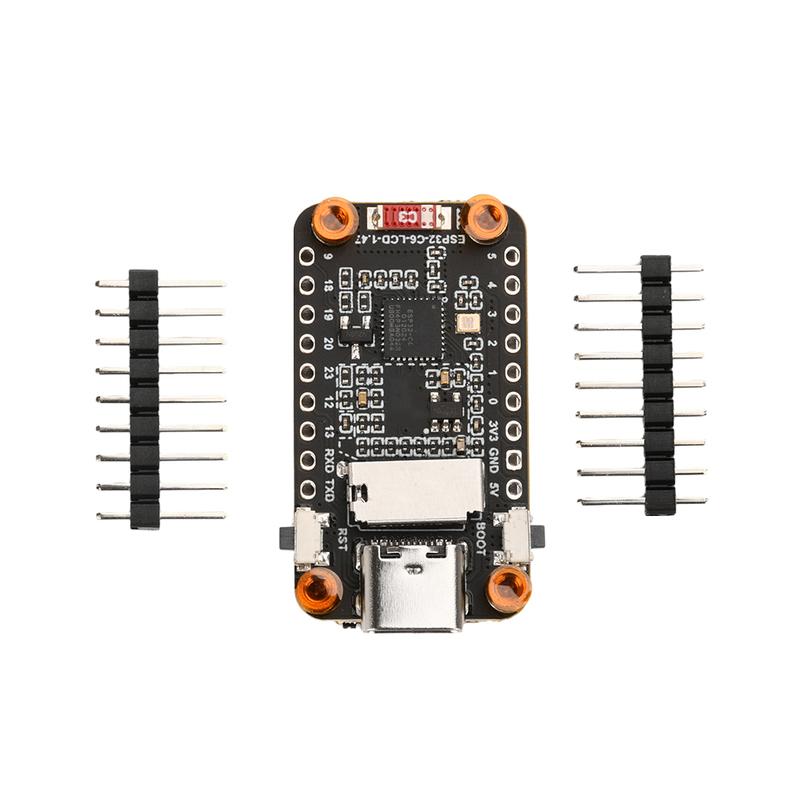

1. This ESP32-C6-1.47-inch LCD screen development board integrates an LCD display screen, Micro SD card slot, and commonly used peripheral connectors
2. Equipped with high-performance RISC-V 32-bit processor and low-power RISC-V 32-bit processor, high-performance
3. The processor clock can reach up to 160MHz, and the low-power processor clock can reach 20MHz
4. Supports 2.4 GHz Wi Fi 6 (802.11ax/b/g/n) and Bluetooth 5 (LE), onboard antenna
5. Onboard 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB flash

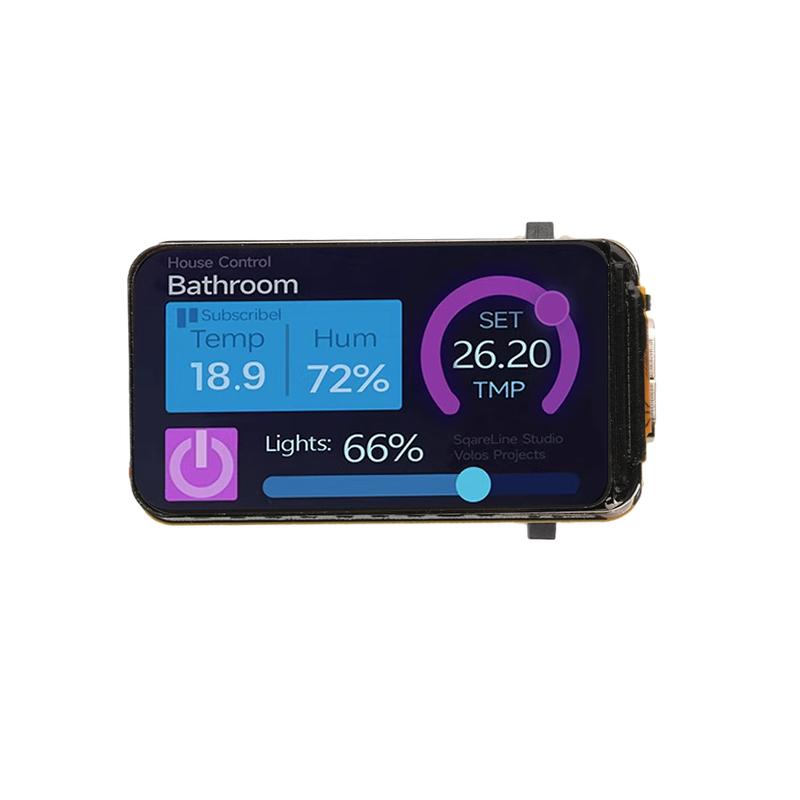

6. Onboard 1.47-inch LCD screen, 172x320 resolution, 262K color
7. Export most GPIO and integrate full speed USB serial port
8. Onboard Micro SD card holder, capable of external SD card storage for images or files
9. Supports accurate control of flexible clocks, multiple power modes, etc., achieving low power consumption modes in multiple scenarios
Product Introduction:
This product is a microcontroller development board that supports 2.4GHz Wi Fi 6 and Bluetooth BLE 5. Stacked 4MB Flash, onboard 1.47-inch LCD screen, integrated LCD display screen, Micro SD card slot and commonly used peripherals, can smoothly run GUI interface programs such as LVGL; By combining multiple peripheral interfaces, it is possible to quickly develop HMI and other applications for ESP32-C6.
Parameter：
Interface: USB Type-C
Main control chip: ESP32-C6
Screen type: TFT
LCD screen: 1.47 inches
Resolution: 172x320
Screen control chip: Display: ST7789
Onboard device: Micro SD
Package include:
1X development board
2X straight needle
common problem:
Question 1: If the module keeps resetting, will the recognition status flicker when viewed from the device manager?
Answer: This situation may be caused by the USB port being unstable due to a blank Flash. You can long press the BOOT button, press RESET at the same time, then release RESET, and then release the BOOT button. At this time, the module can enter download mode to burn firmware (program) to solve the problem.
Question 2: After downloading the module program, sometimes there may be situations where the serial port cannot be connected or the burning fails when re downloading?
Answer: You can long press the BOOT button, press the RESET button at the same time, then release the RESET button, and then release the BOOT button. At this time, the module can enter download mode, which can solve most of the problems that cannot be downloaded.
Hign-concerned Chemical: None
Display Mode: as show
Resolution: 128*128
Model Number: ESP32-C6 Development Board
