【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
・[CS43131 Quad DAC] The DAC chip "CS43131" from Cirrus Logic's "Master HIFI" line has a reputation for its high dynamic range and low distortion rate, and is an excellent DAC/AMP chip with low power performance and reduced area requirements. . By synchronizing and driving four CS43131 units, a dynamic range of 133 dB and a THD+N of -121 dB are achieved, an outstanding sound specification made possible by superior technology and a unique design concept.
・[FPGA-MASTER 2.0 evolved audio system controller] FPGA MASTER has evolved to the second generation based on the development technology and algorithms cultivated over many years. FPGA-MASTER 2.0 also provides picosecond-level precision control, performing DAC clock, data conditioning and control, and critical FIR filter construction.
・[Advanced algorithm that realizes FIR 2X output - Hardware analog FIR filter] The FPGA-Master 2.0 algorithm significantly improves the performance of "CS43131x4" and exceeds the chipset's single theoretical value performance. It will be possible to do so. Two "delay parallels" form a hardware analog FIR filter and eliminate the differences between multiple DACs, significantly reducing distortion, improving sound detail, and greatly improving realism. Masu.
・[Amazing sound specs] In the development of the DX170, we achieved values close to the theoretical limits of the CS43131 chipset, but the DX180 follows the innovation cultivated in the DX260 and has further evolved to become a top model. It has achieved excellent sound specs among low-end models, following the DX260.
・[Low noise floor of 0.79μV for infinitely transparent silence] The DX180 boasts an incredibly low noise floor of only 0.79μV, and even when using High Gain and 4.4mm balanced output, the noise floor is an excellent 1.1μV. We are achieving the numbers. This excellent noise floor makes the DX180 extremely quiet in the background, allowing for a very vivid music experience.
・[690mW+690mW@32Ω Powerful drive performance] DX180 has two industry standard 3.5mm and 4.4mm systems, 2-stage gain control, 5 types of digital filters, and 2 types of FIR filters. Masu. Equipped with a wide range of expandability and a maximum output of 690mW @32Ω, the DX180 has excellent drive performance and supports the user's free music experience.
・[Snapdragon 665 SoC + Android 13 system level "Non SRC"] The DX180 uses the Qualcomm Snapdragon 665 SoC with the Android 13 system, and the SoC with 8 CPU cores ensures heat generation control and operational stability, ensuring seamless operation. It achieves this operation. Equipped with Android 13 system and bypassing SRC at the system level, it is possible to enjoy full-spec sound with the "Non-SRC" function even with the dedicated application "Mango Player" or the user's favorite music playback application.
・[USB-DAC mode/Bluetooth transmitting/receiving function expands your music experience and delivers high-quality sound even on PCs/smartphones] The DX180 is equipped with a USB-DAC mode that uses a low-latency USB controller. This USB-DAC mode allows you to enjoy music and video experiences on your PC or smartphone with high-quality sound. Furthermore, since the DX180 is equipped with Bluetooth transmission and reception functions, it can be operated as a high-quality Bluetooth receiver by pairing with a smartphone or PC in Bluetooth receiver mode, or connected to wireless earphones or headphones using the general transmission function. It supports high-quality listening even wirelessly.
・[Long performance compatible with PD3.0 / QC3.0 quick charge] DX180 supports PD3.0 and QC3.0 quick charge, and with an improved power management system, it can last up to 15.5 hours when using 4.4mm balanced output. Achieves long performance of up to 30 hours during line-out output playback.
- [New look with a removable back panel] The casing uses a new design that inherits the industrial design of the DX260, and the back panel on the back of the product is removable. This back panel design has been adopted to enable maintenance and support that reduces the burden on the product when the manufacturer replaces parts or accesses the internal circuit board, and to ensure that the product can be used for a longer period of time.

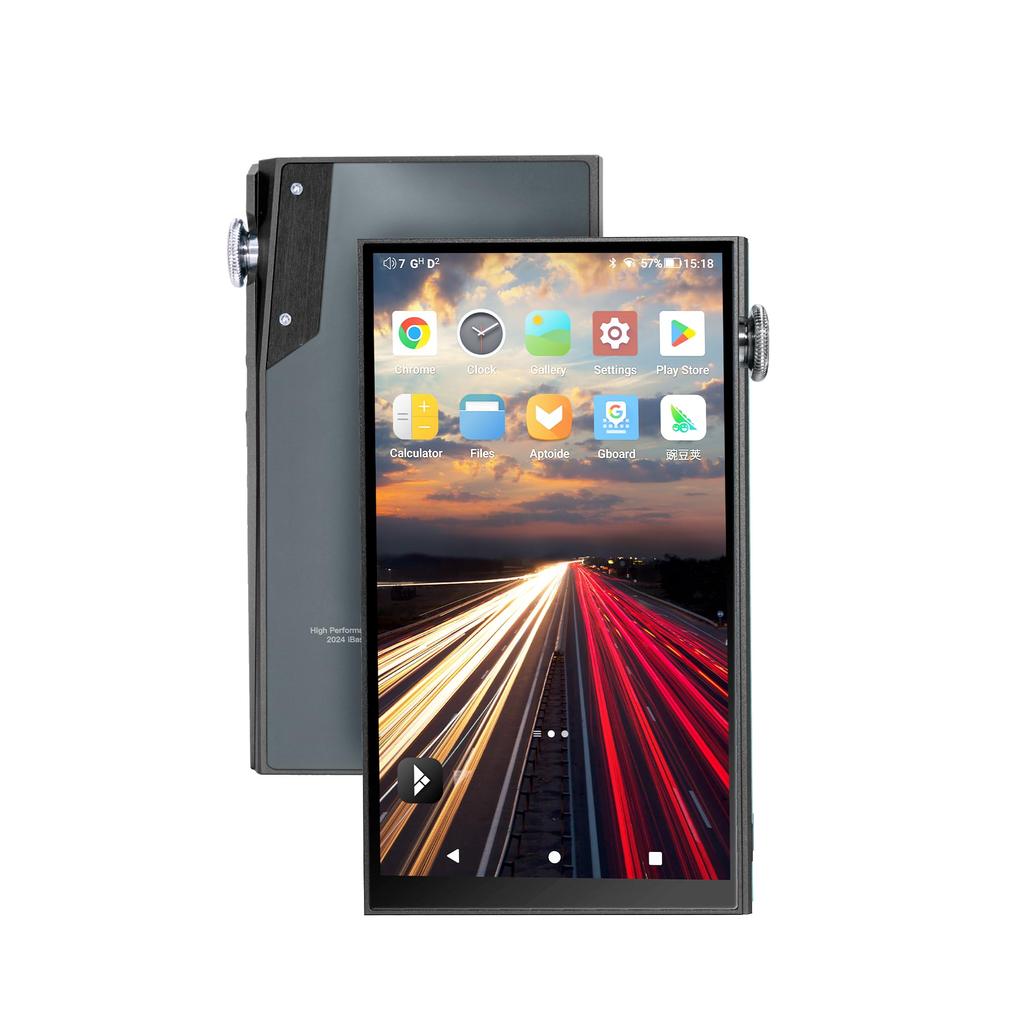

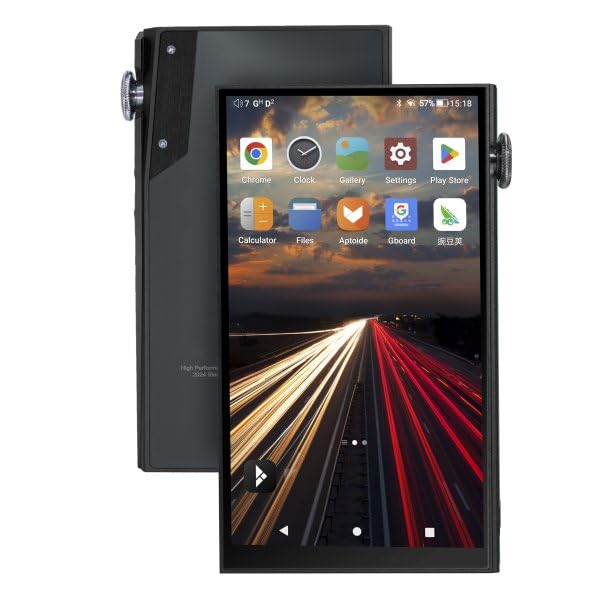

DX180 CS43131 Quad DAC High Performance Player
