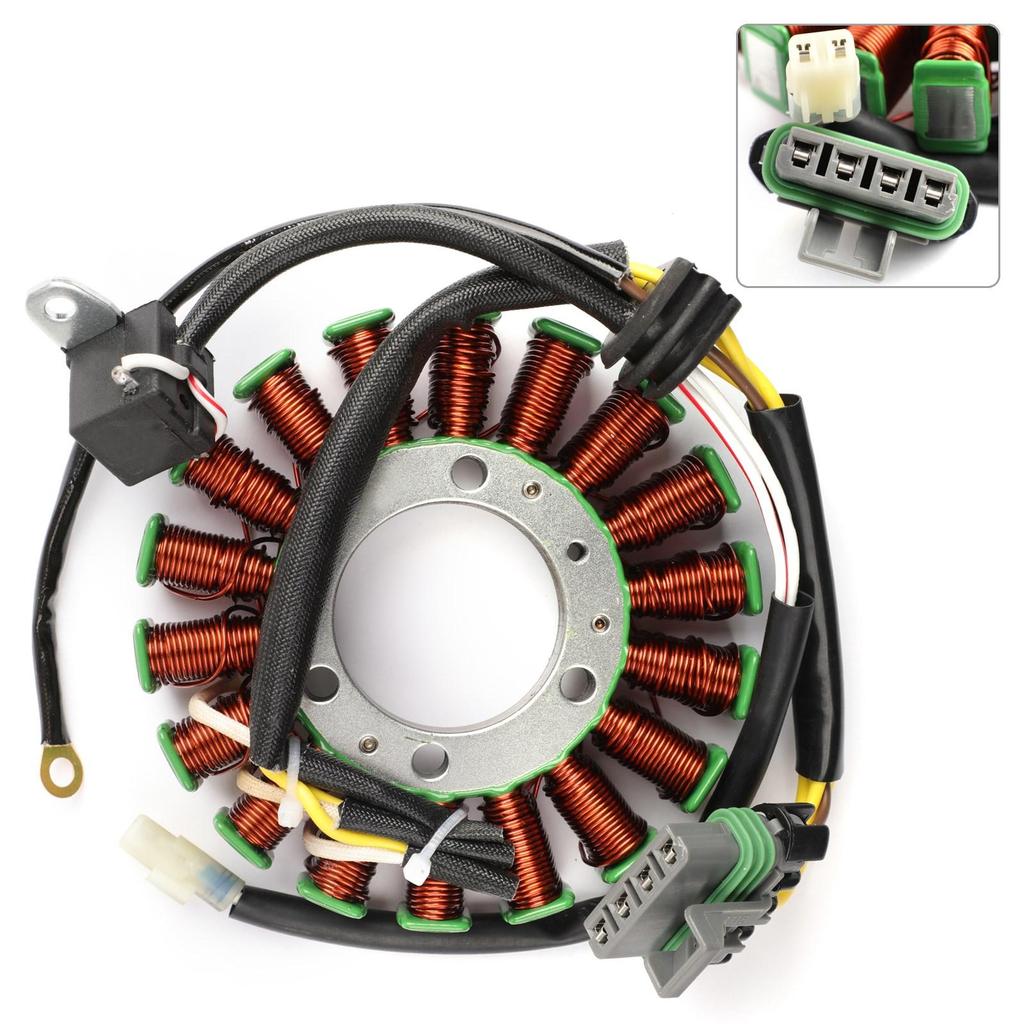

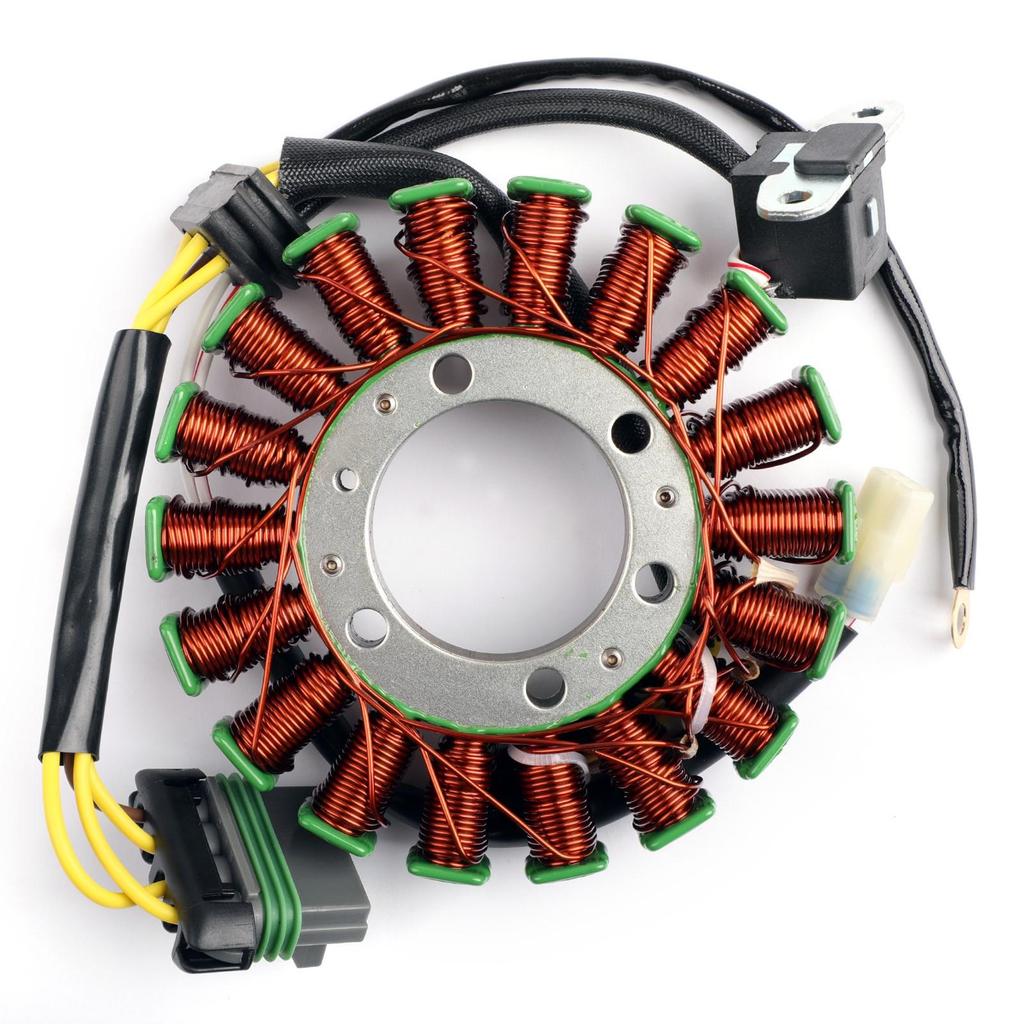

Magneto Generator Engine Stator Coil For Polaris Sportsman 500 HO Touring Ranger 500 EFI Carb 2005-2014
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

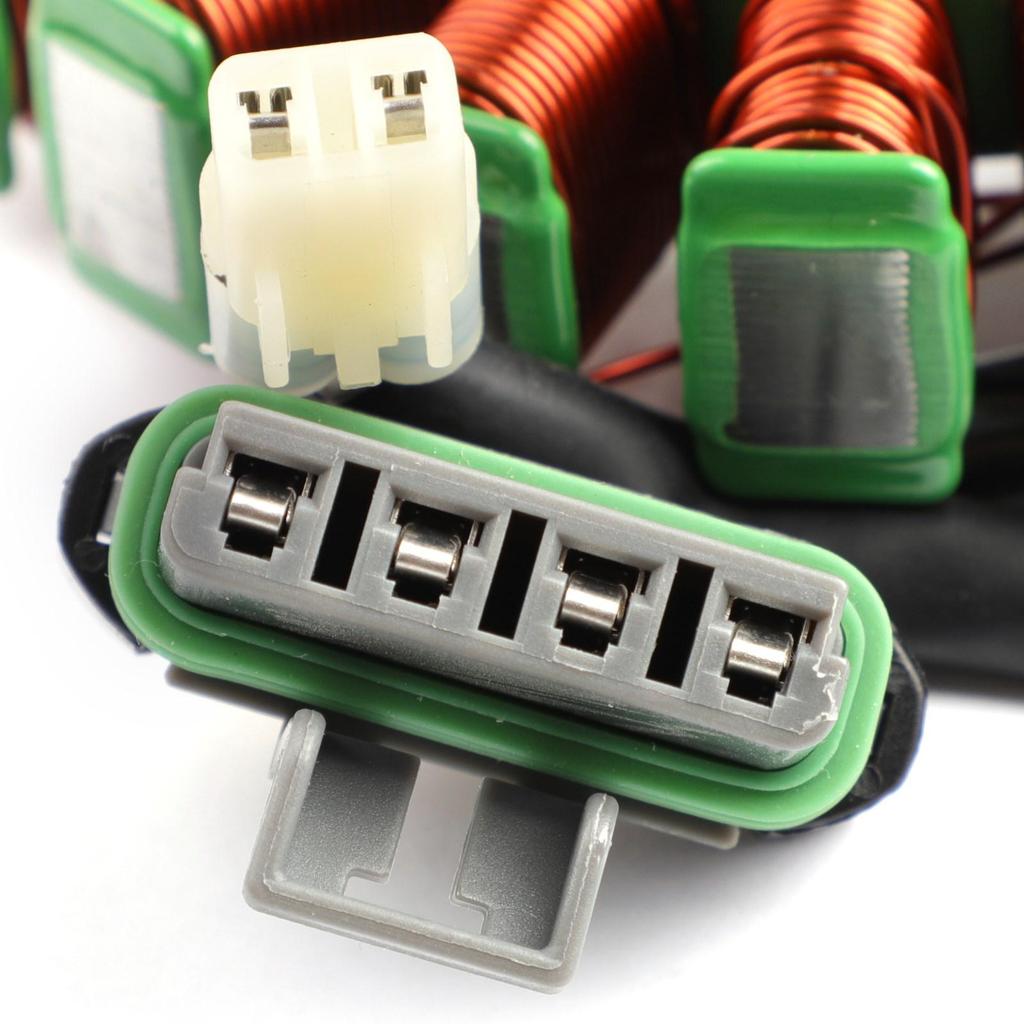

Connector included.
All products shipped are tested.
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number:
3089906
3089959
3090081
3089579

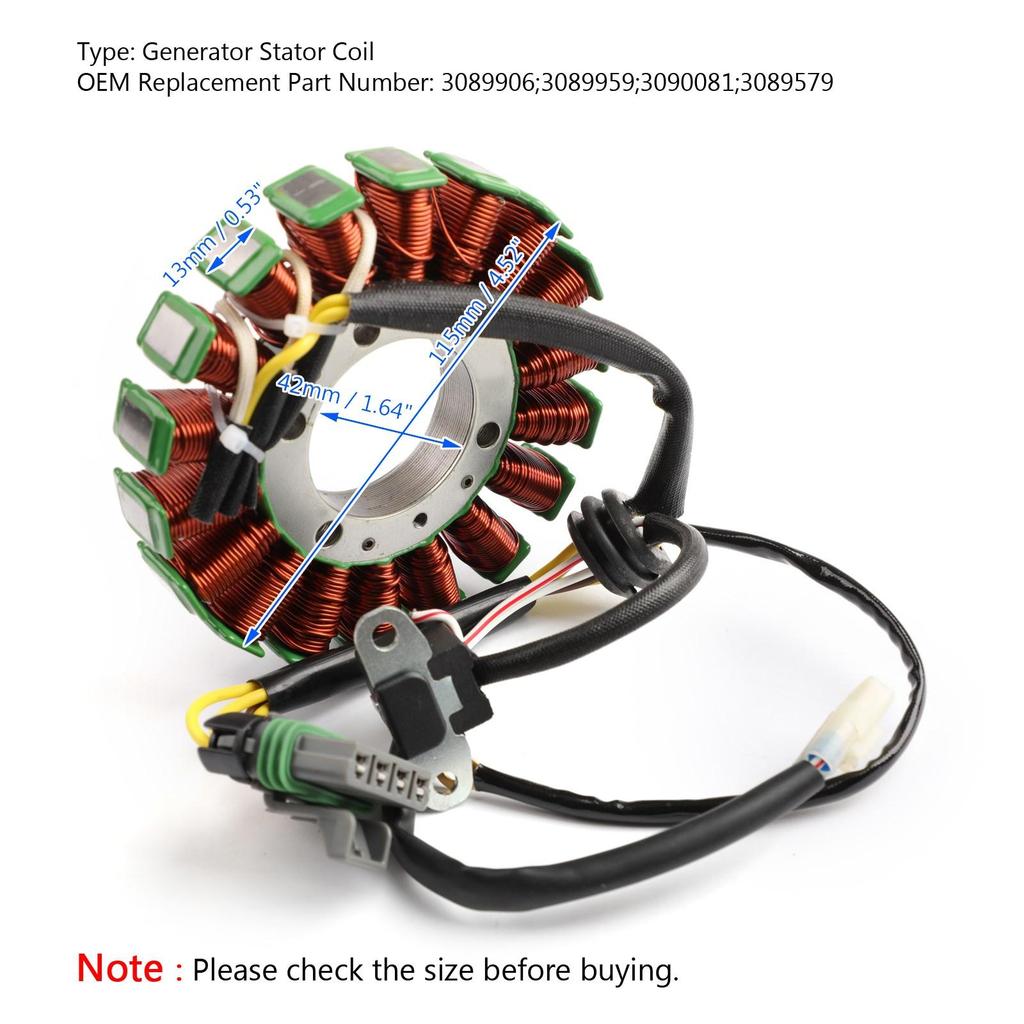

Dimensions :
Interior diameter : 42mm / 1.64"
Exterior diameter : 115mm / 4.52"
Thickness : 13mm / 0.53"
Other specifications :
Number of wires : 6
Number of pins : 7
Number of plugs : 3
Number of fixation holes: 5(+1)
FITMENT:
Fits Polaris Sportsman 500 HO 2007
Fits Polaris Ranger 500 2010-2013
Fits Polaris Ranger 500 Carb 2005-2009
Fits Polaris Sportsman 500 HO EFI 2006/2008-2010
Fits Polaris Sportsman X2 500 2006-2009
Fits Polaris Ranger 500 EFI 2006-2009
Fits Polaris Sportsman 500 4x4 2008-2009
Fits Polaris Ranger Crew 500 2011-2013
Fits Polaris Sportsman 500 Touring 2008-2009
Fits Polaris Sportsman 500 HO Forest Tractor 2011-2014
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
