Description
About this item
Appearance parameter
Product Size：163X119X50mm (dimension after folding)
Colour：gray
Packing Size：204x160x56.5mm
Mechanical parameter
mechanical angle：Heading: 320 degrees; Roll: 330 degrees; Pitch: 330 degrees
controllable angle：Heading: 300 degrees; Roll: 320 degrees; Pitch: 65 degrees
Mobile phone weight：≤280g
Mobile phone thickness：≤11mm
Mobile phone width：55~90mm
Electrical Parameters
BLE 5.2：Bluetooth 5.2
APP：Gimbal Show
Support mobile phone system：for Android 9.0 and above; for iOS 11 and above
BT Name：M01-XXXXXX
USB Type：TYPE-C
Maximum control speed：120°/S
Battery Capacity：3600mAh
Charging Time：3h (laboratory test results, for reference only)
Charging type：5V2A
Charging Current：1.5A
Working Current：500mA (approximate value)
Work Time：8h
Power Consumption：2.0W
Rated Voltage：3.7V
Gimbal working mode：1. Semi-following mode (panning axis following); 2. Full following mode (panning and pitching following); 3. Inception (three-click the trigger button); 4. Full locking mode (three-axis locking); 5. POV mode (Three-axis following); 6. Half following mad dog mode (faster response); 7. Full following mad dog mode (faster response)
Shortcut key function：1. Turn on photo/video; 2. Switch photo/video; 3. Triple-click the front/rear camera;
Tracking Mode：Face recognition, object tracking
Working Principle：gyroscope
Gesture Operation：Support gesture operation
Selfie Stick Mode：support
Zoom function：support
Gesture control function：support
Fill Light：White light + yellow light 9-level adjustment
Fill lamp power：MAX brightness is 2.6W
Hardware Parameters
Main Materials：PA66
Support mobile Phone width Size：55-90mm
Phone Clip：Switch between horizontal and vertical screens

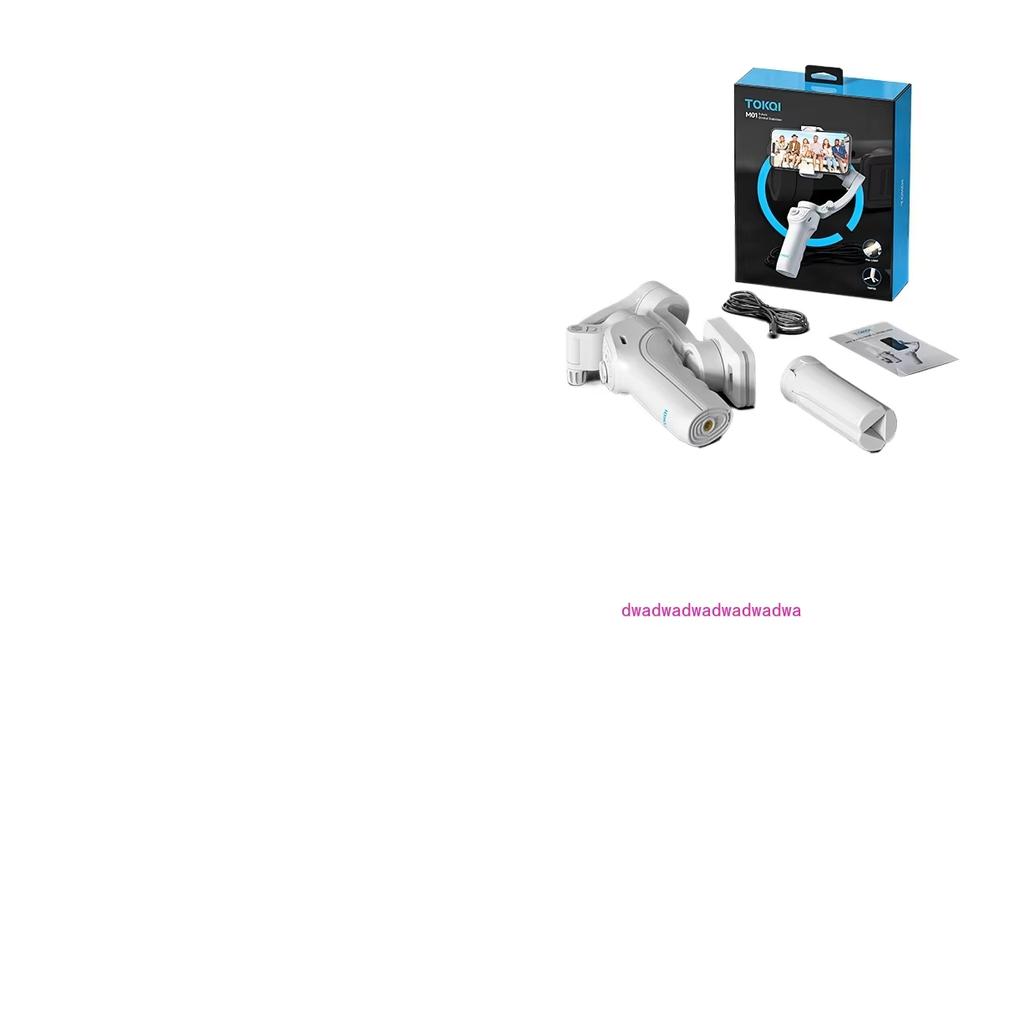

Other Accessories：Charging cable, tripod, manual
Note
1. When you first start using the M01 gimbal stabilizer, please check out our video. If you have any questions about our products or operation videos, please contact our customer service, we will try our best to solve the problem for you.
2. Before you use the gimbal, please rotate the spindle to unlock the carabiner.
1. 2024 Newest gimbal, ready to use when you turn it on.
2. Multi-functional keyboard, convert front and rear cameras with one click, switch multiple modes at will.
3. Powerful motor, supports phones up to 280g in weight, more powerful anti-shake function.
4. AI smart tracking, can be used when live broadcasting alone.
5. With beauty fill light, 3 light modes and 9 brightness levels, no worries about shooting at night.
6. Built in 3600mAh battery, up to 8 hours working time.
7. APP built-in multiple functions, like LIFE mode, gesture control, PANO CloneMe, Dyna-Zoom, timelapse, Live streaming.
Will this gimbal work with my phone?
---Support mobile phone weight: ≤280g
---Support mobile phone thickness: ≤11mm
---Support mobile phone width: 55~90mm
---Support mobile phone system: Android 9.0 and above; iOS 11 and above
If your phone fit this, the gimbal will work your phone.
Feature
1.Three axis gimbal stabilizer;
2.Easy to take with foldable;
3.Support for IOS and android application,it has more shooting method;
4.Using gyroscope and the latest three-axis anti-shake algorithm;
5.The handle feels comfortable, the button is quick and easy to use;
6.Intelligent tracking, support face and self-selected target tracking;
7.Freely switch front and rear cameras, with beauty function;
8.Rocker free operation, can be up and down left and right with the needs of the shooting angle, convenient shooting ;
9.With cool + warm color LED light, can adjust the fill light brightness;
10.Can be used with 1/4 nut joint tripod or extension rod.

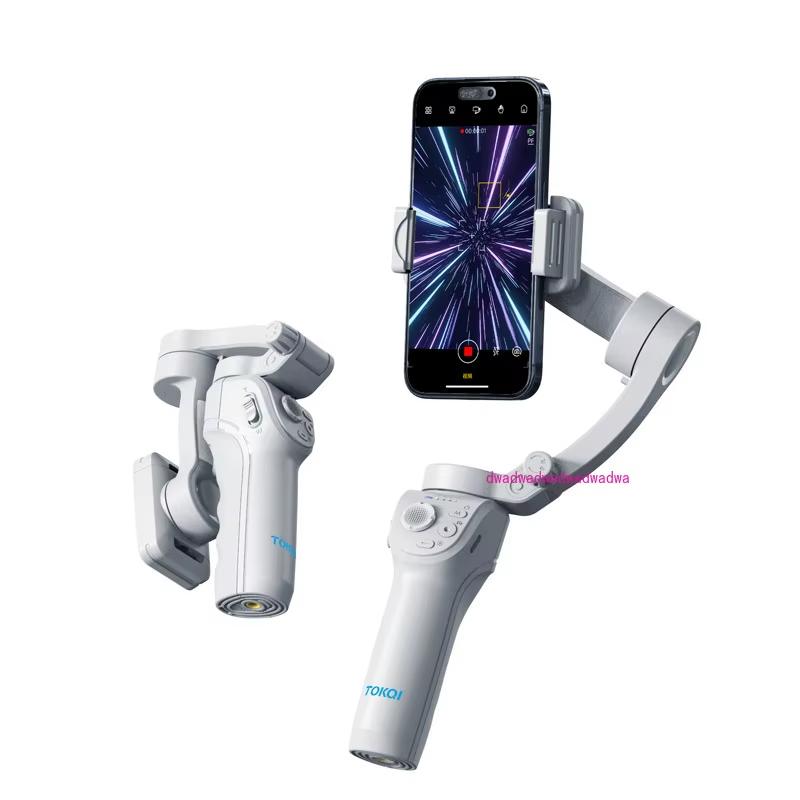

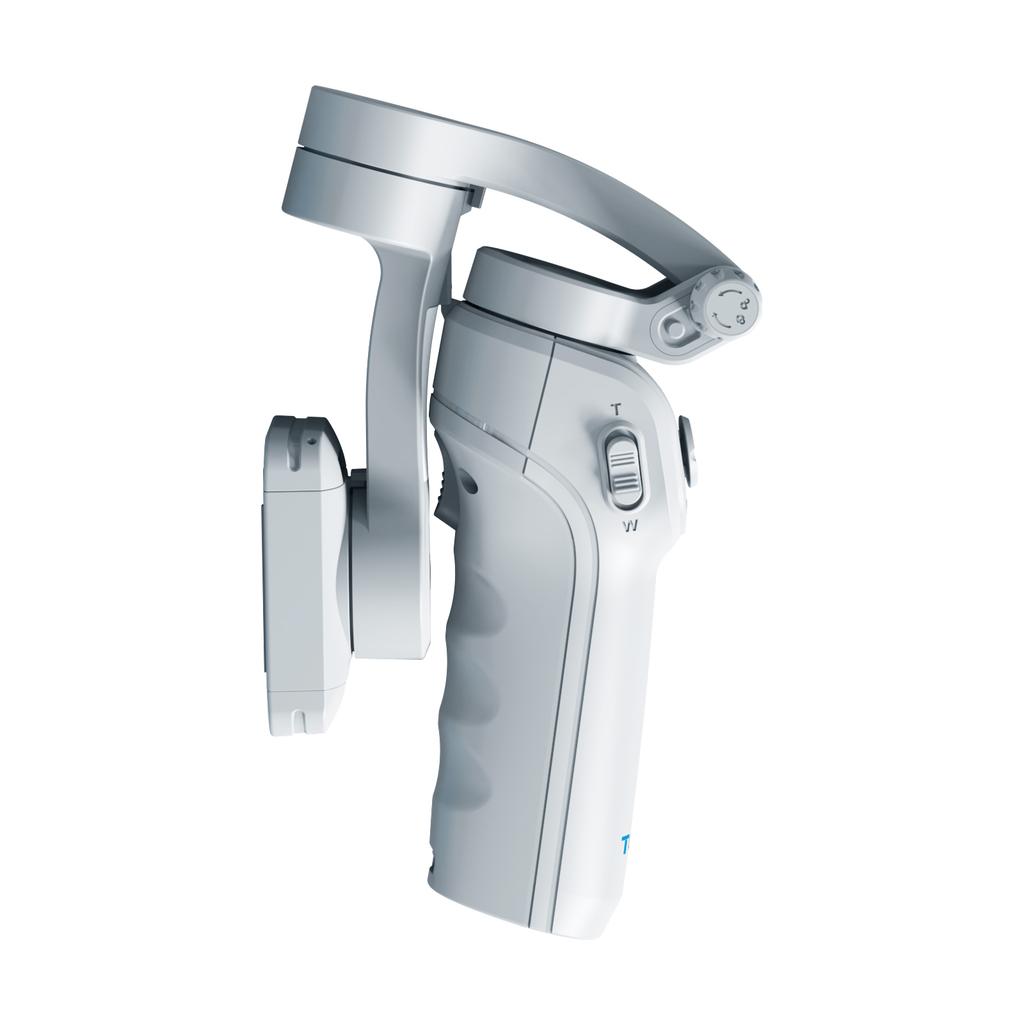

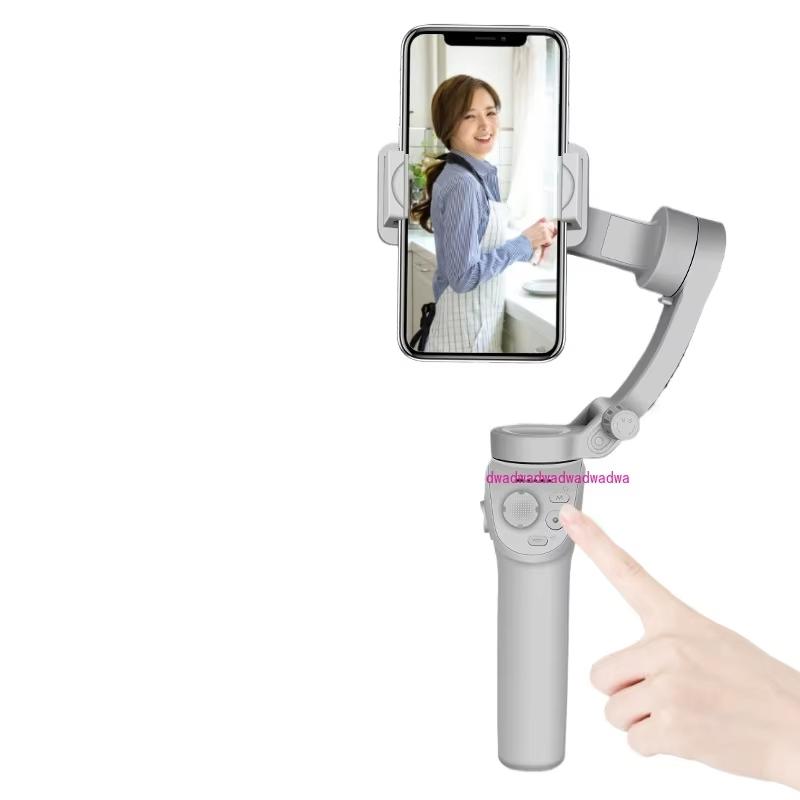

M01 3-Axis Gimbal Stabilizer
Easy to get started, you're better at shooting
