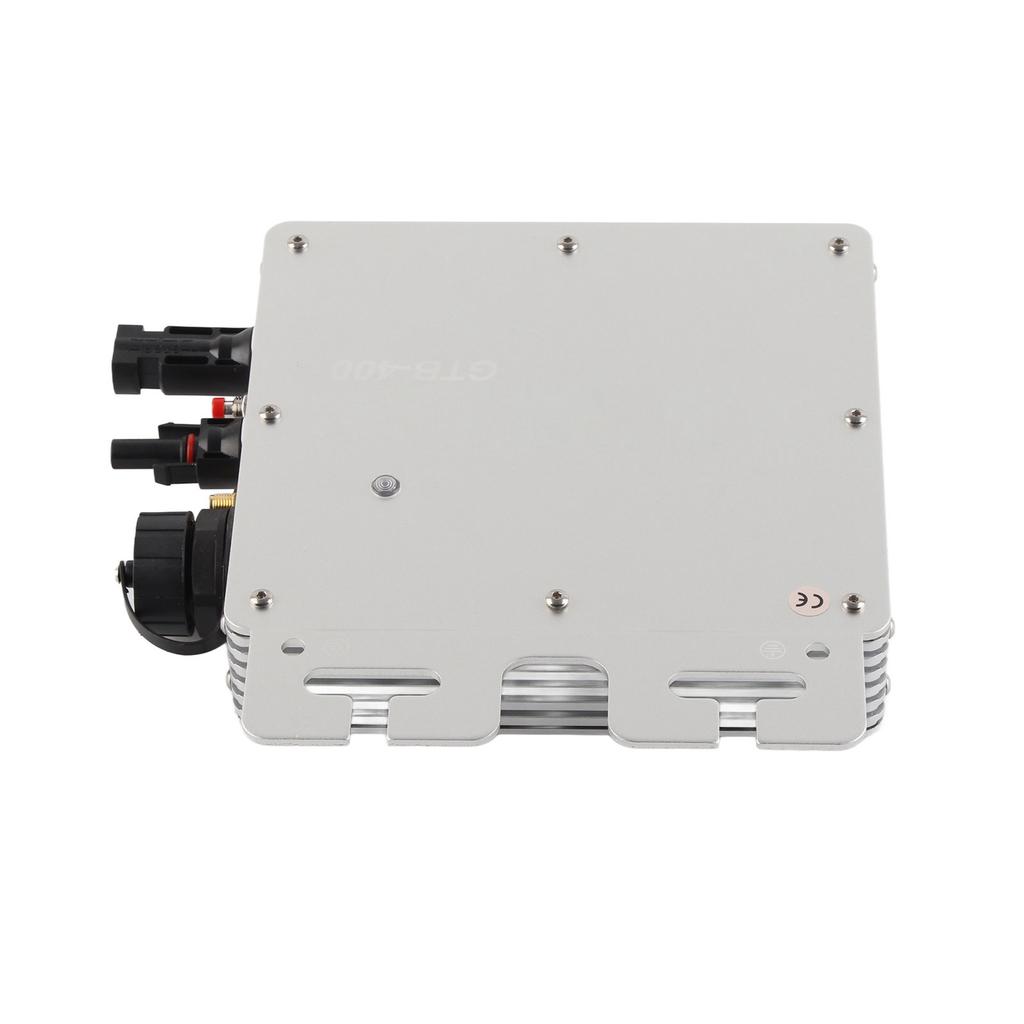

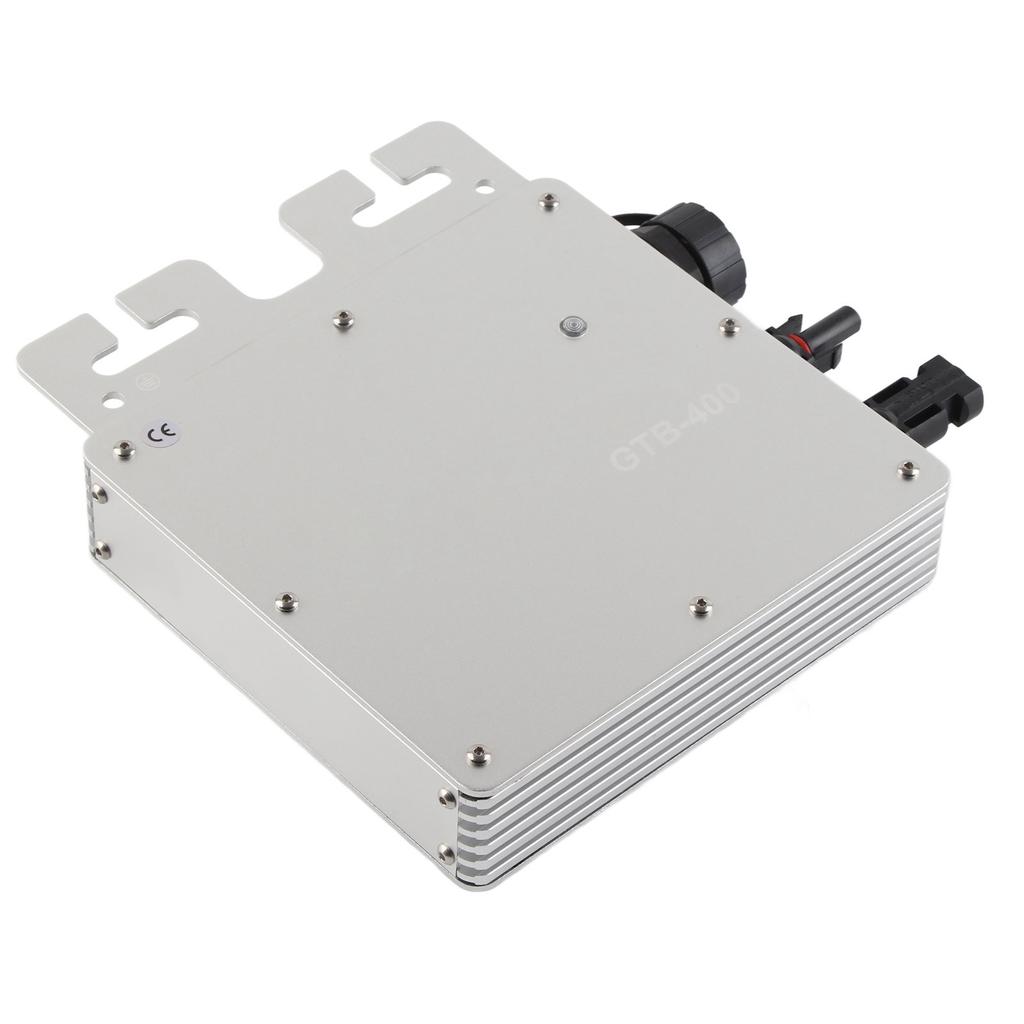

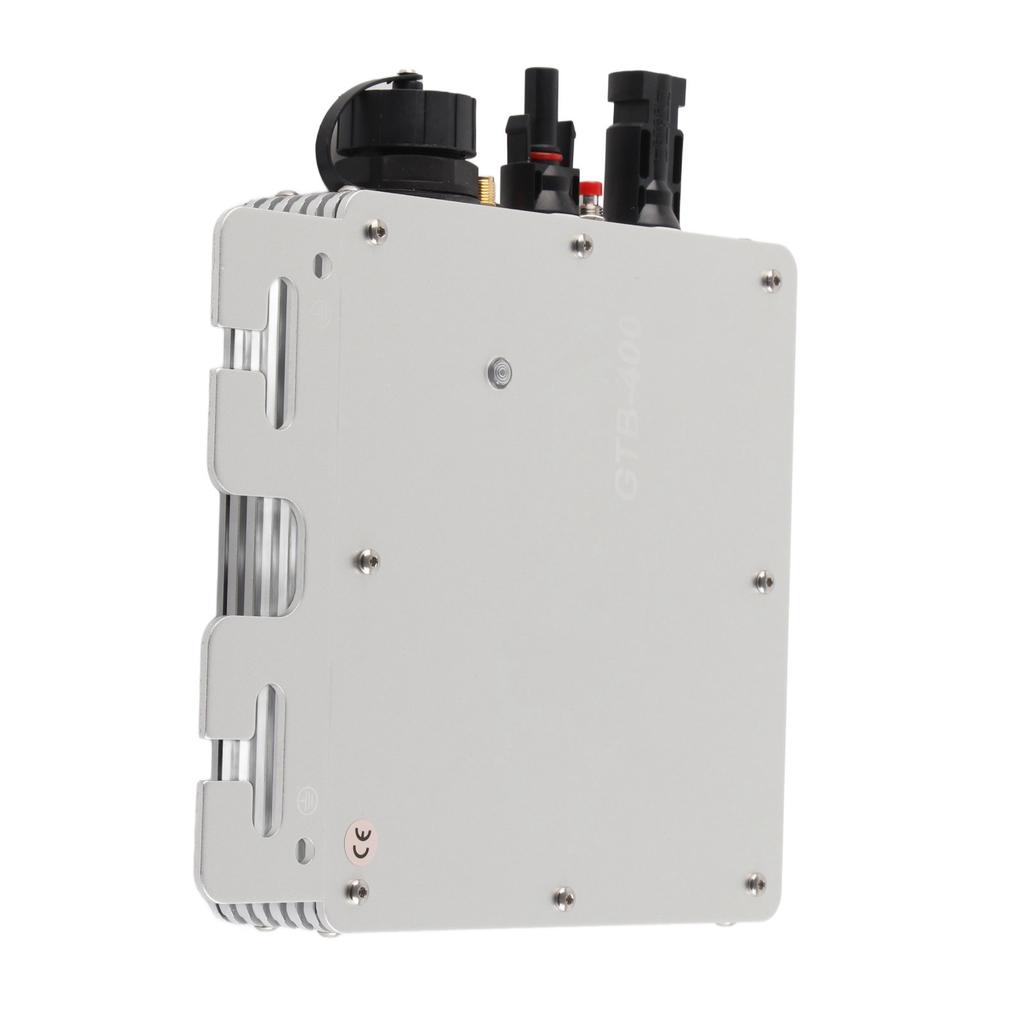

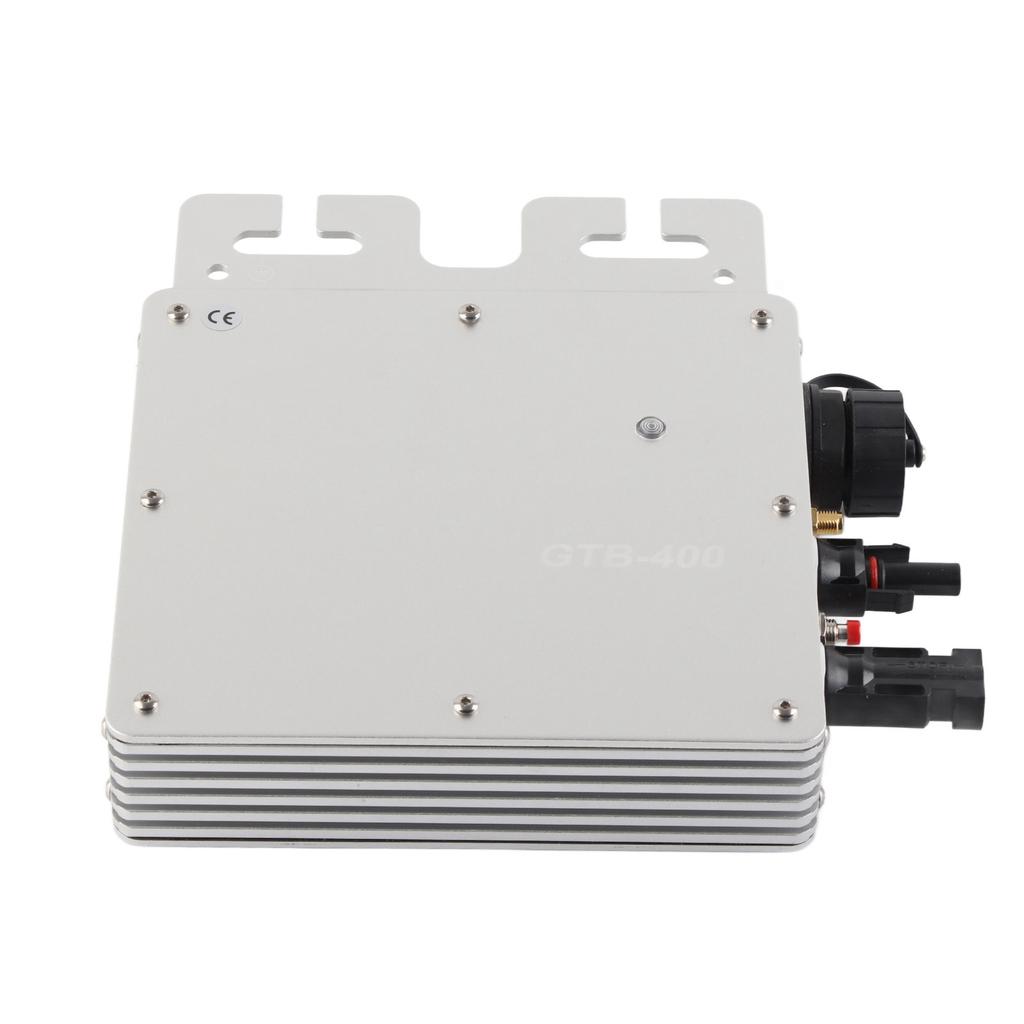

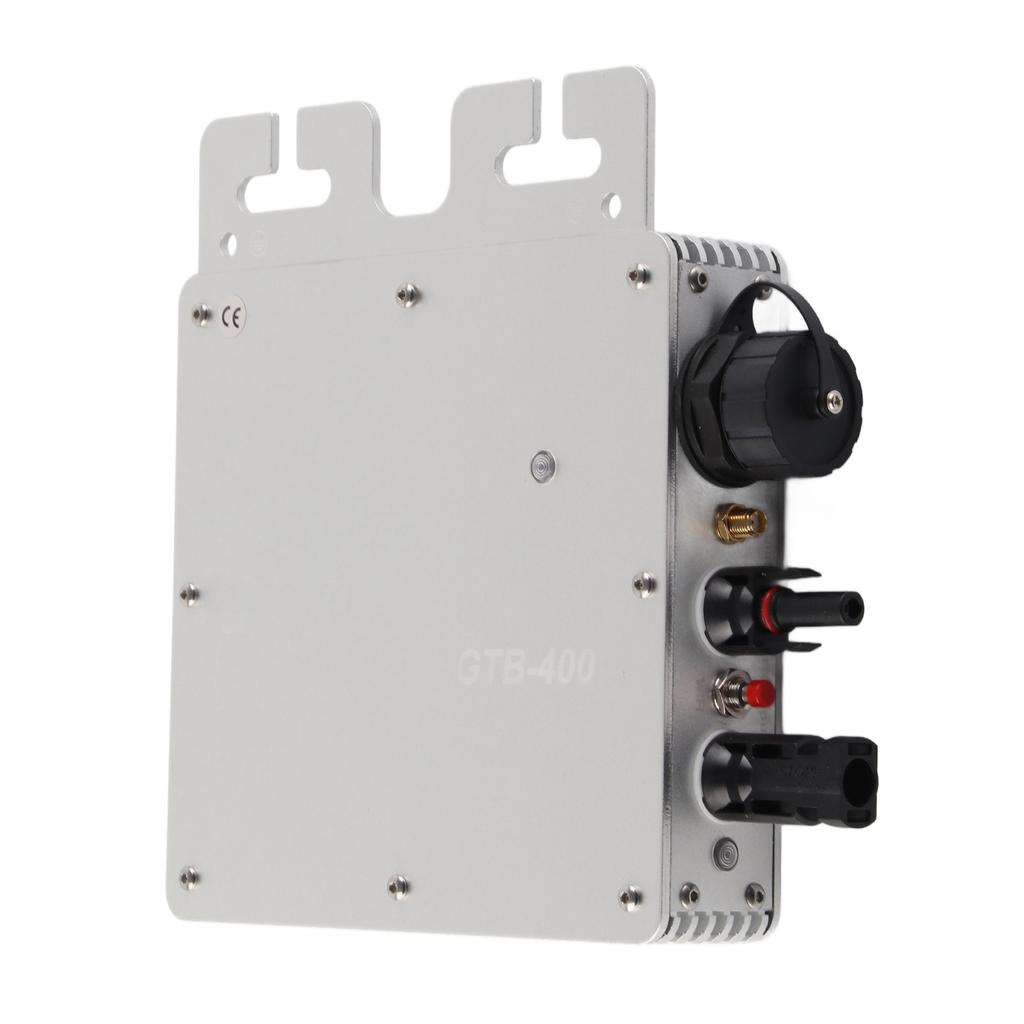

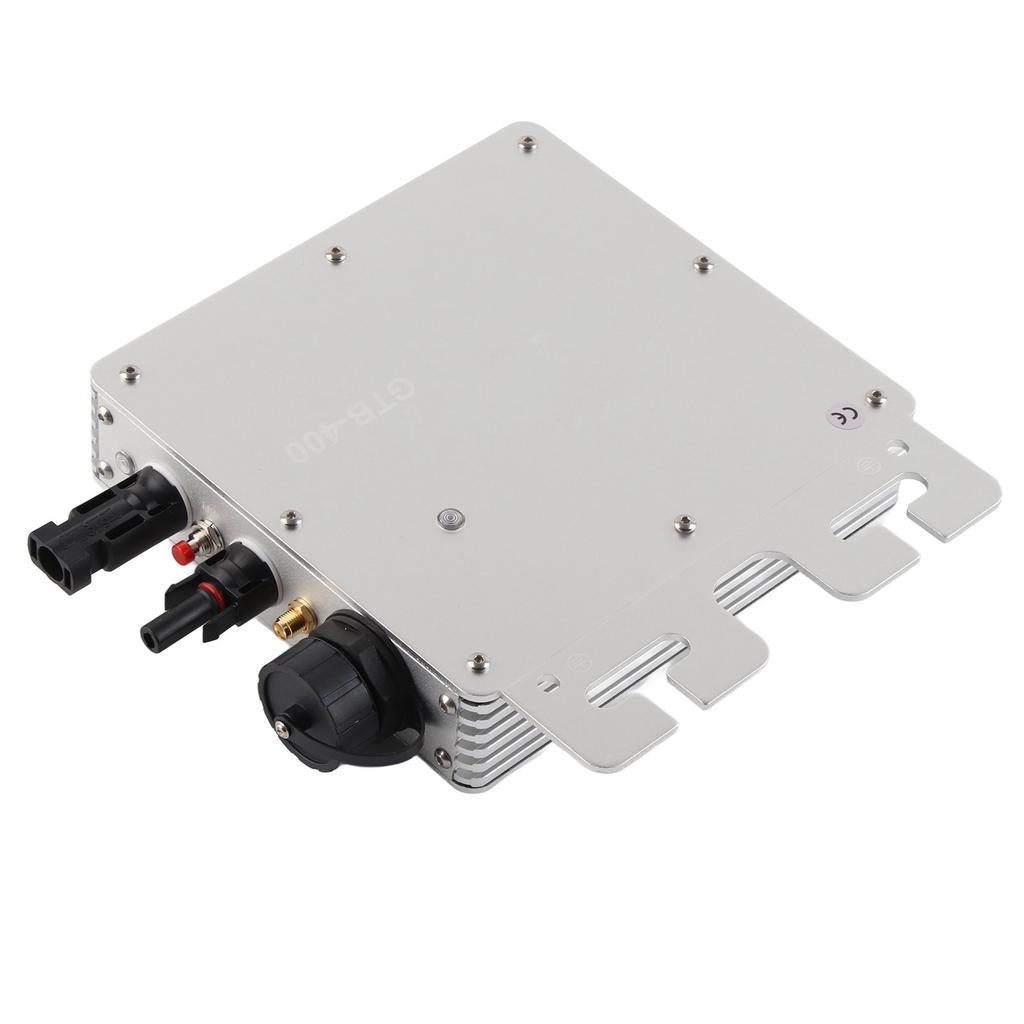

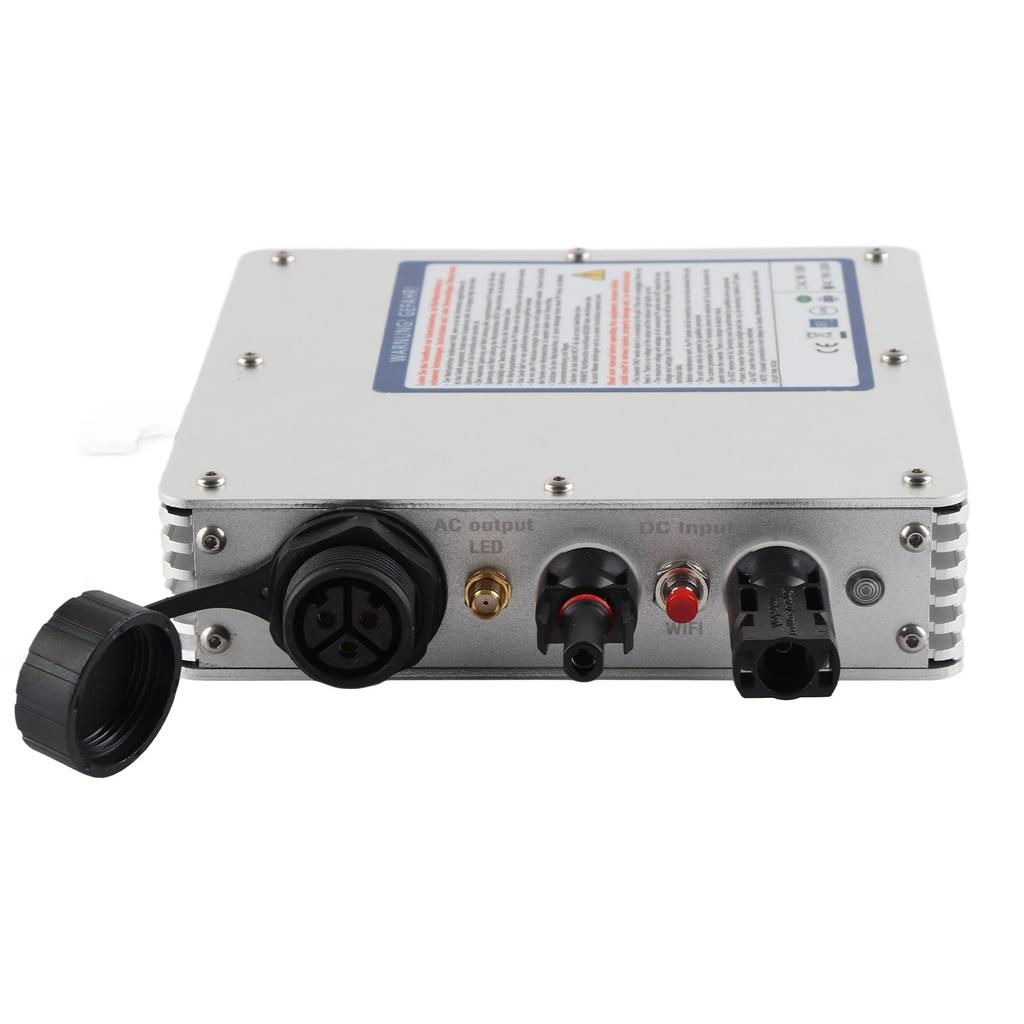

Solar Inverter Controller WIFI Control Solar Grid Tie Micro Inverter 230V

Feature: 1. SAFE OPERATION: The micro inverter can independently control each component in parallel, minimize potential safety hazards, and ensure safe and reliable operation. 2. WITH INSTRUMENT: The solar inverter has built in high accuracy instrument, you can see the working status of each component, which is efficient and durable. 3. HIGH EFFICIENCY: This solar micro inverter can achieve maximum power point tracking to maximize the overall output power with high MPPT efficiency. 4. WIFI AND APP CONTROL: Can be operated and monitored through WiFi or mobile APP, which is convenient to operate and greatly improves the overall work efficiency. 5. EASY INSTALLATION: This solar inverter controller has a compact structure, can be installed directly behind the module or on a bracket for easy maintenance. Specification: Item Type: Solar Inverter Model: GTB 400 Maximum Input Power: 400W Peak Power Tracking Voltage: 2250V Start Voltage: 2255V Maximum DC Short Circuit: 20A Maximum Input Working Current: 12A Ambient Temperature Range: 4060 celsius Waterproof Grade: IP65 Communication Method: Wireless Mode Power Transmission Mode: Reverse transmission, load priority Output Data 120V 230V Peak Power Output 400W 400W Rated Output Power 400W 400W Rated Output Current 3.3A 1.7A Rated Voltage Range 80160V AC 180260V AC Rated Frequency Range 48515861Hz 48515861Hz Power Factor

more than 0.99percent

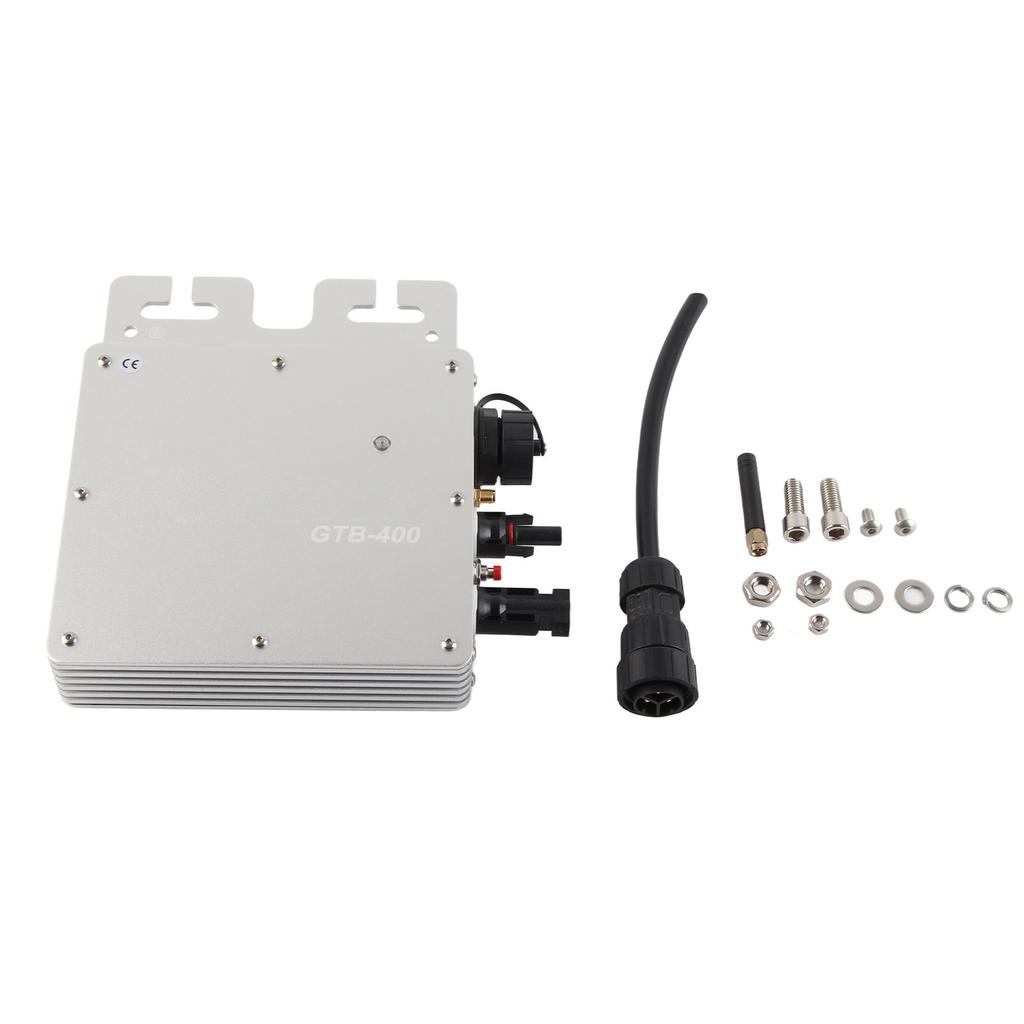

more than 0.99percent Maximum Output Efficiency 6 (Single Phase) 12 (Single Phase) Output Efficiency 120V 230V Static MPPT Efficiency 99.50percent 99.50percent Maximum Unit Per Branch Circuit 95percent 95percent Night Power Consumption <1W <1W Total Harmonic Distortion <5percent <5percent . Package List: 1 x Inverter1 x AC Cable4 x Screws4 x Nuts2 x Gaskets2 x Washers1 x AntennaSAFE OPERATION: The micro inverter can independently control each component in parallel, minimize potential safety hazards, and ensure safe and reliable operation. WITH INSTRUMENT: The solar inverter has built in high accuracy instrument, you can see the working status of each component, which is efficient and durable. HIGH EFFICIENCY: This solar micro inverter can achieve maximum power point tracking to maximize the overall output power with high MPPT efficiency. WIFI AND APP CONTROL: Can be operated and monitored through WiFi or mobile APP, which is convenient to operate and greatly improves the overall work efficiency. EASY INSTALLATION: This solar inverter controller has a compact structure, can be installed directly behind the module or on a bracket for easy maintenance.
