Feature:
1. Using customized plastics and highend technology, environmental protection and safety in line with ROHS.
2. With 2 usage categories, 4 control voltages, 6segment current specifications and 11 contact types to meet the needs of different market segments.
3. Product development adopts advanced technologies such as 3D printing, simulation analysis, tolerance analysis, etc.
4. The frequency is 50Hz, the electrical life is 100,000 times, and the maximum number of switching operations per day is 100 times.
5. Convenient to use and with good performance, with small size, easy to carry and store.
Specification:

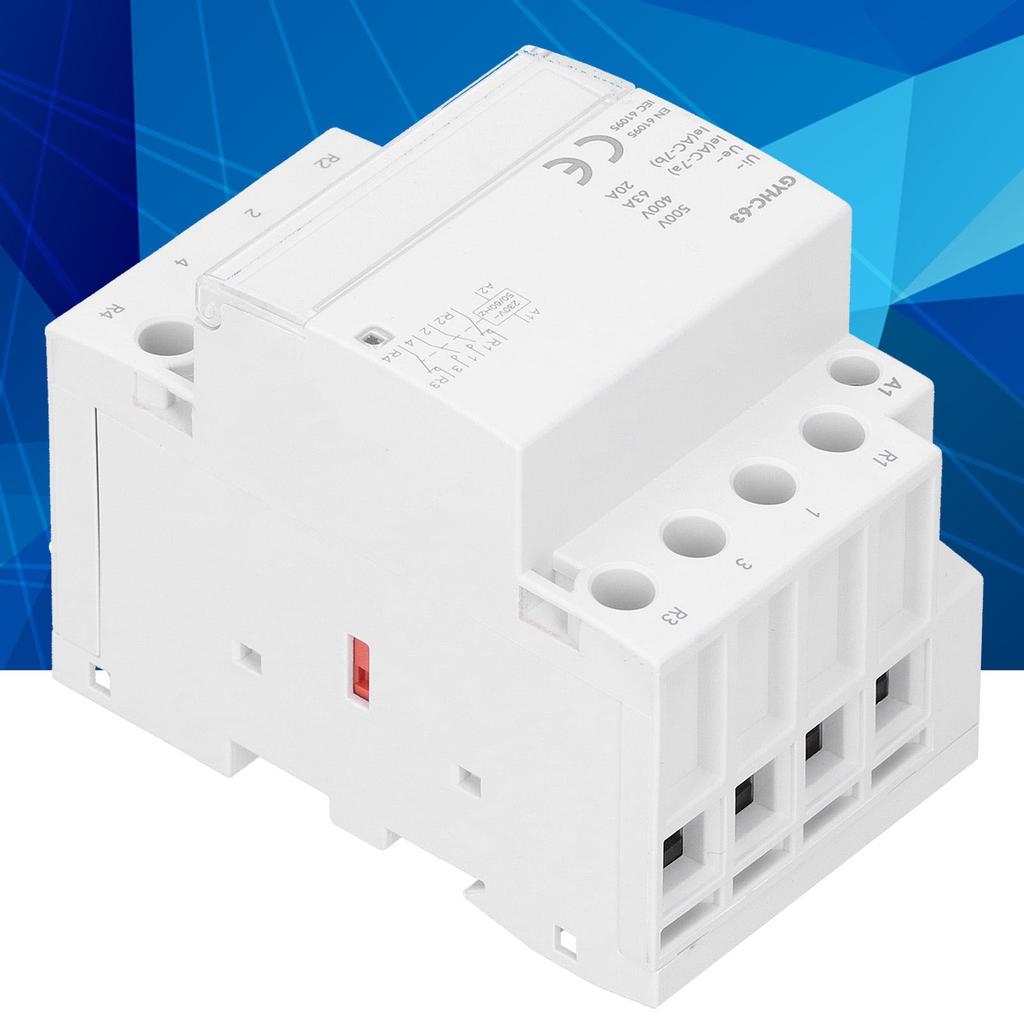

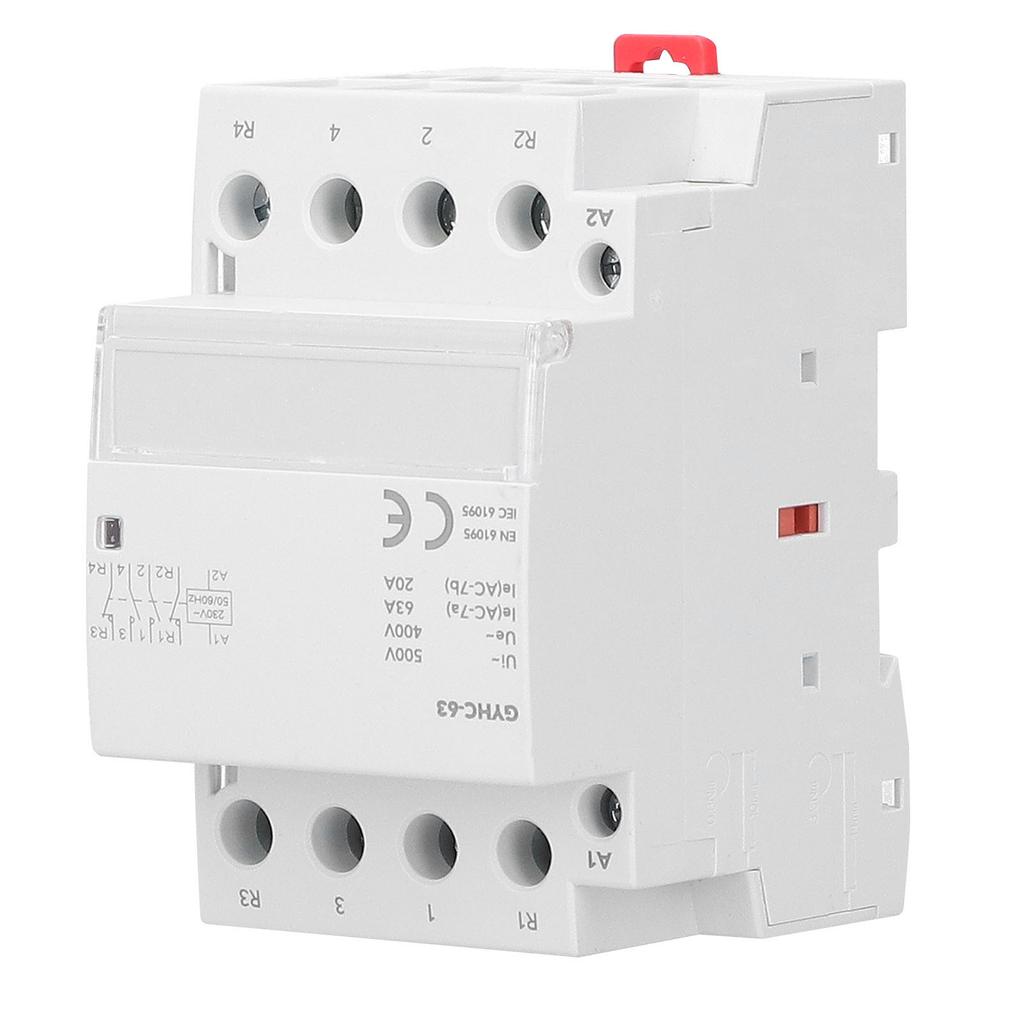

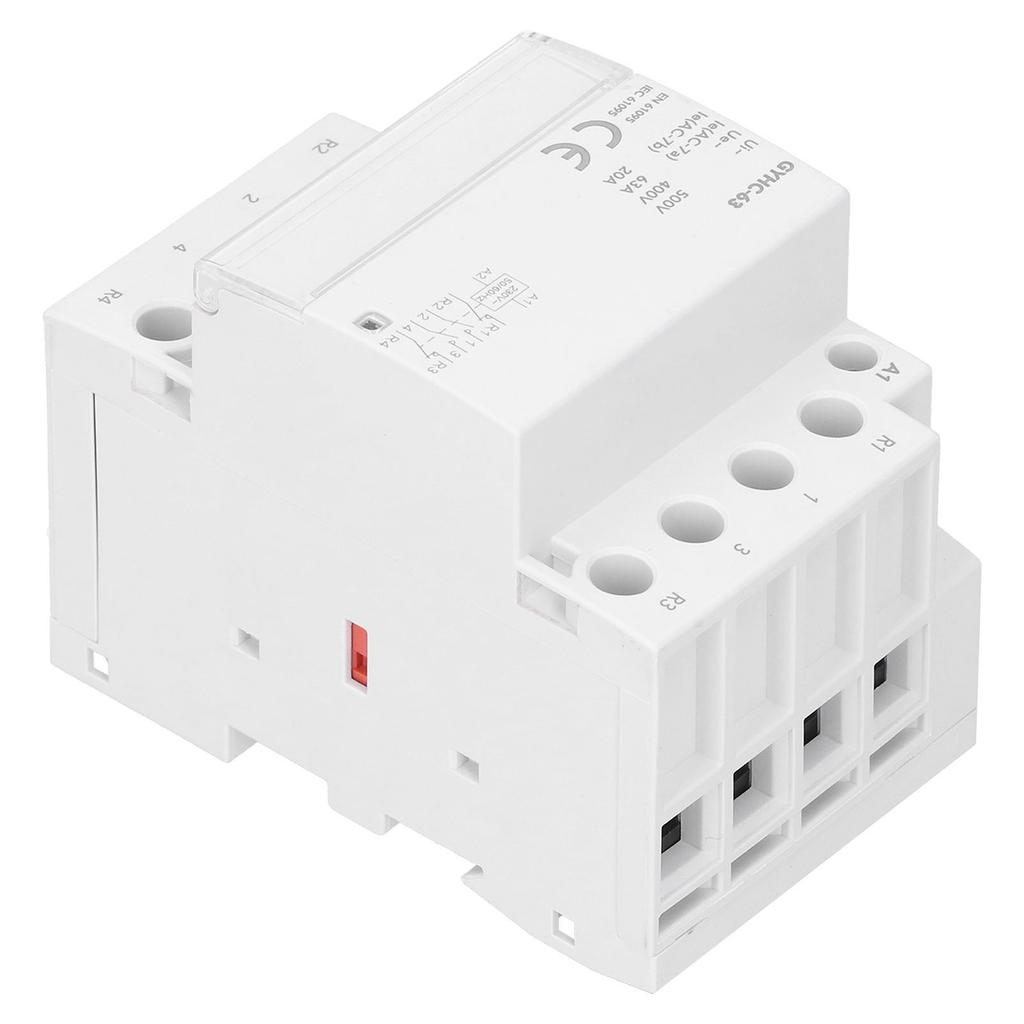

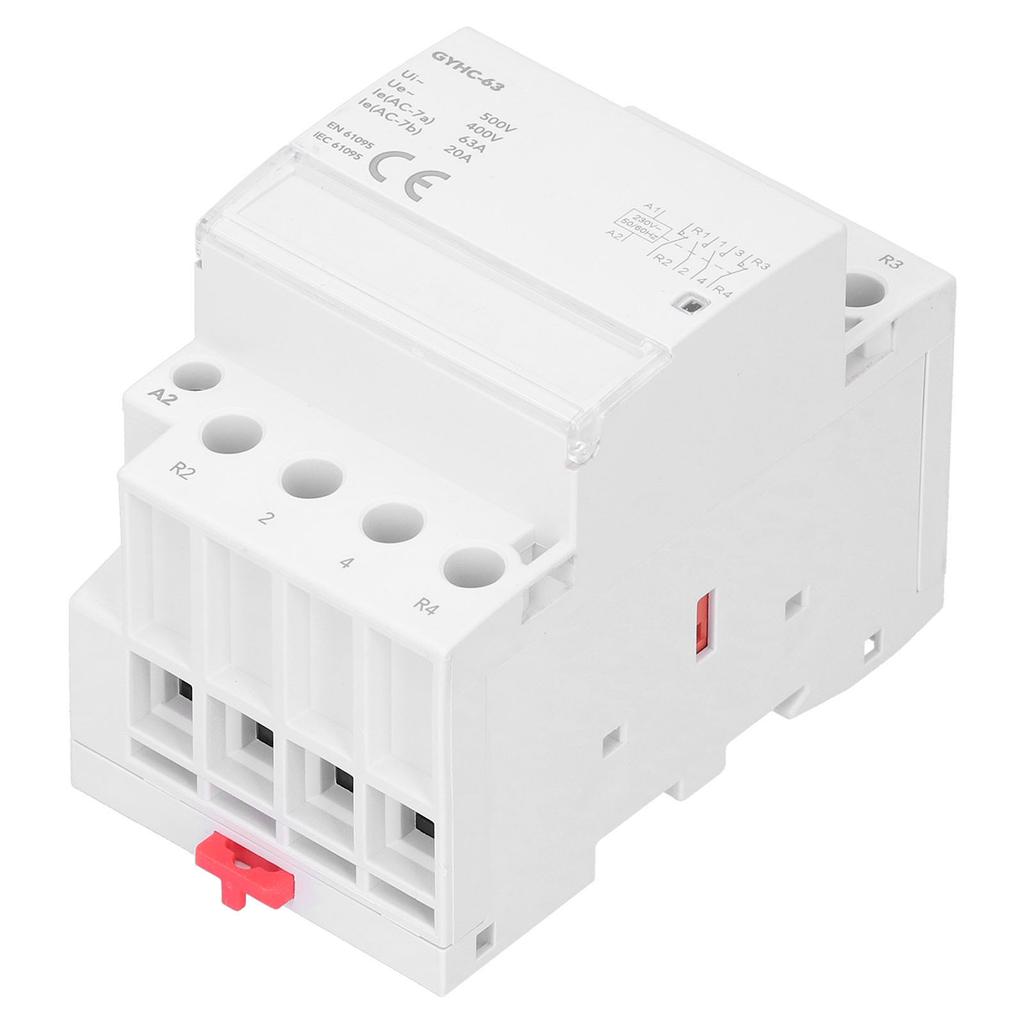

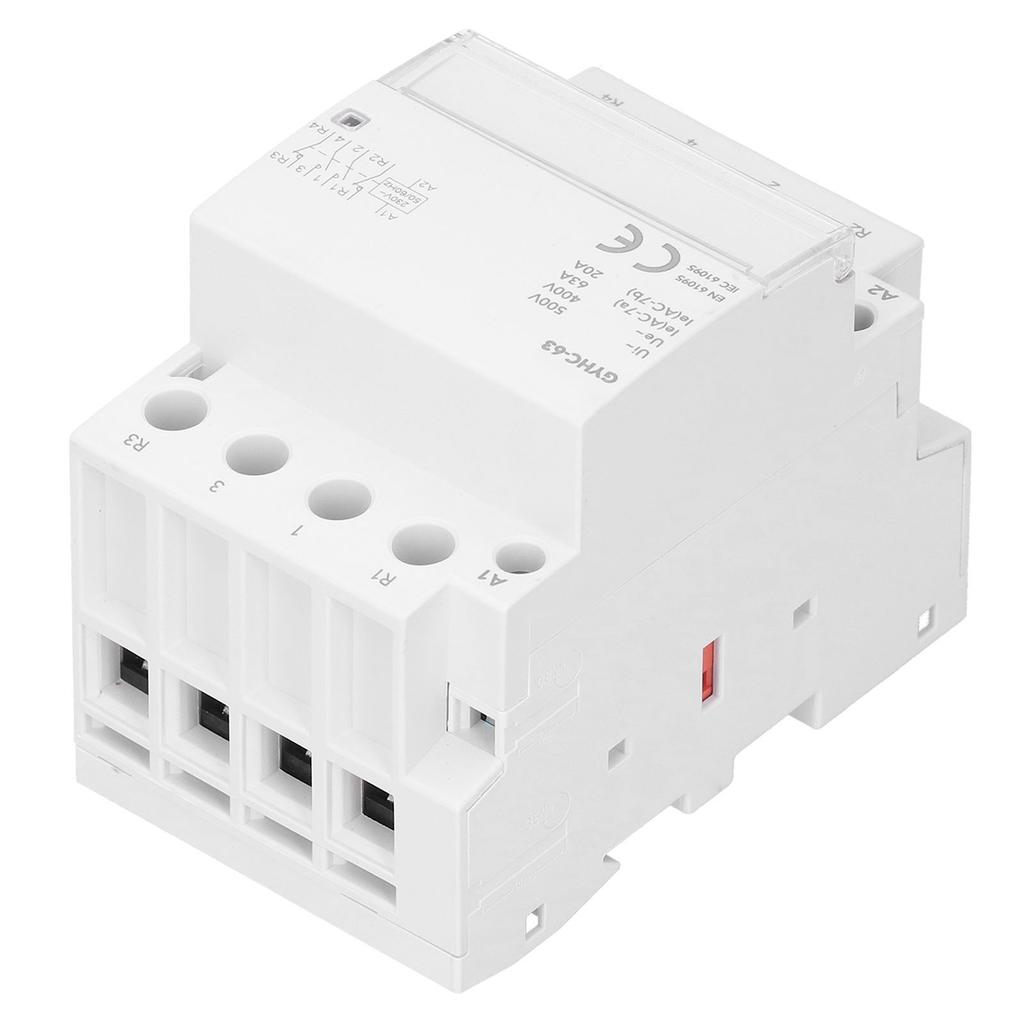

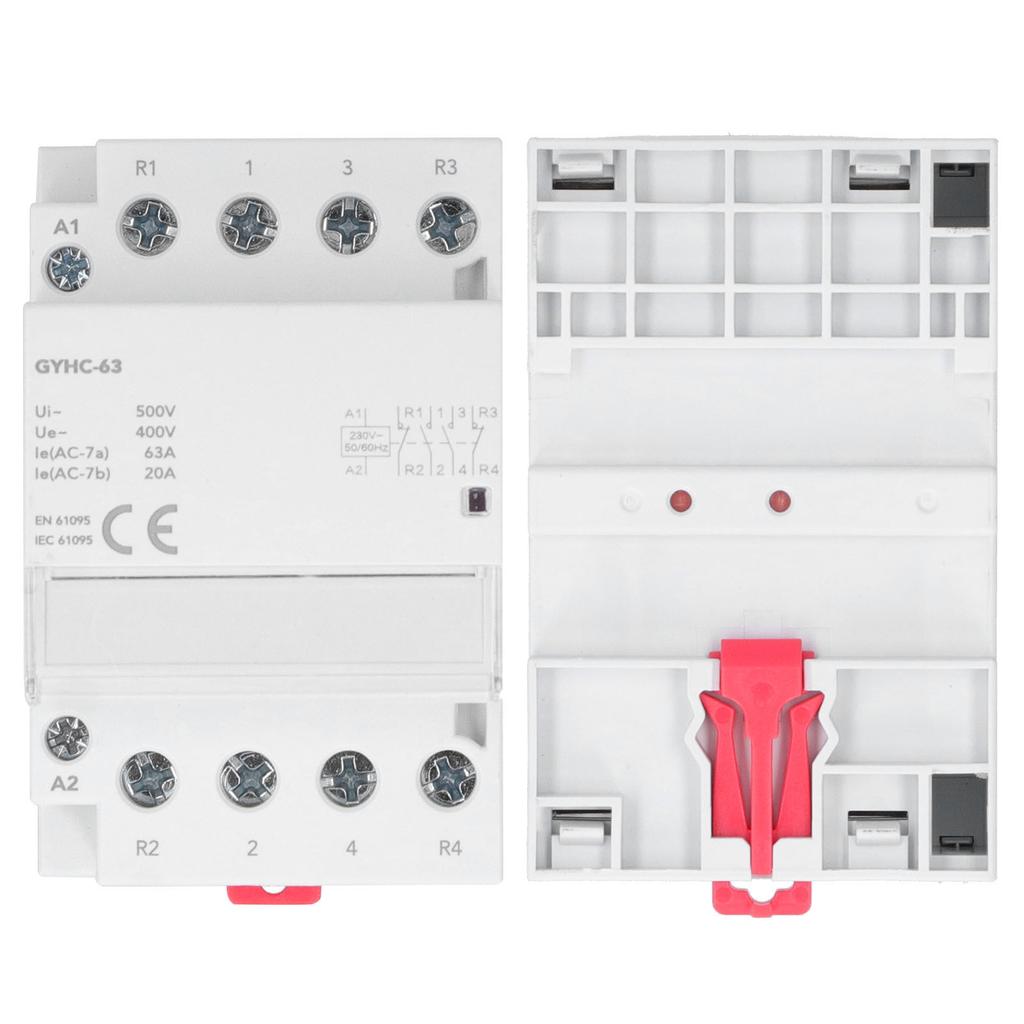

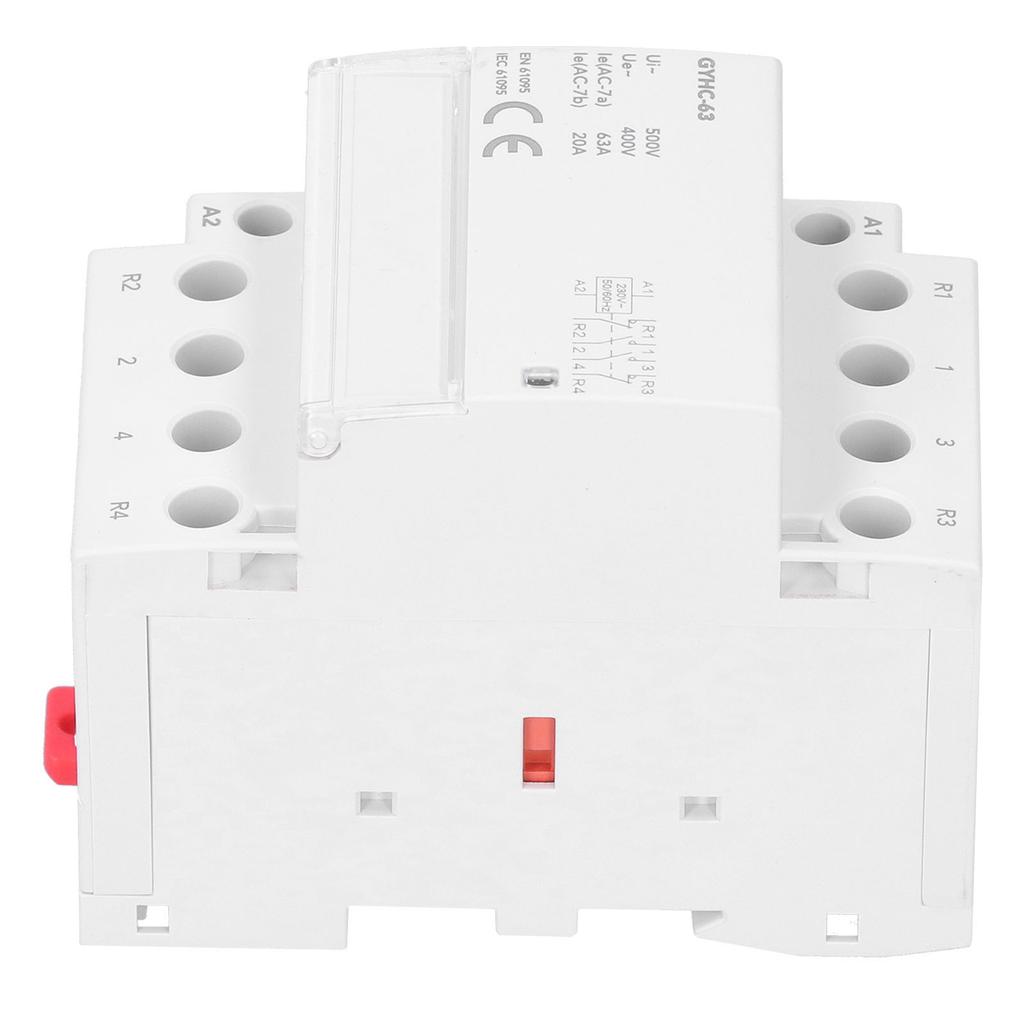

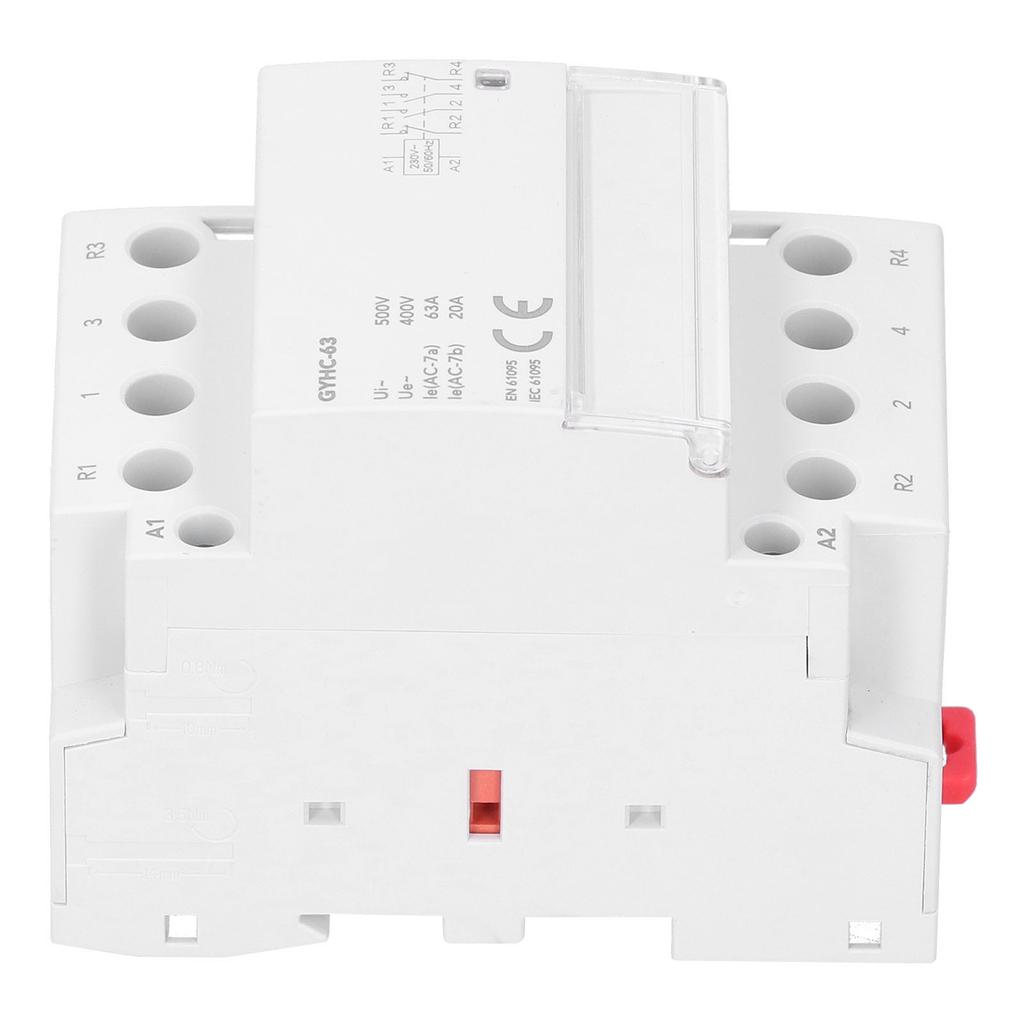

Item Type: Modular ContactorType: 4P
Control Voltage: 230V
AC7a Rated Current: 63A
AC7b Rated Current: 20A
Electric Shock: 2NO 2NC
Frequency: 50Hz
Electrical Life: 100000 times
Maximum Number of Switch Operations Per Day: 100 times
Insulation Voltage: 600V AC
Pollution Degree: 2
Rated Impulse Withstand Voltage: 4kv
Protection Level:
1. Contactor Body: IP20
2. Installed In Distribution Box: IP40
Working Temperature: 5 celsius ~+60 celsius
Storage Temperature: 40 celsius +70 celsius
Humidity and Heat Resistance: Class 2 (at a temperature of 55" celsius , the relative humidity is 95percent ).
Package List:
1 x Modular ContactorUsing customized plastics and highend technology, environmental protection and safety in line with ROHS.
With 2 usage categories, 4 control voltages, 6segment current specifications and 11 contact types to meet the needs of different market segments.
Product development adopts advanced technologies such as 3D printing, simulation analysis, tolerance analysis, etc.
The frequency is 50Hz, the electrical life is 100,000 times, and the maximum number of switching operations per day is 100 times.
Convenient to use and with good performance, with small size, easy to carry and store.
