Feature:
1. EASY TO INSTALL: CNC handwheel controller support self transfer, quick plug, practical and reliable
2. WEAR RESISTANT SPRING WIRE: Standard spring wire, extended the service life of CNC, possess good ductility, cold resistance, durability, and wear resistance
3. APPLICABLE MODEL: Electronic handwheel can be used in various CNC systems, such as for Siemens, for GOOGOLTECH, for DELTA, for SYNTEC, for KAN, and so on
4. TECHNICAL PARAMETERS: Voltage for 5V, pulse is 100PPR, with a support plate, convenient for your use
5. SCRATCH RESISTANT ABS: Using excellent ABS material, possess impact resistance, scratch resistance, environmentally friendly
Specification:
Item Type: CNC Handwheel
Material: ABS
Voltage: 5V
Pulse: 100PPR
Connection Mode:
Serial Number: 1: Thread Color: Green, Signal: A+
Serial Number: 2: Thread Color: Purple, Signal: A
Serial Number: 3: Thread Color: White, Signal: B+
Serial Number: 4: Thread Color: Purple black, Signal: B
Serial Number: 5: Thread Color: Red, Signal: 5V
Serial Number: 6: Thread Color: Black, Signal: 0V
Serial Number: 7: Thread Color: Black orange, Signal: COM
Serial Number: 8: Thread Color: Grey, Signal: X1
Serial Number: 9: Thread Color: Gray black, Signal: X10
Serial Number: 10: Thread Color: Orange, Signal: X100
Serial Number: 11: Thread Color: Yellow, Signal: X
Serial Number: 12: Thread Color: Yellow black, Signal: Y
Serial Number: 13: Thread Color: Brown, Signal: Z
Serial Number: 14: Thread Color: Brown black, Signal: 4.
Package List:
1 x CNC Handwheel

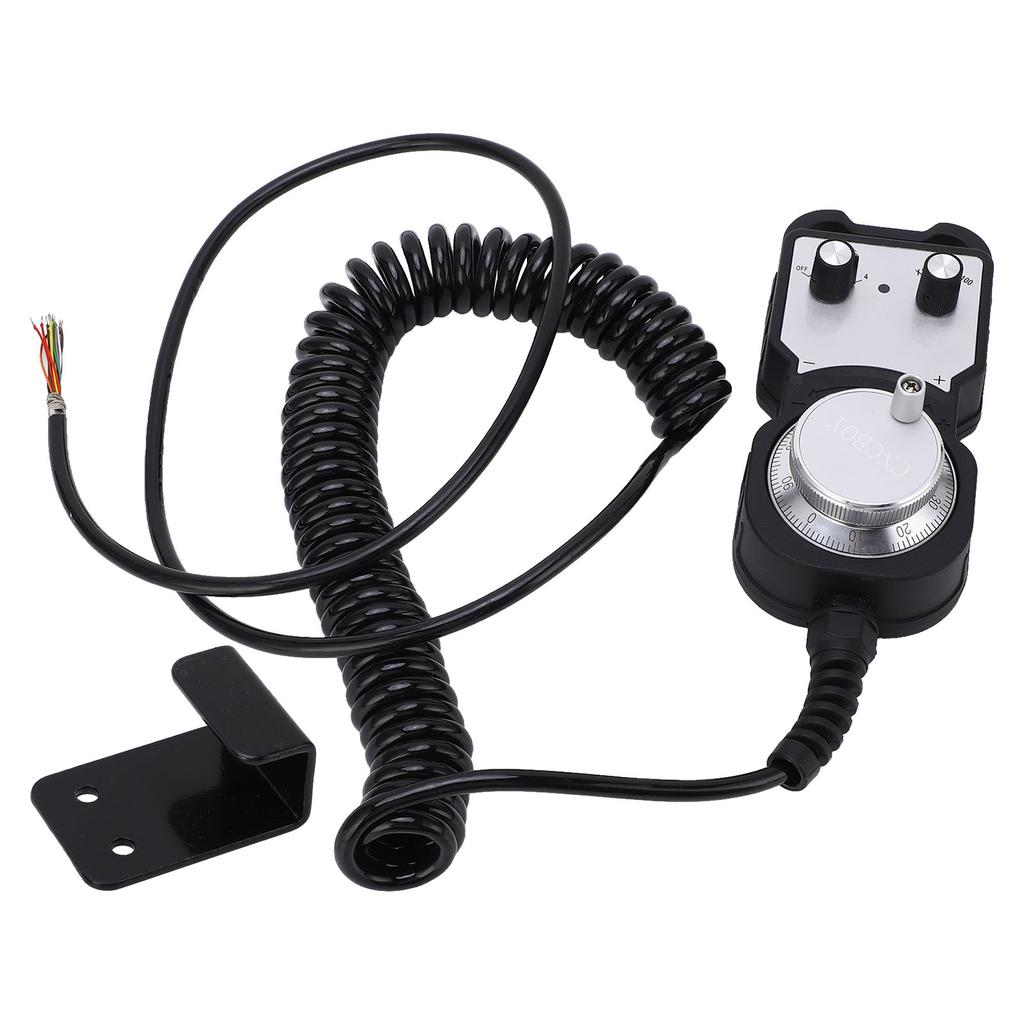

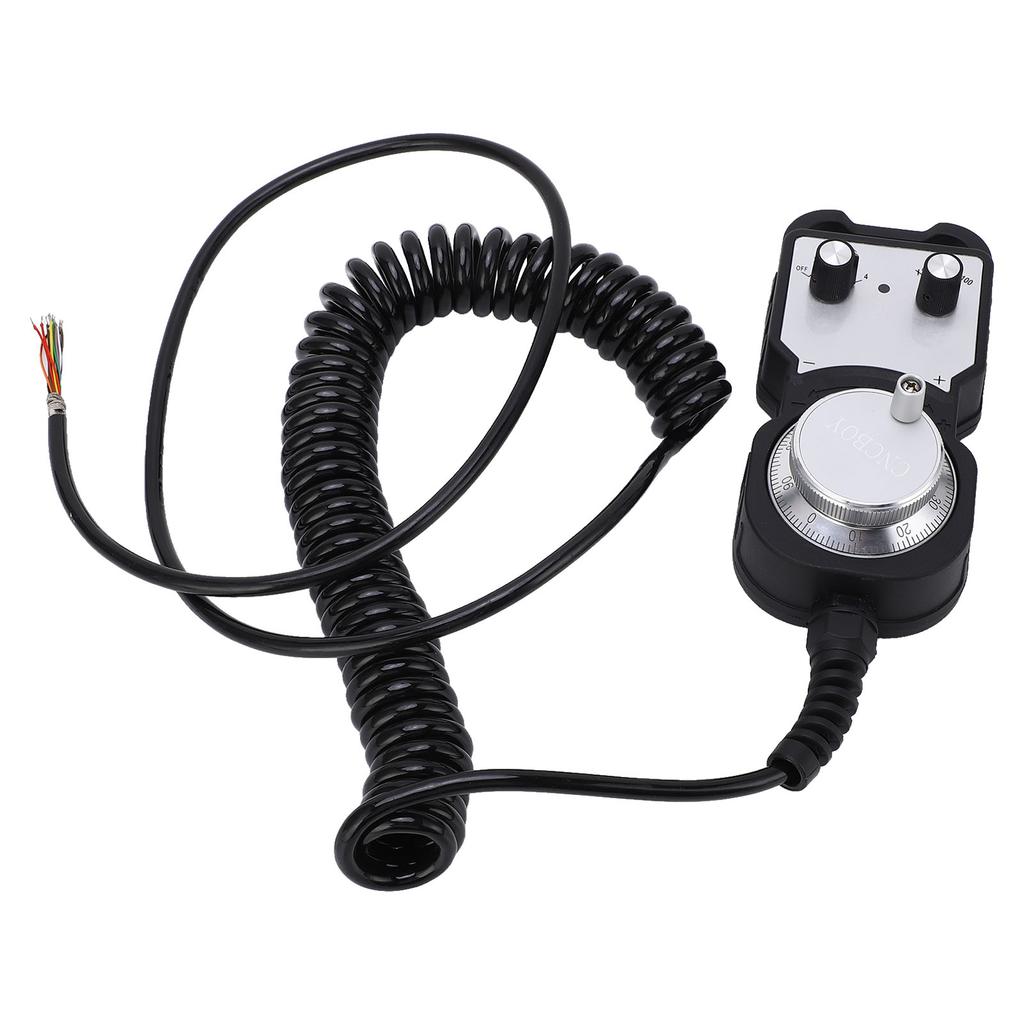

1 x Support PlateEASY TO INSTALL: CNC handwheel controller support self transfer, quick plug, practical and reliable
WEAR RESISTANT SPRING WIRE: Standard spring wire, extended the service life of CNC, possess good ductility, cold resistance, durability, and wear resistance
APPLICABLE MODEL: Electronic handwheel can be used in various CNC systems, such as for Siemens, for GOOGOLTECH, for DELTA, for SYNTEC, for KAN, and so on
TECHNICAL PARAMETERS: Voltage for 5V, pulse is 100PPR, with a support plate, convenient for your use
SCRATCH RESISTANT ABS: Using excellent ABS material, possess impact resistance, scratch resistance, environmentally friendly
