Feature:
1. Low speed large torques, two way communication, can through remote control check scooter electric quantity.
2. Low voltage alarm function, undervoltage power failure protection function.
3. Note: Different voltage, alarm voltage, protection voltage different.
4. Suitable for scooter, monocycle, swing vehicle, balancing vehicle application area
5. Electric four wheel scooter control system adopts sin waves scheme, more stable performance than ESC and not easy to burn out.
Specification:
Condition: 100percent Brand New
Item Type: Double Drive Controller
Material: Plastic
Color: As Pictures Shown
Quantity: 1 Set, Note: Glue Filling Double Drive Controller + Upgrade Remote Control
Product Category: Pedal Scooter
Suitable People: Universal
Remote Control Battery: Builtin Lithium Battery
Capacity:400MAH
Controller Parameter:
Current:20A
Function: Three Gears Shifting, Four Gears Brake, Slide Start, Positive and Negative Turn, Constant Speed Cruising
Hub RPM:3000 Turn
Drive Mode: Dual System Drive
Maximum Speed:40KMH
Protection: Overpressure, Underpressure, Overtemperature, LockedRotor, CWCCW, Speed Adjustment Function
Induction Mode: For Hall
Load Bearing Weight: less than 120KG
Application Area: Scooter, Monocycle, Swing Vehicle, Balanced Vehicle
Measured Remote Control Distance Up 20M
How to choose right controller:
6 strings battery of 25.2V, 7 strings of 29.4V, 10 strings battery of 36V
2. Verify motor kind
External motor chain, belt drive using belt word controller
ub motor, motor integrated wheel please select the hub controller
3. Verify single drive, double drive or four drive
One controller drives two motors of double drive
One controller drives four motors of four wheel drive.
Package List:

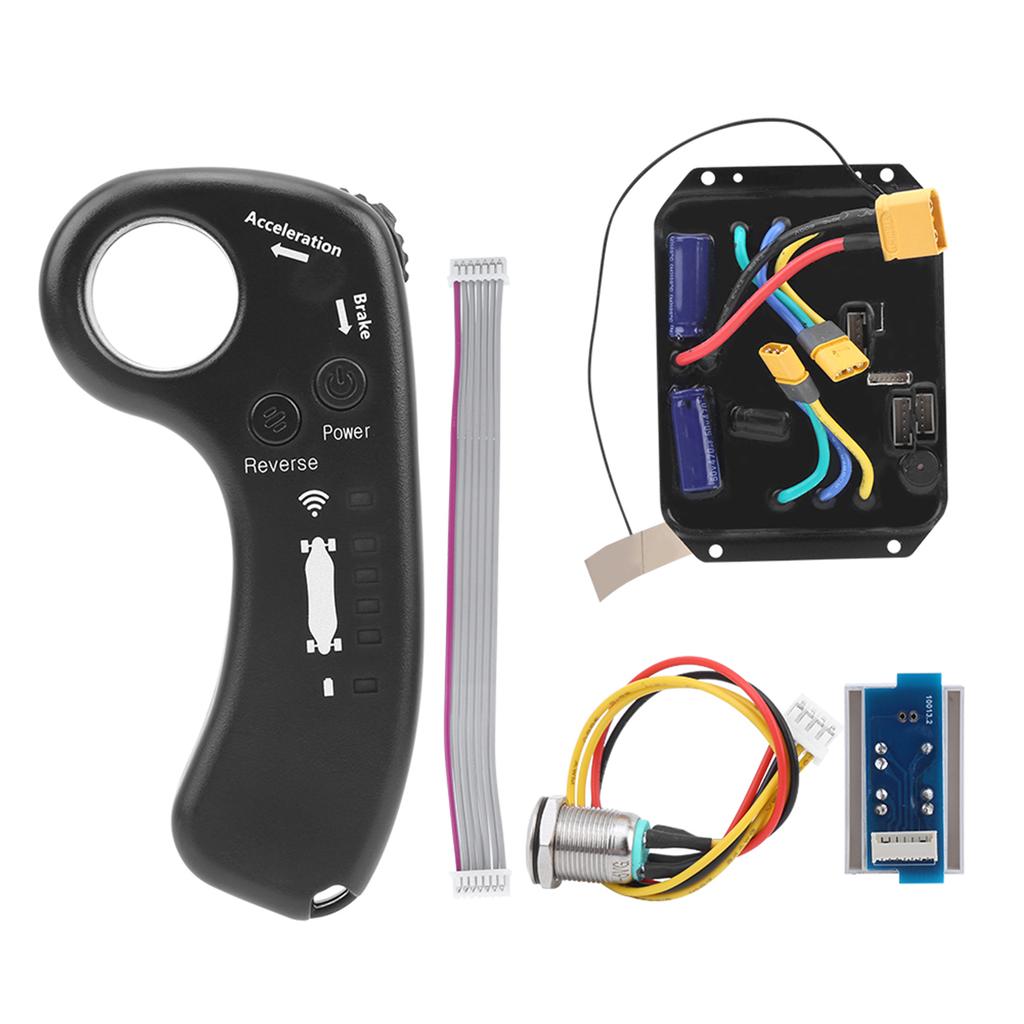

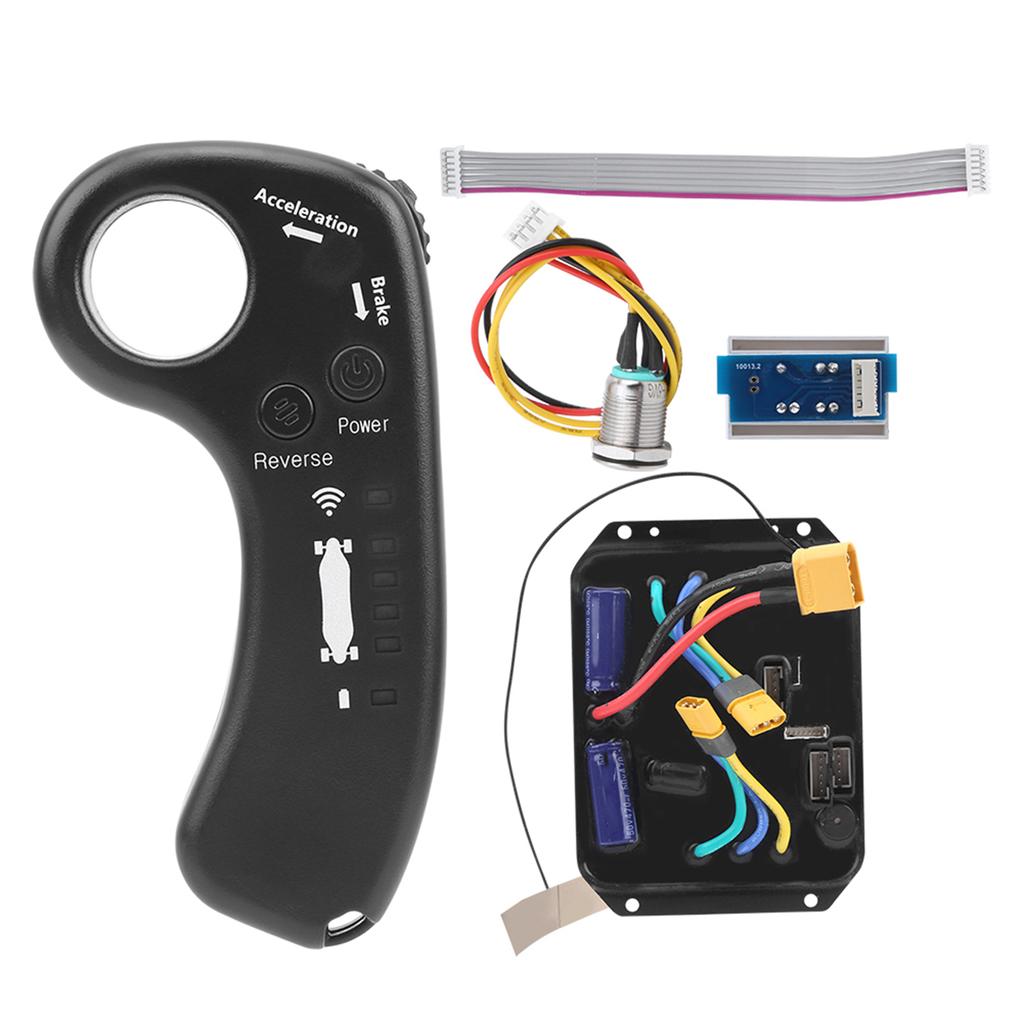

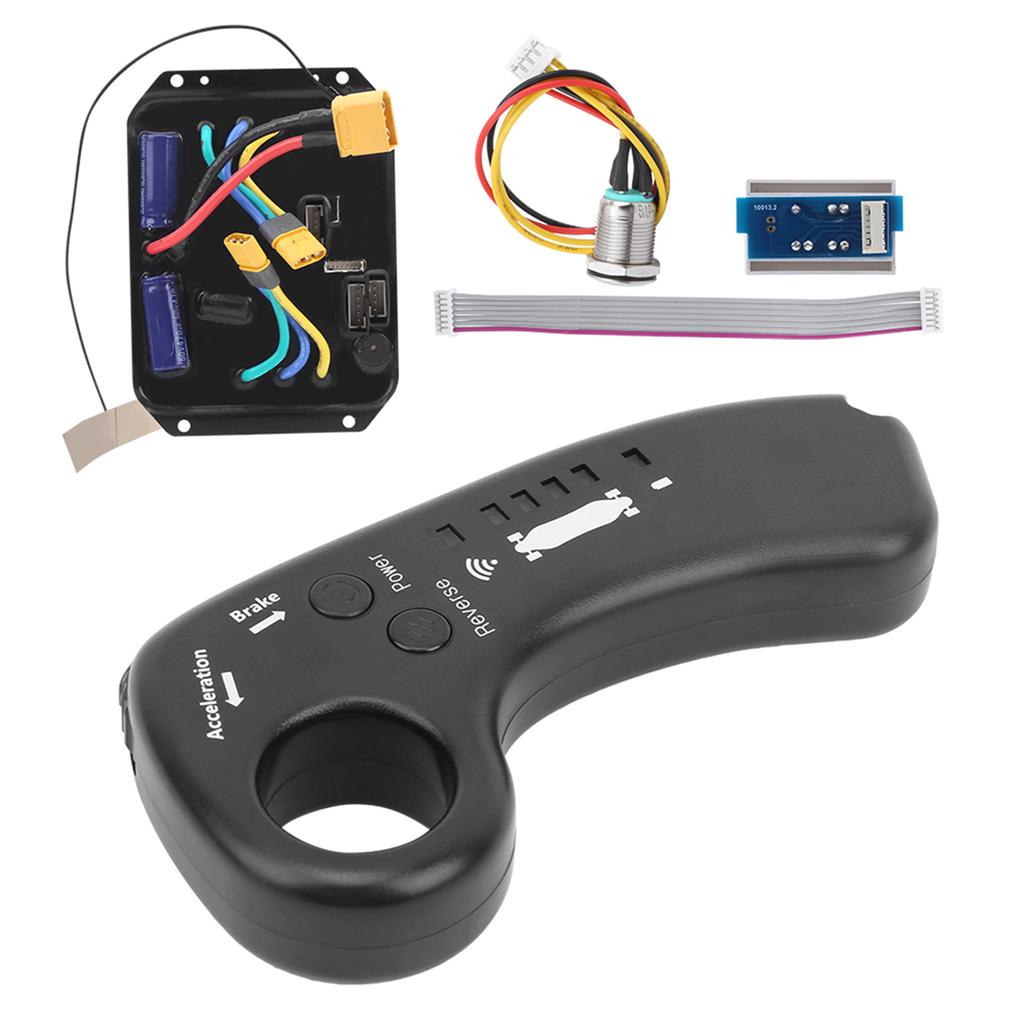

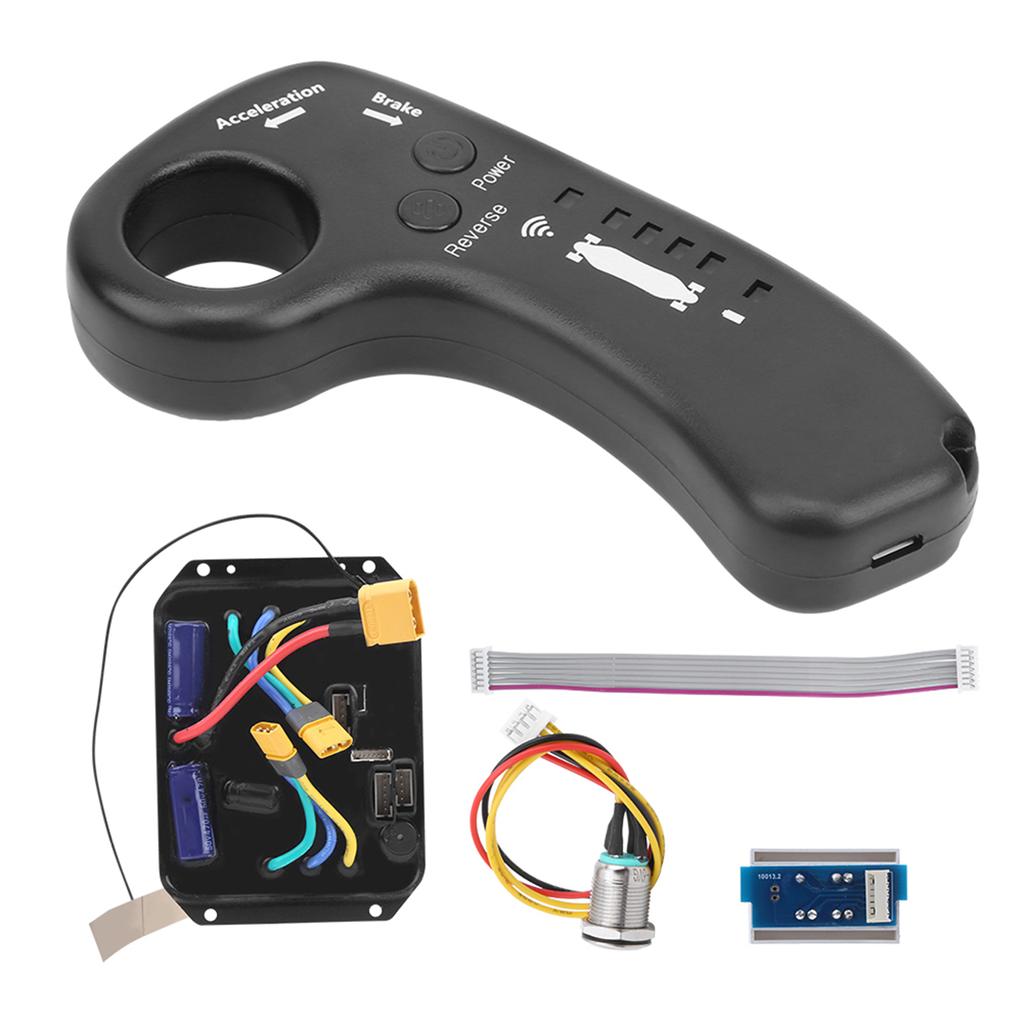

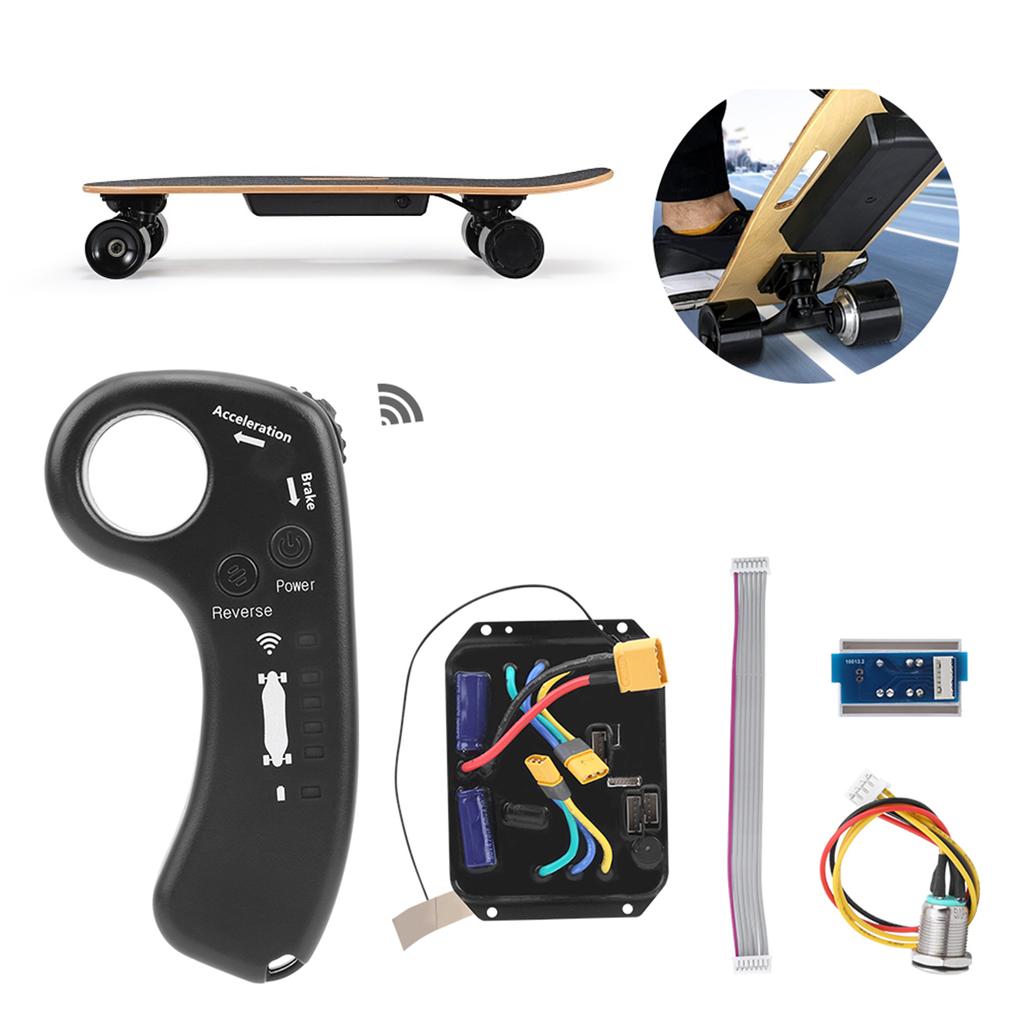

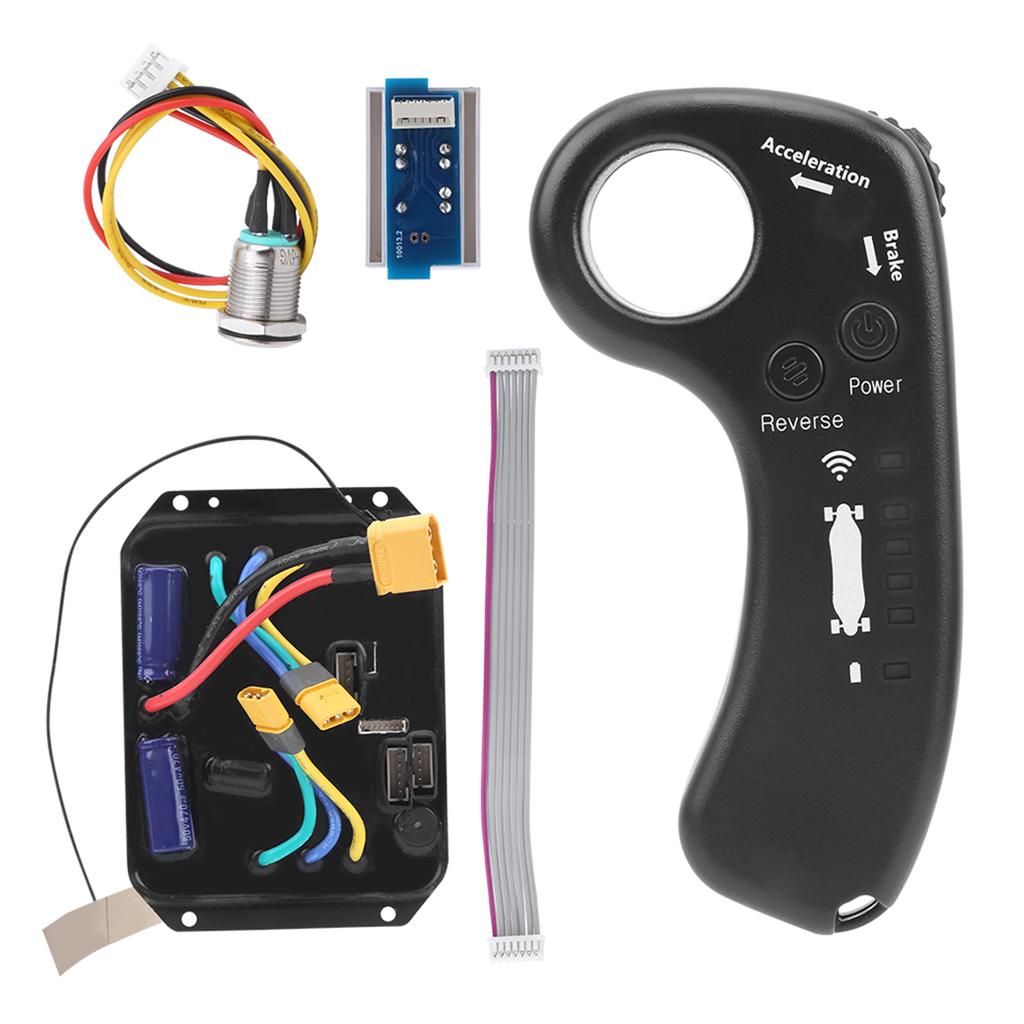

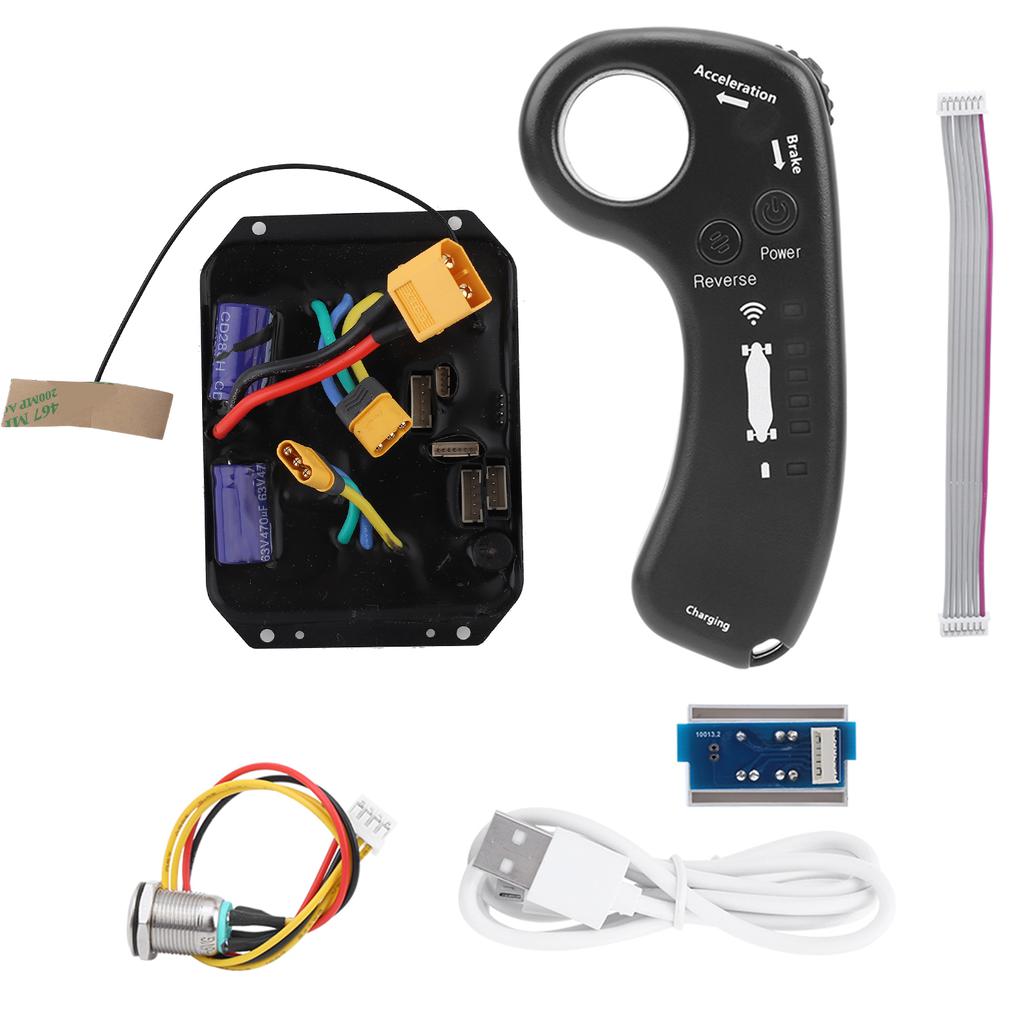

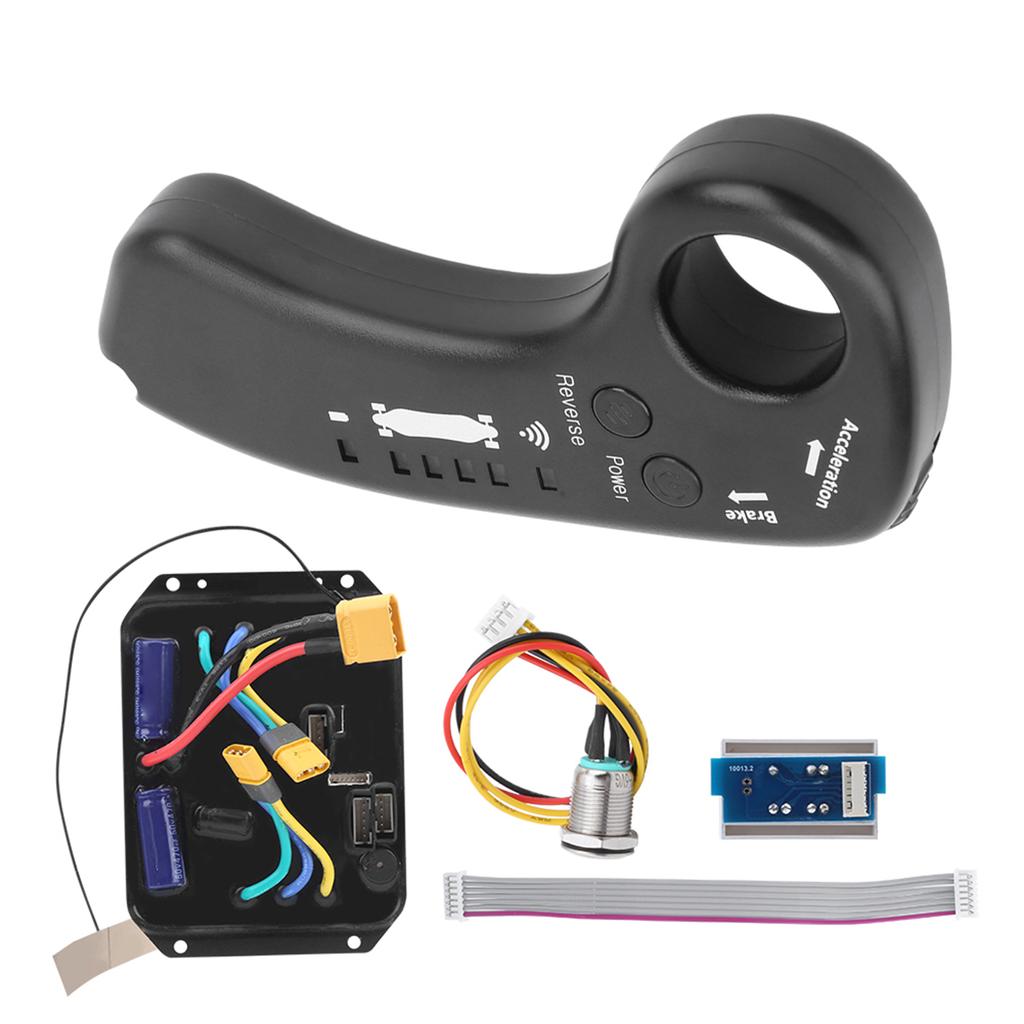

1 x Double Drive Controller Kit2 x Main Board1 x Motor Cable1 x Power Cable1 x Remote Control1 x USB Cable
Note:
1. Do not parallel motor wire, let single drive drag two motors2. Different voltage, alarm voltage, protection voltage different.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.Low speed large torques, two way communication, can through remote control check scooter electric quantity.
Low voltage alarm function, undervoltage power failure protection function.
Note: Different voltage, alarm voltage, protection voltage different.
Suitable for scooter, monocycle, swing vehicle, balancing vehicle application area
Electric four wheel scooter control system adopts sin waves scheme, more stable performance than ESC and not easy to burn out.
