Feature:
1. Completely complied with EN300 744EN302 755 V1.3.1 standard.
2. Support multimedia formats: MPG, MKV, AVI, MOV. With 6M7M8M channel band width.
3. It can support ultra?fast hardware decoding of JPEG pictures, and a variety of OSD language menus.
4. Support 720 x 576@25fps720 x 480@30fpsHD 1920x1080P1920x1080i, subtitles and OSD remote text in line with ETSI 300473 standard.
5. Compact size, easy to install, specially designed for car, support high?speed driving above 80Kmh.
Specification:
Item Type: Car TV Box
Material: Iron + PVC
Battery Type: Button Battery (not include)
Battery Model: CR2025
Battery Capacity: 150mAh
Technical Specification:
Tuner Module : EN300 744 EN302 755 V1.3.1 Standard
RF Input: UHF: 470MHz862MHz , VHF:174MHz230MHz
Input Impedance:75 Ohm
Signal Level: 80dBm10dBm
Connector Type: SMA type terminal
Channel Band Width: 6M7M8M
FFT size:1K,2K,4K,8K (normal), 8K (extended), 16K(normal),
16K (extended), 32K (normal), and 32K (extended)
Modulation: QPSK, 16QAM, 64QAM,128QAM,256QAM
Guard Interval: 1128, 132, 116, 19256,18,19128, 14
Pilot Pattern: PP1 TO PP7
Servic Type: Support both single PLP (Mode A)and Multiple PLP (Mode B)
Support Single Frequency Network(SFN) in accordance with ETSI TS
101191[6]
Transport Stream: MPEG4AVCH.264 HP at L4,MPEG2 MP at HLML
HEVC (H.265)
Video Aspect Ratio: 4:316:9
Video System: PALNTSC
Video Output: 1+0.3Vpp
Video Resolution HD Resolution:720x576 at 25fps720x480 at30fpsHD
1920 x 1080P1920 x 1080i
Audio Decoder: MPEG2HE_AAC(DDDD +optional)
Audio Channel: RLST
Audio Output: 1Vpp
Power Cable and Jack: 4Pins:
1. DC+1224V Input
2. ACC
3. GND
4.NC

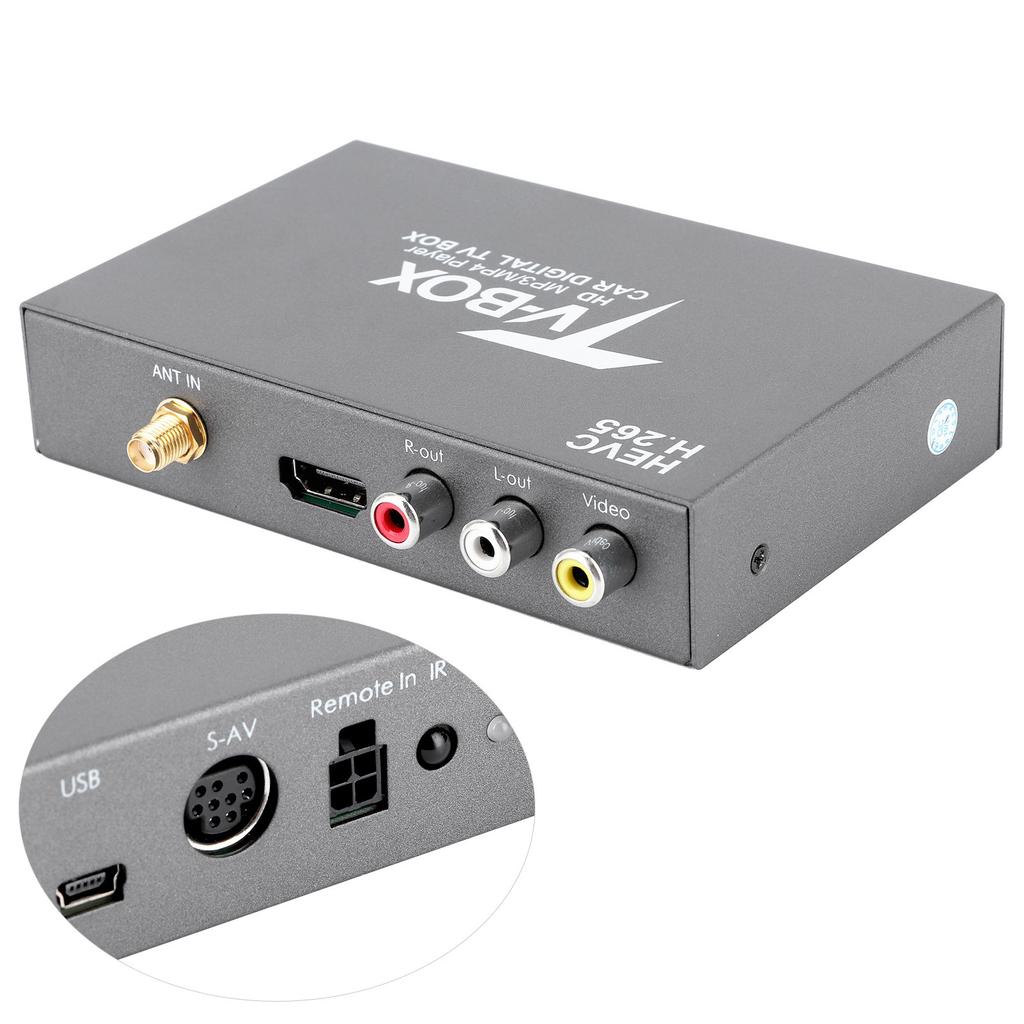

IR Extension Jack: For IR Extension Box
AV Output Jack: Video RCA Jack x 1,Audiop RCA Jack(RL) x 2
Upgrade and Multimedia Port: USB
SAV Connector :
1. Input Jack :Video RCA Jack x 1, Audio RCA Jack (RL) x 1
2. Output Jack: Video RCA Jack x 2
ANT1 Input Jack: Female SMA Type
Operating Temperature: 10 celsius +70 celsius
Storage Temperature: 40 celsius +70 celsius
Power Supply: DC+10V24V+10percent
Power Consumption: Running: 4.5W Maximum
Standby: <0.25W
Dimension(HxLxW): 28 x 78 x 118mm1.1 x 3.1 x 4.6in.

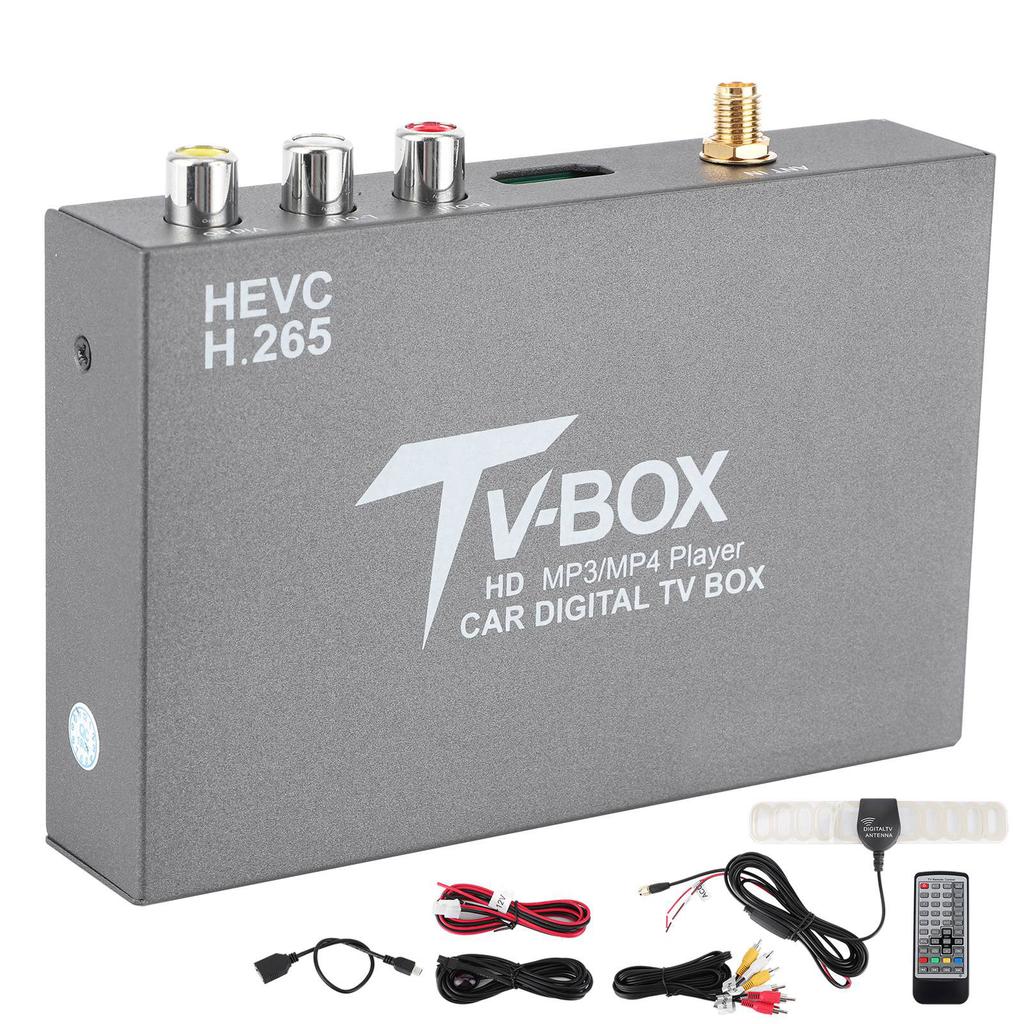

Package List:
1 x Car TV Box1 x Manual 1 x Remote Control 1 x USB Cable 1 x 12V Power Cord 1 x Antenna Signal Receiving Line 1 x AV Wire1 x Remote Control Infrared Extension CableCompletely complied with EN300 744EN302 755 V1.3.1 standard.
Support multimedia formats: MPG, MKV, AVI, MOV. With 6M7M8M channel band width.
It can support ultra?fast hardware decoding of JPEG pictures, and a variety of OSD language menus.
Support 720 x 576@25fps720 x 480@30fpsHD 1920x1080P1920x1080i, subtitles and OSD remote text in line with ETSI 300473 standard.
Compact size, easy to install, specially designed for car, support high?speed driving above 80Kmh.
