Feature:
1. True four?wire 1Khz AC sine battery internal resistance meter, with high sensitivity and accurate measurement.
2. The maximum resolution is 0.00001 Ohm and the maximum measuring range is 200.0 Ohm .
3. The maximum voltage resolution is 0.00001V, and the maximum measurement range is +99.999V.
4. The test lithium battery voltage can display a sufficiently high sensitivity of 0.0001V, and all ranges can measure the voltage positively and negatively.
5. It can measure acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel metal hydride, nickel cadmium, button battery, etc.
Specification:
Condition: 100percent Brand New
Item Type: Battery Resistance Tester
Material: ABS
Internal Resistance Measurement
Format of Accuracy: +([Percentage of Accuracy]+[Least Significant Digit])
Range
Resolution
Accuracy
20m Ohm
0.01m Ohm
0.7percent +7
200m Ohm
0.1m Ohm
0.5percent +5
2 Ohm
0.001 Ohm
0.5percent +5
20 Ohm
0.01 Ohm
0.5percent +5
200 Ohm
0.1 Ohm
0.6percent +5
When the gear is within the range of 5percent 95percent , the error may be greater than the above accuracy when it is not in this range (less than 5percent of the gear range, or greater than 95percent of the gear range).
Voltage Measurement
Range
Resolution
Accuracy + (percent reading +percent range)
1V
0.00001V
0.15+0.015
10V
0.0001V
0.15+0.010
100V
0.001V
0.15+0.015
Positive and Negative Balanced Error +(0.012percent +5 Words)
Temperature Drift Within Normal Use Temperature (10 celsius 40 celsius ) 100ppm celsius
Battery Properties: Lithium Battery
Model: 18650
Battery Capacity: 2000 mAh
.
Package List:

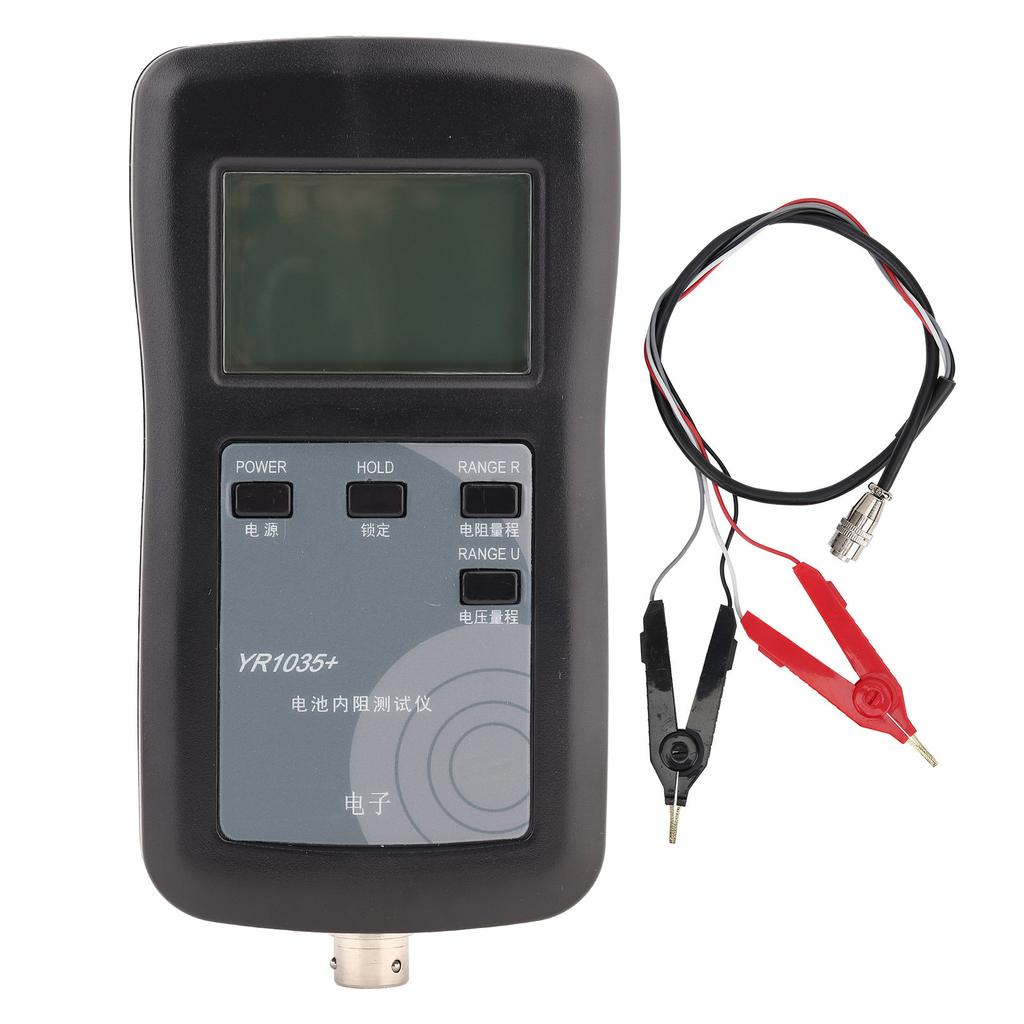

1 x Battery Resistance Tester 1 x Clip1 x Instruction
Note:
1. Read the manual and instructions on the back of the instrument before use.2. It is strictly forbidden to input AC signals and DC voltages higher than 100V.3. Please note that the new type and old type of this product will be sent randomly,and make sure you will not mind before ordering.True four?wire 1Khz AC sine battery internal resistance meter, with high sensitivity and accurate measurement.
The maximum resolution is 0.00001 Ohm and the maximum measuring range is 200.0 Ohm .
The maximum voltage resolution is 0.00001V, and the maximum measurement range is +99.999V.
The test lithium battery voltage can display a sufficiently high sensitivity of 0.0001V, and all ranges can measure the voltage positively and negatively.
It can measure acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel metal hydride, nickel cadmium, button battery, etc.
