Measuring Capacitance Range : 0-100mF(ZL128A/ZL128B)0-6m
Measuring Resistance Range : 0-100Mohm(ZL128A/ZL128B)
Certification : None
DIY Supplies : ELECTRICAL
Model Number : Digital Multimeter
Origin : China
Display Type : Digital display

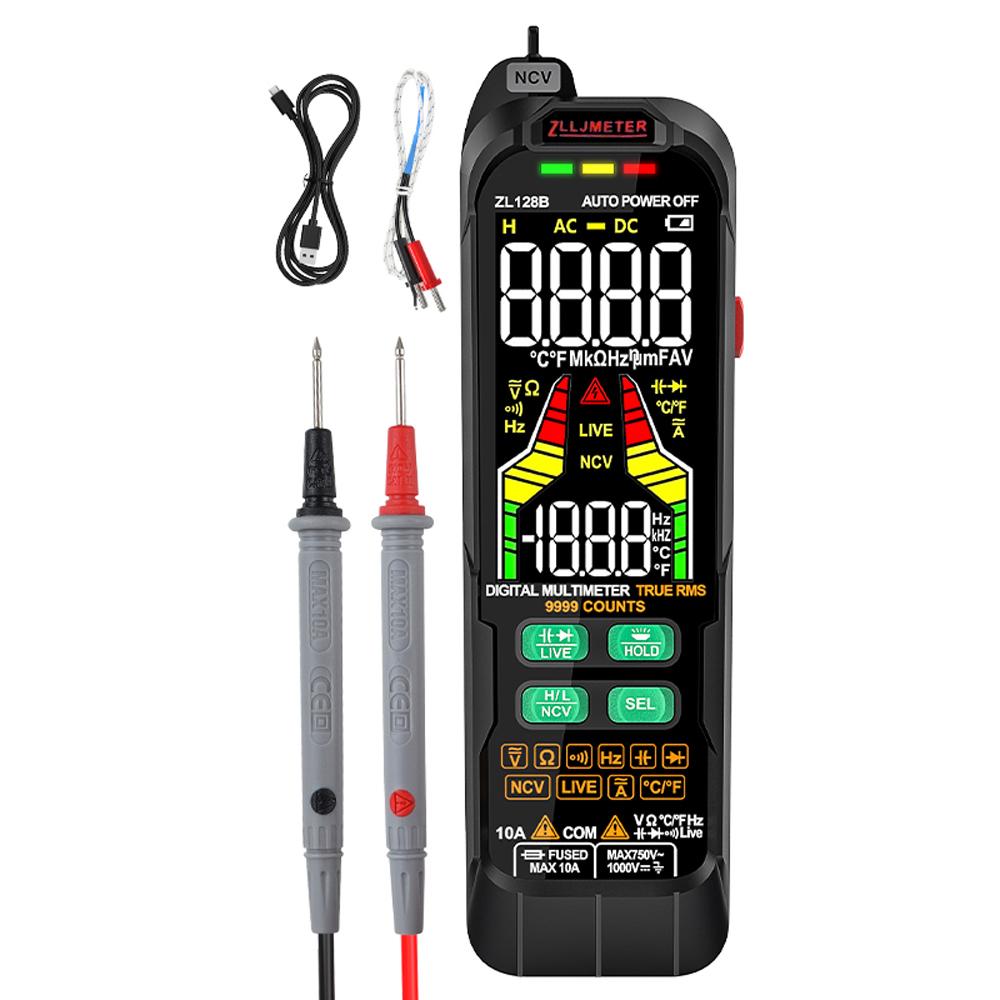

This digital multimeter has concise appearance, large color display with backlight, clear definition with large font for easy data reading. It can measure multiple electronic values, such as capacitance, true RMS, Diode, temperature, frequency, and resistance, to meet your multi-functional needs. Support for manual selection, data hold, NCV and high/low sensitivity toggle, battery power indicator, on/off test, and Live Wire feature. It can be widely used in electrical testing, automotive repairing, and more household improvements, industrial electrical maintenance, etc.
Features:
Concise Appearance:Compact, lightweight and portable, easy to carry, with a comfortable grip.
Color Display:Large color display with backlight, clear definition with large font for easy data reading.
Wire Break Point Detection:The built-in intelligent high-precise sensing chip, which is perfect for detecting the wire break points.
NCV Measurement:Induction signal measurement, non-contact design, live line signal is strong and alarm, zeroline signal is weak or even non-responsive.
AC/DC Voltage Measurement:Non-contact detection, built-in high-sensitivity sensors that ensure operational safety when measuring electricity, and it will display the current frequency at the same time when this multimeter measures the AC voltage.
Fire Wire Recognition:When detected as a live wire, the buzzer will sound an alarm and the support on and off buzzer beep.
Bright LED Flashlight:There is a flashlight to help you illuminate and use when measuring in a dark environment.
Diversity Measurement:it can measure multiple electronic values, such as capacitance, true RMS, Diode, temperature, frequency, and resistance, to meet your multi-functional needs.
Multifunctional Design:Support for manual selection, data hold, NCV and high/low sensitivity toggle, battery power indicator, on/off test, and Live Wire feature.
Wide Applications:It can be widely used in electrical testing, automotive repairing, and more household improvements, industrial electrical maintenance, etc.
4 Model Options:You can choose between ZL126A, ZL126B, ZL128A, or ZL128B, depending on your requirements,with the following differences:
ZL126A:
6000 counts, manual auto, carbon zinc battery (powered by 3 AAA batteries, not included)

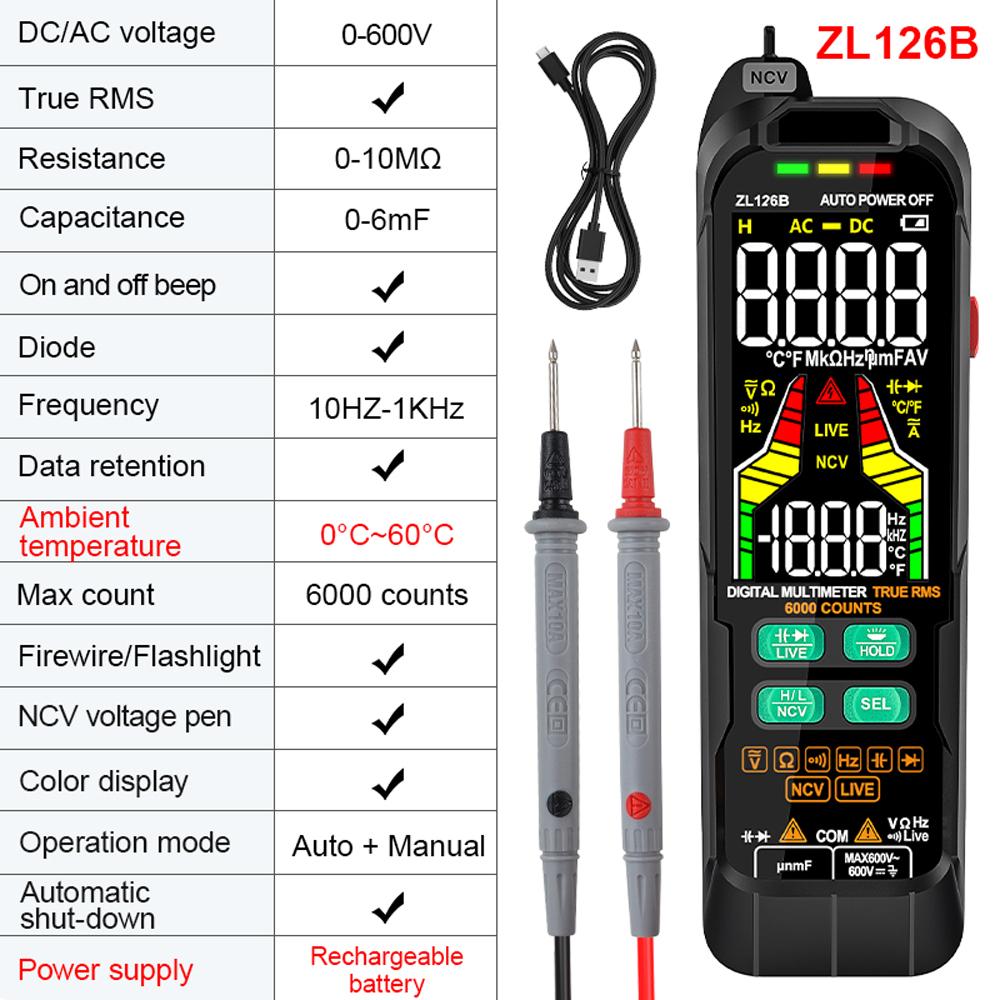

ZL126B:
6000 counts, manual auto, built-in battery (USB charging, built-in 1000mAh battery, included)

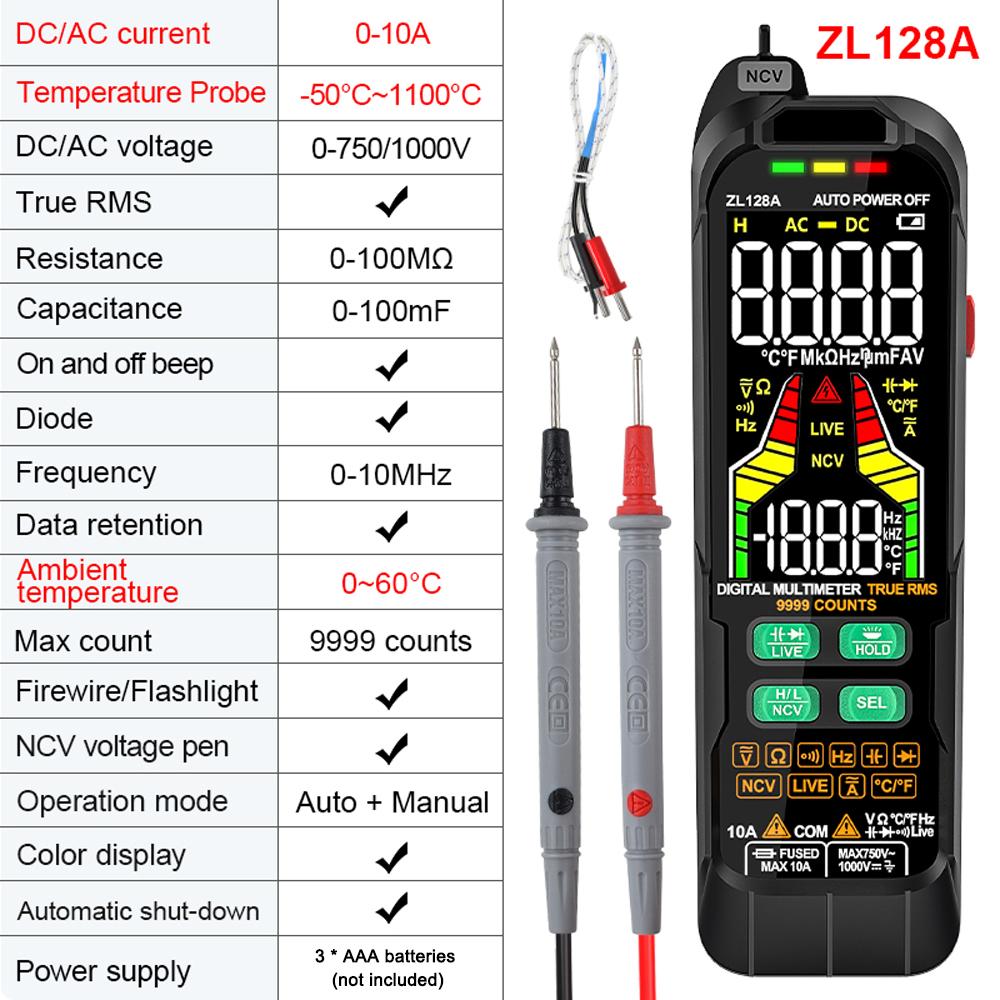

ZL128A:
9999 counts, manual auto, temperature probe, DC/AC Current, break point, carbon zinc battery (powered by 3 AAA batteries, not included)

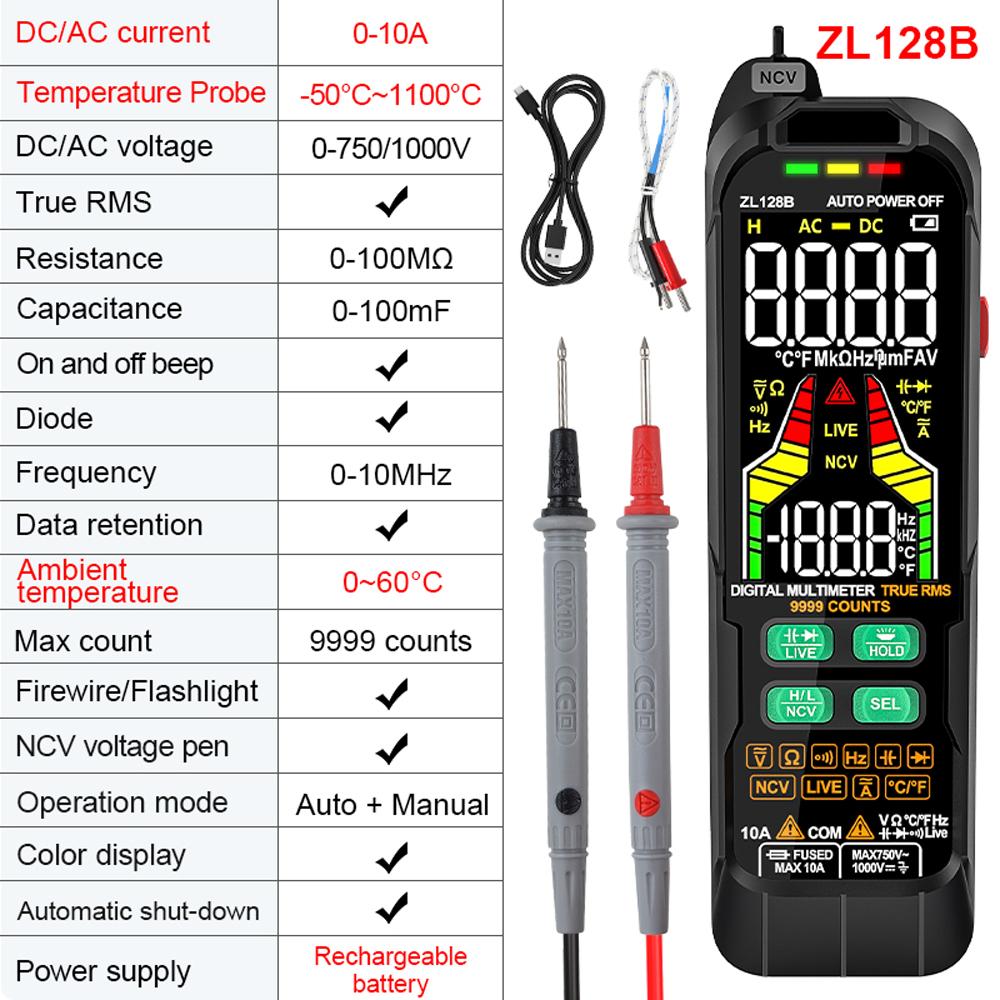

ZL128B:
9999 counts, manual auto, temperature probe, DC/AC Current, break point, built-in battery (USB charging, built-in 1000mAh battery, included)
Specifications:
Name: Multimeter
Type: ZL126A, ZL126B, ZL128A, ZL128B(optional)
Battery:
ZL126A/ZL128A:3 * AAA batteries(not included)
ZL126B/ZL128B:1 * built-in 1000mAh battery(included)
Temperature Measure:
Room temperature: 0~60℃
Probe temperature: -50~1100℃
Direct Current Voltage:
ZL126A: 0.5V-600V (Auto), 0V-600V (Manual)
ZL126B: 0.5V-600V (Auto), 0V-600V (Manual)
ZL128A: 1V-1000V (Auto), 0V-1000V (Manual)
ZL128B: 1V-1000V (Auto), 0V-1000V (Manual)
Alternating-Current Voltage:
ZL126A: 1V-600V (Auto), 0V-600V (Manual)
ZL126B: 1V-600V (Auto), 0V-600V (Manual)
ZL128A: 1V-750V (Auto), 0V-750V (Manual)
ZL128B: 1V-750V (Auto), 0V-750V (Manual)
True RMS:
ZL126A: 40-400HZ
ZL126B: 40-400HZ
ZL128A: 0-1KHz
ZL128B: 0-1KHz
AC/DC Current:
ZL126A: nonsupport
ZL126B: nonsupport
ZL128A: 0mA-10A
ZL128B: 0mA-10A
Frequency:
ZL126A: 10HZ-1KHz
ZL126B: 10HZ-1KHz
ZL128A: 0-10MHz
ZL128B: 0-10MHz
Ambient temperature:
ZL126A: 0℃~60℃
ZL126B: 0℃~60℃
ZL128A: 0℃~60℃
ZL128B: 0℃~60℃
Max count:
ZL126A: 6000 counts
ZL126B: 6000 counts
ZL128A: 9999 counts
ZL128B: 9999 counts
Data retention: yes
Firewire detection: yes
NCV voltage pen detection: yes
NCVanalog strip: yes
Color display: yes
Function indicator: yes
Flashlight light: yes
Operation mode: Auto Mode + Manual Mode
Package size: 150 * 50 * 20mm / 5.91 * 1.97 * 0.79in
Package weight: 280g / 9.88ounce
Packing List
1 * Multimeter
2 * Universal Test Pen
1 * Testlead
1 * Temperature Probe
1 * USB Cable
1 * User Manual
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn't receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
